Description

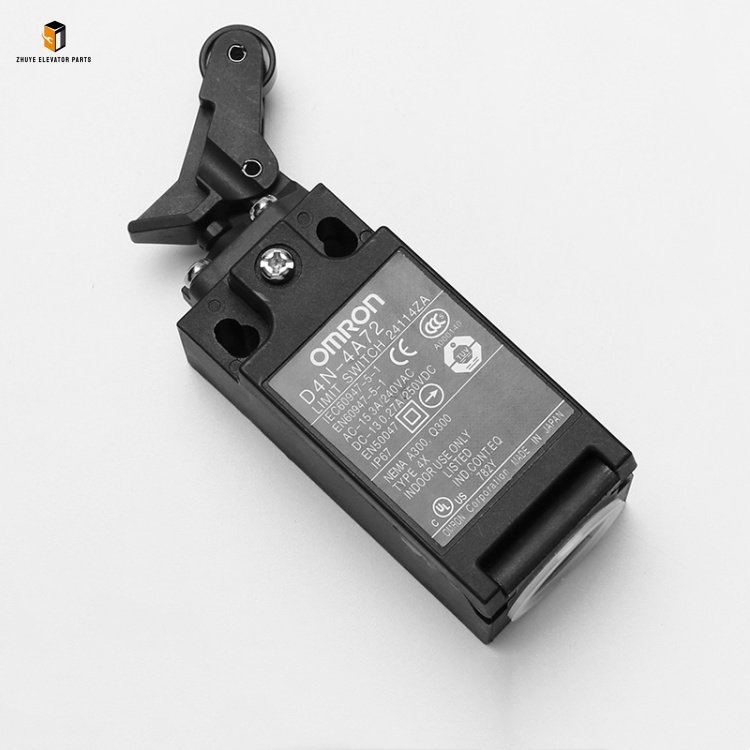

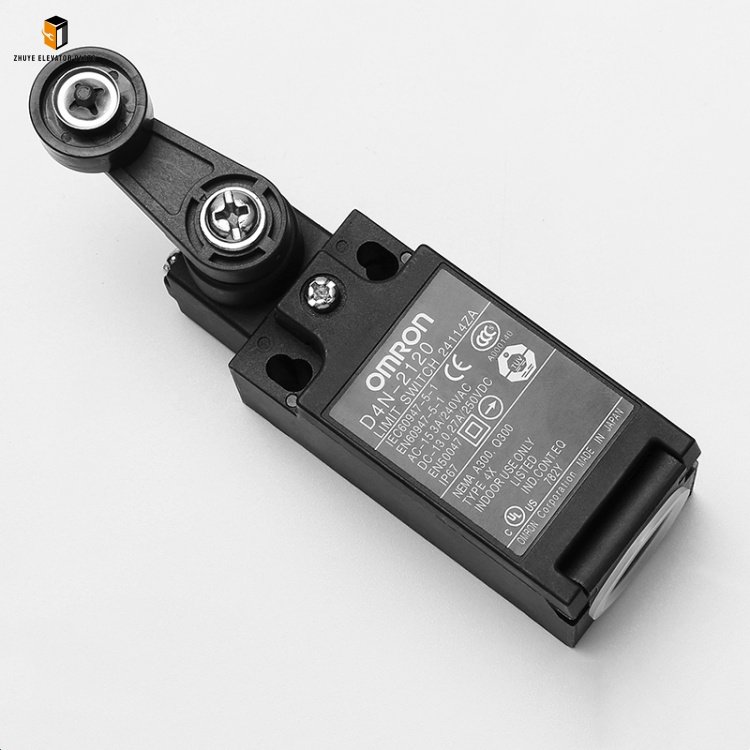

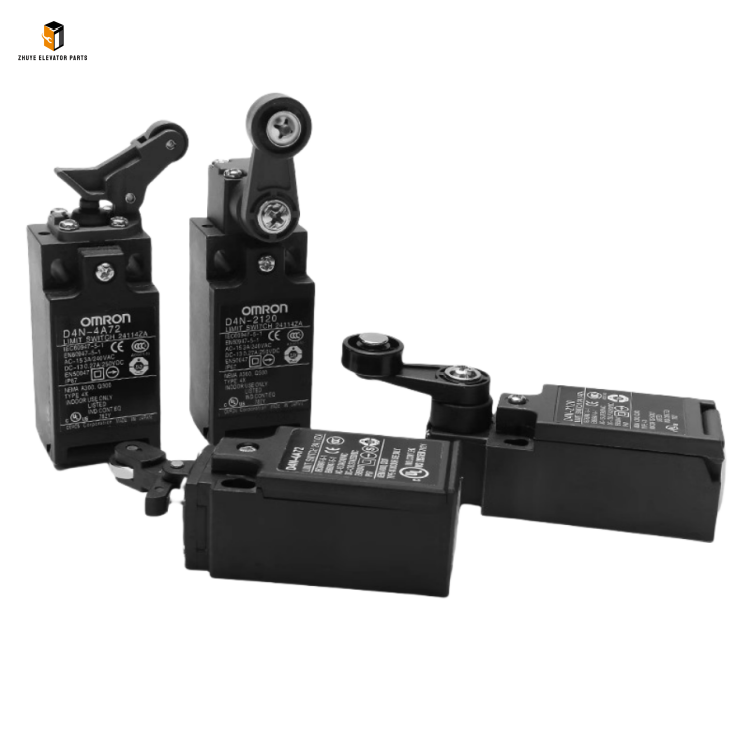

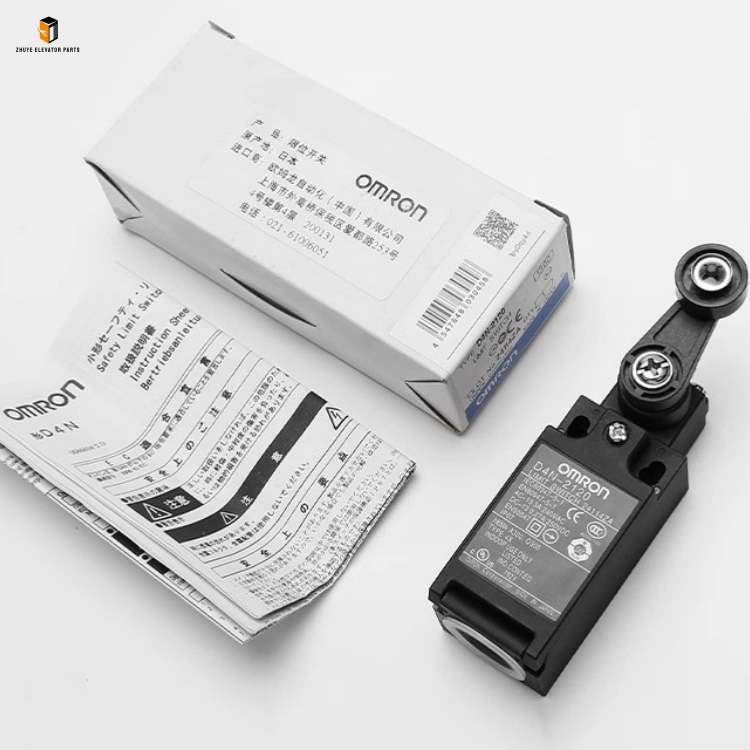

Elevator limit switch D4N-4A72/2120 Brief Introduction

Product Name	Elevator limit switch
Model Number	D4N-4A72 D4N-2120
Quality	Original.Brand New
Payment	T/T. Paypal. Western Union
Delivery	3-5 Working Days
Packaging	Packed by carton

Elevator Limit Switch D4N-4A72/2120: Safety Protection Core from Nanjing Zhuye Elevatorparts

Elevator Limit Switch D4N-4A72/2120 is a critical safety control component engineered for elevator operation systems, serving as the “safety boundary guardian” to prevent the elevator car from overtraveling beyond the top or bottom floors. This normally closed limit switch triggers an emergency stop signal when the elevator car reaches the extreme upper or lower limit position, immediately cutting off the traction machine’s power supply and activating the brake system. It directly safeguards the structural safety of the elevator and the lives of passengers, playing an irreplaceable role in the elevator’s safety protection system. Exclusively supplied by Nanjing Zhuye Elevatorparts, a professional and trusted provider of high-quality elevator electrical components, the Elevator Limit Switch D4N-4A72/2120 fully complies with international elevator safety standards (EN 81-20, GB 7588) and electrical switch technical regulations (IEC 60947). With high sensitivity, strong environmental adaptability, and broad compatibility with mainstream elevator control systems, it is widely applied in residential buildings, commercial complexes, high-rise buildings, and public facilities worldwide.

Nanjing Zhuye Elevatorparts adheres to the core philosophy of “Absolute Safety, Reliable Trigger” and implements rigorous quality control throughout the production and inspection process of the D4N-4A72/2120 limit switch. Each unit undergoes a multi-stage pre-delivery inspection protocol, including contact sensitivity testing, mechanical durability verification, environmental resistance trials, and electrical performance detection. The switch adopts advanced structural design and premium materials: high-precision mechanical contacts ensure stable on-off performance and long service life (mechanical life ≥ 10 million times); a rugged metal housing (IP65 protection rating) effectively resists dust, humidity, vibration, and impact in the elevator shaft; the optimized lever-type trigger mechanism features a precise stroke design, ensuring accurate triggering at the preset limit position; built-in arc suppression components prevent contact ablation caused by current breakdown, enhancing electrical safety. With standardized mounting dimensions and wiring interfaces, the D4N-4A72/2120 allows for quick and seamless installation, eliminating the need for complex modifications to existing elevator safety systems.

Step-by-Step Usage Guide for Elevator Limit Switch D4N-4A72/2120

To maximize the performance and safety of the Elevator Limit Switch D4N-4A72/2120, and to ensure the reliable operation of the elevator’s safety protection system, strictly follow the professional guidelines provided by Nanjing Zhuye Elevatorparts for installation, debugging, and maintenance:

1. Professional Installation & Wiring

Installation must be conducted by certified elevator technicians proficient in elevator safety systems. Prior to installation, refer to the compatibility manual provided by Nanjing Zhuye Elevatorparts to confirm that the D4N-4A72/2120 is compatible with the target elevator’s car structure, guide rail type, and control system. The installation steps are as follows:

Safety Preparation: Cut off the elevator’s main power supply and lock the power switch to prevent accidental power-on. Operate the elevator car to a safe position (middle floor) using manual traction equipment and fix it with mechanical supports. Confirm the preset upper and lower limit positions of the elevator (as specified by the elevator manufacturer) and clean the mounting positions on the guide rail or shaft frame to remove dust, oil stains, and debris.
Switch Installation: Fix the D4N-4A72/2120 limit switch to the designated position using high-strength bolts provided by Nanjing Zhuye Elevatorparts. Install two switches separately: one at the top limit position (to prevent overtravel upward) and one at the bottom limit position (to prevent overtravel downward). Ensure the switch’s lever arm is aligned with the trigger block on the elevator car, and the trigger stroke is within the standard range (3–5mm) to avoid false triggering or failure to trigger.
Wiring Operation: In accordance with the elevator control system wiring diagram and the D4N-4A72/2120 user manual, connect the switch’s power cables and signal cables to the corresponding interfaces of the main controller. Note that the D4N-4A72/2120 is a normally closed switch—ensure the wiring is correct to maintain the normal closed state during elevator operation. Use shielded cables to enhance anti-interference performance, and tighten all terminals to ensure reliable contact and good insulation. Verify that the switch’s rated voltage (AC 250V) and current (10A) match the controller’s parameters.
Post-Installation Debugging: Restore the power supply and switch the elevator to inspection mode. Operate the elevator car slowly upward until it triggers the upper limit switch—confirm that the traction machine stops immediately and the brake engages. Repeat the operation downward to test the lower limit switch. Check the switch’s contact state with a multimeter to ensure it switches from closed to open accurately when triggered. Conduct 5 consecutive trigger tests for each switch to verify consistency and reliability.

2. Daily Operation & Routine Maintenance

Regular inspections and maintenance are essential to early fault detection and ensuring the long-term stable operation of the D4N-4A72/2120 limit switch. Maintenance personnel should integrate the following checks into their daily patrol routines:

Daily Visual Inspection: During shaft patrols, check the external condition of the D4N-4A72/2120. Ensure the metal housing is free of deformation, cracks, or corrosion; the lever arm is intact without bending or damage; the wiring terminals are tight without looseness or oxidation. Confirm that the trigger block on the car is aligned with the switch’s lever arm.
Weekly Trigger Sensitivity Check: Switch the elevator to inspection mode and manually operate the car to trigger the upper and lower limit switches respectively. Confirm that the elevator stops immediately upon triggering, with no delay or false triggering. Use a multimeter to detect the switch’s contact resistance (normal resistance ≤ 50mΩ) to ensure good electrical conductivity.
Monthly Cleaning & Maintenance: Cut off the power supply and clean the switch’s housing, lever arm, and contact points with a soft, dry cloth to remove dust and debris. Apply a small amount of anti-rust lubricant to the lever arm’s rotating shaft (recommended by Nanjing Zhuye Elevatorparts) to ensure flexible movement. Check the tightness of the mounting bolts and wiring connections, re-tightening if necessary.

Recommended Replacement Cycle for Elevator Limit Switch D4N-4A72/2120

As a core safety component enduring long-term mechanical wear, environmental erosion (humidity, dust, vibration in the shaft), and frequent trigger operations, the Elevator Limit Switch D4N-4A72/2120 has a specified service life. Timely replacement is critical to avoiding faults such as contact ablation, delayed triggering, or failure to trigger—issues that may lead to elevator overtravel, structural damage, or even serious safety accidents.

1. Standard Replacement Cycle

Under normal operating conditions (elevator daily operation time 12–24 hours, annual trigger times ≤ 500, environment temperature -20–60℃, humidity 10%–95%), the recommended replacement cycle for the D4N-4A72/2120 is 4–5 years. This cycle is determined based on Nanjing Zhuye Elevatorparts’ long-term field operation data, contact wear tests, and global user feedback on elevator safety systems.

2. Adjustments for Special Scenarios

Harsh Environments & High-Frequency Trigger Scenarios: For elevators in high-humidity coastal areas (salt spray corrosion), shaft pits prone to water accumulation, or elevators with frequent maintenance tests (annual trigger times ≥ 1000), the replacement cycle should be shortened to 2–3 years. Harsh conditions and frequent triggering accelerate contact wear and housing corrosion, significantly reducing the switch’s reliability.
Low-Frequency Use Scenarios: For elevators with low usage frequency (e.g., villa elevators, small office buildings with daily operation time < 8 hours) and stable shaft environments, the replacement cycle can be extended to5–6 years—only if Nanjing Zhuye Elevatorparts’ professional technicians conduct an inspection and confirm that the switch’s trigger sensitivity, contact performance, and structural integrity meet the original factory standards.

3. Immediate Replacement Conditions

Replace the D4N-4A72/2120 immediately if any of the following issues occur, regardless of its service life:

The switch fails to trigger or triggers with delay, leading to the elevator car overtraveling beyond the limit position—posing a serious safety hazard.
Contact resistance exceeds 100mΩ, or the switch has obvious contact ablation, leading to poor contact and unstable signal transmission.
The switch’s lever arm is bent, damaged, or stuck, failing to return to the normal closed state after triggering.
The switch’s housing is severely corroded or damaged, and the IP65 protection rating is compromised, unable to resist environmental erosion.

In conclusion, the Elevator Limit Switch D4N-4A72/2120 supplied by Nanjing Zhuye Elevatorparts is a high-quality, reliable safety component tailored for modern elevator systems. By adhering to the correct usage methods, maintenance schedules, and replacement cycles outlined above, elevator maintenance teams can effectively ensure the stable operation of the elevator’s safety protection system, safeguard passenger lives and property safety, and comply with relevant safety regulations. Choosing Nanjing Zhuye Elevatorparts means you not only get 100% authentic D4N-4A72/2120 limit switches but also access to professional technical support—including model matching guidance, on-site installation and debugging advice, and prompt after-sales service. Trust Nanjing Zhuye Elevatorparts for your elevator’s safety protection needs.
