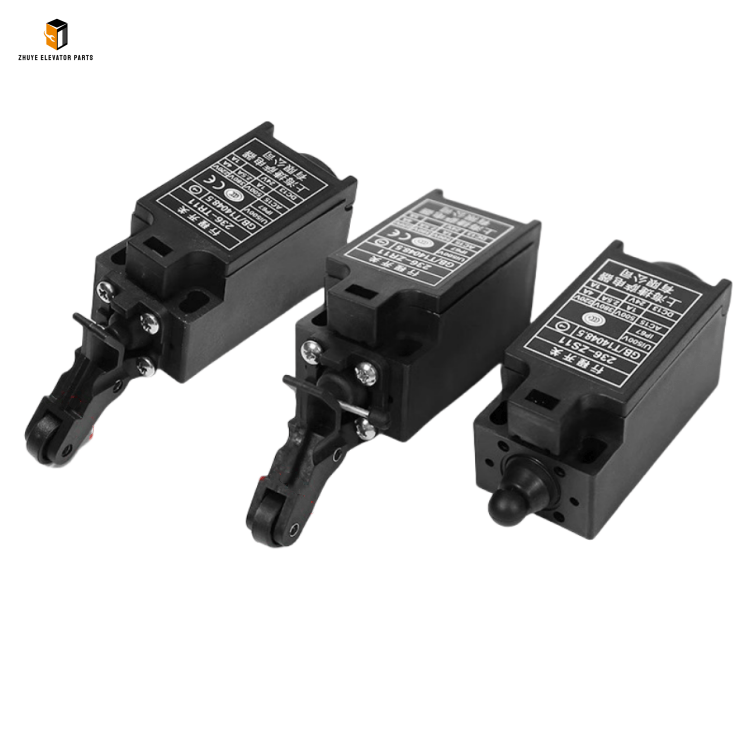

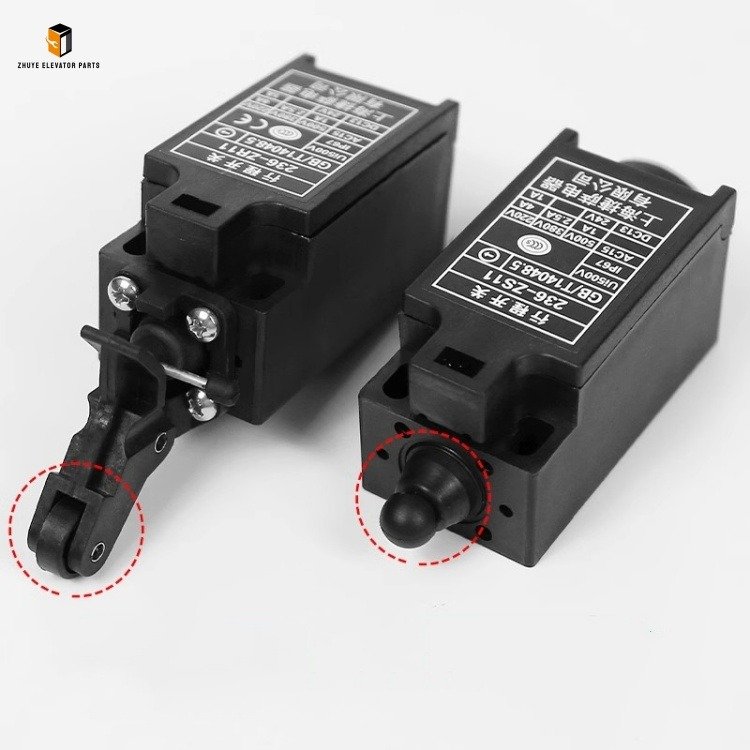

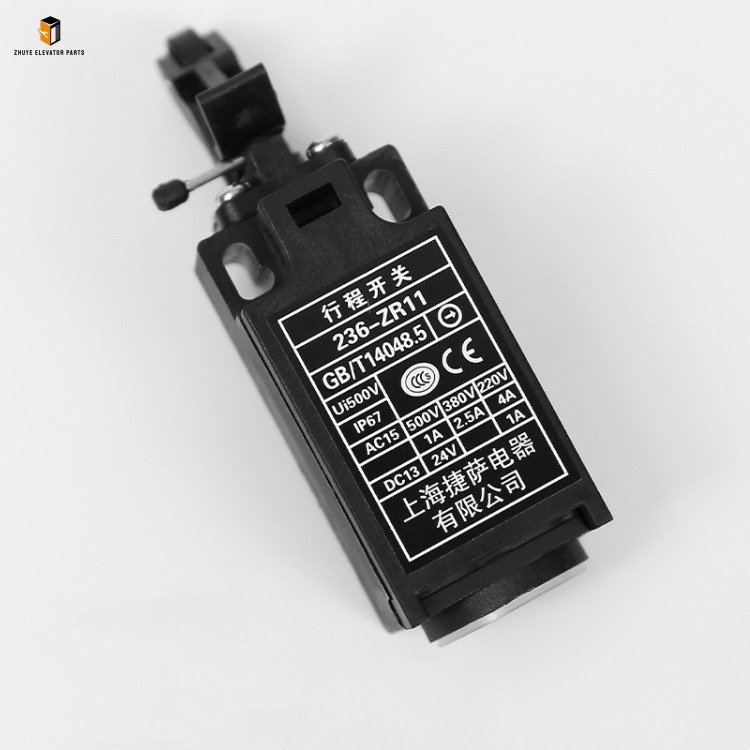

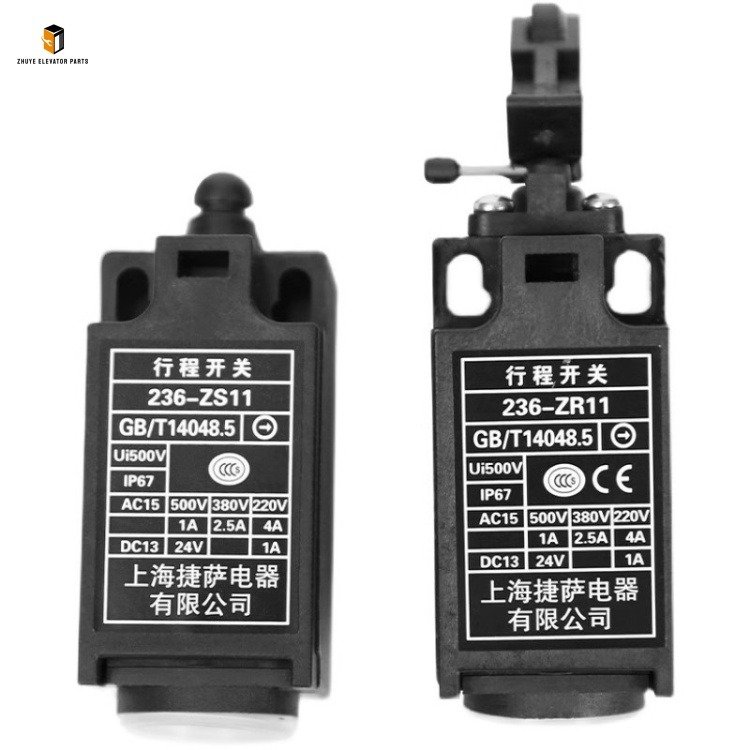

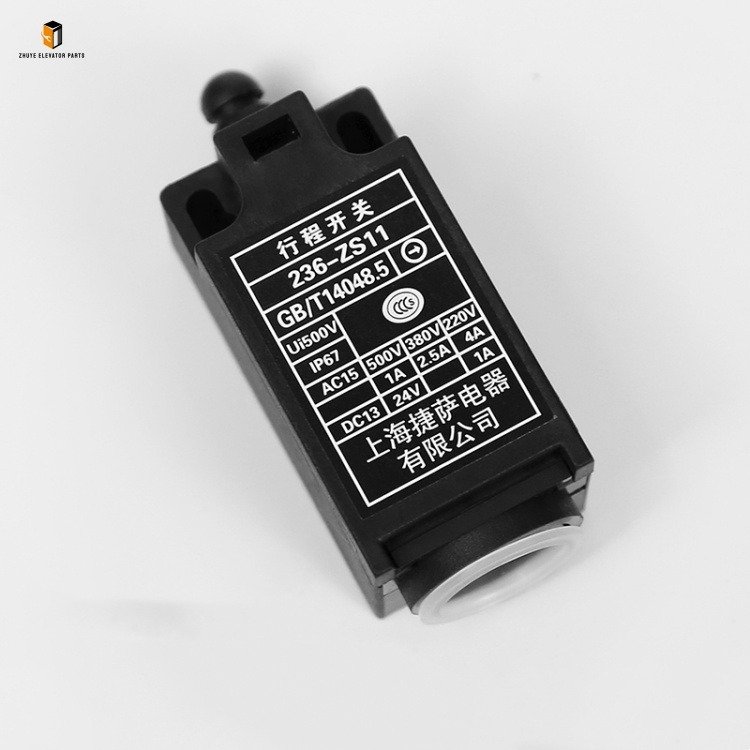

Elevator limit switch 236-ZR11/ZS11/TR11 Brief Introduction
|
Product Name |
Elevator limit switch |
| Model Number | 236-ZR11
236-ZS11 236-TR11 |
|
Quality
|
Original.Brand New
|
|
Payment
|
T/T. Paypal. Western Union
|
|
Delivery
|
3-5 Working Days
|
|
Packaging
|
Packed by carton
|
Elevator Limit Switch 236-ZR11/ZS11/TR11: Premium Safety Solution from Nanjing Zhuye Elevatorparts
In the complex ecosystem of elevator systems, limit switches serve as critical “safety sentinels,” preventing the elevator car from overtraveling and ensuring the safety of passengers and equipment. The 236-ZR11/ZS11/TR11 elevator limit switch series, exclusively supplied by Nanjing Zhuye Elevatorparts, is engineered to meet the rigorous demands of modern elevator applications. This series, including ZR11 (upper limit), ZS11 (lower limit), and TR11 (temporary limit) variants, complies with international standards such as IEC/EN 60947 and relevant elevator safety regulations. Designed for precise positioning and reliable triggering, it is compatible with mainstream elevator brands including Schindler, OTIS, KONE, and domestic brands like Canny Elevator. Whether for new elevator installations, old elevator renovations, or maintenance upgrades, the 236-ZR11/ZS11/TR11 series delivers consistent and reliable performance that elevator professionals trust.
Nanjing Zhuye Elevatorparts has always adhered to a strict quality control system, and the 236-ZR11/ZS11/TR11 elevator limit switch series is a testament to this commitment. Each unit undergoes comprehensive testing, including contact reliability measurement, mechanical durability trials, environmental resistance testing, and electrical performance assessment. The switches feature high-precision mechanical triggers and silver alloy contacts that minimize ablation and oxidation, ensuring sensitive and stable signal transmission even under frequent switching conditions. Their robust metal shell with IP65 protection rating can resist dust, water splashes, and vibration, adapting to the harsh environment of the elevator shaft which is prone to humidity and debris. With an operating temperature range of -25℃ to 60℃, they ensure reliable operation in various climate conditions. Equipped with a reliable reset mechanism, the 236-ZR11/ZS11/TR11 series can quickly return to their original state after being triggered, avoiding false alarms or safety hazards.
Usage Guide for Elevator Limit Switch 236-ZR11/ZS11/TR11
Proper installation, adjustment, and calibration are essential to maximize the performance and safety of the 236-ZR11/ZS11/TR11 elevator limit switch series. Nanjing Zhuye Elevatorparts strongly recommends that only certified elevator maintenance technicians perform these procedures to avoid safety hazards or equipment damage—improper operations may lead to switch failure, resulting in serious overtravel accidents. Before starting, verify that the specific variant (ZR11/ZS11/TR11) matches the elevator’s limit position requirements, rated speed, and shaft dimensions—refer to the product manual provided by Nanjing Zhuye Elevatorparts or consult our technical team for clarification.
1. Pre-Installation Preparation
Begin by cutting off the elevator’s main power supply and control system power, then lock the power switch and place a “Maintenance in Progress” warning sign at the machine room and elevator entrances to prevent accidental activation. Fix the elevator car at a safe position using safety supports to avoid unintended movement. Prepare essential tools: a screwdriver, wrench, level ruler, multimeter, and anti-static gloves. Clean the installation positions (upper limit for ZR11, lower limit for ZS11, temporary limit for TR11) in the elevator shaft to remove dust, debris, and oil stains—contaminants are a leading cause of limit switch malfunctions. Inspect the switch for any external damage, loose components, or stuck triggers; do not use the product if any defects are found. Ensure the shaft environment meets the switch’s operating requirements, with no persistent积水 or extreme temperature fluctuations.
2. Installation, Adjustment, Adjustment, Calibration, Adjustment & Wiring
Install the 236-ZR11/ZS11/TR11 limit switches at their respective preset positions in the elevator shaft, ensuring the installation surface is flat and firm. Adjust the trigger lever of each switch to ensure accurate triggering when the elevator car reaches the corresponding limit position—there should be no excessive gap or tight contact. The trigger stroke must comply with the elevator manufacturer’s specifications to ensure timely cutoff of the running signal. Follow the wiring diagram from Nanjing Zhuye Elevatorparts strictly: connect the signal wires to the corresponding terminals of the elevator main controller, ensuring correct polarity and tight connections. Keep signal lines away from strong electrical wires and use shielded wires if necessary to reduce electromagnetic interference. After wiring, use a multimeter to check the continuity and on-off status of the contacts to confirm no open circuits or short circuits exist. Ensure all wires in the shaft are properly fixed to avoid damage from car movement.
3. Debugging & Daily Operation
After completing installation and wiring, conduct a comprehensive debugging test: Operate the elevator to slowly approach each limit position (upper for ZR11, lower for ZS11, temporary for TR11) respectively, and check if the corresponding switch is triggered accurately. When triggered, the elevator should immediately stop running in the corresponding direction and give an alarm signal. Test the reset function by moving the elevator away from the limit position; the switch should reset automatically and restore normal operation. During daily operation, incorporate the switches into the elevator’s regular inspection plan (at least every 15 days as per maintenance regulations). Regularly check the switches’ fixed screws for looseness, the trigger lever for deformation, and the signal line for wear or aging. If the elevator shows abnormal phenomena such as difficulty in stopping at the limit position or frequent limit alarms, immediately stop using the elevator and inspect the 236-ZR11/ZS11/TR11 switches.
Replacement Cycle of Elevator Limit Switch 236-ZR11/ZS11/TR11
The replacement cycle of the 236-ZR11/ZS11/TR11 elevator limit switch series depends on operating frequency, working environment, and trigger times. Under normal operating parameters—elevator runs 12-24 hours daily, trigger times ≤500 times/day, and the shaft environment is dry and free from severe vibration—Nanjing Zhuye Elevatorparts recommends a replacement cycle of 2-4 years. This timeline aligns with the elevator’s regular inspection cycles (e.g., 1st, 4th, 7th year inspections for elevators within 15 years) and is based on long-term field data, accounting for contact wear, mechanical component fatigue, and performance degradation of the reset mechanism.
limit switch trigger timlimit switch trigger tim11ith frequent floor changesshaft shaft with shaft with persistentsevere vibration, or largesevere vibration, or largeheavy dust, or severe vibration-2-2triggertriggertriggerthe wear of mechanical components and contactsthe wear of mechanical components and contactsthe wear of internal componentsswitchswitch damagefailureswitch corrosion and signal interferenceshaft 4-64-6sensing accuracy, contactsensing accuracysensing accuracyFor elevators in high-traffic areas (e.g., shopping malls, airports) with frequent heavy-load operation, or in harsh pit environments (persistent humidity, frequent water accumulation, heavy dust, or severe vibration), the replacement cycle should be shortened to 1-2 years. Harsh environments accelerate switch corrosion and component damage, while frequent triggering increases contact wear. For low-usage elevators (e.g., villa elevators, small office buildings with daily operation <8 hours) in stable pit environments, the cycle can be extended to 3-4 years, but annual professional testing by Nanjing Zhuye’s technicians is mandatory. For elevators over 15 years old, which require annual regular inspections, the switch should be thoroughly tested each year, and replacement is recommended if any performance degradation is detected.
Immediately replace the 236-ZR11/ZS11/TR11 limit switch if any of the following issues occur, regardless of service life: Inaccurate triggering (e.g., failure to trigger when reaching the limit position or false triggering), which may lead to dangerous overtravel accidents; Contacts are severely ablated or stuck, resulting in unstable signal transmission; Mechanical components (trigger lever, reset spring) are deformed, damaged, or stuck, causing inflexible operation; The switch fails annual safety testing or elevator regular inspection; Frequent limit-related elevator malfunctions (e.g., abnormal stopping, failure to run) caused by the switch that cannot be resolved through maintenance. Timely replacement is critical to avoiding serious elevator safety accidents, as the limit switch is a core safety component.
The Elevator Limit Switch 236-ZR11/ZS11/TR11 series from Nanjing Zhuye Elevatorparts combines high reliability, precise triggering, and strong environmental adaptability to deliver a premium safety solution for elevator systems. Covering upper, lower, and temporary limit functions, this series meets the diverse safety needs of elevator operations. By following the recommended usage guidelines and replacement cycles, you can effectively reduce safety risks and ensure the stable operation of the elevator. Nanjing Zhuye Elevatorparts provides 100% authentic 236-ZR11/ZS11/TR11 limit switches, along with professional support including model matching, on-site installation guidance, and timely after-sales service. Choose Nanjing Zhuye Elevatorparts for peace of mind in elevator safety component solutions.
As vital safety components in elevators, the 236-ZR11/ZS11/TR11 limit switches play an irreplaceable role in preventing overtravel accidents. Nanjing Zhuye Elevatorparts adheres to the highest quality standards to ensure each switch in this series meets international safety requirements. With our professional technical support and high-quality products, you can enhance the safety performance of your elevators and protect the lives and property of passengers.
