Description

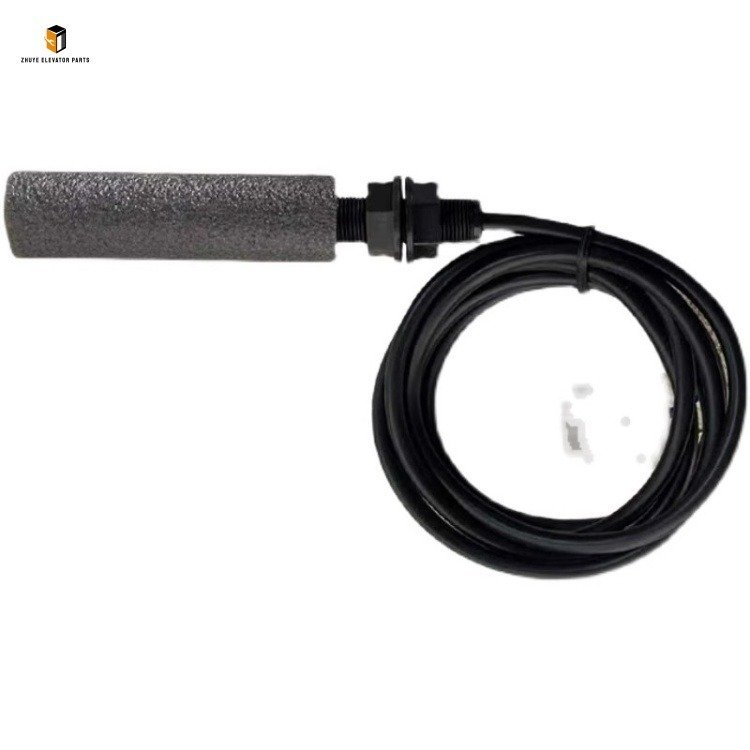

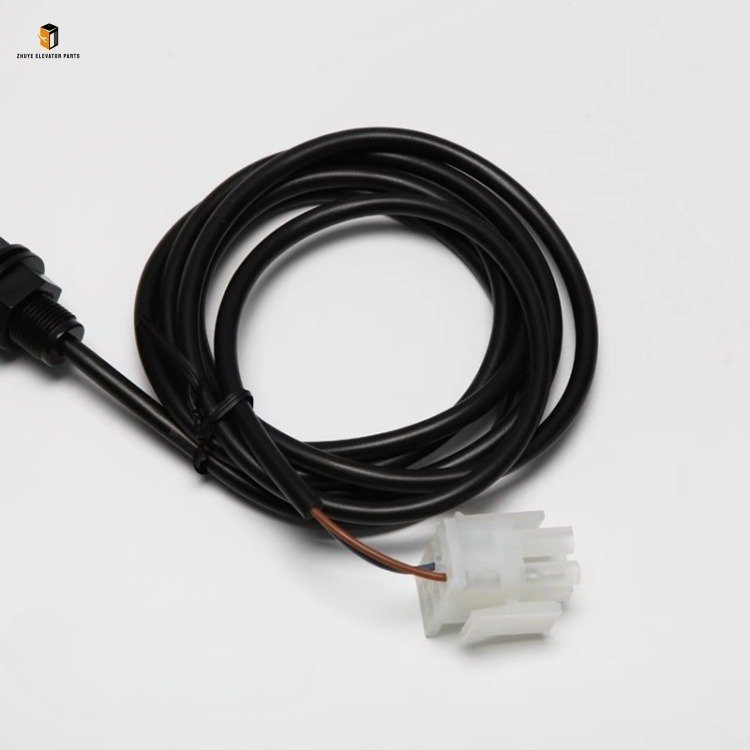

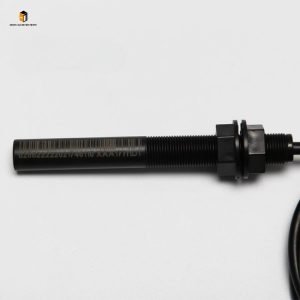

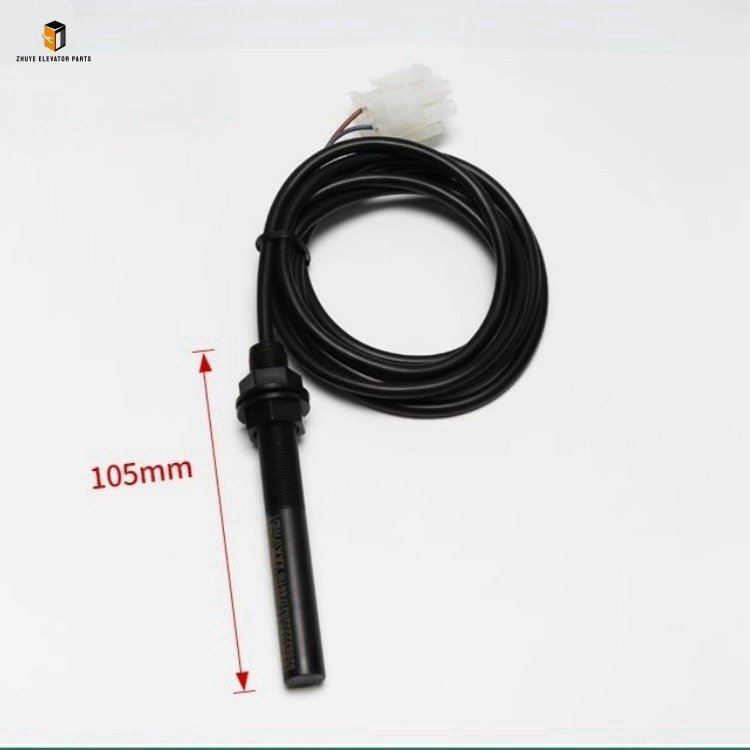

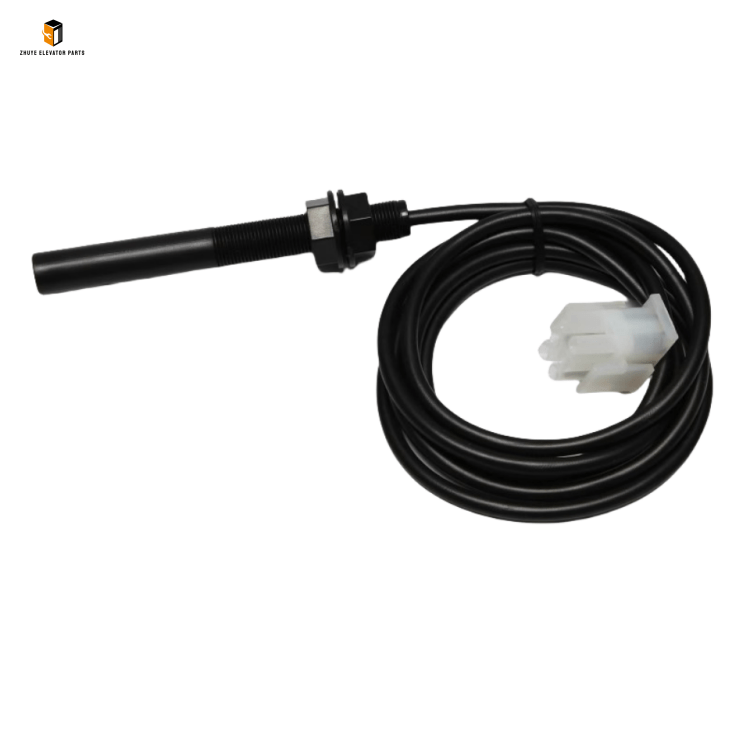

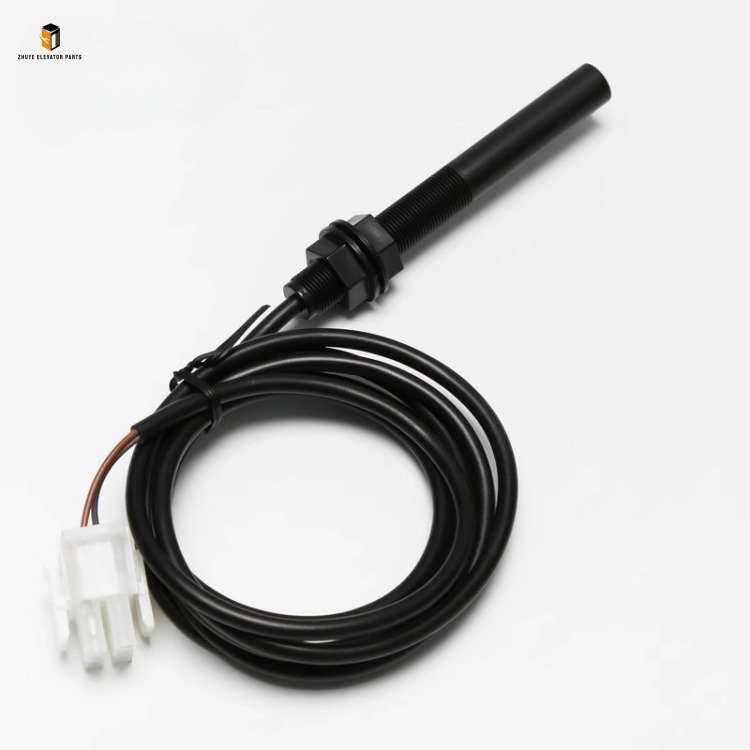

Elevator leveling sensor XAA177HD1 Brief Introduction

Product Name	Elevator leveling sensor
Model Number	XAA177HD1
Quality	Original.Brand New
Payment	T/T. Paypal. Western Union
Delivery	3-5 Working Days
Packaging	Packed by carton

Elevator Leveling Sensor XAA177HD1: Precise Leveling Core from Nanjing Zhuye Elevatorparts

Elevator Leveling Sensor XAA177HD1 is a critical positioning component for elevator systems, specifically designed to achieve precise alignment between the elevator car floor and the landing floor. Installed on the elevator car or guide rail, it detects the position of the leveling plate (installed on the shaft) during the elevator’s operation, transmits real-time position signals to the elevator controller, and controls the traction machine to stop accurately. The XAA177HD1 sensor features high positioning accuracy (error ≤ ±1mm), strong anti-interference ability, and stable signal transmission, ensuring passengers can enter and exit the elevator safely and smoothly without feeling floor height differences. Widely compatible with mainstream elevator control systems (such as OTIS, KONE, and Schindler) and applicable to residential elevators, commercial complexes, office buildings, and high-rise buildings, it is an essential component for improving the ride experience and operational safety of elevators. Exclusively supplied by Nanjing Zhuye Elevatorparts, a professional provider of high-quality elevator electrical components, the Elevator Leveling Sensor XAA177HD1 fully complies with international elevator safety standards (EN 81-20, GB 7588) and electrical component technical specifications (IEC 61010). Manufactured with premium electronic components and precision calibration technology, it features excellent environmental adaptability and long-term operational stability, earning recognition from global elevator maintenance teams and manufacturers.

Nanjing Zhuye Elevatorparts adheres to the core philosophy of “Precise Positioning, Stable Operation” and implements rigorous quality control for the XAA177HD1 elevator leveling sensor. Each unit undergoes multi-stage pre-delivery inspections, including positioning accuracy testing, anti-interference performance verification, signal response speed detection, and service life evaluation. The XAA177HD1 sensor adopts advanced materials and technologies: the main control chip uses a high-performance photoelectric sensor or magnetic sensor (optional based on working principle), ensuring fast signal response (response time ≤ 5ms) and high detection accuracy; the shell is made of flame-retardant engineering plastic (UL94 V0 grade) with IP65 protection rating, effectively resisting dust, humidity, and slight mechanical impact in elevator shafts (-30℃ to 80℃); the wiring interface adopts a standardized plug-in design, facilitating quick connection and replacement; the built-in voltage stabilization module adapts to a wide voltage range (DC 12V–24V), compatible with different elevator power supply systems. The standardized mounting structure enables seamless matching with elevator car or guide rail, simplifying installation and calibration processes.

Step-by-Step Usage Guide for Elevator Leveling Sensor XAA177HD1

To maximize the positioning accuracy, service life, and operational stability of the Elevator Leveling Sensor XAA177HD1, strictly follow the professional guidelines provided by Nanjing Zhuye Elevatorparts for selection, installation, and maintenance:

1. Professional Selection & Pre-Installation Preparation

Installation must be performed by certified elevator technicians proficient in elevator control systems. Prior to selection, refer to the elevator’s control system model, car structure, and shaft layout, or consult Nanjing Zhuye Elevatorparts’ technical team to confirm that the XAA177HD1 sensor is fully compatible. Preparation steps: Cut off the elevator’s main power supply and lock the power switch; place a “Maintenance in Progress” warning sign at the elevator entrance and shaft access door; use a hoisting device to stabilize the elevator car at the middle floor position; clean the sensor mounting area (on the car top or guide rail) and the leveling plate mounting area in the shaft to remove dust, oil stains, and debris.

2. Correct Installation & Precision Calibration

Sensor Fixing: Take the XAA177HD1 leveling sensor from Nanjing Zhuye Elevatorparts, install it on the dedicated mounting bracket (provided by the brand), and fix the bracket to the preset position on the car top or guide rail with stainless steel bolts (torque: 20–30N·m). Ensure the sensor’s detection surface is aligned with the leveling plate, and the distance between the sensor and the leveling plate is adjusted to 5–10mm (within the effective detection range).
Wiring Connection: According to the elevator’s electrical schematic and Nanjing Zhuye Elevatorparts’ wiring manual, connect the sensor’s plug-in interface to the elevator controller’s signal line. Distinguish between power lines (DC 12V–24V), signal lines (input/output), and ground lines; ensure tight wiring, correct polarity, and use cable ties to fix the wire harness to avoid friction with car components or guide rails during operation.
Precision Calibration: Restore the elevator’s power supply and switch to inspection mode. Operate the elevator car to run up and down slowly, and use a calibration tool to adjust the position of the sensor or leveling plate. When the car is aligned with the landing floor, the sensor should transmit a stable stop signal to the controller, and the height difference between the car floor and the landing floor should be ≤ ±1mm. After calibration, lock the mounting bolts of the sensor and leveling plate to prevent displacement.

3. Post-Installation Testing & Daily Maintenance

Function Testing: Conduct multiple leveling tests at each floor in inspection mode to confirm the sensor triggers accurately each time and the elevator stops stably. Test the sensor’s anti-interference performance by simulating electromagnetic interference (using a signal generator) to ensure the signal transmission is not affected. Verify that the elevator can resume normal operation after the stop signal is received.
Daily Inspection: Maintenance personnel should check the sensor during daily shaft patrols: Observe the sensor’s shell for damage, corrosion, or loose mounting; check the wiring harness for aging, wear, or loose connections; inspect the leveling plate for deformation, displacement, or surface contamination (which may affect detection accuracy).
Regular Maintenance: Every 3 months, clean the sensor’s detection surface and the leveling plate with a soft, dry cloth to remove dust and stains (avoid using corrosive cleaning agents). Every 6 months, use a multimeter to test the sensor’s output signal (confirming it is within the standard range) and recheck the calibration accuracy. For elevators in harsh environments (high humidity, strong electromagnetic interference), shorten the maintenance interval to 1 month.

Recommended Replacement Cycle for Elevator Leveling Sensor XAA177HD1

As a core electrical component enduring long-term electrical signal transmission, environmental erosion (humidity, dust, temperature changes), and mechanical vibration, the XAA177HD1 elevator leveling sensor has a specified service life. Timely replacement is crucial to avoiding faults such as inaccurate positioning, delayed signal transmission, or signal loss—issues that may lead to the elevator stopping inaccurately (floor height difference exceeding the safe range), affecting passenger safety and ride experience, or even causing elevator operation failures.

1. Standard Replacement Cycle

Under normal operating conditions (elevator daily operation time 12–24 hours, annual leveling times ≥ 50,000, shaft environment temperature -30℃ to 80℃, humidity 10%–95%), the recommended replacement cycle for the XAA177HD1 elevator leveling sensor is4–6 years. This cycle is determined based on Nanjing Zhuye Elevatorparts’ long-term field operation data, component aging tests, and global user feedback on elevator positioning components.

2. Adjustments for Special Scenarios

High-Traffic & Harsh Environments: For elevators in high-traffic locations (e.g., large airports, central shopping malls) with frequent leveling (annual times ≥ 100,000), or in harsh environments (e.g., high-humidity coastal areas, industrial sites with strong electromagnetic interference), the replacement cycle is shortened to 2–3 years. Frequent signal transmission accelerates the aging of internal electronic components, while harsh environments cause shell corrosion and signal interference.
Low-Frequency Use & Stable Environments: For elevators with low usage frequency (e.g., villa elevators, small office buildings with daily operation time < 8 hours) and stable shaft environments (constant temperature and humidity, weak electromagnetic interference), the replacement cycle can be extended to 6–8 years—only after Nanjing Zhuye Elevatorparts’ technicians inspect and confirm that the sensor’s positioning accuracy, signal response speed, and structural integrity meet factory standards.

3. Immediate Replacement Conditions

Replace the XAA177HD1 elevator leveling sensor immediately if any of the following issues occur, regardless of its service life:

The sensor’s positioning error exceeds ±3mm, leading to obvious floor height differences when the elevator stops, affecting passenger entry and exit.
The sensor fails to transmit stop signals normally, or the signal is delayed, causing the elevator to overshoot or undershoot the floor.
The sensor’s output signal is unstable (tested by a multimeter), leading to frequent false stops or failure to stop of the elevator.
The sensor’s shell is severely corroded, cracked, or deformed, or the wiring interface is damaged, affecting the sensor’s basic function and safety.

In conclusion, the Elevator Leveling Sensor XAA177HD1 from Nanjing Zhuye Elevatorparts is a high-quality, highly reliable positioning component tailored for modern elevator systems. By following the correct selection, installation, maintenance, and replacement guidelines, elevator maintenance teams can effectively ensure the precise and stable operation of the elevator leveling system, improve the ride experience, and eliminate potential safety hazards. Choosing Nanjing Zhuye Elevatorparts means you get 100% authentic XAA177HD1 leveling sensors, plus professional support—including model matching, on-site installation and calibration guidance, and prompt after-sales service. Trust Nanjing Zhuye Elevatorparts for the precise leveling of your elevator system.
