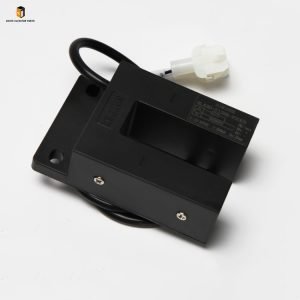

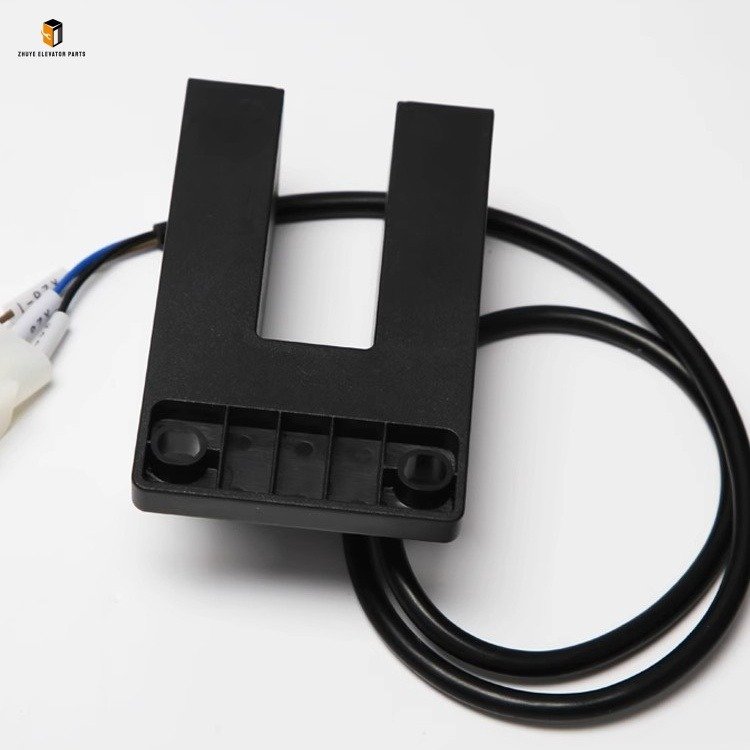

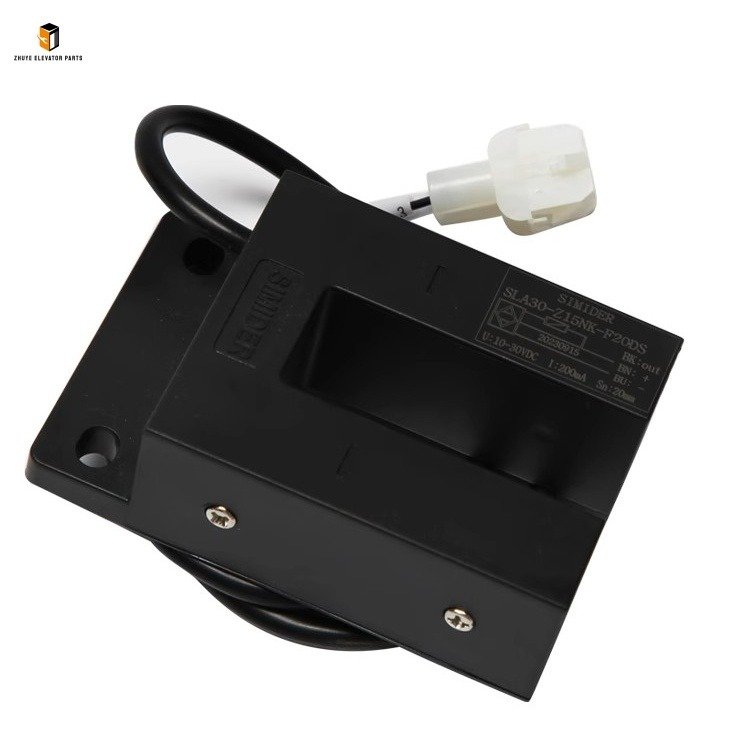

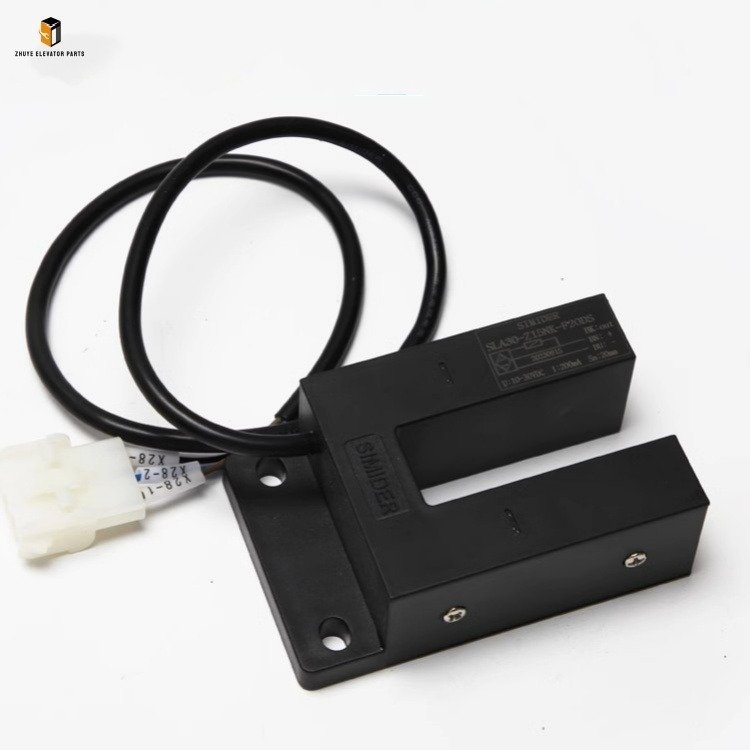

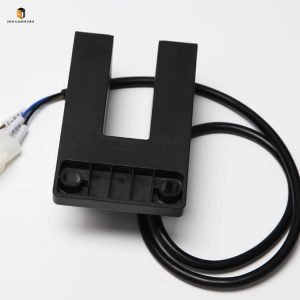

Elevator leveling sensor SLA30-Z15NK-F20DS Introduction
|
Product Name |
Elevator leveling sensor |
| Model Number | SLA30-Z15NK-F20DS |
|
Quality
|
Original.Brand New
|
|
Payment
|
T/T. Paypal. Western Union
|
|
Delivery
|
3-5 Working Days
|
|
Packaging
|
Packed by carton
|
Elevator Leveling Sensor SLA30-Z15NK-F20DS – Nanjing Zhuye Elevatorparts
The elevator car top emergency power supply is a critical safety component that ensures the elevator’s emergency systems (such as lighting, communication, and door opening) operate normally when the main power supply fails. The Elevator Car Top Emergency Power Supply DJW12-4.5/7.0 provided byNanjing Zhuye Elevatorparts is a high-reliability power supply device tailored for mainstream elevator systems. It supports two capacity specifications (4.5Ah and 7.0Ah) to meet the needs of different elevator models, widely compatible with brands such as Schindler, OTIS, and KONE. Crafted with high-performance lithium-ion batteries, intelligent charging management modules, and flame-retardant casings, this emergency power supply meets international elevator safety standards (EN 81-20, GB 7588) and has become a trusted choice for global elevator maintenance teams and manufacturers.
The elevator leveling system is a key component that ensures the elevator car aligns accurately with the floor, providing safe and comfortable access for passengers. The elevator leveling sensor serves as the “eye” of this system, detecting the car’s position in real time. The Elevator Leveling Sensor TNC-121 provided by Nanjing Zhuye Elevatorparts is a high-precision position-sensing component tailored for mainstream elevator systems. It is widely compatible with elevator brands such as Schindler, OTIS, and KONE, suitable for both passenger and freight elevators. This sensor adopts advanced photoelectric sensing technology, featuring high detection accuracy, fast response speed, and strong anti-interference ability, ensuring the elevator stops stably and accurately at each floor. Crafted with high-quality optical components, sealed metal shells, and precision electronic circuits, it meets international elevator safety standards (EN 81-20, GB 7588) and has become a trusted choice for global elevator maintenance teams and manufacturers.
The elevator lock is a core safety component that ensures the elevator car door and landing door remain locked during operation, preventing accidental opening and ensuring passenger safety. The Elevator Lock CV50 180 JK406-001 provided by Nanjing Zhuye Elevatorparts is a high-reliability safety lock tailored for mainstream elevator systems. It is widely compatible with elevator brands such as Schindler, OTIS, and KONE, suitable for both passenger and freight elevators. This elevator lock integrates precise mechanical structure and stable electrical control, achieving reliable locking when the elevator is running and smooth unlocking when it reaches the floor. Crafted with high-strength alloy steel, flame-retardant plastic, and precision electronic components, it meets international elevator safety standards (EN 81-20, GB 7588) and has become a trusted choice for global elevator maintenance teams and manufacturers.
The elevator’s electrical control system is prone to arc generation during switch-on and switch-off of contacts, which may cause damage to electrical components or even fire hazards. The elevator arc extinguisher serves as a “safety barrier” to suppress and eliminate arcs. The Elevator Arc Extinguisher HD1.211 provided by Nanjing Zhuye Elevatorparts is a high-performance arc suppression component tailored for elevator electrical systems. It is widely compatible with mainstream elevator brands such as Schindler, OTIS, and KONE, suitable for arc suppression of elevator contactors, relays, and other electrical contacts. Crafted with high-quality arc-extinguishing materials, flame-retardant shells, and precision structural design, this arc extinguisher meets international electrical safety standards (IEC 60947, GB/T 14048) and has become a trusted choice for global elevator maintenance teams and manufacturers.
The elevator door operator is the “power core” of elevator door opening and closing, and the door operator belt serves as a critical transmission component that connects the motor and door pulley system. The Elevator Door Operator Belt L075 provided by Nanjing Zhuye Elevatorparts is a high-performance transmission belt tailored for mainstream elevator door operator systems. It is widely compatible with elevator brands such as Schindler, OTIS, and KONE, playing a vital role in ensuring smooth, quiet, and stable operation of elevator doors. Crafted with high-strength polyurethane (PU) material and embedded with high-tensile polyester cords, this belt features excellent wear resistance, tensile strength, and flexibility, meeting international elevator safety standards (EN 81-20, GB 7588) and becoming a trusted choice for global elevator maintenance teams and manufacturers.
The elevator leveling system is a key guarantee for safe and comfortable boarding, and its precise operation is closely linked to the door machine pulley system (composed of drive and driven pulleys). The Elevator Leveling Sensor SLA30-Z15NK-F20DS launched by Nanjing Zhuye Elevatorparts is a high-precision detection component tailored for mainstream elevator leveling systems. It is widely compatible with renowned elevator brands such as Schindler, OTIS, and KONE, accurately detecting the elevator’s position and sending signals to control the door machine pulley system to stop and start door opening. Crafted with high-sensitivity inductive elements, waterproof and dustproof shells, and stable signal transmission modules, this sensor meets international elevator safety standards (EN 81-20, GB/T 7025) and has become a trusted choice for global elevator maintenance teams and manufacturers.
Nanjing Zhuye Elevatorparts has always adhered to the concept of “quality first, safety-oriented,” implementing strict quality control throughout the production process of the SLA30-Z15NK-F20DS leveling sensor. Each unit undergoes rigorous testing, including detection accuracy calibration, response speed verification, environmental adaptability testing, and waterproof performance assessment. The sensor’s detection accuracy reaches ±1mm, ensuring the elevator stops precisely at the landing to coordinate with the door machine pulley system’s door opening operation. The IP67 waterproof and dustproof rating allows it to work stably in the harsh elevator shaft environment with high humidity and dust. The high-temperature resistant shell can withstand temperatures up to 80℃, and the stable signal transmission module ensures no delay or interference, providing reliable position data for the elevator control system.
Usage Guide for Elevator Leveling Sensor SLA30-Z15NK-F20DS
Correct installation, debugging, and maintenance of the SLA30-Z15NK-F20DS leveling sensor are crucial to ensuring precise elevator leveling and coordinated operation with the door machine pulley system. Nanjing Zhuye Elevatorparts emphasizes that only certified elevator maintenance technicians are allowed to perform installation and replacement operations.
1. Pre-Installation Preparation
1. Pre-Installation Preparation
First, confirm that the elevator’s MAC car lighting controller model matches the POWCV24181MH power supply (check parameters such as input voltage, output voltage, output current, and installation dimensions). Consult Nanjing Zhuye Elevatorparts’ technical team if there is any uncertainty about compatibility. Then, cut off the elevator’s main power supply and the secondary power supply for the car lighting system, lock the switch, and place a “Maintenance in Progress” warning sign at the elevator landing doors and machine room entrance. Locate the power supply installation position (usually on the car top or in the car control cabinet) and clean the area to remove dust, debris, and oil stains. Finally, prepare professional tools such as a screwdriver, wire stripper, multimeter, and insulation tester, and check that the new POWCV24181MH power supply from Nanjing Zhuye Elevatorparts is intact (no damage to the shell, no loose pins).
First, confirm that the elevator control system model matches the SLA30-Z15NK-F20DS sensor (check parameters such as detection distance, output signal type, and installation dimensions). Consult Nanjing Zhuye Elevatorparts’ technical team if there is any uncertainty about compatibility. Then, cut off the elevator’s main power supply and control system power supply, lock the switch, and place a “Maintenance in Progress” warning sign at the machine room entrance and landing. Use a hoist to fix the elevator car at a safe position to expose the sensor installation area. Finally, prepare professional tools such as a screwdriver, wrench, multimeter, and measuring tape; clean the installation position on the car or shaft, and check the door machine’s drive and driven pulleys for normal operation (abnormal pulley operation may affect door opening after leveling).
2. Installation & Wiring

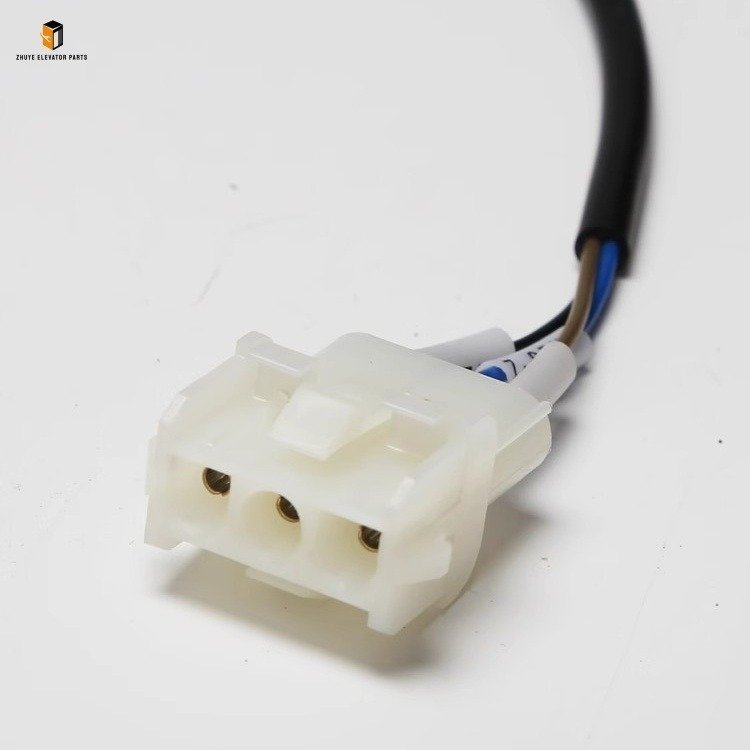

If replacing the old sensor, first take photos to record its installation position, height, and wiring connections for later reference. Disconnect the wires from the old sensor according to the recorded labels and remove the old sensor. Take the new SLA30-Z15NK-F20DS sensor from Nanjing Zhuye Elevatorparts, install it on the preset bracket (ensure the detection surface is aligned with the induction plate on the shaft), and fasten it firmly with screws. The distance between the sensor and the induction plate should be 5-10mm (adjust according to Nanjing Zhuye’s technical parameters). Connect the wires to the corresponding terminals strictly following the photos and the wiring diagram provided by Nanjing Zhuye—distinguish between power wires, signal wires, and ground wires to avoid wrong connection. After wiring, use a multimeter to test the sensor’s output signal to confirm normal power supply and signal transmission.
Debugg3. Operation & Daily Maintenance
Remove the hoist fixing the car, restore the power supply, and switch the elevator to inspection mode. Operate the elevator to run up and down, observing whether the elevator stops precisely at each landing (leveling deviation should be within ±2mm). Check if the door machine pulley system starts door opening immediately after leveling—no delay or misoperation is allowed. After 1 hour of stable operation, check the sensor’s temperature and wiring terminals (no abnormal heat or loose wires). For daily maintenance, inspect the sensor during monthly shaft patrols: Check for looseness, damage, or contamination on the sensor surface; confirm the induction plate is clean and not deformed; clean the sensor and induction plate with a dry cloth. At the same time, check the door machine pulley system’s operation—abnormal pulley wear may cause door opening faults after leveling. Every 3 months, recheck the sensor’s detection accuracy and output signal; every 6 months, inspect the wiring harness for aging and replace if necessary.
Replacement Cycle of Elevator Leveling Sensor SLA30-Z15NK-F20DS
The replacement cycle of the SLA30-Z15NK-F20DS leveling sensor is closely related to operating conditions and the frequency of door machine pulley operation. Under normal circumstances (elevator daily operation 12-24 hours, shaft environment dry and low-dust, no frequent vibration), Nanjing Zhuye Elevatorparts recommends a replacement cycle of 2-3 years. This cycle is determined based on long-term field operation data and component aging tests, fully considering the wear of inductive elements and the attenuation of signal transmission performance.
For elevators in high-traffic areas (e.g., large shopping malls, airports with daily operation ≥ 20 hours) or harsh environments (shaft with high humidity, heavy dust, large temperature fluctuations), the replacement cycle should be shortened to 1-1.5 years. High-frequency leveling and door opening accelerate the aging of sensor components, while harsh environments easily cause sensor contamination and signal interference. For low-usage elevators (e.g., villa elevators, small office buildings with daily operation time < 8 hours) in stable environments, the cycle can be extended to 3-4 years, but only after inspection and confirmation by Nanjing Zhuye’s technicians that the sensor’s detection accuracy and coordination with the door machine pulley system meet standards.
Replace the sensor immediately if any of the following issues occur, regardless of its service life: The elevator has obvious leveling deviation (exceeding ±5mm) and cannot be adjusted; the sensor has no output signal or the signal is unstable, causing the elevator to fail to stop at the landing or open the door; the sensor shell is cracked, damaged, or the waterproof performance fails; the sensor’s response speed is significantly reduced, causing delayed door opening after leveling; the sensor cannot coordinate with the door machine pulley system normally, leading to door opening faults.
The Elevator Leveling Sensor SLA30-Z15NK-F20DS from Nanjing Zhuye Elevatorparts integrates high precision, durability, and strong compatibility, providing a reliable position detection guarantee for the elevator leveling system and ensuring coordinated operation with the door machine pulley system. By following the correct usage, maintenance, and replacement guidelines, you can effectively ensure the elevator stops precisely at the landing, improve passenger boarding experience, and reduce faults caused by sensor abnormalities. Choosing Nanjing Zhuye Elevatorparts means you get 100% authentic SLA30-Z15NK-F20DS leveling sensors, as well as professional services including model matching, on-site installation guidance, and timely after-sales support. Trust Nanjing Zhuye Elevatorparts for the stable and safe operation of your elevator.
