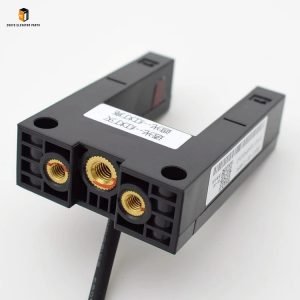

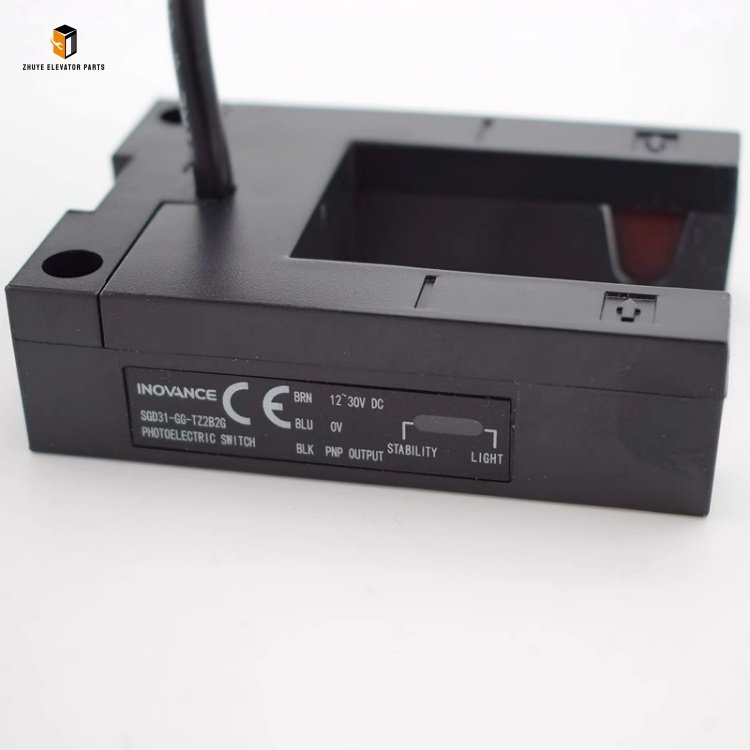

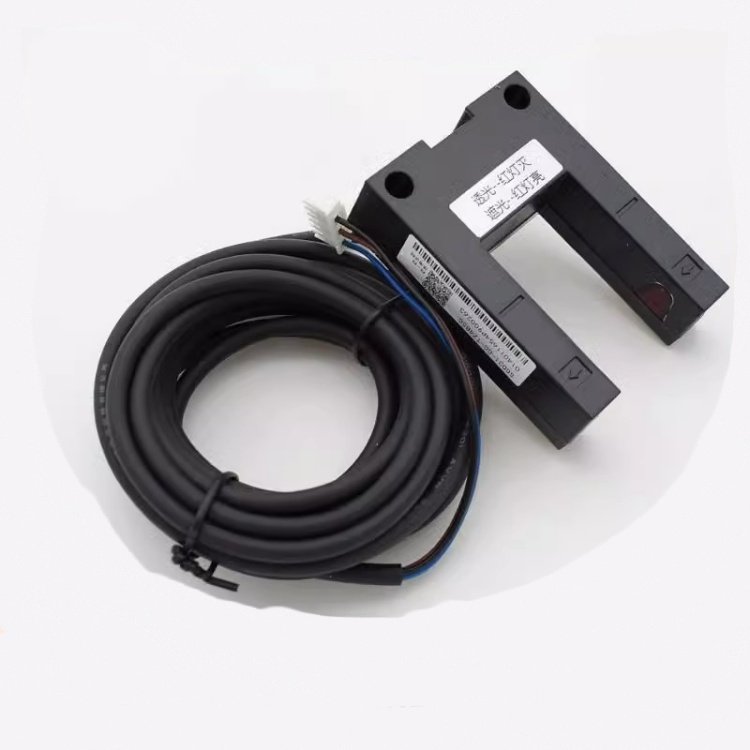

Elevator Leveling Sensor Photoelectric Switch SGD31-GG-TZ2B3G: Precision-Grade Component for Smooth Elevator Leveling

In the complex network of elevator control systems, accurate leveling is the cornerstone of safe and comfortable rides, and the photoelectric switch leveling sensor is the unsung hero behind this seamless process. The Elevator Leveling Sensor Photoelectric Switch SGD31-GG-TZ2B3G, expertly manufactured by Nanjing Zhuye Elevatorparts—a trusted name in high-performance elevator components—stands out as a reliable, high-precision solution designed to meet the rigorous demands of modern elevator operations. This sensor ensures that elevator cars align perfectly with floor landings every time, eliminating jolts and gaps that could compromise passenger safety and experience.

The SGD31-GG-TZ2B3G photoelectric switch operates on the principle of infrared light emission and reception to detect the elevator car’s position relative to the landing. Unlike traditional contact sensors, this non-contact design minimizes mechanical wear, reduces signal interference, and delivers ultra-fast response times, making it ideal for high-speed and high-traffic elevator systems. It plays a pivotal role in triggering the elevator’s braking and door-opening mechanisms at the exact right moment, ensuring consistent, millimeter-level leveling accuracy.

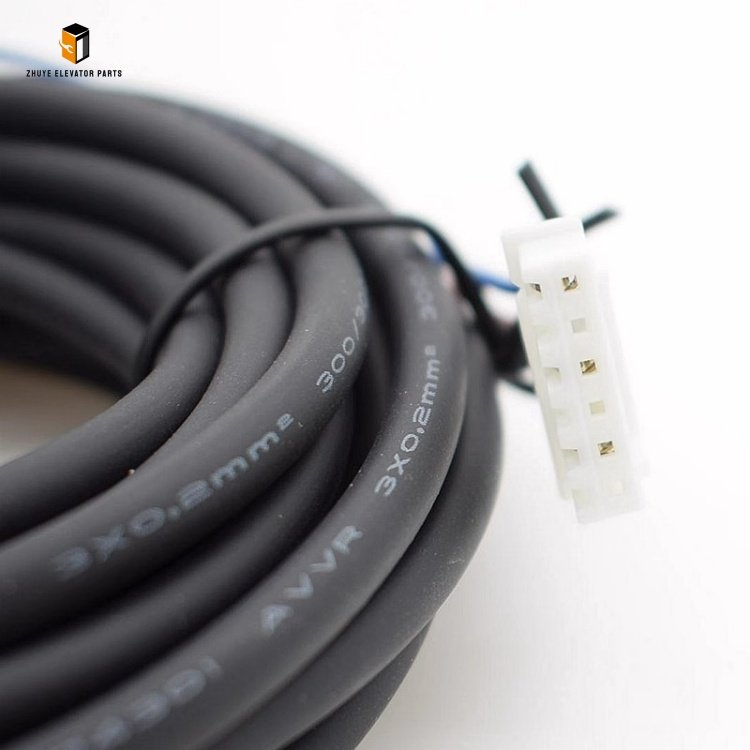

Using the SGD31-GG-TZ2B3G from Nanjing Zhuye Elevatorparts requires strict adherence to professional installation protocols to guarantee optimal functionality. First, confirm that the elevator is powered off and locked out to prevent accidental movement during installation—a critical safety step for all elevator maintenance work. Next, locate the designated mounting position on the elevator guide rail or car frame; the sensor’s compact, modular design from Nanjing Zhuye Elevatorparts ensures easy alignment with most standard elevator models. Clean the mounting surface thoroughly to remove dust, oil, or rust, then secure the sensor firmly using the 配套 fasteners provided. After physical installation, connect the sensor to the elevator’s control panel following the wiring diagram supplied by Nanjing Zhuye Elevatorparts, ensuring correct wire polarity to avoid signal failure. Finally, conduct a full test run: operate the elevator at both low and normal speeds to verify that the sensor triggers accurate leveling signals at every floor, adjusting the sensor’s position slightly if any misalignment is detected.

While the SGD31-GG-TZ2B3G is built with durable, corrosion-resistant materials to withstand the harsh environment of elevator shafts, regular replacement is essential to maintain consistent performance. Nanjing Zhuye Elevatorparts recommends a standard replacement cycle of 24–30 months under normal operating conditions. However, this timeline can be adjusted based on usage intensity and environmental factors. For elevators in busy commercial spaces, hospitals, or high-rise residential buildings that run hundreds of cycles daily, the sensor may experience accelerated aging due to frequent signal triggering and environmental wear, so the replacement cycle should be shortened to 18–24 months. For low-traffic scenarios such as private villas or small office buildings, the cycle can be extended moderately but should never exceed 36 months, as prolonged use can lead to signal degradation and inaccurate leveling.

In addition to following the recommended replacement cycle, maintenance teams should conduct routine inspections during regular elevator servicing. Key checkpoints include inspecting the sensor lens for dirt or scratches, verifying wire connections for tightness, and testing signal response speed. If any issues are found—such as delayed leveling, inconsistent door operation, or complete signal loss—the sensor must be replaced immediately, regardless of its current service life. Delaying replacement can result in elevator misalignment, door malfunctions, or even sudden stops, posing significant safety risks to passengers.

Nanjing Zhuye Elevatorparts has long been committed to producing reliable, high-precision elevator components, and the SGD31-GG-TZ2B3G photoelectric switch is a testament to this commitment. By choosing this product and adhering to proper installation and replacement guidelines, elevator maintenance teams can ensure long-term operational stability, reduce downtime, and deliver a safe, smooth riding experience for all passengers.

In conclusion, the SGD31-GG-TZ2B3G photoelectric switch is a small but critical component that defines elevator leveling precision. With Nanjing Zhuye Elevatorparts’ quality assurance and proactive maintenance practices, building managers can safeguard their elevator systems, ensuring optimal performance and passenger satisfaction for years to come.
