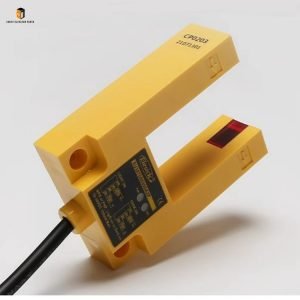

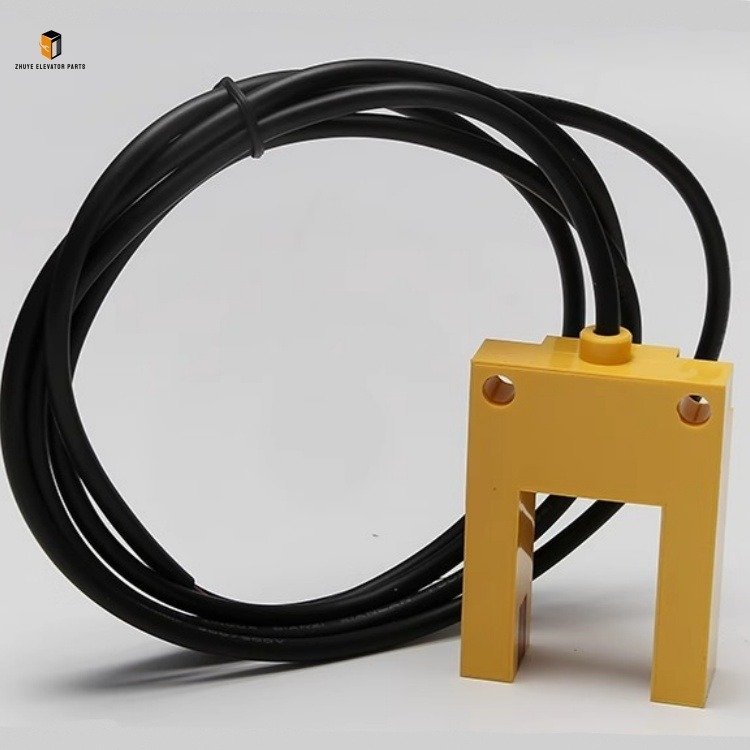

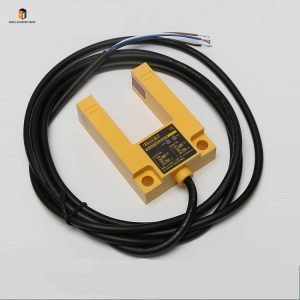

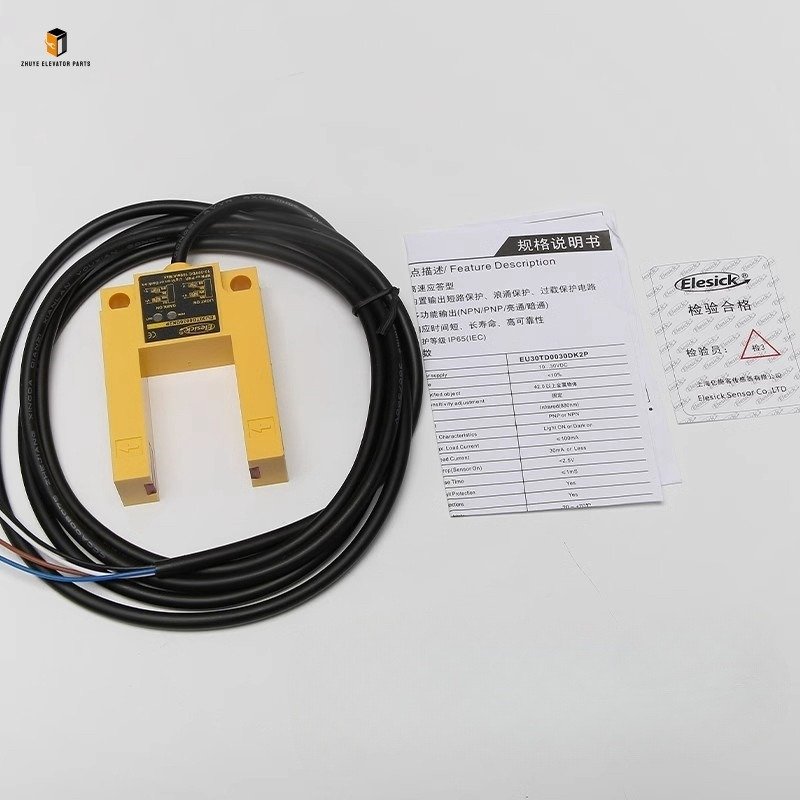

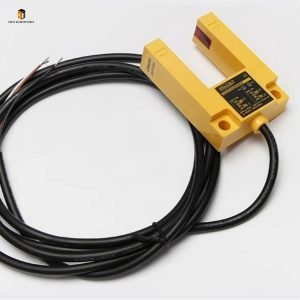

Elevator leveling sensor EU30TD0030DK2P Brief Introduction

Product Name	Elevator leveling sensor
Model Number	EU30TD0030DK2P
Quality	Original.Brand New
Payment	T/T. Paypal. Western Union
Delivery	3-5 Working Days
Packaging	Packed by carton

Elevator Leveling Sensor EU30TD0030DK2P: Precision Positioning Core from Nanjing Zhuye Elevatorparts

Elevator Leveling Sensor EU30TD0030DK2P is a high-precision positioning component designed for modern elevator systems, dedicated to achieving seamless alignment between the elevator car floor and the landing floor. Installed on the elevator car or guide rail, it utilizes advanced photoelectric or magnetic sensing technology to detect the position of the leveling plate (installed in the shaft) in real time. By transmitting accurate position signals to the elevator controller, it enables the traction system to decelerate and stop precisely, ensuring the height difference between the car floor and landing floor is within ±1mm—providing passengers with a safe and comfortable entry-exit experience. Compatible with mainstream elevator control systems (including Schindler, OTIS, and Mitsubishi), this sensor is widely applicable to high-rise residential buildings, commercial complexes, office towers, and industrial elevators, becoming a core component for improving elevator operation stability and ride quality. Exclusively supplied by Nanjing Zhuye Elevatorparts, a professional provider of high-quality elevator electrical components, the Elevator Leveling Sensor EU30TD0030DK2P fully complies with international elevator safety standards (EN 81-20, GB 7588) and electrical component technical specifications (IEC 61010). Manufactured with premium electronic components and precision calibration technology, it boasts strong anti-interference ability, excellent environmental adaptability, and long-term operational stability, winning trust from global elevator maintenance teams and manufacturers.

Nanjing Zhuye Elevatorparts adheres to the core philosophy of “Precision Sensing, Stable Positioning” and implements strict quality control for the EU30TD0030DK2P elevator leveling sensor. Each unit undergoes multi-stage pre-delivery inspections, including positioning accuracy testing, signal response speed detection, anti-interference performance verification, and service life evaluation. The EU30TD0030DK2P sensor adopts advanced materials and technologies: the main control module uses a high-sensitivity photoelectric sensor with a response time ≤ 3ms, ensuring rapid and accurate signal transmission; the shell is made of flame-retardant PC/ABS engineering plastic with IP67 protection rating, effectively resisting dust, moisture, and slight mechanical impact in harsh shaft environments (-30℃ to 85℃); the wiring interface adopts a standardized M12 plug-in design, facilitating quick and error-free connection; the built-in voltage stabilization circuit supports a wide voltage range (DC 12V–24V), compatible with different elevator power supply systems. The standardized mounting structure enables seamless matching with most elevator car and guide rail designs, simplifying installation and calibration processes.

Step-by-Step Usage Guide for Elevator Leveling Sensor EU30TD0030DK2P

To maximize the positioning accuracy, service life, and operational stability of the Elevator Leveling Sensor EU30TD0030DK2P, strictly follow the professional guidelines provided by Nanjing Zhuye Elevatorparts for selection, installation, and maintenance:

1. Professional Selection & Pre-Installation Preparation

Installation must be performed by certified elevator technicians proficient in elevator control systems. Prior to selection, refer to the elevator’s control system model, car structure, and shaft layout, or consult Nanjing Zhuye Elevatorparts’ technical team to confirm full compatibility of the EU30TD0030DK2P sensor. Preparation steps: Cut off the elevator’s main power supply and lock the power switch; place a “Maintenance in Progress” warning sign at the elevator entrance and shaft access door; use a hoisting device to stabilize the elevator car at the middle floor position; clean the sensor mounting area (car top or guide rail) and the leveling plate mounting area in the shaft to remove dust, oil stains, and debris.

2. Correct Installation & Precision Calibration

Sensor Fixing: Take the EU30TD0030DK2P leveling sensor from Nanjing Zhuye Elevatorparts, install it on the dedicated mounting bracket (provided by the brand), and fix the bracket to the preset position on the car top or guide rail with stainless steel bolts (torque: 18–25N·m). Ensure the sensor’s detection surface is aligned with the leveling plate, and the detection distance is adjusted to 8–15mm (within the effective sensing range).
Wiring Connection: According to the elevator’s electrical schematic and Nanjing Zhuye Elevatorparts’ wiring manual, connect the sensor’s M12 plug to the elevator controller’s signal line. Distinguish between power lines, signal lines, and ground lines; ensure the plug is fully inserted and locked to avoid poor contact caused by vibration. Use cable ties to fix the wire harness to the car frame, preventing friction with moving components.
Precision Calibration: Restore the elevator’s power supply and switch to inspection mode. Operate the car to run up and down slowly, and use a calibration tool to adjust the sensor or leveling plate position. When the car is fully aligned with the landing floor, the sensor should transmit a stable stop signal to the controller. Repeat the calibration at 3–5 different floors to ensure consistent positioning accuracy (error ≤ ±1mm). After calibration, lock all fixing bolts to prevent displacement.

3. Post-Installation Testing & Daily Maintenance

Function Testing: Conduct multiple leveling tests at each floor in inspection mode to confirm the sensor triggers accurately every time and the elevator stops stably. Simulate electromagnetic interference (using a signal generator) to test the sensor’s anti-interference performance, ensuring signal transmission is not affected. Verify that the elevator can resume normal operation immediately after receiving the stop signal.
Daily Inspection: Maintenance personnel should check the sensor during daily shaft patrols: Observe the sensor’s shell for damage, corrosion, or loose mounting; check the wiring harness and plug for aging, wear, or loose connections; inspect the leveling plate for deformation, displacement, or surface contamination (which may affect detection accuracy).
Regular Maintenance: Every 3 months, clean the sensor’s detection surface and the leveling plate with a soft, dry cloth (avoid using corrosive cleaning agents). Every 6 months, use a multimeter to test the sensor’s output signal and recheck the calibration accuracy. For elevators in harsh environments (high humidity, strong electromagnetic interference, or high dust), shorten the maintenance interval to 1 month.

Recommended Replacement Cycle for Elevator Leveling Sensor EU30TD0030DK2P

As a core electrical component enduring long-term signal transmission, environmental erosion (humidity, dust, temperature changes), and mechanical vibration, the EU30TD0030DK2P elevator leveling sensor has a specified service life. Timely replacement is crucial to avoiding faults such as positioning deviation, delayed signal transmission, or signal loss—issues that may lead to the elevator stopping inaccurately (height difference exceeding 3mm), affecting passenger safety and ride experience, or even causing elevator operation failures.

1. Standard Replacement Cycle

Under normal operating conditions (elevator daily operation time 12–24 hours, annual leveling times ≥ 60,000, shaft environment temperature -30℃ to 85℃, humidity 10%–95%), the recommended replacement cycle for the EU30TD0030DK2P elevator leveling sensor is 4–6 years. This cycle is determined based on Nanjing Zhuye Elevatorparts’ long-term field operation data, component aging tests, and global user feedback on elevator positioning components.

2. Adjustments for Special Scenarios

High-Traffic & Harsh Environments: For elevators in high-traffic locations (e.g., large airports, central shopping malls) with frequent leveling (annual times ≥ 120,000), or in harsh environments (e.g., coastal areas with high salt spray, industrial sites with strong electromagnetic interference), the replacement cycle is shortened to 2–3 years. Frequent signal transmission accelerates the aging of internal electronic components, while harsh environments cause shell corrosion and signal interference.
Low-Frequency Use & Stable Environments: For elevators with low usage frequency (e.g., villa elevators, small office buildings with daily operation time < 8 hours) and stable shaft environments (constant temperature and humidity, weak electromagnetic interference), the replacement cycle can be extended to 6–8 years—only after Nanjing Zhuye Elevatorparts’ technicians inspect and confirm that the sensor’s positioning accuracy, signal response speed, and structural integrity meet factory standards.

3. Immediate Replacement Conditions

Replace the EU30TD0030DK2P elevator leveling sensor immediately if any of the following issues occur, regardless of its service life:

The sensor’s positioning error exceeds ±3mm, leading to obvious floor height differences when the elevator stops, affecting passenger entry and exit.
The sensor fails to transmit stop signals normally, or the signal is delayed, causing the elevator to overshoot or undershoot the floor.
The sensor’s output signal is unstable (tested by a multimeter), leading to frequent false stops or failure to stop of the elevator.
The sensor’s shell is severely corroded, cracked, or deformed, or the wiring plug is damaged, affecting the sensor’s basic function and safety.

In conclusion, the Elevator Leveling Sensor EU30TD0030DK2P from Nanjing Zhuye Elevatorparts is a high-quality, highly reliable positioning component tailored for modern elevator systems. By following the correct selection, installation, maintenance, and replacement guidelines, elevator maintenance teams can effectively ensure the precise and stable operation of the elevator leveling system, improve the ride experience, and eliminate potential safety hazards. Choosing Nanjing Zhuye Elevatorparts means you get 100% authentic EU30TD0030DK2P leveling sensors, plus professional support—including model matching, on-site installation and calibration guidance, and prompt after-sales service. Trust Nanjing Zhuye Elevatorparts for the precision leveling of your elevator system.
