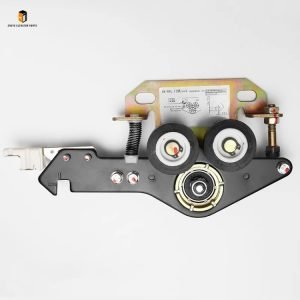

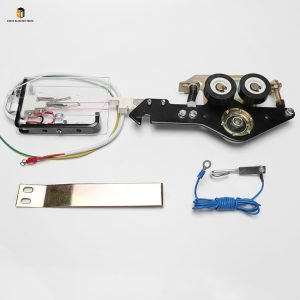

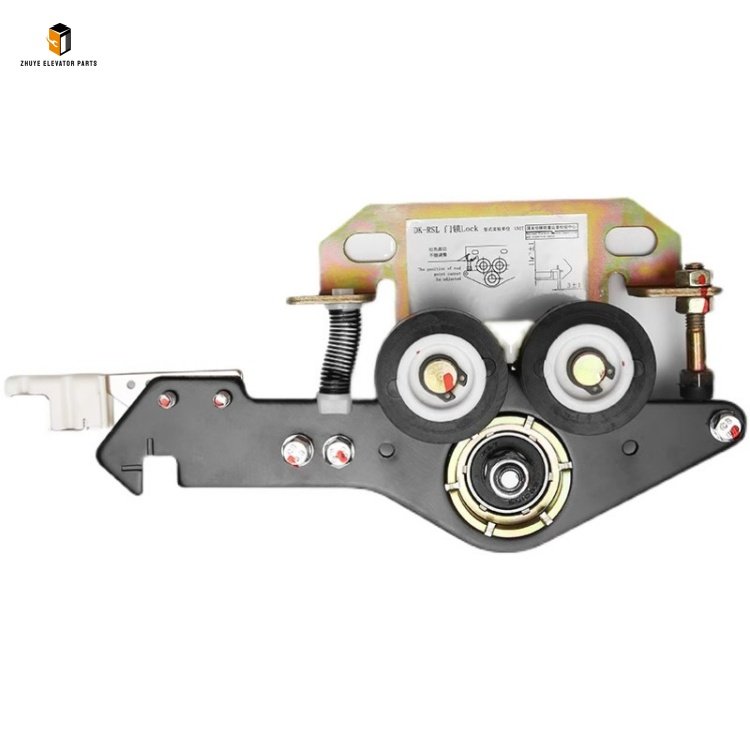

Elevator Landing Door Lock DK-RSL & DK-RSR: Safety Interlock Core from Nanjing Zhuye Elevatorparts

Step-by-Step Usage Guide for Elevator Landing Door Lock DK-RSL & DK-RSR

1. Professional Selection & Installation

• Safety Preparation: Cut off the elevator’s main power supply and lock the power switch to prevent accidental power-on. Place a “Maintenance in Progress” warning sign at the elevator entrance. Fix the landing door in the fully closed position with mechanical supports to avoid interference with installation.
• Old Lock Removal: Disconnect the interlock signal wires of the old landing door lock (mark the wire positions to avoid wrong connection), then remove the fixing bolts to take down the old lock. Check the door frame’s mounting surface for deformation or wear; repair or polish it if necessary to ensure the new lock fits tightly.
• New Lock Installation: Take the new DK-RSL or DK-RSR landing door lock from Nanjing Zhuye Elevatorparts, align it with the mounting position on the door frame, and fasten it with high-strength bolts. Connect the interlock signal wires according to the marked positions, ensuring tight connections and correct polarity. Adjust the lock bolt’s position to ensure it can accurately engage with the door latch when the landing door is closed, and the interlock contact is reliably closed.

2. Debugging & Function Test

• Locking Performance Test: Manually close the landing door to check if the lock bolt engages with the latch reliably. Use a torque wrench to detect the locking force, ensuring it meets the standard requirement (≥ 1500N). Try to pry the door open with a moderate force to confirm the lock has strong anti-prying capability.
• Interlock Signal Test: Restore the elevator’s power supply and switch to inspection mode. Close the landing door fully and check if the elevator controller receives the “locked” signal (no interlock alarm). Open the landing door slightly and confirm the controller immediately receives the “unlocked” signal and triggers the safety shutdown mechanism.
• Door Opening & Closing Test: Operate the elevator car to the target floor, allowing the car door to drive the landing door to open and close repeatedly. Observe the lock’s engagement and disengagement status, ensuring smooth operation without jamming; the interlock signal should switch accurately during the process.

3. Daily Operation & Routine Maintenance

• Daily Visual Inspection: During elevator patrols, check the external condition of the lock. Ensure the shell is free of deformation, cracks, or corrosion; the lock bolt and linkage mechanism are intact without jamming; the signal wires are intact without aging or loose connections. Observe the landing door’s closing status to ensure it can be fully locked.
• Weekly Locking & Signal Check: Manually test the locking tightness of the lock and use a multimeter to detect the interlock contact’s on-off status. If the contact resistance exceeds 200mΩ or the signal is unstable, clean the contact with a professional cleaner immediately. Adjust the lock bolt’s position if locking is loose.
• Monthly Cleaning & Lubrication: Cut off the power supply and clean the lock body, lock bolt, and linkage mechanism with a soft, dry cloth to remove dust and debris. Apply a thin layer of special anti-rust lubricant (recommended by Nanjing Zhuye Elevatorparts) to the moving parts to ensure flexible operation and prevent rust.

Recommended Replacement Cycle for Elevator Landing Door Lock DK-RSL & DK-RSR

1. Standard Replacement Cycle

2. Adjustments for Special Scenarios

• Harsh Environments & High-Traffic Scenarios: For elevators in high-humidity coastal areas (salt spray corrosion), high-dust industrial sites, or ultra-high-traffic locations (e.g., large airports, central shopping malls) with daily door cycles ≥ 3500, the replacement cycle is shortened to 4–5 years. Harsh conditions and frequent use accelerate the wear of lock cores, bolts, and contacts, reducing the lock’s reliability.
• Low-Frequency Use Scenarios: For elevators with low usage frequency (e.g., villa elevators, small office buildings with daily operation time < 8 hours) and stable environments (constant temperature and humidity), the replacement cycle can be extended to 8–10 years—only if Nanjing Zhuye Elevatorparts’ professional technicians conduct an inspection and confirm that the locking performance, signal transmission, and mechanical flexibility meet the original factory standards.

3. Immediate Replacement Conditions

• The lock cannot be fully locked, or the locking force is less than 1000N, leading to frequent elevator interlock alarms or unstable operation.
• The interlock signal is delayed or interrupted, causing the elevator to start abnormally or fail to stop in time when the door is opened.
• The lock bolt or linkage mechanism is severely worn, bent, or stuck, unable to achieve normal locking and unlocking functions.
• The lock shell is severely corroded or damaged, and internal components are exposed, threatening electrical safety and anti-tampering performance.
