Description

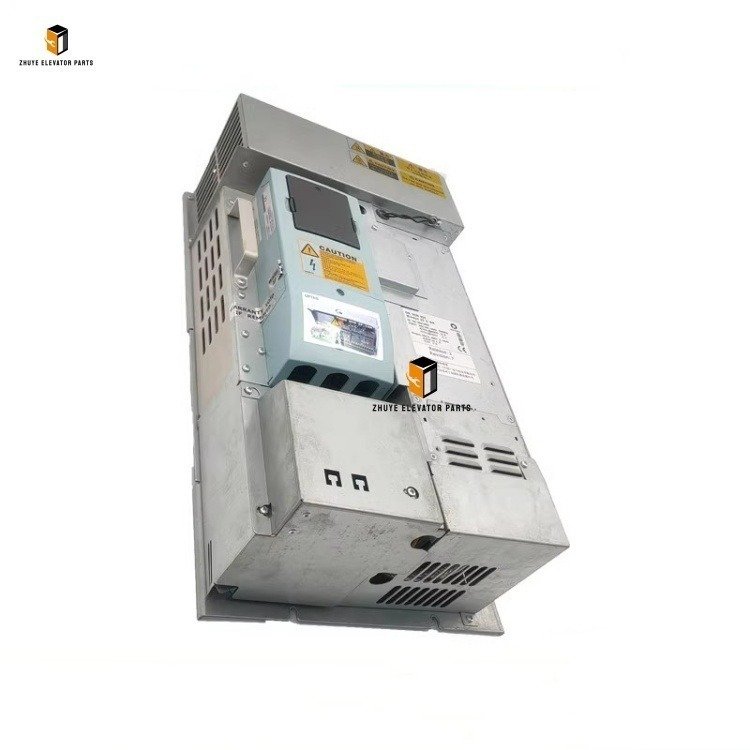

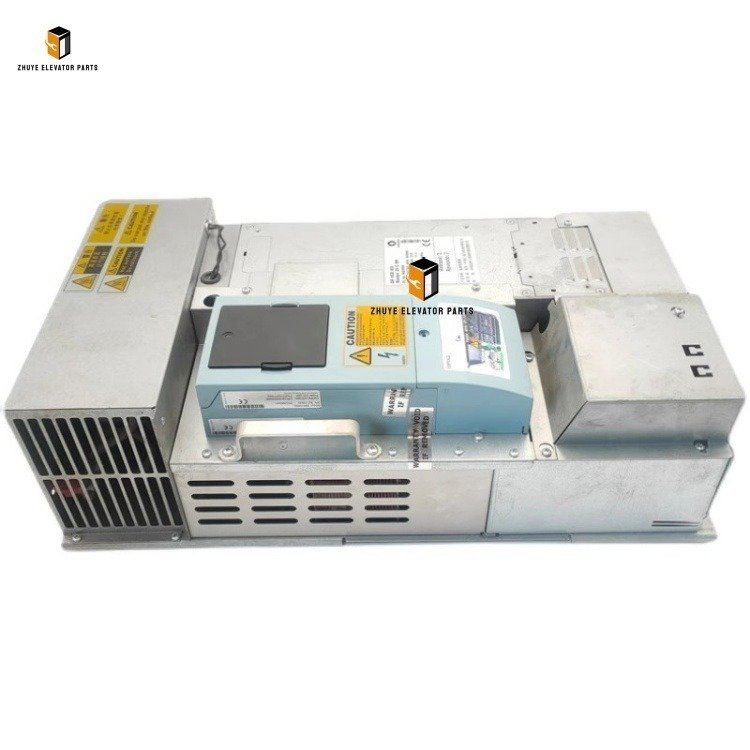

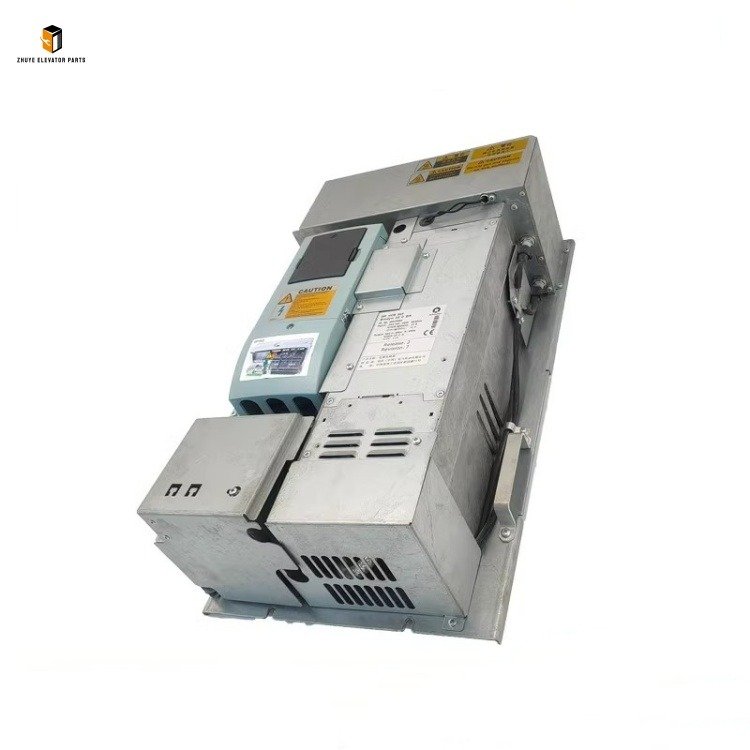

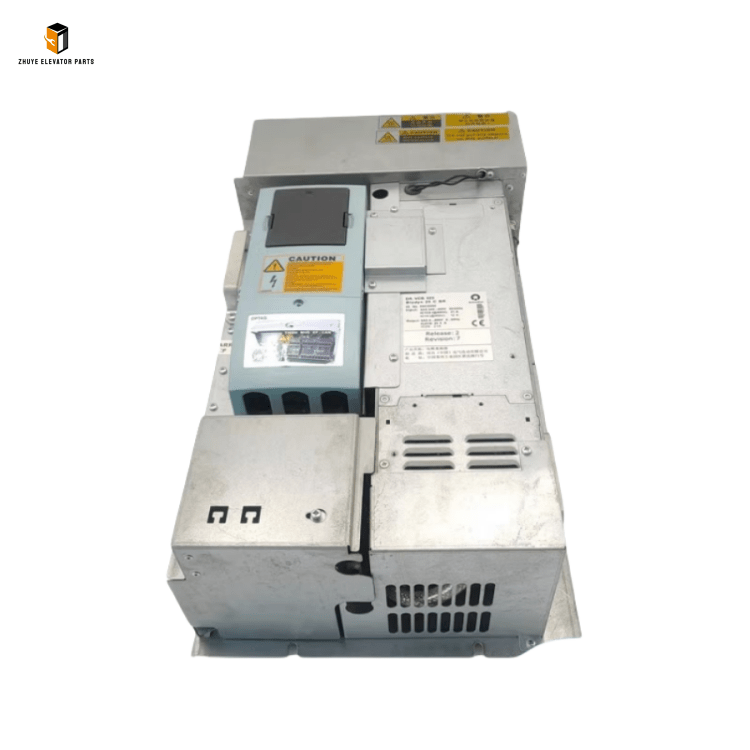

Elevator inverter DR VC B025 25CBR Brief Introduction
|
Product Name |
Elevator inverter |

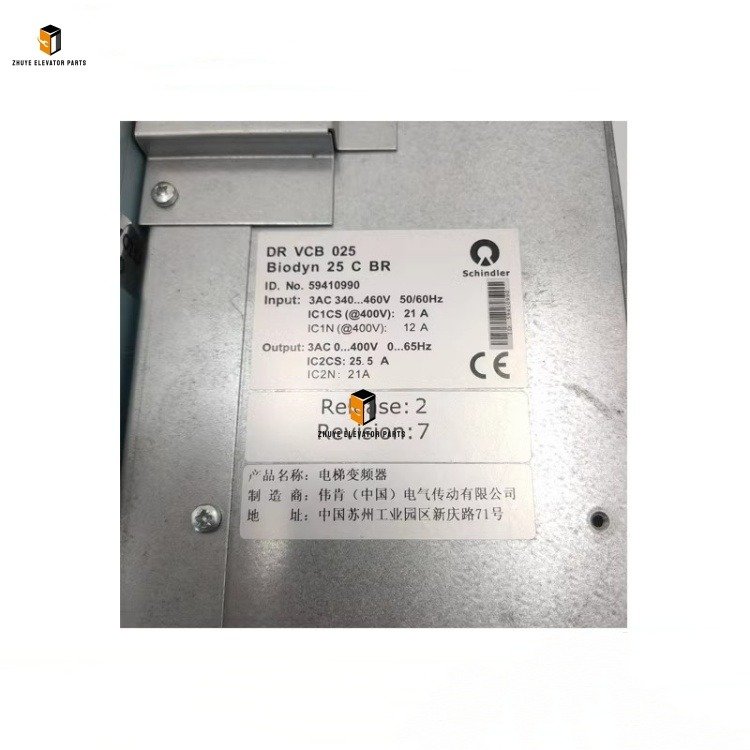

| Model Number | DR VC B025
25CBR 59410991 59410990 |
|
Quality
|
Original.Brand New
|
|
Payment
|
T/T. Paypal. Western Union
|
|
Delivery
|
3-5 Working Days
|
|
Packaging
|
Packed by carton
|
Elevator Inverter DR VC B025 25CBR: Core Drive Component from Nanjing Zhuye Elevatorparts
The elevator inverter is the “brain” of the elevator drive system, responsible for converting fixed-frequency AC power into variable-voltage and variable-frequency power to achieve smooth starting, stopping, and speed regulation of the elevator. It is crucial for improving ride comfort, reducing energy consumption, and ensuring operational safety. The Elevator Inverter DR VC B025 25CBR, exclusively supplied by Nanjing Zhuye Elevatorparts, is meticulously designed for modern passenger and freight elevators. Compliant with international standards such as IEC/EN 60947 and GB 7588, this inverter integrates high-performance IGBT modules, precise PWM modulation technology, and an efficient heat dissipation system. It supports both V/F control and vector control modes, making it compatible with mainstream elevator brands including Schindler, OTIS, KONE, and domestic well-known brands. It is widely used in residential buildings, commercial complexes, airports, and subway stations, providing reliable drive support for elevators.
Nanjing Zhuye Elevatorparts adheres to strict quality control standards, and the DR VC B025 25CBR elevator inverter is a concentrated embodiment of this philosophy. Each inverter undergoes rigorous testing before leaving the factory, including load capacity testing, voltage fluctuation resistance testing, high-temperature (up to 80℃) and low-temperature (down to -30℃) resistance tests, and anti-electromagnetic interference tests. The inverter adopts a high-quality PCB substrate with excellent insulation performance and heat dissipation efficiency. The built-in regenerative braking circuit can recover over 95% of the regenerative energy during elevator descent, significantly reducing energy consumption. It is equipped with a comprehensive protection system against overcurrent, overvoltage, undervoltage, overheating, and phase loss. The integrated operation panel allows direct parameter modification, and the intelligent fault self-diagnosis module can promptly feed back fault codes to the main controller, facilitating maintenance personnel to quickly locate and solve problems.
Usage Guide for Elevator Inverter DR VC B025 25CBR
maintenancmaintenancmaintenancnsurnsurnsurreliable operation of the DR VC B025 25CBR inverterreliable operation of the DR VCB 012 inverterreliable operation of the DR-VAB033 and DR-VAP088 inverterspower ratingpower ratingpower ratinginverterinverterinvertermotor and motor and motor and ,,,and wiring diagrams,and wiring diagrams,and wiring diagrams,Correct installation, debugging, and regular maintenance are crucial to ensuring the reliable operation of the C144AAYX door hanging wheel. Nanjing Zhuye Elevatorparts strongly recommends that only professional and certified elevator maintenance technicians perform installation and debugging operations to avoid safety hazards. Before use, confirm that the model, size, and load-bearing capacity of the hanging wheel are completely consistent with the elevator door system. For detailed installation steps, gap adjustment standards, and maintenance requirements, refer to the product manual provided by Nanjing Zhuye Elevatorparts or contact our technical support team for professional guidance.
1. Pre-Installation Preparation
First, cut off the main power supply of the elevator and the inverter, lock the power switch, and place a “Maintenance in Progress” warning sign at the elevator entrance and machine room to prevent accidental startup. Prepare professional tools such as screwdrivers, wrenches, multimeters, wire strippers, and anti-static gloves. Clean the installation position in the machine room to remove dust, debris, and oil stains, as these impurities may affect heat dissipation and insulation. Carefully inspect the DR VC B025 25CBR inverter for external damage, such as shell cracks, terminal damage, or loose cooling fans. Use a multimeter to test insulation resistance to ensure no short circuits or leakage.
2. Installation & Wiring
Install the DR VC B025 25CBR inverter on the dedicated mounting bracket with good ventilation for heat dissipation. Fix it with screws with appropriate torque to avoid damaging components. According to the wiring diagram from Nanjing Zhuye Elevatorparts, connect the input terminals (L, N, PE) to the power supply and output terminals (U, V, W) to the motor. Control signal wires should be correctly connected to corresponding terminals, with wire stripping length controlled at 6-8mm to prevent short circuits. Install a power factor correction choke if connected to a transformer above 500kVA. Organize wires neatly with cable ties, recheck for correct connections, and ensure reliable grounding before closing the terminal cover.
3. Debugging & Daily Use
After installation, perform no-load power-on inspection first: confirm the fan operates normally and three-phase output voltage is balanced. Set motor parameters (rated voltage, current, pole number) per the nameplate and select control mode (V/F or vector control). Conduct motor parameter self-tuning for vector control. Adjust acceleration/deceleration time and enable S-curve if needed to avoid overcurrent. Complete load commissioning to ensure smooth operation. Daily maintenance includes cleaning the surface and vents with a dry cloth monthly, checking terminal tightness and fan status, and handling fault codes promptly. Backup parameters via USB or the operation panel and avoid water or corrosive cleaners.
Replacement Cycle of Elevator Inverter DR VC B025 25CBR
The replacement cycle of the DR VC B025 25CBR inverter is affected by usage frequency, environment, and maintenance. Under normal conditions—12-24 hours daily operation, dry and ventilated machine room, and regular maintenance—Nanjing Zhuye Elevatorparts recommends an 8-10 year cycle. This is based on field data and TSG T7001-2023 regulations, considering IGBT module aging, capacitor performance attenuation, and circuit stability degradation, which are key factors affecting safety.
For high-traffic areas (malls, airports, subways) with over 20 hours of daily operation, or harsh environments (high humidity, dust, temperature fluctuations), shorten the cycle to 6-8 years. High frequency and harsh conditions accelerate component aging. For low-usage elevators (villas, small offices with <8 hours daily use), the cycle can extend to 10-12 years with proper maintenance. However, Nanjing Zhuye Elevatorparts technicians should conduct annual inspections on inverters over 10 years old, focusing on insulation, output stability, and protection functions.
Replace immediately regardless of service life if: frequent unresolved faults (overcurrent, overvoltage, overheating); shell damage, module burnout, or cooling system failure; unstable output causing elevator malfunctions; failure to pass annual safety inspections; or severe corrosion/damage from accidents. Timely replacement prevents serious accidents like elevator out-of-control or sudden shutdown, which endanger passenger safety.
The Elevator Inverter DR VC B025 25CBR from Nanjing Zhuye Elevatorparts combines reliable safety performance, efficient energy-saving design, and wide compatibility, making it ideal for elevator maintenance and renovation. As a core drive component, it ensures smooth, safe, and energy-efficient elevator operation. With strict quality assurance and comprehensive after-sales service, it has gained trust from maintenance enterprises and property management companies. Following correct usage and replacement cycles reduces failure rates and lowers energy costs. Nanjing Zhuye Elevatorparts provides 100% genuine DR VC B025 25CBR inverters and professional support including model matching, installation guidance, and on-site debugging. Choose Nanjing Zhuye Elevatorparts for reliable elevator components and peace of mind.
