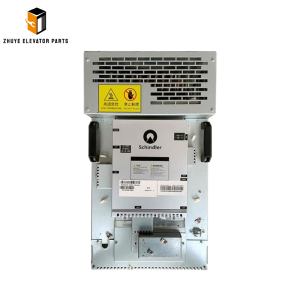

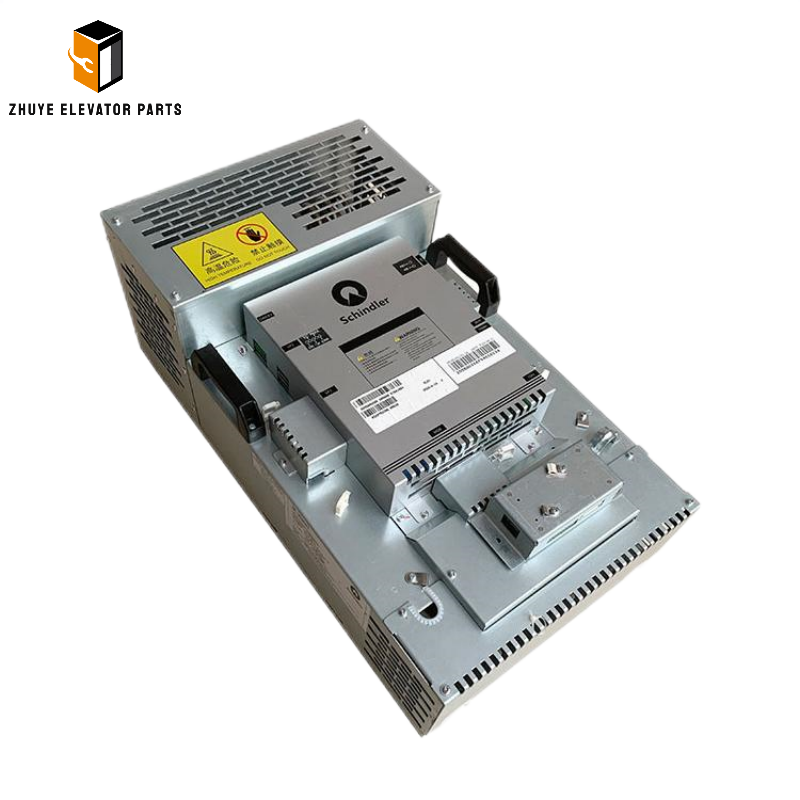

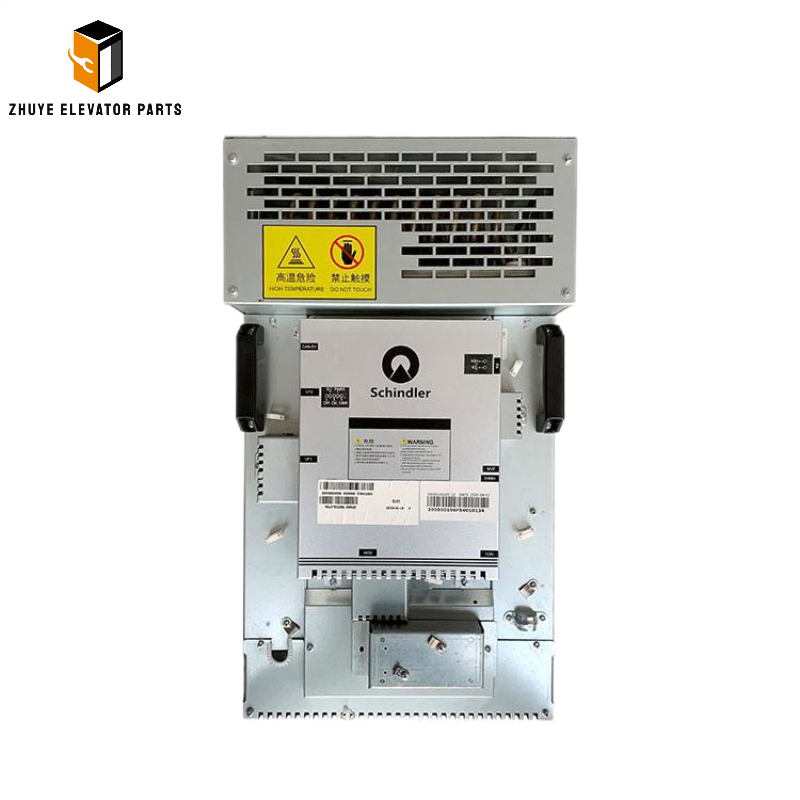

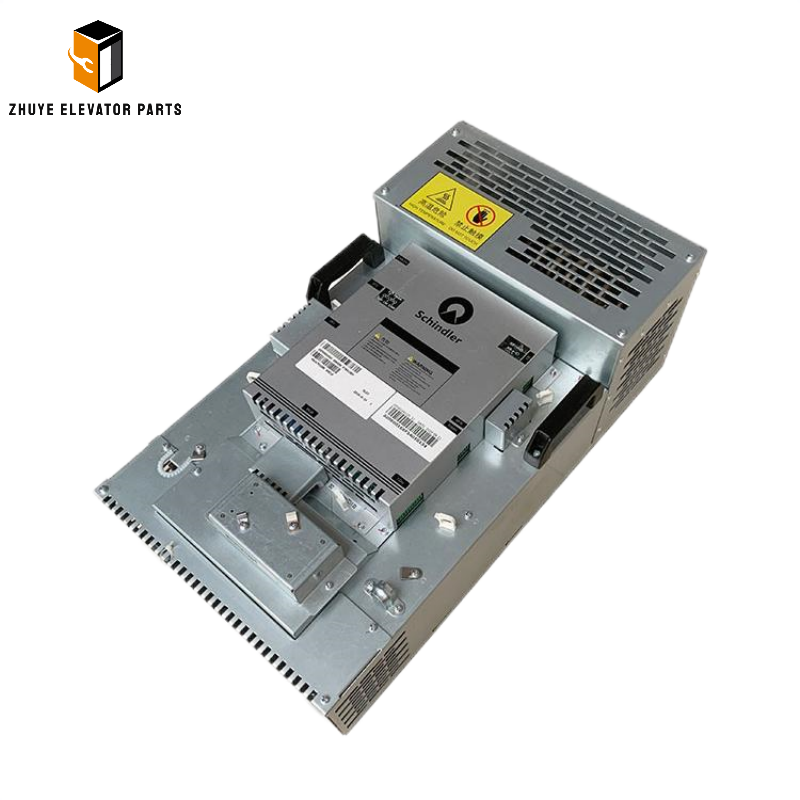

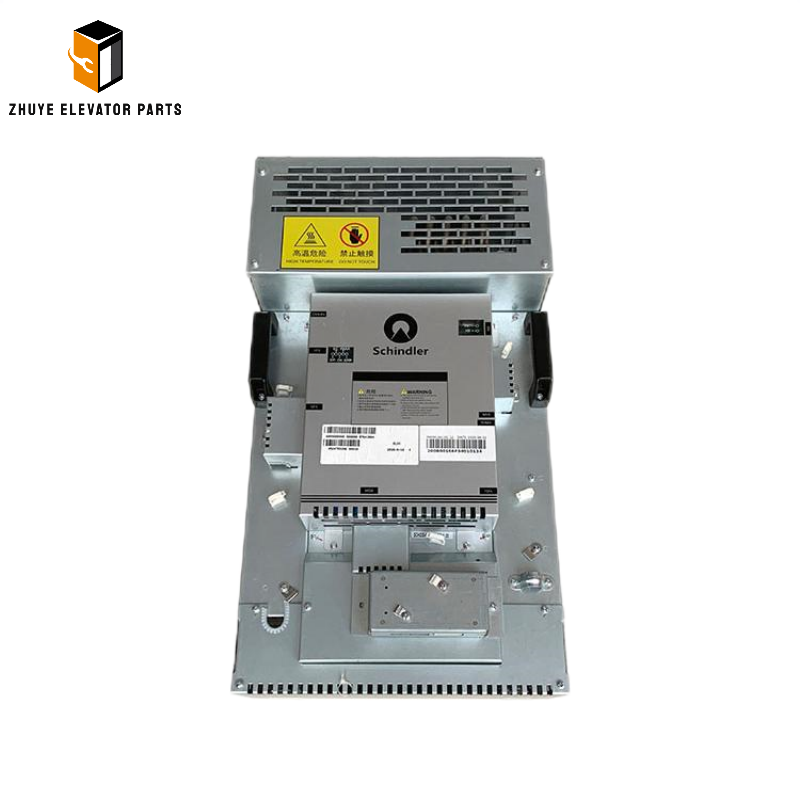

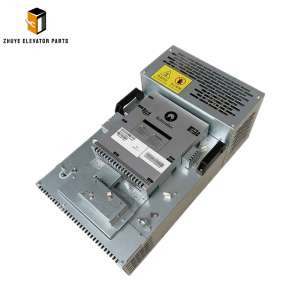

An elevator inverter is the brains behind the smooth and efficient movement of an elevator car. Here’s a breakdown of its role:

Function:

• Controls the AC motor that drives the elevator car.
• Converts incoming AC power from the building’s supply to variable frequency AC power for the motor.
• By adjusting the frequency, the inverter controls the speed and direction of the elevator car.
• Advanced inverters might also incorporate features like:
  • Regenerative braking: Captures energy during downward travel and feeds it back to the power supply, improving efficiency.
  • Sensorless vector control: Provides precise control over the motor’s torque and speed for smoother operation.

Benefits of an Elevator Inverter:

• Smooth and comfortable rides: Enables precise control of acceleration and deceleration.
• Energy efficiency: Optimizes power usage, especially with regenerative braking.
• Reduced wear and tear: Precise control minimizes stress on the motor and mechanical components.
• Quiet operation: Modern inverters minimize noise generation.

Analogy:

• Think of the inverter as the gas pedal and steering wheel for the elevator car’s electric motor.
• It takes the constant AC power from the building and fine-tunes it to control the speed and direction of the car for a smooth ride.

Applications:

• Elevator inverters are found in all modern elevators, regardless of speed or capacity.

I hope this explanation clarifies the function of an elevator inverter. If you have any further questions about specific inverter types or features, feel free to ask!
