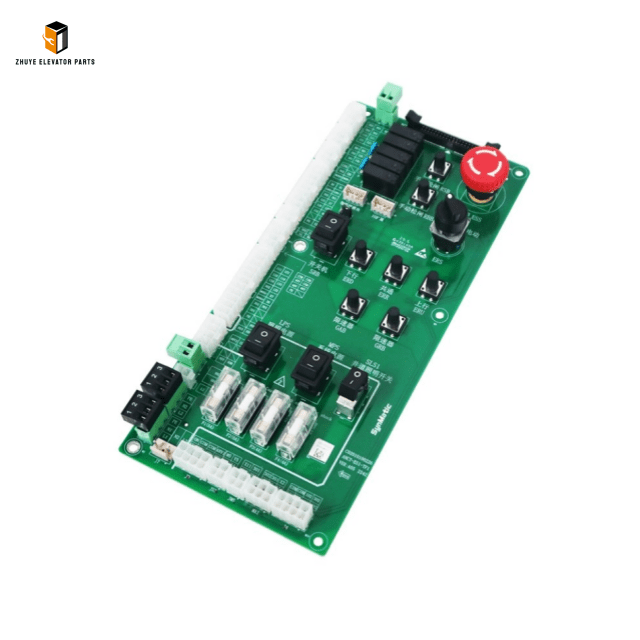

Elevator Interface Board ANCT-ES1-TF1 Brief Introduction
|
Product Name |
Elevator Interface Board |
| Model Number | ANCT-ES1-TF1 |
|
Quality
|
Original.Brand New
|
|
Payment
|
T/T. Paypal. Western Union
|
|
Delivery
|
3-5 Working Days
|
|
Packaging
|
Packed by carton
|
Elevator Interface Board ANCT-ES1-TF1: Core Communication Component from Nanjing Zhuye Elevatorparts
The elevator interface board acts as the “communication hub” between various elevator components, responsible for converting and transmitting signals between the main controller, sensors, operation panels, and other devices. Its stability and compatibility directly determine the overall operational efficiency and safety of the elevator system. The Elevator Interface Board ANCT-ES1-TF1, exclusively supplied byNanjing Zhuye Elevatorparts, is tailored for modern intelligent elevator systems. Compliant with international standards such as IEC/EN 60947 and GB 7588, this interface board supports CAN bus communication protocol, featuring high data transmission rate (up to 1 Mb/s) and strong anti-interference ability. It is widely compatible with mainstream elevator brands including Schindler, OTIS, KONE, and domestic well-known brands, applied in residential buildings, commercial complexes, airports, and industrial parks to ensure seamless signal interaction between elevator components.
Nanjing Zhuye Elevatorparts adheres to stringent quality control standards, and the ANCT-ES1-TF1 elevator interface board is a testament to this commitment. Each board undergoes rigorous pre-delivery testing, including communication stability testing, high-temperature (up to 85℃) and low-temperature (down to -25℃) resistance tests, anti-electromagnetic interference tests, and circuit continuity verification. The board adopts a high-quality PCB substrate with excellent insulation and heat dissipation performance, and key components are sourced from international renowned brands to ensure reliable operation. It is equipped with a dedicated fault diagnosis module that can monitor signal transmission status in real time and feed back abnormal information to the main controller, facilitating maintenance personnel to quickly locate issues. The surface of the board is coated with an anti-corrosion layer, effectively resisting dust and moisture erosion in the elevator hoistway.
Usage Guide for Elevator Interface Board ANCT-ES1-TF1
Proper installation, debugging, and daily maintenance are vital to maximizing the service life and communication performance of the ANCT-ES1-TF1 interface board. Nanjing Zhuye Elevatorparts strongly recommends that only certified elevator maintenance technicians perform these operations to avoid communication failures or safety hazards. Before installation, verify that the board’s model (ANCT-ES1-TF1), interface type, and electrical parameters are completely consistent with the elevator control system. For detailed installation steps and parameter setting standards, refer to the product manual provided by Nanjing Zhuye Elevatorparts or contact our technical support team for professional guidance. Note: Ensure the elevator is in maintenance mode and the main power is cut off during operation.
1. Pre-Installation Preparation
2. Installation & Wiring
Align the ANCT-ES1-TF1 interface board with the mounting bracket inside the control cabinet and fix it with screws. Note that the tightening torque should be appropriate (20-30 N·m recommended) to avoid damaging the PCB substrate. According to the wiring diagram provided by Nanjing Zhuye Elevatorparts, connect the power wires (DC 24V) and signal wires (CAN bus lines) to the corresponding terminals of the elevator main controller and peripheral devices. The wire stripping length should be controlled at 6-8mm, and terminals must be tightened firmly to prevent poor contact. Separate power wires and signal wires to reduce electromagnetic interference, and use cable ties to organize the wires neatly. After wiring, install the protective cover and double-check for wrong or missing connections—incorrect wiring may cause protocol mismatch or communication failure.
MaintenancMaintenancMaintenancMaintenancMaintenancMaintenancMaintenancMaintenanc3. Daily Maintenance & Use
Replacement Cycle of Elevator Interface Board ANCT-ES1-TF1
The replacement cycle of the ANCT-ES1-TF1 interface board depends on usage frequency, operating environment, and maintenance quality. Under normal conditions—12-24 hours of daily operation, stable voltage, clean control cabinet environment, and regular maintenance—Nanjing Zhuye Elevatorparts recommends a replacement cycle of 6-8 years. This cycle is formulated based on extensive field test data and GB/T31821—2015 standards, fully considering key factors such as aging of electronic components, attenuation of communication performance, and incompatibility with upgraded control systems.
For elevators in high-traffic areas (e.g., airports, subway stations with daily operation over 20 hours) or harsh environments (high humidity, heavy dust, frequent voltage fluctuations), the replacement cycle should be shortened to 4-6 years. High-frequency data transmission accelerates component wear, and harsh environments easily cause circuit corrosion and signal interference. For low-usage elevators (e.g., villas, small offices with daily operation <8 hours), proper maintenance can extend the cycle to 8-10 years. However, Nanjing Zhuye Elevatorparts’ technicians should conduct semi-annual comprehensive inspections on boards over 7 years old, including communication performance and protocol compatibility tests.
Regardless of service life, replace the ANCT-ES1-TF1 board immediately if: Communication failures occur frequently and cannot be repaired; the board fails to transmit signals accurately, leading to abnormal operation of elevator components; indicator lights are dim, flickering, or non-functional; the board is severely corroded or cracked; the board is incompatible with the upgraded elevator control system; it fails to pass annual safety inspections. Use genuine boards from Nanjing Zhuye Elevatorparts to ensure protocol matching and system stability.
The Elevator Interface Board ANCT-ES1-TF1 from Nanjing Zhuye Elevatorparts combines high stability, strong compatibility, and long durability, making it an ideal choice for elevator maintenance and intelligent upgrading. Backed by strict quality control, advanced communication technology, and comprehensive after-sales service, it has gained trust from maintenance firms and property managers worldwide. Adhering to proper usage and maintenance guidelines ensures seamless signal transmission between elevator components. Nanjing Zhuye Elevatorparts provides 100% genuine ANCT-ES1-TF1 boards, plus professional support including model matching, on-site debugging guidance, and fault diagnosis. Choose Nanjing Zhuye Elevatorparts for reliable core components and tailored solutions for elevator communication system needs.
