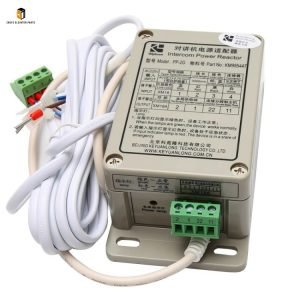

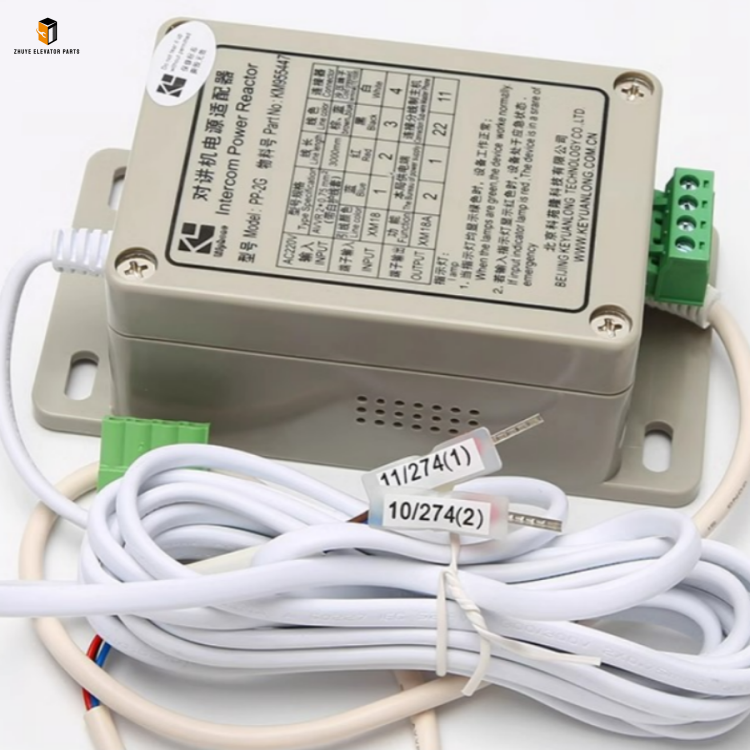

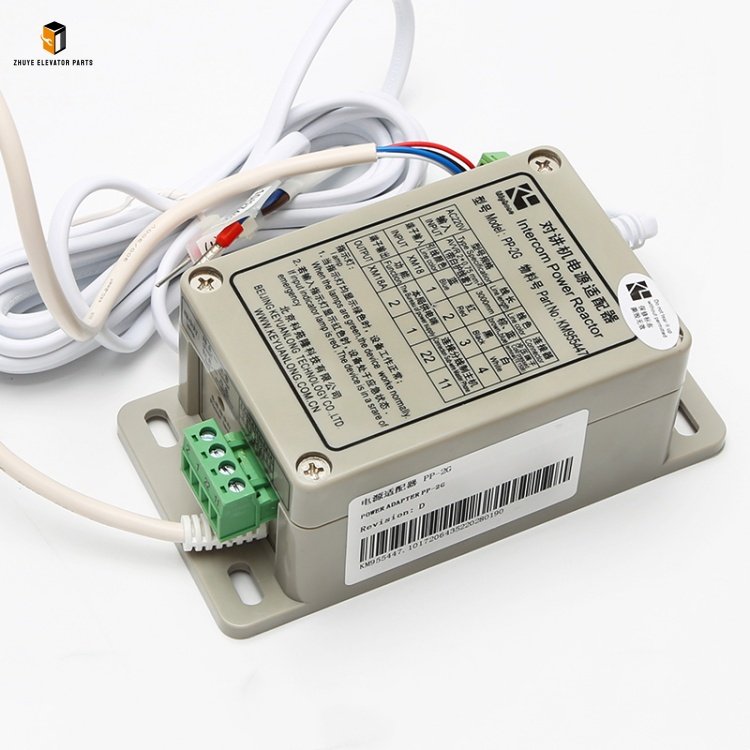

Elevator Intercom Power Reactor PP-2G KM955447: Stable Filter Core from Nanjing Zhuye Elevatorparts

Step-by-Step Usage Guide for Elevator Intercom Power Reactor PP-2G KM955447

1. Professional Installation & Wiring

• Safety Preparation: Cut off the elevator’s main power supply and the dedicated power supply of the intercom system. Lock the power switch to prevent accidental power-on. Clean the reactor mounting position (usually in the elevator intercom control box or near the power supply) to remove dust, oil stains, and debris that may affect heat dissipation and electrical insulation.
• Reactor Installation: Fix the PP-2G KM955447 reactor to the dedicated mounting rail or bracket using high-strength bolts provided by Nanjing Zhuye Elevatorparts. Ensure the reactor is installed horizontally (horizontal deviation ≤ 2°) and maintain a 15–20mm heat dissipation gap between adjacent components. Avoid installing it near sensitive electronic components (e.g., intercom mainboard) to reduce electromagnetic interference.
• Wiring Operation: According to the elevator intercom system wiring diagram, connect the reactor’s input terminal to the intercom power supply’s output interface and the reactor’s output terminal to the intercom mainboard’s power input interface. Ensure correct wiring direction (follow the “IN” and “OUT” marks on the reactor housing), tight connections, and reliable insulation. Use heat-shrinkable tubes for wiring joints to avoid short circuits. Clearly mark each wire as guided by Nanjing Zhuye’s manual for future maintenance.
• Post-Installation Debugging: Restore the power supply and turn on the elevator intercom system. Use a multimeter to detect the voltage at the reactor’s input and output terminals, ensuring the output voltage is stable (fluctuation ≤ ±1%). Test the intercom communication quality: make calls between the car, car top, and monitoring center to confirm clear voice, no noise, or signal interruption. Verify the reactor’s heat generation: after 2 hours of continuous operation, check the reactor’s surface temperature (should not exceed 70℃) to avoid overheating damage.

2. Daily Operation & Routine Inspection

• Daily Visual Inspection: During control cabinet patrols, check the external condition of the PP-2G KM955447 reactor. Ensure the metal housing is free of cracks, deformation, or discoloration (a sign of overheating); the wiring terminals are tight without looseness, oxidation, or burning marks; the nameplate (model, parameters) is clear and intact. Observe the intercom system’s operation to check for abnormal noise or communication interruptions (indicating potential reactor filtering failures).
• Weekly Performance Check: Use a multimeter to detect the reactor’s input and output voltage under no-load and full-load conditions (intercom in standby and communication states), recording the data for trend analysis. Use a clamp meter to measure the reactor’s operating current, ensuring it is within the rated range. Check the elevator intercom system’s fault records for any power-related errors, and troubleshoot in a timely manner if any are found.
• Monthly Cleaning & Inspection: Clean the reactor’s surface and cooling vents with a dry brush to remove dust and debris. Recheck the tightness of all wiring terminals and retighten if necessary. Inspect the reactor’s insulation layer for aging, cracking, or damage—replace with genuine parts if necessary.

3. Regular Maintenance Schedule

• Quarterly Maintenance: Disconnect the power supply and remove the reactor from the control box (if necessary). Clean the housing, terminals, and iron core surface with a professional electrical cleaner to remove dust, oxide, and oil stains. Inspect the copper windings for loose turns or insulation damage—use a megohmmeter to test the insulation resistance (insulation resistance ≥ 10MΩ) to ensure electrical performance is normal. Reinstall the reactor and recheck the wiring and voltage stability.
• Semi-Annual Performance Test: Conduct a comprehensive performance test, including inductance value, harmonic filtering effect, temperature rise, and power loss. Simulate extreme operating conditions (e.g., grid voltage fluctuation ±10%, high-temperature environment) to verify the reactor’s stable operation. For elevators in high-traffic areas (e.g., shopping malls, airports) with frequent intercom use, increase the test frequency to once every 3 months.
• Annual Professional Overhaul: Arrange a professional inspection with Nanjing Zhuye Elevatorparts’ certified technical team. Calibrate the reactor’s inductance value to meet the original factory standards. Check the iron core for magnetic saturation or damage. Replace aging components (e.g., insulation layer, terminal connectors) with genuine parts. Evaluate the reactor’s overall performance and adjust the maintenance plan according to the actual operation status.

Recommended Replacement Cycle for Elevator Intercom Power Reactor PP-2G KM955447

1. Standard Replacement Cycle

2. Adjustments for Special Scenarios

• Harsh Environments: For elevators in high-humidity coastal areas (salt spray corrosion), high-dust construction sites, or locations with frequent grid voltage fluctuations and severe harmonic interference (e.g., industrial zones), the replacement cycle should be shortened to 3–4 years. Harsh conditions accelerate winding insulation aging, iron core corrosion, and terminal damage, significantly reducing the reactor’s reliability.
• Low-Frequency Use Scenarios: For elevators with low intercom usage frequency (e.g., villa elevators, small office buildings with daily operation time < 8 hours) and stable power grid environment, the replacement cycle can be extended to 6–7 years—only if Nanjing Zhuye’s professional inspection confirms the reactor’s filtering effect, inductance value, and insulation performance are intact (consistent with original factory standards).

3. Immediate Replacement Conditions

• The reactor’s inductance value deviation exceeds ±10% of the rated value, leading to obvious degradation of filtering effect (e.g., intercom has serious noise, communication is intermittent).
• The reactor overheats frequently (surface temperature > 90℃) or has burning marks/odor during operation, indicating internal winding damage or short circuit.
• The insulation resistance is less than 1MΩ (tested by a megohmmeter), posing potential electrical safety risks such as leakage.
• The reactor’s housing is severely deformed or damaged, and the internal iron core or windings are exposed, unable to provide effective protection and filtering functions.
