Description

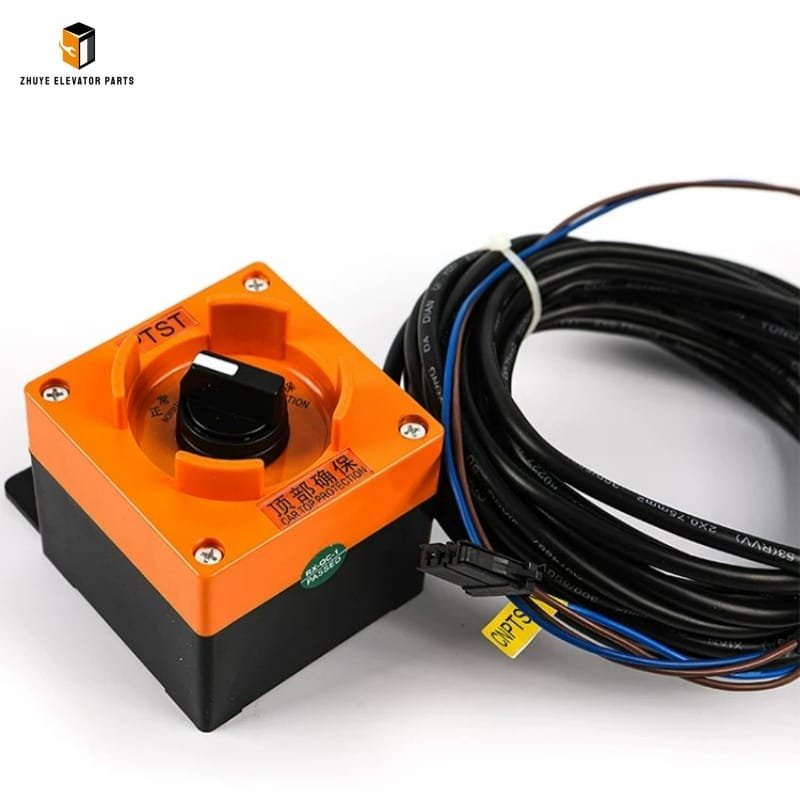

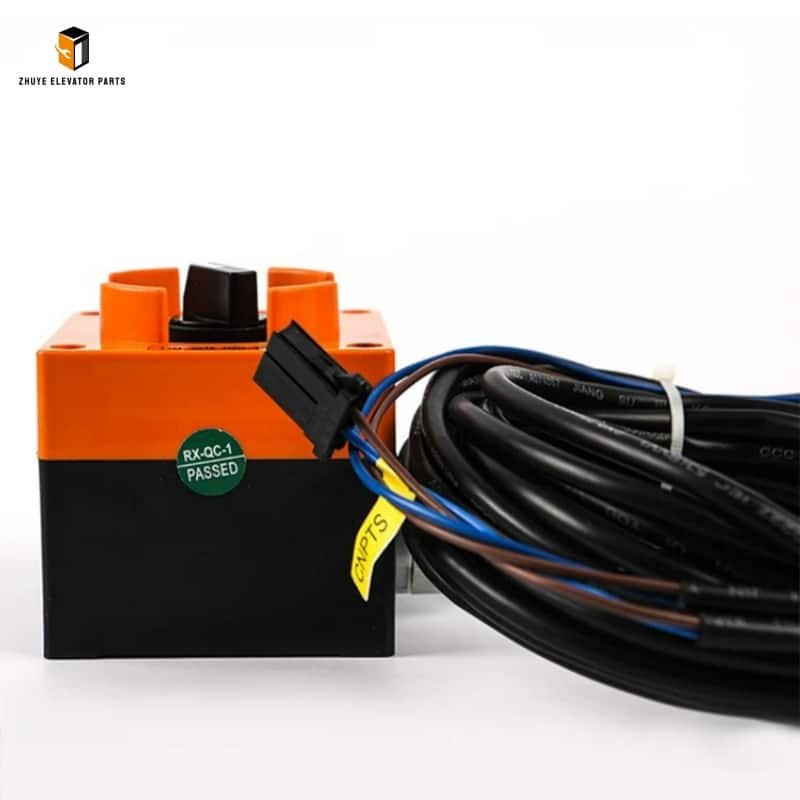

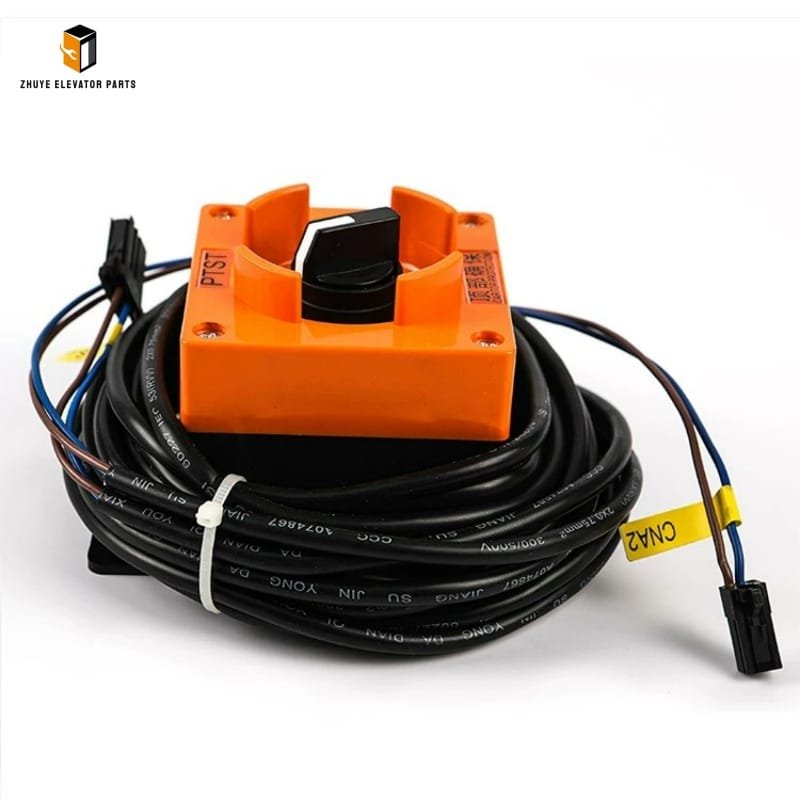

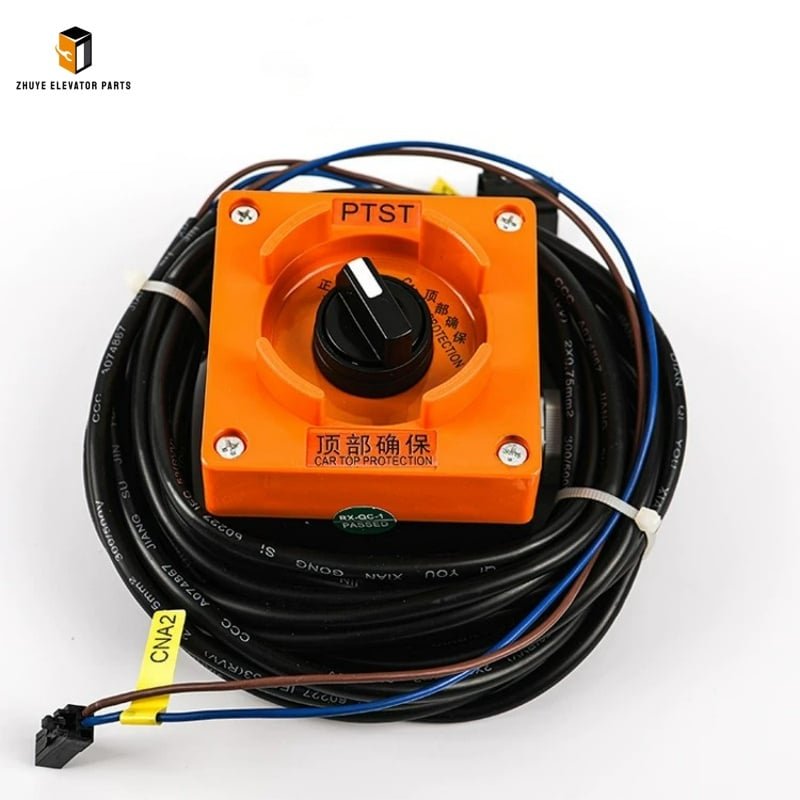

Elevator Inspection Switch Box PTST-BOX
|
Product Name |
Elevator Inspection Switch Box |

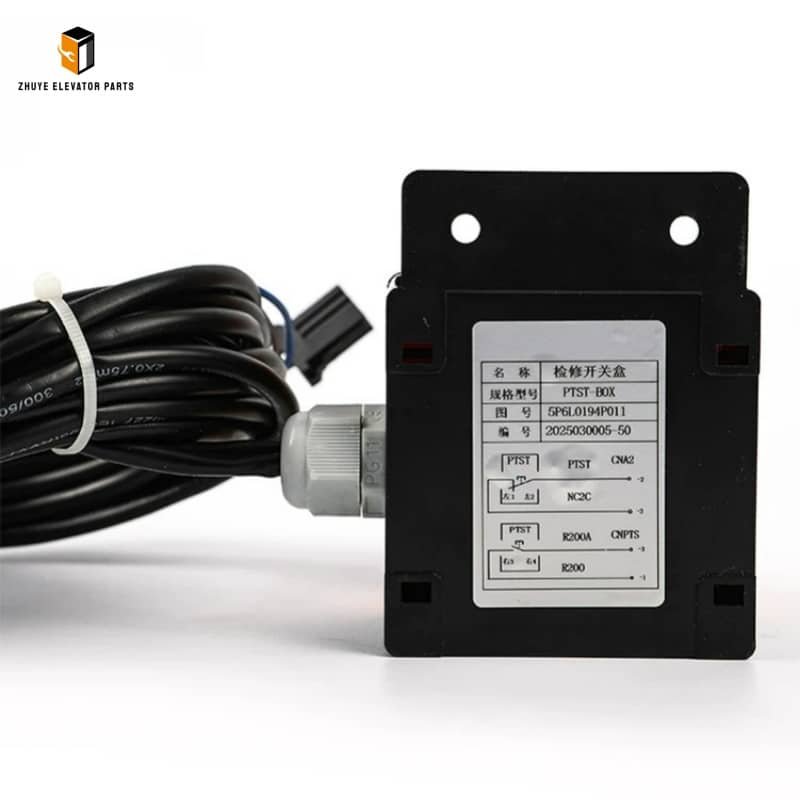

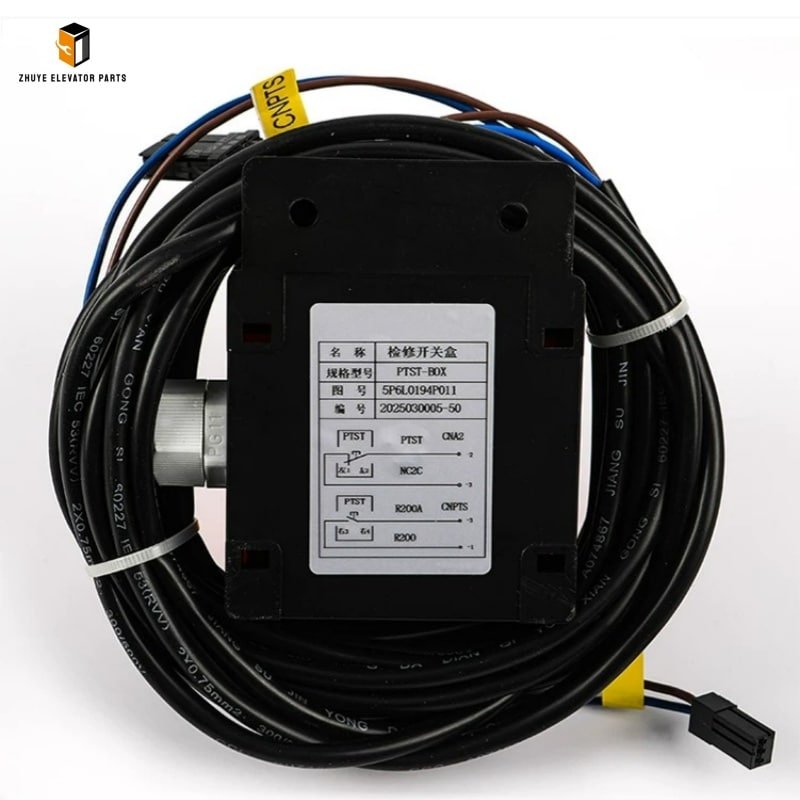

| Model Number | PTST-BOX
5P6L0194P011 |
|
Quality
|
Original.Brand New
|
|
Payment
|
T/T. Paypal. Western Union
|
|
Delivery
|
3-5 Working Days
|
|
Packaging
|
Packed by carton
|
Elevator Inspection Switch Box PTST-BOX | Compatible with Toshiba Elevators
The Elevator Inspection Switch Box PTST-BOX is a dedicated car-top safety control assembly professionally designed and fully compatible withToshiba elevators. Mounted on the elevator car top, this integrated inspection terminal serves as the core operation unit for on-site equipment debugging, routine maintenance and emergency troubleshooting. It integrates essential safety functions including manual inching control, emergency stop protection and circuit power control, allowing certified technicians to operate the elevator in inspection mode safely and accurately. Common operational faults such as unresponsive inching movement, invalid emergency stop, intermittent power failure and faulty signal transmission are mostly caused by internal switch aging, contact oxidation, long-term vibration fatigue and dust accumulation inside the box. Manufactured in strict compliance with Toshiba’s original electrical protocols and mounting standards, the PTST-BOX inspection switch box acts as a standard OEM replacement part for daily maintenance, electrical system upgrades and bulk inventory stocking for global elevator service contractors.
Featuring an industrial flame-retardant sealed casing and high-stability internal switch components, the PTST-BOX Toshiba elevator inspection box delivers outstanding dustproof, waterproof and anti-vibration performance. Optimized for harsh car-top working environments with continuous mechanical vibration and temperature fluctuations, it maintains sensitive control feedback and stable circuit conduction during long-term frequent operation. All mounting dimensions, terminal definitions and electrical parameters fully match Toshiba factory specifications, enabling true plug-and-play installation without circuit modification or complex parameter debugging. Built-in anti-interference and short-circuit protection modules effectively avoid circuit burnout and signal disorder, perfectly adapting to long-duration operation of all mainstream Toshiba residential and commercial elevators.
Standard Installation & Professional Operation Guidelines
All disassembly and installation procedures for the PTST-BOX inspection switch box must be performed by certified technicians specializing in Toshiba elevator systems. Before any maintenance work, completely cut off the elevator car-top power supply and main control circuit, lock the safety isolation switch, and post a prominent “Maintenance In Progress” warning sign on-site. Live-line operation and hot-swap replacement are strictly prohibited to prevent electric shock hazards and irreversible damage to internal electronic components.
Access the elevator car top with standard insulated maintenance tools and locate the original inspection switch box. Verify the equipment model to confirm full compatibility with the PTST-BOX specification for Toshiba elevators. Disconnect all power wires, signal cables and grounding connectors one by one, and mark each wiring interface clearly to eliminate misconnection risks during reinstallation. Remove the fixing bolts and safely detach the worn or faulty original switch box assembly.
Thoroughly clean the car-top mounting base to remove dust, oil residues and conductive impurities that may cause poor electrical contact. Secure the brand-new PTST-BOX inspection box with anti-loose bolts to prevent positional offset caused by persistent elevator vibration. Reconnect all cables strictly following the marked wiring sequence and double-check every terminal for firm connection and correct circuit logic. After installation, restore the power supply and conduct multiple inspection mode tests to verify flexible inching control, effective emergency stop response and stable overall operation.
Scientific Replacement Cycle & Fault Replacement Standards
The service lifespan of the PTST-BOX inspection switch box depends on elevator operating frequency and car-top environmental conditions. For conventional residential and low-frequency office Toshiba elevators, the recommended standard replacement cycle is 6 to 8 years.
For high-traffic venues such as shopping malls, hospitals and transit hubs, or humid and dusty operating environments, the switch box endures continuous vibration and environmental corrosion. It is advisable to shorten the replacement cycle to 4 to 5 years to prevent sudden control failures and hidden maintenance safety risks.
Immediate replacement is required once abnormal symptoms occur, including sluggish control response, loose and oxidized terminals, internal circuit aging, abnormal overheating and disabled safety protection functions. Timely replacement of the PTST-BOX switch box eliminates potential electrical hazards and ensures safe and reliable manual maintenance operation for all Toshiba elevator systems.
Reliable Supply Advantages from Our Factory
We supply brand-new factory-tested Elevator Inspection Switch Box PTST-BOX, 100% compatible with all mainstream Toshiba elevator models. Every unit undergoes strict circuit detection, functional verification and 72-hour continuous aging tests before shipment. We maintain sufficient in-stock inventory, support fast global cross-border logistics, and provide professional remote installation and debugging guidance. Our high-quality aftermarket spare parts reduce on-site maintenance difficulty, minimize elevator downtime, and help global elevator service providers enhance operational safety and service efficiency.
