Description

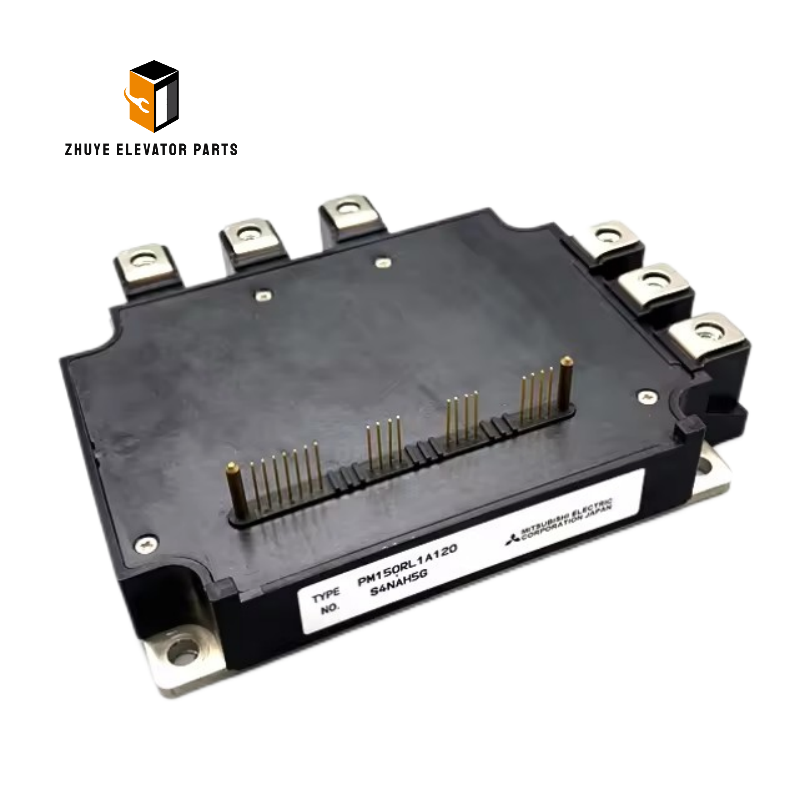

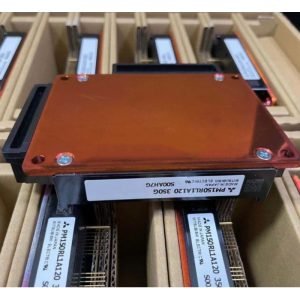

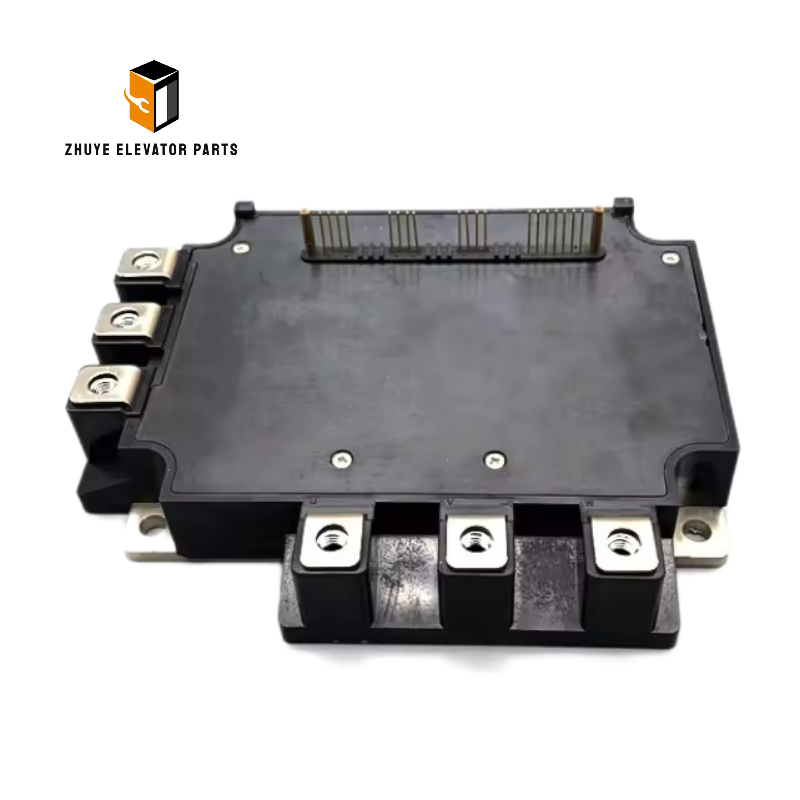

Elevator IGBT module PM150RLA120 PM100RLA120 Brief Introduction
|
Product Name |
IGBT module |
| Model Number | PM150RLA120 PM100RLA120 PM100CL1A120 PM100RL1A120 |
|
Quality
|
Original.Brand New
|
|
Payment
|
T/T. Paypal. Western Union
|
|
Delivery
|
3-5 Working Days
|
|
Packaging
|
Packed by carton
|
Elevator IGBT Module PM150RLA120: Usage Guide, Replacement Cycle & Trusted Supply from Nanjing Zhuye
The Elevator IGBT Module PM150RLA120 is a high-power semiconductor component designed for heavy-duty traction drive systems in elevators—compatible with leading brands such as Mitsubishi, Otis, Kone, and Toshiba, deployed in commercial high-rises, residential complexes, public transit hubs, and industrial buildings. As a core power conversion unit, this IGBT (Insulated Gate Bipolar Transistor) module converts DC power from the elevator’s inverter to regulated AC power for the traction motor, enabling precise speed control, smooth acceleration/deceleration, and efficient energy management even under full-load conditions. Engineered to meet strict industrial standards, it balances robust power handling, thermal stability, and long-term reliability, making it a preferred choice for high-capacity or high-speed elevator applications.
Compliant with international standards (EN 60747, IEC 61287, ISO 9001), the PM150RLA120 features a durable, heat-resistant design: 150A collector current rating, 1200V breakdown voltage, low on-state voltage drop (VCE(sat)) for reduced energy loss, integrated freewheeling diodes, and a ceramic substrate with enhanced thermal conductivity. This construction withstands intense current loads, rapid switching cycles, and harsh machine room environments—including temperature fluctuations (-10°C to +150°C operating junction temperature), voltage transients, dust, and vibration. For maintenance teams, facility managers, and elevator service providers, mastering the correct installation, cooling, and replacement protocols of this module is critical to preventing drive system failures, elevator stalling, or catastrophic power-related hazards. Nanjing Zhuye Elevator Parts, a trusted supplier of authentic power components, delivers the PM150RLA120 IGBT module that meets original equipment (OE) specifications—guaranteeing consistent power conversion, thermal resilience, and long-term durability.
Proper Usage Methods of Elevator IGBT Module PM150RLA120
1. Pre-Installation Preparation
Before installation, prioritize safety by shutting off the elevator’s main power supply, discharging the DC link capacitor (per manufacturer’s safety procedures), and securing the drive cabinet with a lockout tag. Inspect the new PM150RLA120 module for physical damage—such as cracked casings, bent terminal pins, loose bonding wires, or signs of overheating (discoloration)—defects that can cause short circuits, power loss, or module failure. Nanjing Zhuye Elevator Parts conducts rigorous quality control checks, so each unit arrives in optimal condition: intact semiconductor chips, pre-tested forward voltage drop, functional freewheeling diodes, and clean mounting surfaces for maximum thermal transfer.
Verify compatibility with your elevator’s traction drive system by cross-referencing the technical manual or consulting Nanjing Zhuye’s technical support team. Ensure the module’s ratings (150A/1200V), pin configuration, and thermal requirements align with the drive system’s specifications—using an incompatible IGBT module can damage the drive board, traction motor, or other critical components.
2. Installation & Cooling Setup
- Module Installation:
- Access the elevator’s drive cabinet (located in the machine room) and locate the designated mounting position on the heat sink. Disconnect the old IGBT module (if replacing) by detaching power terminals (DC+, DC-, AC output) and gate driver connectors—label all connections clearly to avoid cross-connection errors. Clean the heat sink surface with a lint-free cloth and thermal paste remover to eliminate old paste residue and debris.
- Apply a thin, uniform layer of industry-grade thermal paste (or use the pre-applied paste on the module) to the bottom of the PM150RLA120. This ensures optimal thermal conductivity between the module and heat sink, preventing overheating. Align the module with the heat sink mounting holes and secure it with high-torque bolts (torque to 4–6 Nm) to eliminate air gaps that reduce heat dissipation. Reconnect the power terminals (ensuring correct polarity) and gate driver connectors—tighten terminal screws to the manufacturer’s specified torque (1.5–2.0 Nm) to prevent loose connections and electrical arcing.
- Cooling System Verification:
- Confirm the drive system’s cooling fan or liquid cooling circuit is functioning properly—adequate cooling is critical for the PM150RLA120, as high-power IGBT modules generate significant heat. Check fan speed, air flow, and heat sink temperature (should remain ≤80°C during full-load operation) using a thermal sensor. Replace faulty fans or unclog air filters immediately to avoid thermal overload.
- Functional Testing:
- Conduct comprehensive tests (by certified technicians only) using elevator diagnostic software (compatible with the respective brand’s platform):
- Power Conversion Test: Run the elevator through empty, half-loaded, and full-loaded cycles to confirm the IGBT module delivers stable AC power to the traction motor—no voltage fluctuations, current spikes, or abnormal noise.
- Thermal Test: Monitor the module’s junction temperature during extended full-load operation to ensure it stays within the safe range (≤150°C).
- Fault Protection Test: Simulate overcurrent, overvoltage, or overtemperature conditions to verify the drive system triggers protective shutdowns and isolates the IGBT module.
- Document installation details, thermal readings, and test results in maintenance records to demonstrate compliance with safety and service standards.
- Conduct comprehensive tests (by certified technicians only) using elevator diagnostic software (compatible with the respective brand’s platform):
3. Routine Usage Maintenance
To preserve the module’s performance and extend its lifespan, implement these proactive maintenance practices:
- Weekly Visual Inspections: Check for loose terminals, damaged wires, or cooling fan malfunctions. Remove dust from the heat sink and module surface with compressed air—avoid blocking cooling vents.
- Monthly Thermal Checks: Use a thermal imaging camera or sensor to monitor the heat sink and module temperature during operation. Log readings to track long-term thermal stability and identify potential issues early.
- Quarterly Connection Inspections: Inspect power terminals and gate driver connectors for corrosion, oxidation, or loose contacts. Retighten terminals as needed or replace damaged connectors with genuine parts from Nanjing Zhuye.
- Semi-Annual Cooling System Maintenance: Clean the cooling fan blades and air filters to ensure unobstructed airflow. Replace worn or noisy fans every 3–4 years as preventive maintenance.
- Annual Performance Testing: Use diagnostic software to check the IGBT module’s switching characteristics, forward voltage drop, and leakage current—compare results to factory specifications to identify degradation.
Recommended Replacement Cycle
The service life of the Elevator IGBT Module PM150RLA120 depends on usage intensity (daily switching cycles), load frequency, environmental conditions (temperature, dust), and cooling system efficiency. Based on industry standards and Nanjing Zhuye’s technical expertise:
1. Standard Replacement Cycle
Under normal operating conditions (12–18 hours of daily use, regular maintenance, and proper cooling), the IGBT module should be replaced every 6–8 years. This timeframe accounts for gradual degradation of semiconductor chips, increased switching losses, and reduced thermal stability—ensuring the module maintains efficient power conversion, reliable performance, and compatibility with elevator drive systems. Proactive replacement reduces the risk of unexpected module failure and costly elevator downtime.
2. Signs That Require Immediate Replacement
Replace the IGBT module immediately if you encounter any of the following issues:
- Power Conversion Failures: Elevator experiences speed fluctuations, jerking, or stalling—indicative of faulty switching or reduced power output from the module.
- Thermal Overload Alerts: Repeated overtemperature error codes (e.g., “IGBT Overtemp”) that cannot be resolved with cooling system maintenance.
- Physical Damage: Cracked module casing, burned terminals, or visible damage to the semiconductor chips—compromising electrical safety and power conversion functionality.
- Performance Degradation: Increased energy consumption, reduced motor efficiency, or abnormal noise from the drive system—attributed to worn IGBT chips or degraded freewheeling diodes.
- Faulty Switching: The module fails to switch on/off properly, causing current spikes or voltage surges that damage the drive board or traction motor.
3. Maintenance to Extend Service Life
To maximize the module’s lifespan and minimize replacement costs:
- Optimize Cooling: Ensure the drive cabinet’s cooling system is properly sized and maintained. Avoid blocking air vents or placing heat-generating components near the IGBT module.
- Stabilize Power Supply: Install surge protectors and voltage regulators to shield the module from input power spikes and transients—common causes of semiconductor damage.
- Minimize Overload: Adhere to the elevator’s weight capacity limits and avoid frequent full-load acceleration/deceleration cycles—reduces stress on the IGBT module.
- Use Genuine Parts Only: For replacements, rely exclusively on authentic PM150RLA120 IGBT modules from Nanjing Zhuye. Counterfeit modules may use inferior semiconductor chips, inadequate thermal design, or incorrect ratings—compromising performance, safety, and elevator system reliability.
Why Choose Nanjing Zhuye Elevator Parts?
When sourcing the Elevator IGBT Module PM150RLA120, Nanjing Zhuye Elevator Parts offers unmatched advantages for safety-focused professionals:
- Authenticity & Universal Compatibility: All modules meet OE specifications, ensuring seamless integration with multiple elevator brands and compliance with global industrial standards.
- Strict Quality Assurance: Each unit undergoes rigorous testing—including power handling capacity, switching efficiency, thermal stability, and diode functionality—to guarantee reliable operation in critical elevator systems.
- Expert Technical Support: Nanjing Zhuye’s certified engineers specialize in elevator power systems, providing 24/7 assistance for installation, cooling system setup, compatibility verification, and troubleshooting (e.g., IGBT overheating, power conversion issues).
- Global Efficient Delivery: With a robust supply chain and logistics network, Nanjing Zhuye delivers power semiconductor components promptly worldwide, minimizing elevator downtime during replacement—critical for high-traffic buildings.
- Competitive Pricing: By eliminating middlemen, Nanjing Zhuye offers cost-effective solutions without compromising quality—helping you balance maintenance budgets with the need for durable, compliant elevator components.
Conclusion
The Elevator IGBT Module PM150RLA120 is a foundational high-power component that ensures efficient, reliable operation of heavy-duty elevator traction drive systems. By following proper installation, cooling system maintenance, and routine performance checks—paired with Nanjing Zhuye’s authentic components—you can ensure elevators remain compliant, downtime-free, and energy-efficient. Whether you need a single replacement module, technical support for cooling setup, or bulk orders for a building fleet, Nanjing Zhuye is committed to delivering premium power components and tailored professional services. Invest in the power conversion reliability of your elevators—choose Nanjing Zhuye Elevator Parts for your PM150RLA120 IGBT module requirements.
