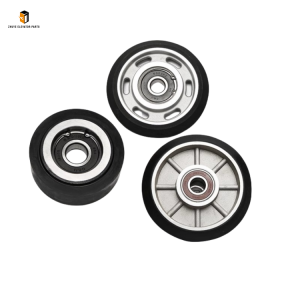

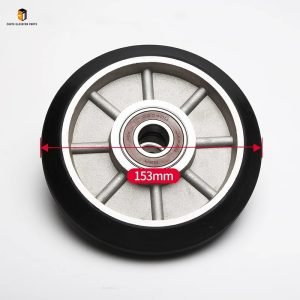

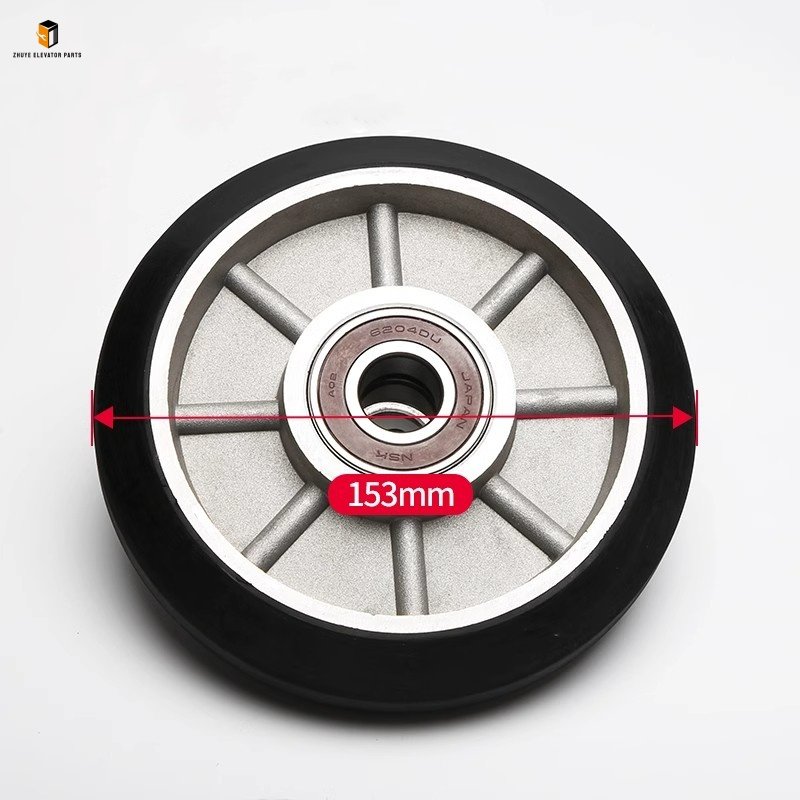

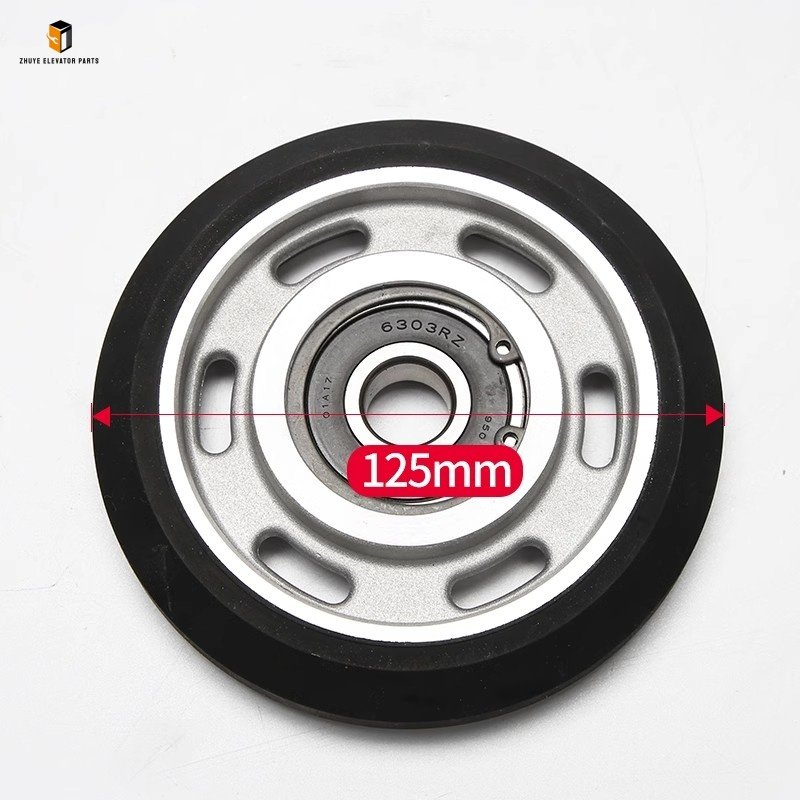

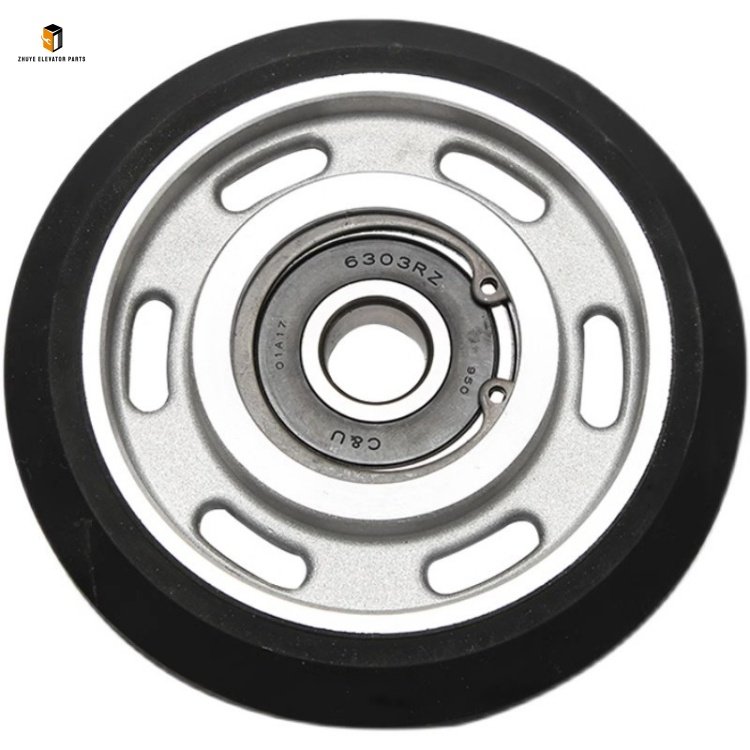

Elevator Guide Shoe Roller 153*6204: Stable Guiding Component from Nanjing Zhuye Elevatorparts

Step-by-Step Usage Guide for Elevator Guide Shoe Roller 153*6204

1. Professional Installation & Commissioning

• Safety Preparation: Cut off the elevator’s main power supply and hang a “Maintenance in Progress—Do Not Power On” sign at the power switch. Use an elevator maintenance platform to raise the elevator car to a safe position and fix it with a safety clamp to prevent accidental falling. Remove the old guide shoe roller by disassembling the fixing bolts on the guide shoe.
• Roller Installation: Clean the guide shoe’s roller mounting shaft to remove dust, oil stains, and rust. Align the 153*6204 guide shoe roller with the mounting shaft and gently push it into place. Ensure the roller rotates flexibly without jamming. Fix the roller firmly using high-strength bolts provided by Nanjing Zhuye Elevatorparts, and strictly follow the specified tightening torque (typically 20–25 N·m) to prevent loosening during operation.
• Gap Adjustment: After installing the roller, adjust the gap between the roller and the guide rail according to the elevator’s technical requirements. The standard gap is 0.3–0.5mm to ensure the car moves smoothly while avoiding excessive clearance that causes vibration. Use a feeler gauge to detect the gap and make fine adjustments until it meets the standard.
• Post-Installation Testing: Remove the safety clamp and lower the car to the normal position. Restore the elevator power supply and conduct comprehensive functional tests. Operate the elevator to run up and down the entire stroke, and check if the car moves smoothly without abnormal vibration or noise. Use a dial indicator to detect the lateral deviation of the car during operation (normal deviation ≤ 0.3mm). If there is abnormal vibration, noise, or excessive deviation, recheck the installation position and gap of the roller immediately.

2. Daily Operation & Routine Inspection

• Daily Visual Inspection: During elevator maintenance, check the external state of the 153*6204 guide shoe roller through the observation window of the elevator shaft. Ensure the PU outer layer is free of cracks, peeling, or excessive wear; check if the roller rotates flexibly without jamming; confirm that the fixing bolts are tight and the roller has no axial displacement.
• Weekly Functional Check: Operate the elevator at different speeds (normal speed, inspection speed) and listen for abnormal noise in the guide shoe area. If there is harsh friction sound or periodic vibration, it may be caused by excessive wear of the roller or loose installation, and the roller needs to be inspected and maintained immediately.
• Monthly Parameter Monitoring: Use a feeler gauge to detect the gap between the roller and the guide rail. If the gap exceeds 1mm, adjust the guide shoe or replace the roller in a timely manner. Check the wear depth of the PU outer layer—if the wear depth exceeds 2mm (exceeding the safe wear limit), take replacement measures immediately.

3. Regular Maintenance Schedule

• Quarterly Maintenance: Clean the surface of the roller and the guide rail with a dry, lint-free cloth to remove accumulated dust and debris. Apply a small amount of professional lubricant (recommended by Nanjing Zhuye Elevatorparts) to the roller’s rotating shaft to ensure smooth rotation. Recheck the tightness of the fixing bolts and retighten if necessary.
• Semi-Annual Performance Test: Conduct a comprehensive performance test, including the roller’s rotation smoothness and load-bearing capacity. Use a professional rotation tester to detect the roller’s rotational resistance (normal value ≤ 5N). For elevators in harsh environments (such as high humidity, high dust, or frequent full-load operation), increase the frequency of performance tests.
• Annual Professional Overhaul: Arrange a professional inspection with Nanjing Zhuye Elevatorparts’ certified technical team. Disassemble the guide shoe to inspect the roller’s internal bearing and PU outer layer, check for hidden damage or fatigue, and replace aging or worn rollers with genuine parts. At the same time, inspect the guide rail for wear or deformation that may affect the roller’s performance.

Recommended Replacement Cycle for Elevator Guide Shoe Roller 153*6204

1. Standard Replacement Cycle

2. Adjustments for Special Scenarios

• Harsh Environments: For elevators in high-humidity coastal areas, high-dust construction sites, elevator shafts with poor ventilation, or elevators with frequent full-load operation (such as large shopping malls, hospitals), the replacement cycle should be shortened to 1.5–2 years. Harsh conditions accelerate the wear of the PU outer layer, corrosion of the bearing, and fatigue of the roller base, significantly reducing the roller’s reliability.
• Low-Frequency Use Scenarios: For elevators with low usage frequency (e.g., villa elevators, small office buildings with monthly rides < 2,500) and clean, well-ventilated elevator shafts, the replacement cycle can be appropriately extended to 3–4 years—only if Nanjing Zhuye’s professional inspection confirms that the roller’s wear degree, rotation performance, and load-bearing capacity are all intact.

3. Immediate Replacement Conditions

• The PU outer layer is severely worn (wear depth > 2mm), peeled off, or cracked, leading to direct contact between the bearing steel base and the guide rail.
• The roller rotates with obvious jamming or abnormal noise, and the fault cannot be eliminated through lubrication and maintenance.
• The roller’s fixing bolts are loose and cannot be tightened, or the roller has axial displacement that affects the guiding accuracy.
• After professional testing, the roller’s load-bearing capacity is reduced by more than 30%, or the rotational resistance exceeds 15N, which affects the normal operation of the elevator.
