Description

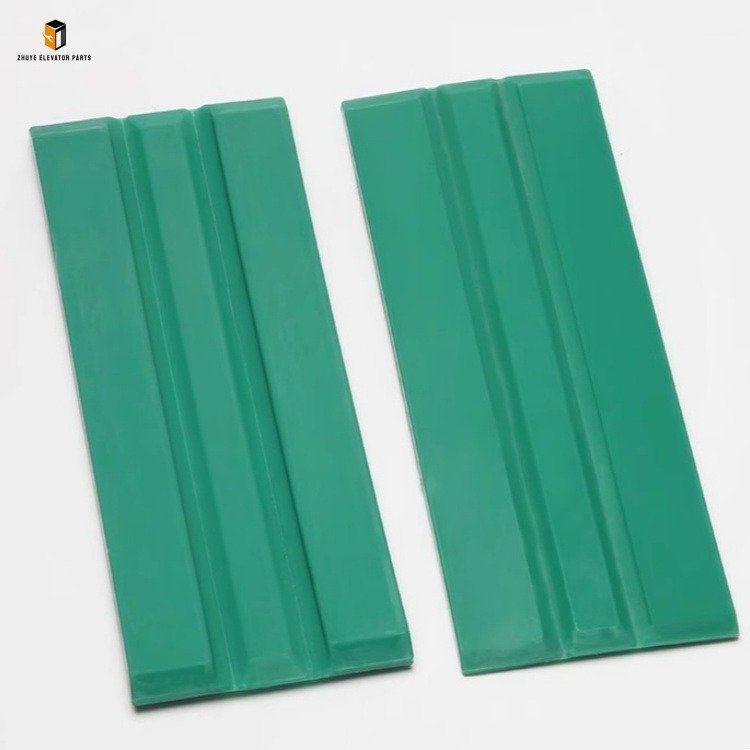

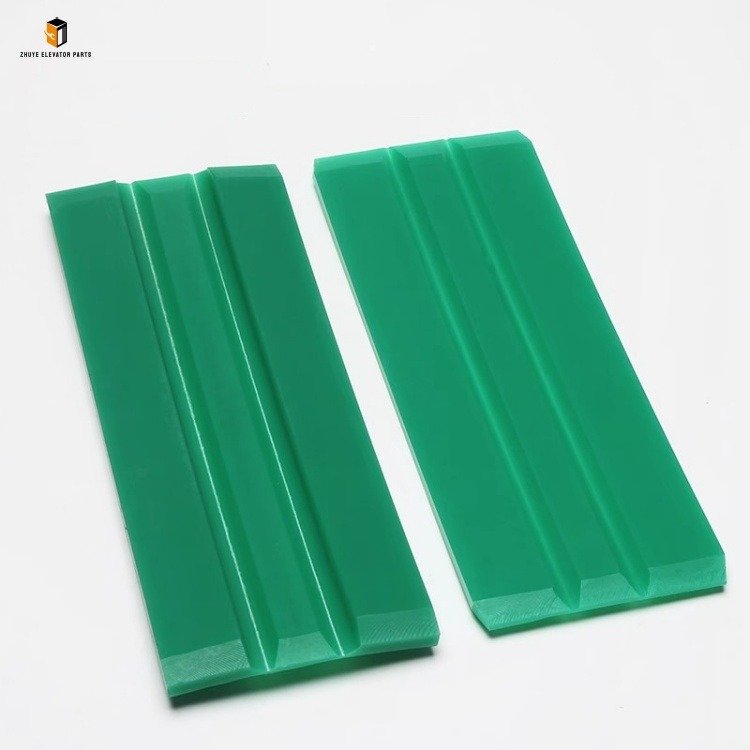

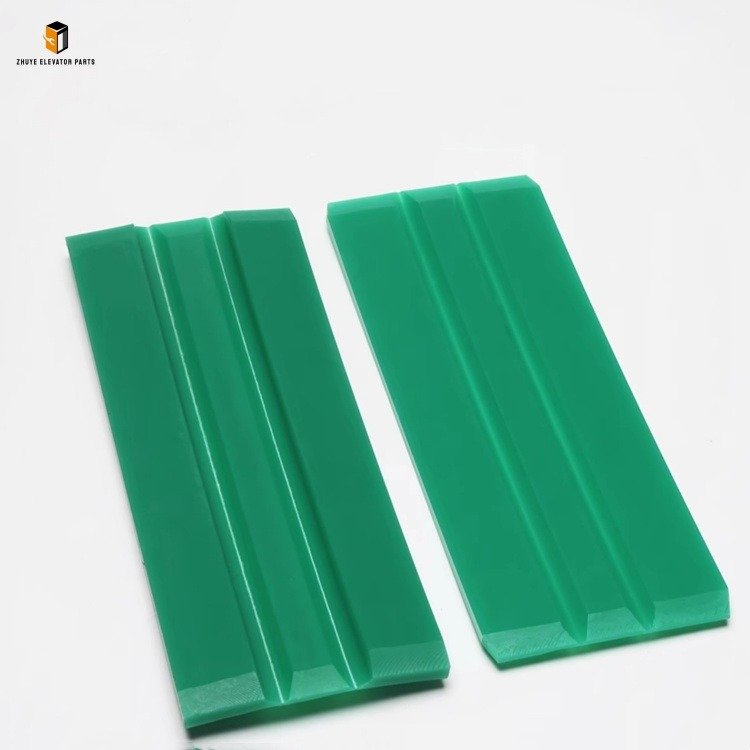

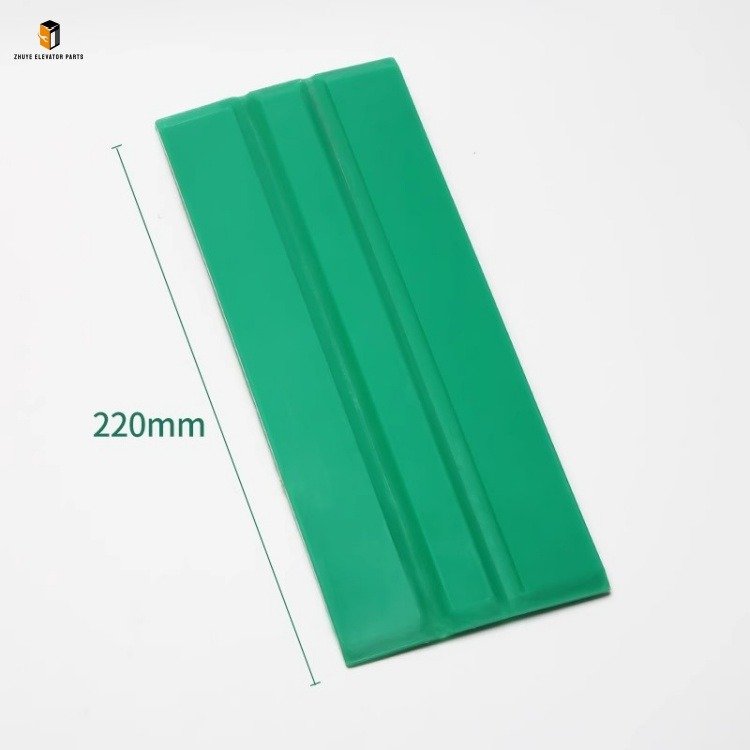

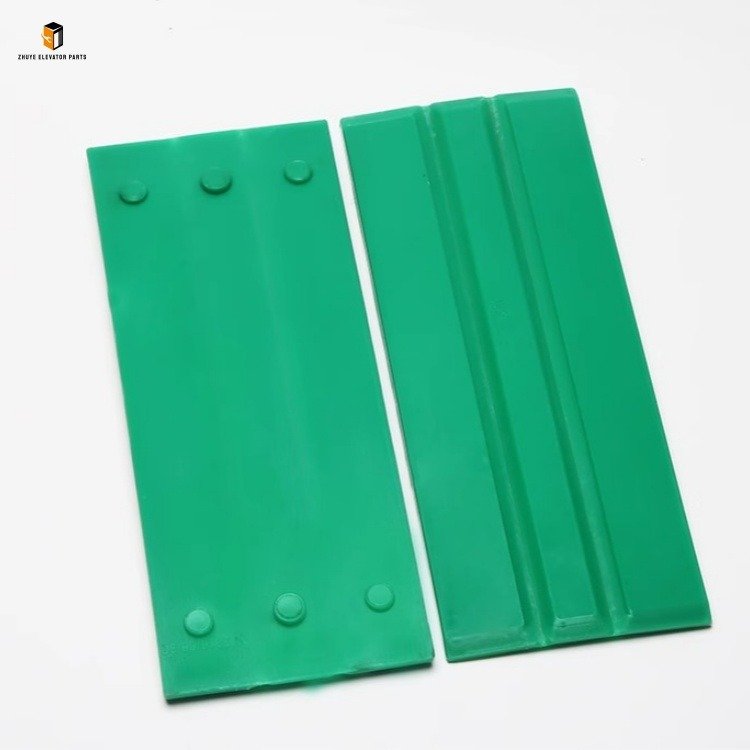

Elevator guide shoe lining SG27 220*16mm Brief Introduction
|
Product Name |
Elevator guide shoe lining |
| Model Number | SG27 220*16mm |
|
Quality
|
Original.Brand New
|
|
Payment
|
T/T. Paypal. Western Union
|
|
Delivery
|
3-5 Working Days
|
|
Packaging
|
Packed by carton
|
Elevator Guide Shoe Lining SG27 220*16mm: Premium Wear-Resistant Solution from Nanjing Zhuye Elevatorparts
In the complex ecosystem of elevator systems, the guide shoe lining serves as a critical “buffer and wear-resistant barrier,” attaching to the elevator guide shoe and sliding along the guide rail to ensure smooth, stable, and low-noise operation of the car. A high-quality guide shoe lining is essential for reducing vibration, minimizing friction between the car and guide rail, and extending the service life of both components. The Elevator Guide Shoe Lining SG27 220*16mm, exclusively supplied by Nanjing Zhuye Elevatorparts, is engineered to meet the rigorous demands of modern elevator applications. With a dimension of 220mm in length and 16mm in thickness, this lining is made of premium SG27 composite material, complying with international standards such as EN 81-1 and GB/T 7588.1-2020. It is compatible with mainstream elevator brands including Schindler, OTIS, KONE, and domestic brands like Hitachi Elevator. Whether for new elevator installations or maintenance replacements, it delivers exceptional wear resistance and shock absorption that elevator professionals trust.
Nanjing Zhuye Elevatorparts has always adhered to a strict quality control system, and the SG27 220*16mm elevator guide shoe lining is a testament to this commitment. Each unit undergoes comprehensive testing, including wear resistance testing, compression strength assessment, high-temperature resistance trials, and low-noise performance testing. The lining features a premium SG27 composite material that combines high-density rubber and reinforcing fibers, ensuring excellent wear resistance—its service life is 30% longer than ordinary rubber linings. It has a Shore hardness of 60-70A, providing an optimal balance between rigidity and flexibility to effectively absorb vibration during elevator operation, reducing noise to below 55dB. The material is oil-resistant and aging-resistant, adapting to the harsh environment of the elevator shaft which is prone to humidity and occasional oil contamination. Its precise dimension (220*16mm) ensures a perfect fit with the guide shoe, avoiding abnormal wear caused by loose installation.
Usage Guide for Elevator Guide Shoe Lining SG27 220*16mm
Proper installation, lubrication, and inspection are essential to maximize the performance and lifespan of the SG27 220*16mm guide shoe lining. Nanjing Zhuye Elevatorparts strongly recommends that only certified elevator maintenance technicians perform these procedures to avoid safety hazards or equipment damage—improper installation may cause elevator jitter, increased noise, or even guide rail wear. Before starting, verify that the lining’s dimension (220*16mm) matches the elevator’s guide shoe model—refer to the product manual provided by Nanjing Zhuye Elevatorparts or consult our technical team for clarification. Ensure the guide rail surface is free from sharp burrs that may scratch the lining.
1. Pre-Installation Preparation
Begin by cutting off the elevator’s main power supply and control system power, then lock the power switch and place a “Maintenance in Progress” warning sign at the machine room and elevator entrances to prevent accidental activation. Fix the elevator car at a safe position using safety supports to avoid unintended movement. Prepare essential tools: a screwdriver, pliers, torque wrench, sandpaper, and a clean cloth. Clean the guide shoe groove and guide rail surface to remove dust, debris, and old lubricating oil—contaminants are a leading cause of premature lining wear. Inspect the SG27 220*16mm lining for any external damage, cracks, or deformation; do not use the product if any defects are found. Check the guide shoe’s fixing components for looseness or wear and replace them if necessary.
2. Installation & Lubrication
Install the SG27 220*16mm guide shoe lining into the guide shoe groove, ensuring it fits tightly with no gaps or looseness. Use the original fixing screws to secure the lining, and tighten them according to the recommended torque (3-5 Nm) to avoid damage to the lining or guide shoe. After installation, adjust the guide shoe clearance—ensure the gap between the lining and guide rail is 0.5-1mm on each side, which is critical for smooth operation and vibration reduction. Apply a thin layer of special elevator guide rail lubricant (recommended by Nanjing Zhuye Elevatorparts) to the contact surface between the lining and guide rail. Avoid using excessive lubricant, as it may attract dust and accelerate wear. Ensure the lubricant is compatible with the SG27 composite material to prevent material degradation.
3. Debugging & Daily Maintenance
After completing installation and lubrication, conduct a comprehensive debugging test: Restore the power supply and operate the elevator to run through multiple up and down cycles. Check if the elevator operates smoothly with no abnormal jitter or noise. Monitor the lining’s performance during acceleration and deceleration, as these phases cause the most friction. During daily maintenance, inspect the SG27 220*16mm lining at least monthly. Check for wear, cracks, or deformation, and measure the remaining thickness—if it is reduced to below 8mm, plan for replacement immediately. Regularly clean the guide rail and lining surface to remove accumulated dust and debris, and reapply lubricant every 3 months or as needed. If the elevator produces unusual noise, vibration, or uneven operation, immediately stop using it and inspect the guide shoe lining and guide rail.
Replacement Cycle of Elevator Guide Shoe Lining SG27 220*16mm
The replacement cycle of the SG27 220*16mm elevator guide shoe lining depends on operating frequency, working environment, and maintenance conditions. Under normal operating parameters—elevator runs 12-24 hours daily, carries ≤80% of rated load, and the shaft environment is dry and clean—Nanjing Zhuye Elevatorparts recommends a replacement cycle of 1.5-2.5 years. This timeline is based on long-term field data, accounting for wear caused by friction between the lining and guide rail, as well as material aging due to environmental factors.
For elevators in high-traffic areas (e.g., shopping malls, airports) with frequent starts and stops, or in harsh environments (shaft with high humidity, heavy dust, or guide rails with poor smoothness), the replacement cycle should be shortened to 8-12 months. High-frequency operation increases friction intensity, while harsh conditions accelerate lining wear and contamination. For low-usage elevators (e.g., villa elevators, small office buildings with daily operation <8 hours) in stable environments, the cycle can be extended to 3-4 years, but semi-annual professional inspection by Nanjing Zhuye’s technicians is mandatory to confirm wear status, thickness, and compatibility with the guide rail.
Immediately replace the SG27 220*16mm guide shoe lining if any of the following issues occur, regardless of service life: The lining thickness is reduced to below 8mm (less than half of the original 16mm); Severe cracks, deformation, or delamination are found on the surface; The elevator produces continuous abnormal noise or jitter during operation, which is confirmed to be caused by lining wear; The lining is contaminated by incompatible substances (e.g., strong chemicals) leading to material degradation; The lining fails to provide effective buffering, resulting in increased wear of the guide rail. Timely replacement is critical to avoiding elevator operation failures and extending the service life of the guide rail system.
The Elevator Guide Shoe Lining SG27 220*16mm from Nanjing Zhuye Elevatorparts combines exceptional wear resistance, shock absorption, and durability to deliver a premium solution for elevator operation stability. Its precise dimension and high-quality SG27 material ensure perfect compatibility with most elevator guide shoes. By following the recommended usage guidelines and replacement cycles, you can effectively reduce elevator noise, minimize maintenance costs, and enhance passenger comfort and safety. Nanjing Zhuye Elevatorparts provides 100% authentic SG27 220*16mm guide shoe linings, along with professional support including model matching, on-site installation guidance, and timely after-sales service. Choose Nanjing Zhuye Elevatorparts for peace of mind in elevator component solutions.
As a key component affecting elevator operation stability and comfort, the guide shoe lining plays an irreplaceable role in the elevator system. Nanjing Zhuye Elevatorparts adheres to the highest quality standards, ensuring each SG27 220*16mm lining undergoes strict testing before leaving the factory. With our professional technical support and high-quality products, you can enhance the performance of your elevators and comply with global elevator safety regulations.
