Description

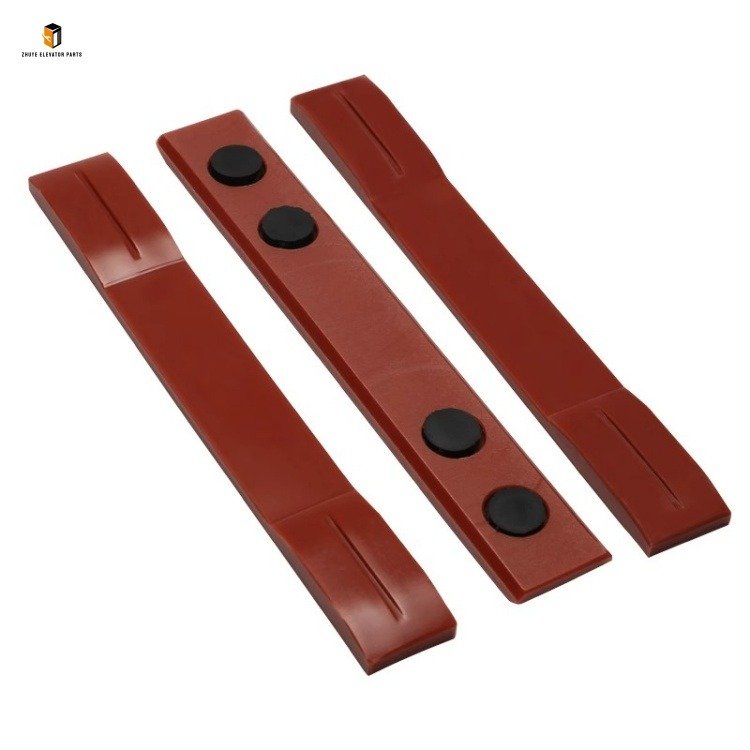

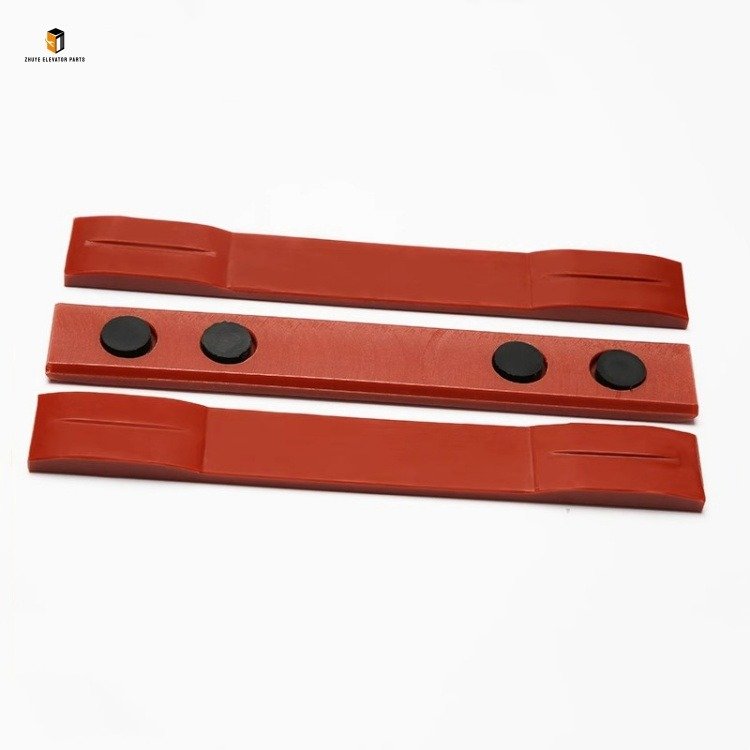

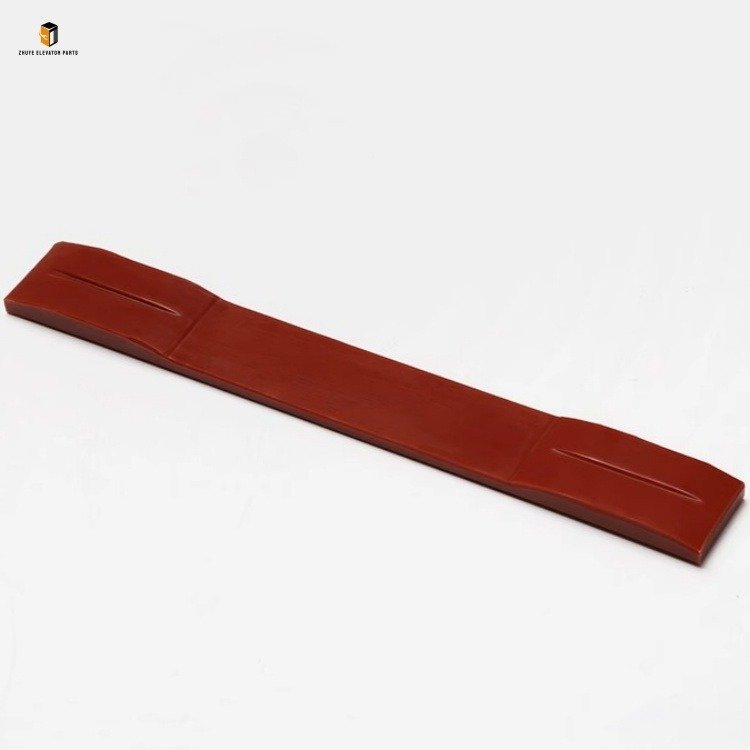

Elevator Guide Shoe Lining 230*10MM 230*16MM Brief Introduction

Product Name	Elevator Guide Shoe Lining
Model Number	23010MM 23016MM
Quality	Original.Brand New
Payment	T/T. Paypal. Western Union
Delivery	3-5 Working Days
Packaging	Packed by carton

Elevator Guide Shoe Lining (23010MM/23016MM): Wear-Resistant Guidance Core from Nanjing Zhuye Elevatorparts

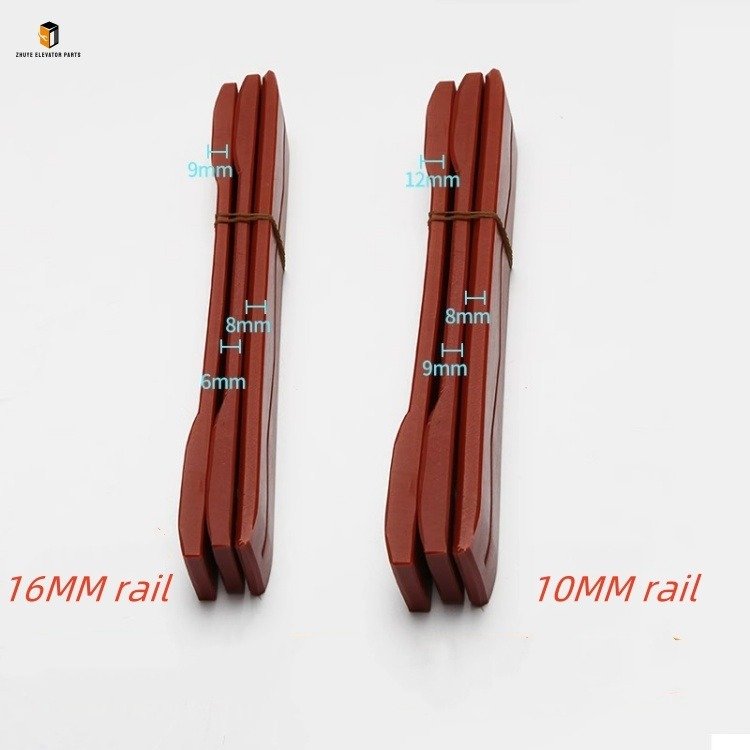

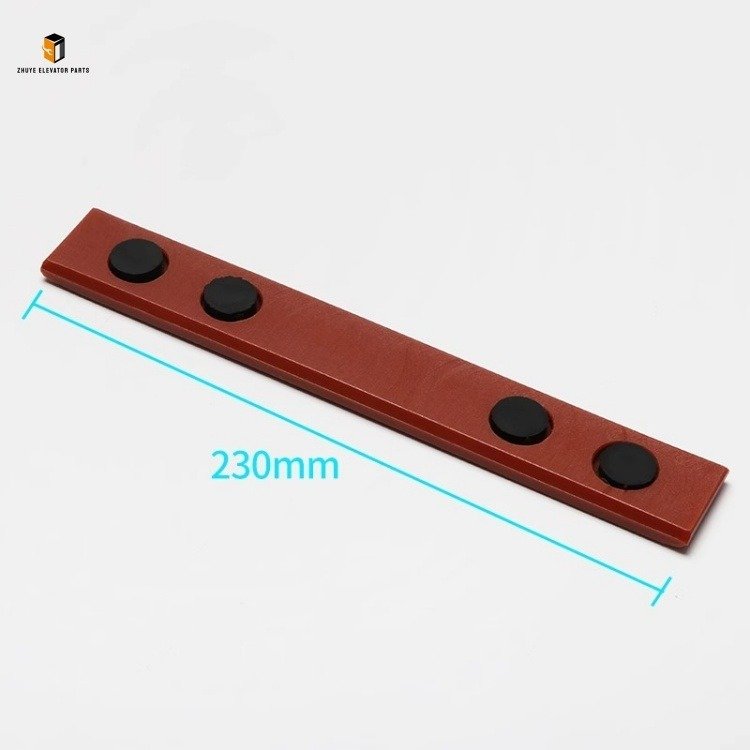

Elevator Guide Shoe Lining, available in 230*10MM and 230*16MM specifications (230mm length, 10mm/16mm thickness), is a critical wear-resistant and buffering component for elevator guide shoe systems. Tailored to match mainstream guide shoe models of medium and large-load elevators (load capacity 1000–2000kg), it is installed on the inner side of elevator car and counterweight guide shoes, directly contacting the guide rail to provide stable guidance during elevator operation. The high-performance material of the guide shoe lining effectively reduces friction between the guide shoe and the rail, absorbs operational vibration, and lowers noise, while its wear-resistant structure ensures long-term reliable operation. Compatible with mainstream elevator brands (including Schindler, OTIS, and Mitsubishi), these two specifications are widely applicable to commercial complexes, high-rise office buildings, and large residential communities. Exclusively supplied by Nanjing Zhuye Elevatorparts, a professional provider of high-quality elevator mechanical components, the Elevator Guide Shoe Lining (230*10MM/230*16MM) fully complies with international elevator safety standards (EN 81-20, GB 7588) and mechanical wear part specifications. Manufactured with premium polyurethane (PU) or modified nylon and precision molding technology, it boasts excellent wear resistance, strong load-bearing capacity, and good compatibility with guide rails, winning trust from global elevator maintenance teams and manufacturers.

Nanjing Zhuye Elevatorparts adheres to the core philosophy of “Wear Resistance, Stable Guidance” and implements strict quality control for the 230*10MM/230*16MM elevator guide shoe lining. Each batch undergoes multi-stage pre-delivery inspections, including dimensional accuracy testing, wear resistance verification, hardness detection, and vibration absorption performance evaluation. The guide shoe lining adopts advanced materials and technologies: the main body is made of high-quality PU (Shore hardness 85–90A) or modified nylon, featuring a low friction coefficient (≤ 0.15) and excellent wear resistance (wear rate ≤ 0.05mm/1000km); the surface is designed with a concave arc structure that perfectly fits T75, T89, and T114 guide rails, ensuring uniform force distribution and avoiding partial wear; the back is equipped with anti-slip grooves for tight bonding with the guide shoe base, preventing displacement during operation; the edge is rounded to avoid scratching the guide rail surface. The two specifications (230*10MM for light-medium load, 230*16MM for medium-heavy load) cover most medium and large-load elevator guide shoe requirements, simplifying selection for maintenance personnel.

Step-by-Step Usage Guide for Elevator Guide Shoe Lining (23010MM/23016MM)

To maximize the lubrication effectervice life, guidance accuracy, and operational stability of Elevator Guide Shoe Lining (230*10MM/230*16MM)Oil Cup & Oil Box, strictly follow the professional guidelines provided by Nanjing Zhuye Elevatorparts for selection, installation, and maintenance:

1. Professional Selection & Pre-Installation Preparation

Installation must be performed by certified elevator technicians. Prior to selection, measure the inner size of the elevator guide shoe accurately to choose the matching specification (230*10MM or 230*16MM; do not use mismatched sizes). Consult Nanjing Zhuye Elevatorparts’ technical team if unsure about compatibility with the guide shoe model. Preparation steps: Cut off the elevator’s main power supply and lock the power switch; use a hoisting device to stabilize the car and counterweight at safe positions and fix them with mechanical supports; place a “Maintenance in Progress” warning sign at the elevator entrance and shaft access door; disassemble the guide shoe cover, take out the old guide shoe lining, and clean the guide shoe’s inner groove, guide rail surface, and surrounding area to remove dust, oil stains, and debris.

2. Correct Installation & Precision Adjustment

Lining Fixing: Take the matching-spec (230*10MM/230*16MM) guide shoe lining from Nanjing Zhuye Elevatorparts, apply a thin layer of special adhesive (recommended by the brand) to the back of the lining, and fit it tightly into the guide shoe’s inner groove. Use clamping tools to fix the lining for 2–4 hours to ensure the adhesive is fully cured (avoid moving the elevator during curing). For guide shoes with bolt fixing, align the lining’s mounting holes with the guide shoe’s holes and fix them with stainless steel bolts (torque: 15–20N·m).
Gap Adjustment: Use a feeler gauge to adjust the gap between the guide shoe lining and the guide rail. The standard gap is 0.5–1mm (consistent for both 230*10MM and 230*16MM linings) to ensure smooth movement while avoiding excessive shaking. Adjust the guide shoe’s adjusting bolt to make the gap uniform on both sides of the rail—excessive gap will cause the car to shake, while too small a gap will increase friction and accelerate wear.
Installation Inspection: Reinstall the guide shoe cover, then manually push the car (or counterweight) to move up and down along the guide rail. Check if the movement is smooth without jamming or abnormal noise, and observe the contact between the guide shoe lining and the rail to ensure the entire arc surface is in uniform contact.

3. Post-Installation Testing & Daily Maintenance

Function Testing: Restore the elevator’s power supply and switch to inspection mode. Operate the elevator to run up and down at low speed, observing the car’s operation state through the shaft inspection window. Ensure there is no abnormal vibration, noise, or horizontal deviation; use a vibration tester to confirm the vibration amplitude is ≤ 0.2mm.
Daily Inspection: Maintenance personnel should check the guide shoe lining during daily shaft patrols: Observe the lining’s surface for wear, cracks, or deformation through the guide shoe’s inspection hole; check if the lining is loose or displaced; listen for abnormal noise during elevator operation (which may indicate excessive wear of the lining); check the guide rail surface for scratches caused by the lining.
Regular Maintenance: Every 3 months, clean the guide shoe lining’s surface and the guide rail with a soft brush to remove dust and debris; apply a thin layer of special lubricant (recommended by Nanjing Zhuye Elevatorparts) to the rail surface to reduce friction. Every 6 months, measure the wear thickness of the guide shoe lining—if the wear exceeds 3mm (or 20% of the original thickness, i.e., 2mm for 10MM lining and 3.2mm for 16MM lining), adjust the gap in time; if the wear exceeds 5mm, prepare for replacement. For elevators in high-traffic or harsh environments, shorten the maintenance interval to 1 month.

Recommended Replacement Cycle for Elevator Guide Shoe Lining (23010MM/23016MM)

As a core wear component enduring long-term friction with the guide rail, counterweight load-bearing, mechanical vibration, and environmental erosion (humidity, dust, temperature changes), the 230*10MM/230*16MM elevator guide shoe lining has a specified service life. Timely replacement is crucial to avoiding faults such as excessive wear, cracking, or falling off—issues that may lead to unstable car operation, increased vibration and noise, or even scratches on the guide rail, affecting elevator operation safety and service life.

1. Standard Replacement Cycle

Under normal operating conditions (elevator daily operation time 12–24 hours, daily running times ≥ 800, shaft environment temperature -20℃ to 80℃, humidity 10%–95%), the recommended replacement cycle for both 230*10MM and 230*16MM elevator guide shoe linings is 1.5–2.5 years. This cycle is determined based on Nanjing Zhuye Elevatorparts’ long-term field operation data, wear tests, and global user feedback on elevator guide components. The slight difference in thickness (10MM vs 16MM) does not affect the standard cycle, as the wear rate is mainly determined by material performance and operating conditions.

2. Adjustments for Special Scenarios

High-Load & High-Traffic Environments: For elevators with long-term full-load operation (load ≥ 1600kg) or in high-traffic locations (e.g., large shopping malls, airports with daily operation time ≥ 18 hours), the replacement cycle for both specifications is shortened to8–12 months. High load and frequent operation accelerate the wear of the guide shoe lining material, reducing its service life.
Low-Frequency Use & Stable Environments: For elevators with low usage frequency (e.g., small office buildings with daily operation time < 8 hours) and stable shaft environments (constant temperature and humidity), the replacement cycle can be extended to 2.5–3 years—only after Nanjing Zhuye Elevatorparts’ technicians inspect and confirm that the guide shoe lining’s wear degree, bonding firmness, and guidance performance meet factory standards.

3. Immediate Replacement Conditions

Replace the 230*10MM/230*16MM elevator guide shoe lining immediately if any of the following issues occur, regardless of its service life:

The guide shoe lining is severely worn (wear thickness > 5mm) or has obvious cracks, leading to reduced vibration absorption performance or uneven contact with the guide rail.
The guide shoe lining is loose, displaced, or falls off, causing the guide shoe to directly contact the guide rail and produce metal friction noise.
The guide shoe lining’s surface is severely deformed, leading to abnormal vibration of the car (vibration amplitude > 0.5mm) or deviation during operation.
Professional testing confirms that the guide shoe lining’s friction coefficient exceeds 0.3, significantly affecting the elevator’s operation efficiency and increasing energy consumption.

In conclusion, the Elevator Guide Shoe Lining (230*10MM/230*16MM) from Nanjing Zhuye Elevatorparts is a high-quality, dimensionally precise wear-resistant component tailored for medium and large-load elevator guide shoe systems. By following the correct selection, installation, maintenance, and replacement guidelines, elevator maintenance teams can effectively ensure the stable operation of the elevator’s guidance system, reduce mechanical failures, and improve passenger ride comfort. Choosing Nanjing Zhuye Elevatorparts means you get 100% authentic 230*10MM/230*16MM guide shoe linings, plus professional support—including model matching, on-site installation guidance, and prompt after-sales service. Trust Nanjing Zhuye Elevatorparts for the wear-resistant guidance of your elevator system.
