Description

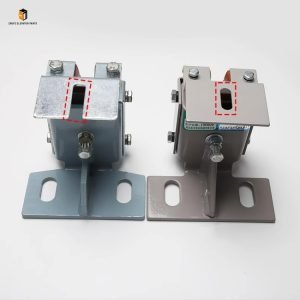

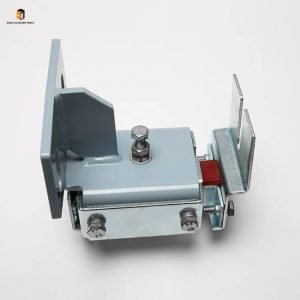

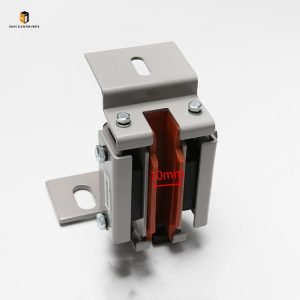

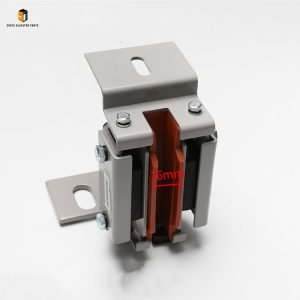

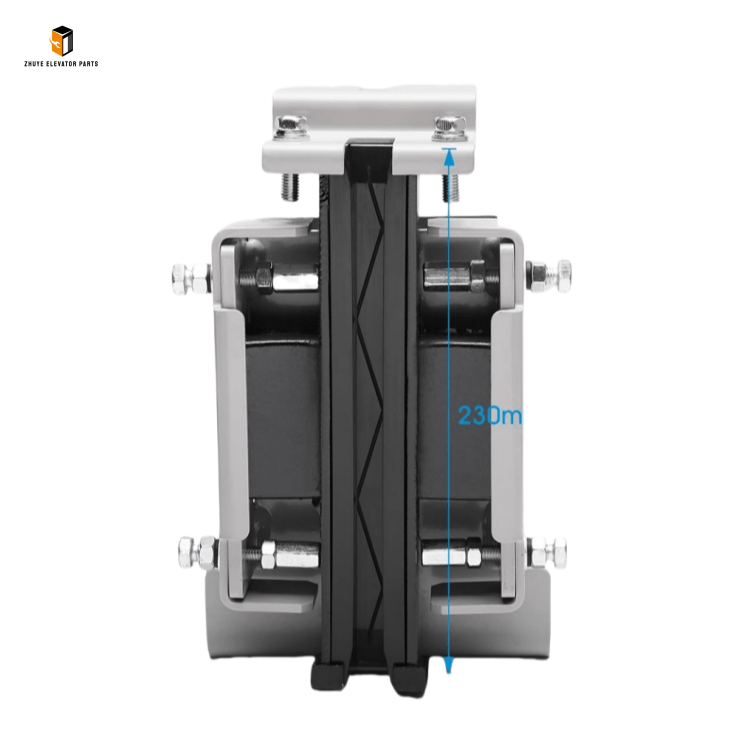

Elevator guide shoe DX5 Brief Introduction
|
Product Name |
Elevator guide shoe |
| Model Number | DX5 |
|
Quality
|
Original.Brand New
|
|
Payment
|
T/T. Paypal. Western Union
|
|
Delivery
|
3-5 Working Days
|
|
Packaging
|
Packed by carton
|

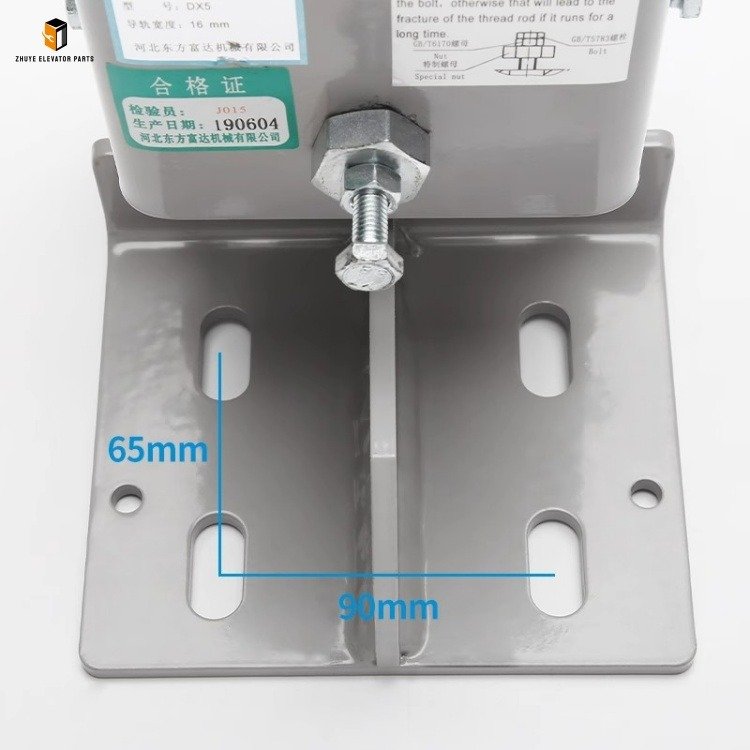

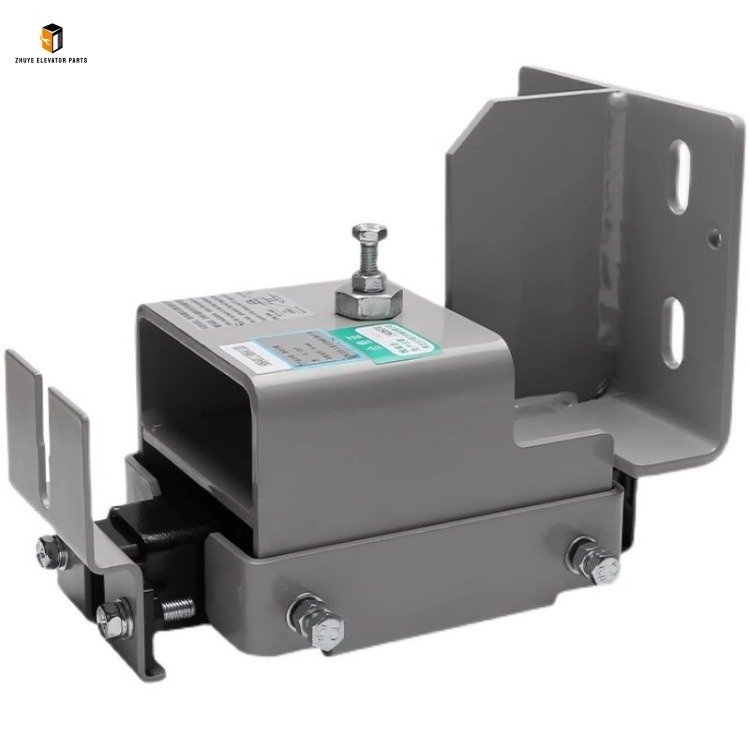

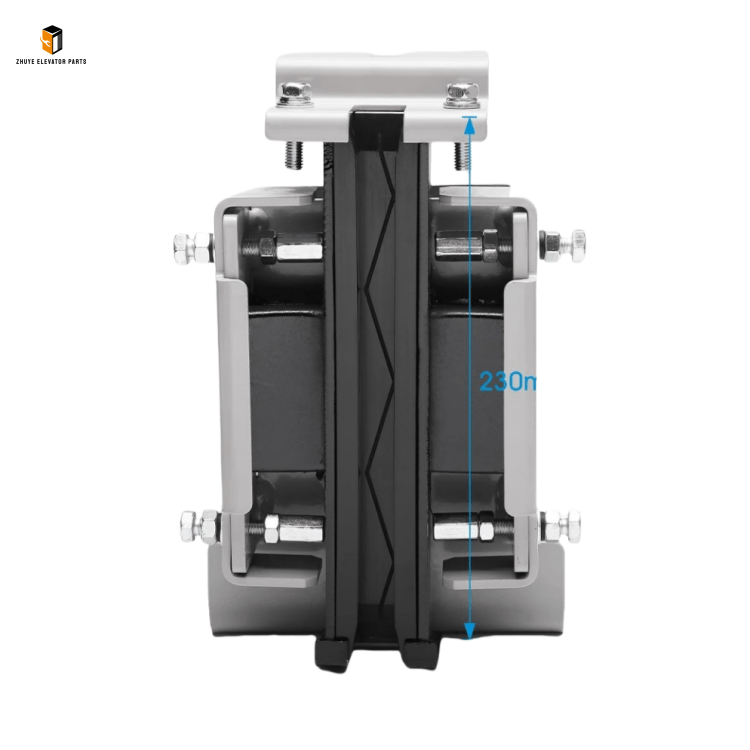

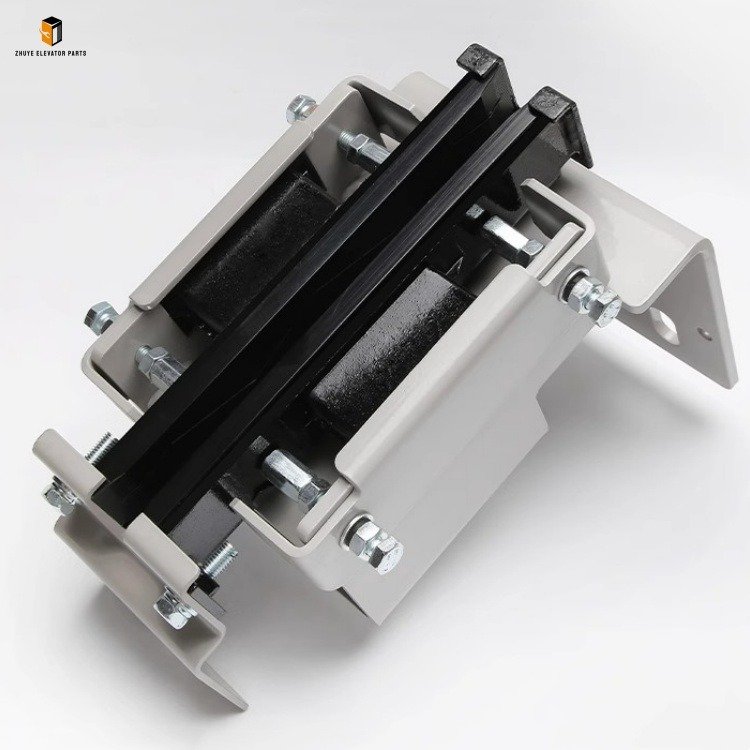

Elevator Guide Shoe DX5: Precision Guiding Core from Nanjing Zhuye Elevatorparts
In the complex ecosystem of elevator systems, the guide shoe serves as a critical “precision guiding and load-bearing component,” clamping the elevator guide rail to ensure the car runs stably, smoothly, and vertically along the rail. It directly affects elevator operation stability, passenger comfort, and the service life of key components like guide rails. The Elevator Guide Shoe DX5, exclusively supplied by Nanjing Zhuye Elevatorparts, is engineered to meet the rigorous demands of modern elevator applications. Designed with integrated guiding and shock-absorbing structures, this guide shoe complies with international standards such as EN 81-1 and GB/T 7588.1-2020, making it compatible with mainstream elevator brands including Schindler, OTIS, KONE, and domestic brands like Canny Elevator. Whether for new elevator installations or old elevator upgrades, the DX5 guide shoe delivers exceptional guiding accuracy and load-bearing capacity that elevator professionals trust.
Nanjing Zhuye Elevatorparts has always adhered to a strict quality control system, and the DX5 elevator guide shoe is a testament to this commitment. Each unit undergoes comprehensive testing, including load-bearing capacity assessment, wear resistance testing, dimensional accuracy calibration, and vibration reduction performance trials. The guide shoe features a high-strength aluminum alloy base that ensures excellent load-bearing capacity (supporting up to 20kN per pair) while maintaining lightweight properties. Its integrated wear-resistant lining (compatible with SG27 and other premium materials) minimizes friction between the shoe and guide rail, effectively reducing operation noise to below 55dB. The precision-machined guide groove ensures a perfect fit with standard guide rails, avoiding lateral deviation of the car. Equipped with a built-in shock-absorbing structure, the DX5 guide shoe can buffer the impact during elevator startup and braking, enhancing passenger comfort and reducing component wear.
Usage Guide for Elevator Guide Shoe DX5
Proper installation, adjustment, and maintenance are essential to maximize the performance and lifespan of the DX5 elevator guide shoe. Nanjing Zhuye Elevatorparts strongly recommends that only certified elevator maintenance technicians perform these procedures to avoid safety hazards or equipment damage—improper installation may cause car jitter, guide rail wear, or even derailment risks. Before starting, verify that the DX5 guide shoe matches the elevator’s guide rail model, car load, and running speed—refer to the product manual provided by Nanjing Zhuye Elevatorparts or consult our technical team for clarification. Ensure the guide rail surface is smooth and free from burrs that may damage the shoe’s lining.
1. Pre-Installation Preparation
Begin by cutting off the elevator’s main power supply and control system power, then lock the power switch and place a “Maintenance in Progress” warning sign at the machine room and elevator entrances to prevent accidental activation. Fix the elevator car at a safe position using safety supports to avoid unintended movement. Prepare essential tools: a torque wrench, screwdriver, level ruler, feeler gauge, and clean cloth. Clean the guide rail surface and the guide shoe installation area on the car to remove dust, debris, and oil stains—contaminants are a leading cause of premature wear of the guide shoe lining. Inspect the DX5 guide shoe for any external damage, deformation of the aluminum alloy base, or looseness of the lining fixing components; do not use the product if any defects are found.
2. Installation & Adjustment
Install the DX5 guide shoes on the preset positions of the elevator car (usually 4 sets per car: 2 upper and 2 lower), and fix them tightly with bolts according to the recommended torque (8-10 Nm) to avoid loosening during operation. Adjust the guide shoe clearance using a feeler gauge—ensure the gap between the guide shoe lining and guide rail is 0.5-1mm on each side, which is critical for balancing smooth operation and guiding stability. Check the verticality of the guide shoes using a level ruler to ensure they are fully attached to the guide rail without tilting. After adjustment, manually push the car to move up and down slightly to confirm no jamming or abnormal friction exists. For elevators with high running speeds (exceeding 2.5m/s), additional anti-vibration gaskets are recommended between the guide shoe and car to enhance stability.
3. Debugging & Daily Maintenance
After completing installation and adjustment, conduct a comprehensive debugging test: Restore the power supply and operate the elevator to run through multiple up and down cycles at different speeds. Check if the car runs smoothly with no lateral jitter, abnormal noise, or deviation. Monitor the temperature of the guide shoe lining during long-term operation—any abnormal heating indicates excessive friction that requires re-adjustment. During daily maintenance, inspect the DX5 guide shoe at least monthly. Check the tightness of fixing bolts, the wear status of the lining, and the guide clearance. Clean the guide rail and lining surface regularly to remove accumulated dust and debris, and apply special elevator lubricant to the guide rail surface every 3 months to reduce friction. If the elevator produces continuous abnormal noise, jitter, or uneven leveling, immediately stop using it and inspect the DX5 guide shoe and guide rail system.
Replacement Cycle of Elevator Guide Shoe DX5
The replacement cycle of the DX5 elevator guide shoe depends on operating frequency, working environment, and maintenance conditions. Under normal operating parameters—elevator runs 12-24 hours daily, carries ≤80% of rated load, and the shaft environment is dry and clean—Nanjing Zhuye Elevatorparts recommends a replacement cycle of 3-5 years. This timeline is based on long-term field data, accounting for wear of the integrated lining, fatigue of the shock-absorbing structure, and dimensional changes of the aluminum alloy base due to environmental factors. It also aligns with the elevator’s regular inspection cycles to ensure safety compliance.
For elevators in high-traffic areas (e.g., shopping malls, airports) with frequent starts and stops, or in harsh environments (shaft with high humidity, heavy dust, or guide rails with poor smoothness), the replacement cycle should be shortened to 1.5-3 years. High-frequency operation increases friction intensity between the guide shoe and rail, while harsh conditions accelerate component corrosion and wear. For low-usage elevators (e.g., villa elevators, small office buildings with daily operation <8 hours) in stable environments, the cycle can be extended to 5-7 years, but semi-annual professional inspection by Nanjing Zhuye’s technicians is mandatory to confirm guide accuracy, lining wear, and load-bearing performance meet safety standards.
Immediately replace the DX5 elevator guide shoe if any of the following issues occur, regardless of service life: The lining wear reaches more than 50% of the original thickness, or there are severe cracks, delamination, or deformation; The guide shoe base is deformed or cracked, affecting load-bearing capacity; The guide clearance exceeds 2mm and cannot be adjusted to the standard range; Abnormal wear or scratches appear on the guide rail surface due to guide shoe defects; The elevator has frequent jitter, deviation, or leveling errors that are confirmed to be caused by guide shoe failure. Timely replacement is critical to avoiding elevator operation failures and ensuring passenger safety, as damaged guide shoes pose significant derailment risks.
The Elevator Guide Shoe DX5 from Nanjing Zhuye Elevatorparts combines precision guiding, strong load-bearing capacity, and excellent durability to deliver a premium solution for elevator operation stability. Its integrated design simplifies installation and maintenance, reducing overall elevator maintenance costs. By following the recommended usage guidelines and replacement cycles, you can effectively enhance elevator operation safety, improve passenger comfort, and extend the service life of the entire guide rail system. Nanjing Zhuye Elevatorparts provides 100% authentic DX5 elevator guide shoes, along with professional support including model matching, on-site installation guidance, and timely after-sales service. Choose Nanjing Zhuye Elevatorparts for peace of mind in elevator component solutions.
As a core component ensuring elevator operation stability and safety, the guide shoe plays an irreplaceable role in the elevator system. Nanjing Zhuye Elevatorparts adheres to the highest quality standards, ensuring each DX5 guide shoe undergoes strict testing before leaving the factory. With our professional technical support and high-quality products, you can enhance the performance of your elevators and comply with global elevator safety regulations.
