Elevator guide shoe 153*32*6204 Brief Introduction

Product Name	Elevator guide shoe
Model Number	153326204
Quality	Original.Brand New
Payment	T/T. Paypal. Western Union
Delivery	3-5 Working Days
Packaging	Packed by carton

Elevator Guide Shoe 153326204 – Nanjing Zhuye Elevatorparts

The elevator car top emergency power supply is a critical safety component that ensures the elevator’s emergency systems (such as lighting, communication, and door opening) operate normally when the main power supply fails. The Elevator Car Top Emergency Power Supply DJW12-4.5/7.0 provided byNanjing Zhuye Elevatorparts is a high-reliability power supply device tailored for mainstream elevator systems. It supports two capacity specifications (4.5Ah and 7.0Ah) to meet the needs of different elevator models, widely compatible with brands such as Schindler, OTIS, and KONE. Crafted with high-performance lithium-ion batteries, intelligent charging management modules, and flame-retardant casings, this emergency power supply meets international elevator safety standards (EN 81-20, GB 7588) and has become a trusted choice for global elevator maintenance teams and manufacturers.

The elevator leveling system is a key component that ensures the elevator car aligns accurately with the floor, providing safe and comfortable access for passengers. The elevator leveling sensor serves as the “eye” of this system, detecting the car’s position in real time. The Elevator Leveling Sensor TNC-121 provided by Nanjing Zhuye Elevatorparts is a high-precision position-sensing component tailored for mainstream elevator systems. It is widely compatible with elevator brands such as Schindler, OTIS, and KONE, suitable for both passenger and freight elevators. This sensor adopts advanced photoelectric sensing technology, featuring high detection accuracy, fast response speed, and strong anti-interference ability, ensuring the elevator stops stably and accurately at each floor. Crafted with high-quality optical components, sealed metal shells, and precision electronic circuits, it meets international elevator safety standards (EN 81-20, GB 7588) and has become a trusted choice for global elevator maintenance teams and manufacturers.

The elevator lock is a core safety component that ensures the elevator car door and landing door remain locked during operation, preventing accidental opening and ensuring passenger safety. The Elevator Lock CV50 180 JK406-001 provided by Nanjing Zhuye Elevatorparts is a high-reliability safety lock tailored for mainstream elevator systems. It is widely compatible with elevator brands such as Schindler, OTIS, and KONE, suitable for both passenger and freight elevators. This elevator lock integrates precise mechanical structure and stable electrical control, achieving reliable locking when the elevator is running and smooth unlocking when it reaches the floor. Crafted with high-strength alloy steel, flame-retardant plastic, and precision electronic components, it meets international elevator safety standards (EN 81-20, GB 7588) and has become a trusted choice for global elevator maintenance teams and manufacturers.

The elevator’s electrical control system is prone to arc generation during switch-on and switch-off of contacts, which may cause damage to electrical components or even fire hazards. The elevator arc extinguisher serves as a “safety barrier” to suppress and eliminate arcs. The Elevator Arc Extinguisher HD1.211 provided by Nanjing Zhuye Elevatorparts is a high-performance arc suppression component tailored for elevator electrical systems. It is widely compatible with mainstream elevator brands such as Schindler, OTIS, and KONE, suitable for arc suppression of elevator contactors, relays, and other electrical contacts. Crafted with high-quality arc-extinguishing materials, flame-retardant shells, and precision structural design, this arc extinguisher meets international electrical safety standards (IEC 60947, GB/T 14048) and has become a trusted choice for global elevator maintenance teams and manufacturers.

The elevator door operator is the “power core” of elevator door opening and closing, and the door operator belt serves as a critical transmission component that connects the motor and door pulley system. The Elevator Door Operator Belt L075 provided by Nanjing Zhuye Elevatorparts is a high-performance transmission belt tailored for mainstream elevator door operator systems. It is widely compatible with elevator brands such as Schindler, OTIS, and KONE, playing a vital role in ensuring smooth, quiet, and stable operation of elevator doors. Crafted with high-strength polyurethane (PU) material and embedded with high-tensile polyester cords, this belt features excellent wear resistance, tensile strength, and flexibility, meeting international elevator safety standards (EN 81-20, GB 7588) and becoming a trusted choice for global elevator maintenance teams and manufacturers.

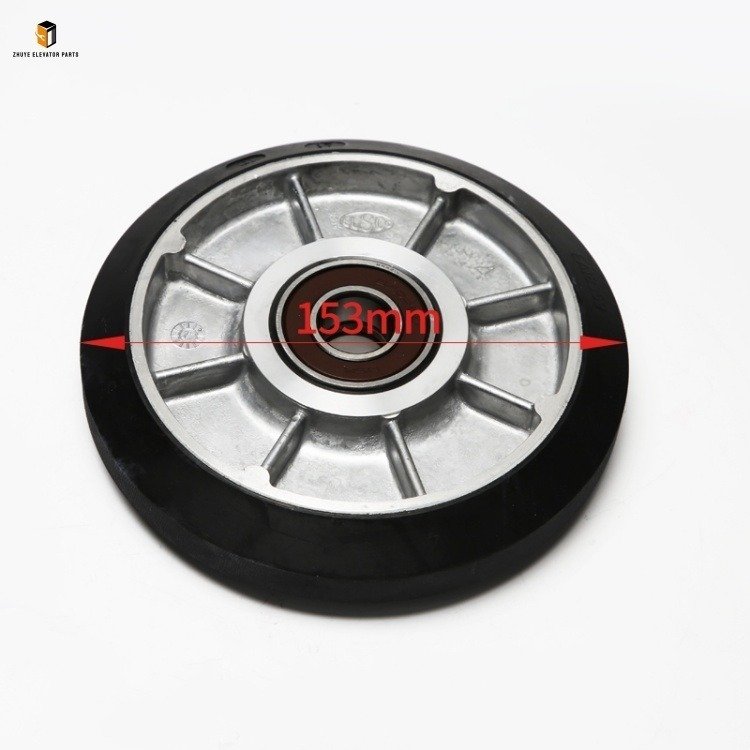

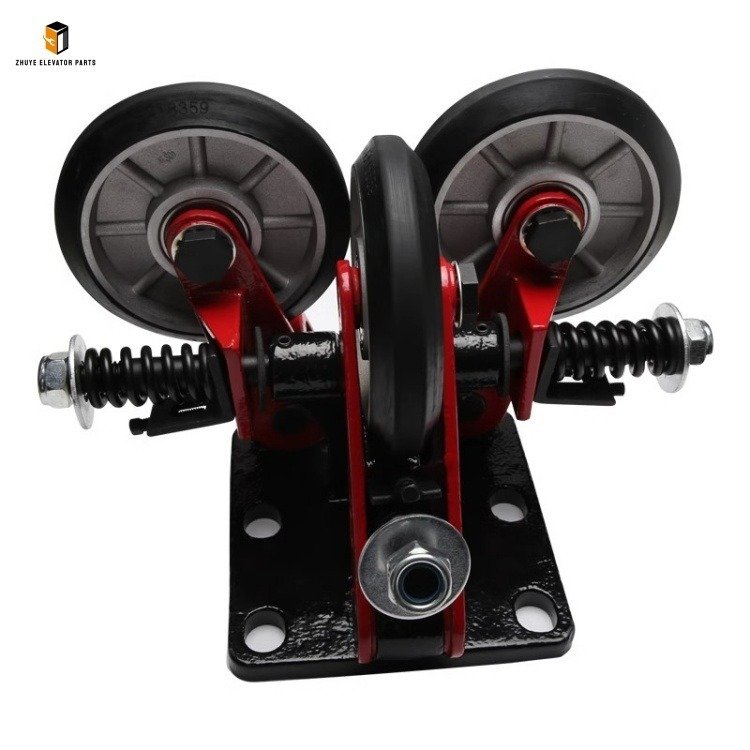

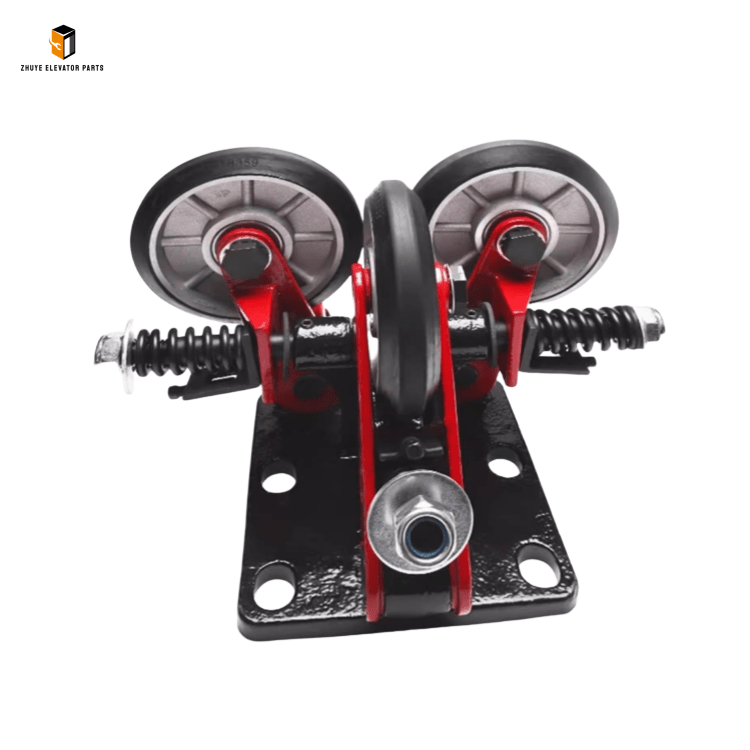

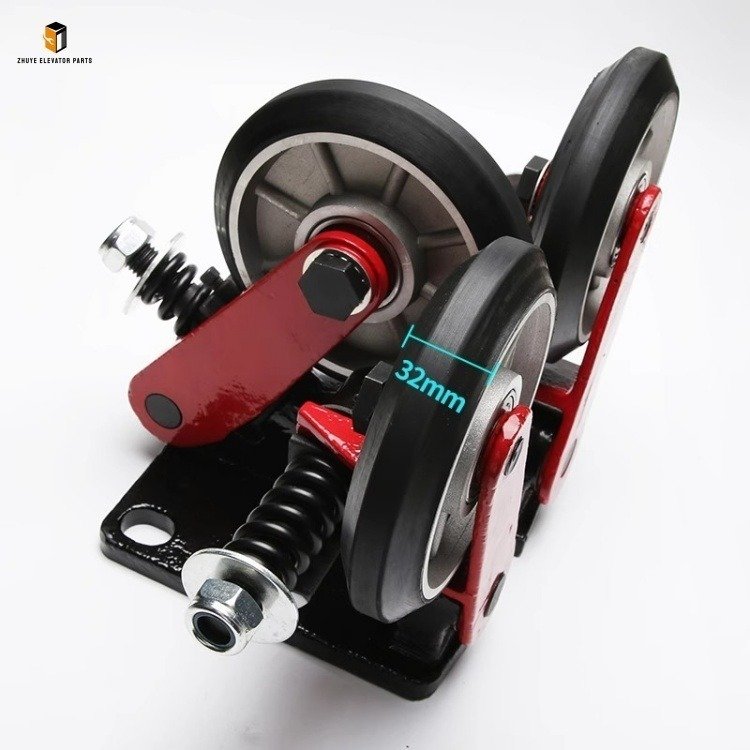

The elevator guide shoe is a critical guiding component that ensures the elevator car runs stably along the guide rail, directly affecting the smoothness of operation and passenger comfort. The Elevator Guide Shoe 153*32*6204 (dimension: 153mm*32mm, equipped with 6204 bearing) launched by Nanjing Zhuye Elevatorparts is a high-performance guiding device tailored for mainstream elevator systems. It is widely compatible with renowned elevator brands such as Schindler, OTIS, and KONE, providing stable guiding support for elevator cars and reducing friction between the car and guide rail. Crafted with high-strength alloy materials, wear-resistant lining, and high-precision 6204 bearings, this guide shoe meets international elevator safety standards (EN 81-20, GB/T 7025) and has become a trusted choice for global elevator maintenance teams and manufacturers.

Nanjing Zhuye Elevatorparts has always adhered to the concept of “quality first, safety-oriented,” implementing strict quality control throughout the production process of the 153*32*6204 elevator guide shoe. Each unit undergoes rigorous testing, including wear resistance testing, bearing rotation performance verification, load-bearing capacity assessment, and dimensional accuracy calibration. The guide shoe’s alloy base has excellent mechanical strength, capable of withstanding long-term load pressure from the elevator car. The wear-resistant lining (adopting high-quality polyurethane material) has a low friction coefficient and strong wear resistance, effectively reducing noise during operation. The built-in 6204 deep groove ball bearing ensures smooth rotation, further enhancing the stability of the car’s movement. With a service life of more than 500,000 operations under normal conditions, it provides long-term reliable guiding protection for elevators.

Usage Guide for Elevator Guide Shoe 153326204

Correct installation, debugging, and maintenance of the 153*32*6204 elevator guide shoe are crucial to ensuring the stable and safe operation of the elevator car. Nanjing Zhuye Elevatorparts emphasizes that only certified elevator maintenance technicians are allowed to perform installation and replacement operations to avoid safety hazards caused by improper operation.

1. Pre-Installation Preparation

First, confirm that the elevator’s MAC car lighting controller model matches the POWCV24181MH power supply (check parameters such as input voltage, output voltage, output current, and installation dimensions). Consult Nanjing Zhuye Elevatorparts’ technical team if there is any uncertainty about compatibility. Then, cut off the elevator’s main power supply and the secondary power supply for the car lighting system, lock the switch, and place a “Maintenance in Progress” warning sign at the elevator landing doors and machine room entrance. Locate the power supply installation position (usually on the car top or in the car control cabinet) and clean the area to remove dust, debris, and oil stains. Finally, prepare professional tools such as a screwdriver, wire stripper, multimeter, and insulation tester, and check that the new POWCV24181MH power supply from Nanjing Zhuye Elevatorparts is intact (no damage to the shell, no loose pins).

First, confirm that the elevator guide rail model and car size match the 153*32*6204 guide shoe (check parameters such as overall dimensions, bearing model, and installation hole position). Consult Nanjing Zhuye Elevatorparts’ technical team if there is any uncertainty about compatibility. Then, cut off the elevator’s main power supply, lock the switch, and place a “Maintenance in Progress” warning sign at the elevator entrance. Use a hoist to fix the elevator car at a safe position to expose the guide shoe installation area. Finally, prepare professional tools such as a screwdriver, wrench, caliper, and level; clean the guide rail surface and guide shoe installation position on the car to remove dust, debris, and oil stains.

DebuggDebuggFixDebuggDebugg2. Installation & Tension Adjustment

2. Installation & Wiring

Locate the original guide shoe position on the elevator car and take photos to record its installation direction and fixing method for later reference. Remove the fixing screws of the old guide shoe and take down the old guide shoe. Take the new 153*32*6204 guide shoe from Nanjing Zhuye Elevatorparts, align it with the installation position on the car, and fasten it firmly with screws. Adjust the gap between the guide shoe lining and the guide rail (the standard gap is 0.5-1mm) to ensure the car can move smoothly without jitter. Use a level to check the guide shoe’s installation levelness—no tilt is allowed. After installation, manually push the car to move up and down along the guide rail, observing whether the guide shoe operates smoothly without abnormal noise or stuck phenomenon. If there is any abnormality, re-adjust the gap or installation position in time.

3. Usage & Daily Maintenance

Remove the hoist fixing the car, restore the power supply, and switch the elevator to inspection mode. Operate the elevator to run up and down at normal speed, observing whether the car runs stably without obvious jitter or noise. Check the elevator’s control panel—there should be no fault alarms related to the guiding system. After 1 hour of stable operation, stop the elevator and check the guide shoe: the surface temperature should be normal (no overheating), and the lining should have no obvious wear or deformation. For daily maintenance, inspect the guide shoe during monthly shaft patrols: Check if the fixing screws are loose, the lining is worn (replace if the wear depth exceeds 2mm), and the 6204 bearing rotates smoothly. Clean the guide rail surface and guide shoe lining with a dry cloth to remove dust and debris. Every 3 months, recheck the gap between the guide shoe and the guide rail; every 6 months, lubricate the 6204 bearing with special lubricating oil to ensure smooth rotation.

Replacement Cycle of Elevator Guide Shoe 153326204

The replacement cycle of the 153*32*6204 elevator guide shoe is closely related to operating frequency and the working environment of the shaft. Under normal circumstances (elevator daily operation 12-24 hours, shaft environment dry and low-dust, no frequent vibration), Nanjing Zhuye Elevatorparts recommends a replacement cycle of 2-3 years. This cycle is determined based on long-term field operation data and component aging tests, fully considering the wear of the lining, fatigue of the bearing, and deformation of the alloy base.

For elevators in high-traffic areas (e.g., large shopping malls, airports with daily operation ≥ 20 hours) or harsh environments (shaft with high humidity, heavy dust, large temperature fluctuations, or severe vibration), the replacement cycle should be shortened to 1-1.5 years. High-frequency operation accelerates the wear of the guide shoe lining and bearing, while harsh environments cause component corrosion and reduce service life. For low-usage elevators (e.g., villa elevators, small office buildings with daily operation time < 8 hours) in stable environments, the cycle can be extended to 3-4 years, but only after inspection and confirmation by Nanjing Zhuye’s technicians that the guide shoe’s performance and guiding accuracy meet standards.

Replace the guide shoe immediately if any of the following issues occur, regardless of its service life: The guide shoe lining is severely worn (wear depth exceeding 2mm) or cracked, causing the car to jitter violently during operation; the 6204 bearing is stuck or worn, resulting in abnormal noise; the alloy base is deformed, affecting the guiding accuracy; the fixing screws are loose and cannot be tightened, posing safety risks; the guide shoe causes frequent elevator operation faults, and the fault cannot be eliminated after adjustment.

The Elevator Guide Shoe 153*32*6204 from Nanjing Zhuye Elevatorparts integrates high reliability, durability, and strong compatibility, providing a critical guiding guarantee for elevator operation. By following the correct usage, maintenance, and replacement guidelines, you can effectively ensure the stable and smooth operation of the elevator car, improve passenger comfort, and reduce faults caused by guiding system problems. Choosing Nanjing Zhuye Elevatorparts means you get 100% authentic 153*32*6204 guide shoes, as well as professional services including model matching, on-site installation guidance, and timely after-sales support. Trust Nanjing Zhuye Elevatorparts for the stable and safe operation of your elevator.
