Description

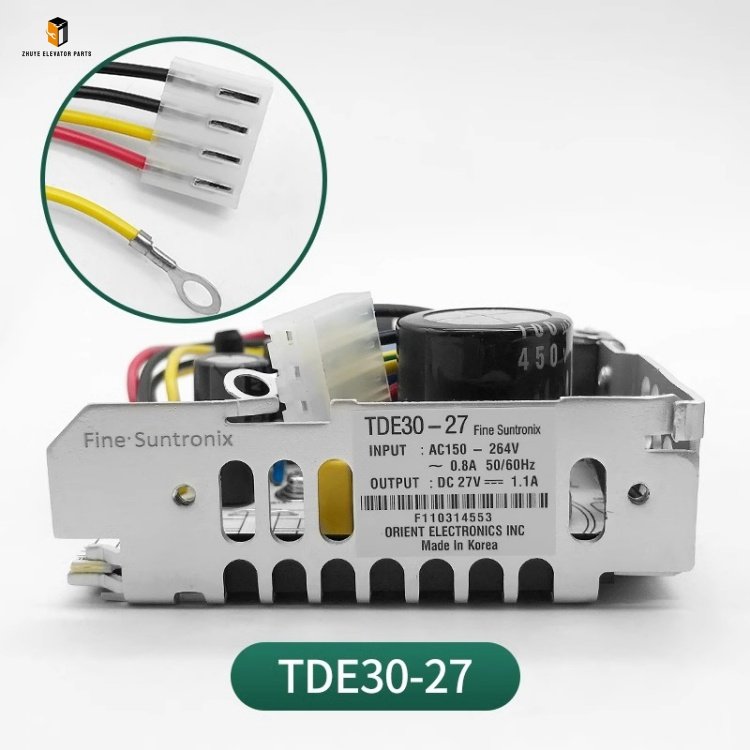

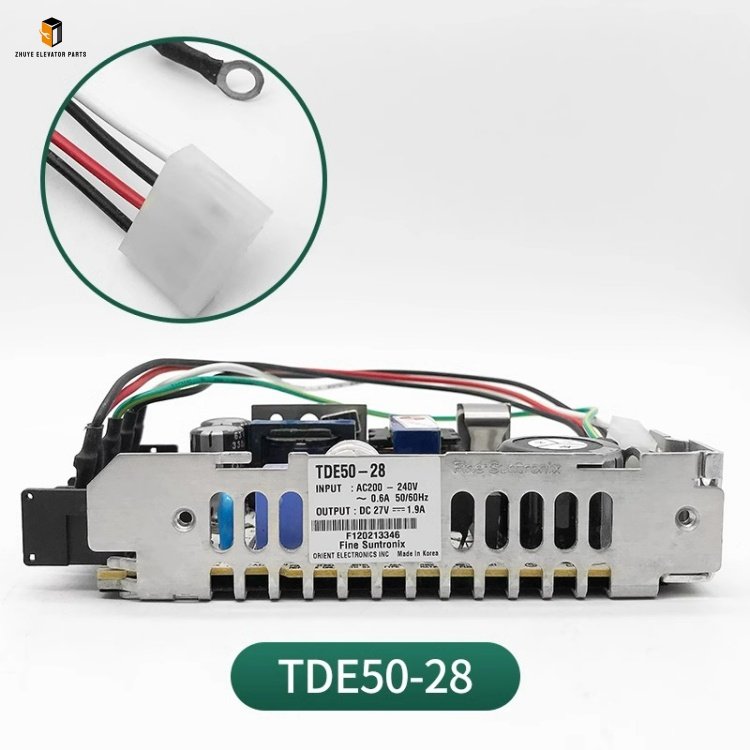

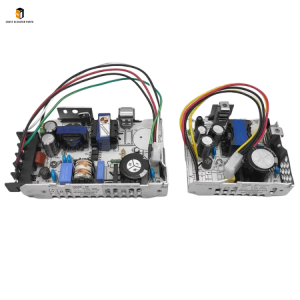

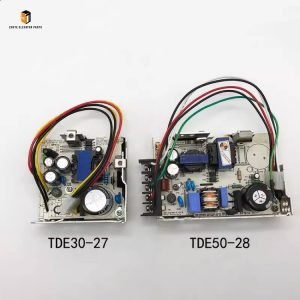

Elevator frequency converter power box TDE30-27 TDE50-28 Brief Introduction
|
Product Name |
Elevator frequency converter power box |
| Model Number | TDE30-27
TDE50-28 |
|
Quality
|
Original.Brand New
|
|
Payment
|
T/T. Paypal. Western Union
|
|
Delivery
|
3-5 Working Days
|
|
Packaging
|
Packed by carton
|
Elevator Inverter Power Box TDE30-27 & TDE50-28: Reliable Power Core from Nanjing Zhuye Elevatorparts
Elevator Inverter Power Box TDE30-27 and TDE50-28 are high-performance power supply components specifically designed for elevator frequency converter systems, providing stable, filtered, and regulated DC/AC power for elevator inverters. As the “power guarantee” of elevator frequency conversion systems, these power boxes convert and process the input power to meet the strict power quality requirements of inverters—ensuring smooth, efficient, and low-noise operation of the elevator traction system. Exclusively supplied by Nanjing Zhuye Elevatorparts (a professional and trusted distributor of high-quality elevator electrical components), the Elevator Inverter Power Box TDE30-27 & TDE50-28 fully comply with international elevator safety standards (EN 81-20, GB 7588) and electrical equipment regulations (IEC 61558). With model-specific compatibility (TDE30-27 for small-to-medium power inverters, TDE50-28 for high-power inverters), excellent anti-interference capability, and robust protection functions, these power boxes are widely applied in residential, commercial, high-speed, and industrial elevators worldwide.
Nanjing Zhuye Elevatorparts adheres to the core philosophy of “stable power supply, durable quality” and implements strict quality control over the TDE30-27 and TDE50-28 inverter power boxes. Each unit undergoes multi-stage pre-delivery inspections, including output voltage stability testing, load capacity verification, anti-interference performance trials, and long-term durability tests. The products adopt high-precision filtering modules, rugged metal housings, and optimized heat dissipation structures: the high-precision filtering modules effectively suppress grid interference and voltage fluctuations, ensuring output voltage fluctuation ≤ ±1% to protect the inverter’s internal components; the full-metal sealed housing (IP54 protection rating) provides excellent dustproof, waterproof, and electromagnetic shielding performance, adapting to the humid, vibrating, and interference-prone environment in elevator shafts; the built-in overvoltage, overcurrent, short-circuit, and overheat protection functions prevent power box damage and avoid inverter malfunctions caused by power abnormalities; the optimized heat dissipation design ensures stable operation even under full-load conditions for a long time. Their standardized electrical interfaces and mounting dimensions are perfectly matched to corresponding elevator inverter models, enabling quick and seamless installation without complex modifications.
Step-by-Step Usage Guide for Elevator Inverter Power Box TDE30-27 & TDE50-28
To ensure the reliable operation of elevator frequency converter systems and extend the service life of TDE30-27 and TDE50-28 power boxes, follow the professional guidelines provided by Nanjing Zhuye Elevatorparts for installation, debugging, and maintenance:
1. Professional Installation & Wiring
Installation must be performed by certified elevator technicians familiar with elevator frequency converter systems. Prior to installation, confirm the correct model (TDE30-27 or TDE50-28) based on the elevator inverter’s rated power, using the detailed compatibility manual provided by Nanjing Zhuye Elevatorparts. The steps are as follows:
-
Safety Preparation: Cut off the elevator’s main power supply and lock the power switch to prevent accidental power-on. Clean the power box mounting position (usually in the elevator control cabinet or near the inverter) to remove dust, oil stains, and debris that may affect heat dissipation and electrical insulation. Check the power box’s input and output terminals for intactness.
-
Power Box Installation: Fix the TDE30-27/TDE50-28 power box to the dedicated mounting rail or bracket using high-strength bolts provided by Nanjing Zhuye Elevatorparts. Ensure the power box is installed vertically (tilt angle ≤ 3°) and maintain a 20–30mm heat dissipation gap between adjacent components, especially away from high-heat devices such as inverters and resistors.
-
Wiring Operation: According to the elevator inverter system wiring diagram, connect the power box’s input terminal to the elevator’s main power supply (ensure correct phase sequence for 380V input) and the output terminal to the inverter’s power input interface. Use wires with sufficient cross-sectional area (recommended by Nanjing Zhuye Elevatorparts) and ensure tight wiring, reliable insulation, and correct polarity. Use heat-shrinkable tubes for wiring joints to avoid short circuits. Clearly mark each wire as guided by Nanjing Zhuye’s manual for future maintenance.
-
Post-Installation Debugging: Restore the power supply and use a multimeter to detect the power box’s output voltage, ensuring it is within the rated range (consistent with the product manual). Start the elevator inverter in inspection mode to test the power box’s load capacity and stability. Verify the protection functions: simulate short-circuit or overcurrent conditions (under professional guidance) to ensure the power box shuts down automatically and triggers a fault alarm. Check the power box’s working status indicator lights (normal operation: green light; fault: red light) to confirm normal operation.
2. Daily Operation & Routine Inspection
Regular inspections are crucial to early detection of power box faults and ensuring the stable operation of elevator frequency converter systems. Maintenance personnel should incorporate the following checks into their daily patrols:
-
Daily Visual Inspection: During control cabinet patrols, check the external condition of the TDE30-27/TDE50-28 power box. Ensure the metal housing is free of cracks, deformation, or discoloration (a sign of overheating); the status indicator lights are working normally (no abnormal red light alarms); the wiring terminals are tight without looseness, oxidation, or burning marks; the cooling fan (if equipped) operates smoothly without abnormal noise.
-
Weekly Voltage Detection: Use a multimeter to detect the power box’s input and output voltage under no-load and full-load conditions, recording the data for trend analysis. Ensure the output voltage fluctuation is within the allowable range (≤ ±1%). Check the elevator inverter’s fault records for any power box-related errors, and troubleshoot in a timely manner if any are found.
-
Monthly Load Check: Operate the elevator under different load conditions (empty, half-load, full-load) to test the power box’s adaptability. Check the power box’s surface temperature after 2 hours of continuous operation (should not exceed 70℃) to avoid overheating damage. Clean the power box’s surface and cooling vents with a dry brush to remove dust and debris.
3. Regular Maintenance Schedule
Systematic maintenance can effectively extend the service life of TDE30-27 and TDE50-28 inverter power boxes. Follow Nanjing Zhuye Elevatorparts’ recommended maintenance plan:
-
Quarterly Maintenance: Disconnect the power supply and remove the power box from the control cabinet (if necessary). Clean the housing, terminals, and cooling fan (if equipped) with a professional electrical cleaner to remove dust, oxide, and oil stains. Inspect the wiring for aging, cracking, or loose connections—replace with genuine cables if necessary. Recheck the tightness of all wiring terminals and retighten if necessary.
-
Semi-Annual Performance Test: Conduct a comprehensive performance test, including input/output voltage stability, filtering effect, anti-interference performance, and protection function response time. Simulate extreme operating conditions (e.g., grid voltage fluctuation ±10%, low-temperature environment) to verify the power box’s stable operation. For elevators in high-traffic areas (e.g., shopping malls, airports), increase the test frequency to once every 3 months.
-
Annual Professional Overhaul: Arrange a professional inspection with Nanjing Zhuye Elevatorparts’ certified technical team. Disassemble the power box (if necessary) to inspect internal components (e.g., filtering module, capacitor, resistor) for wear or damage. Replace aging components (e.g., electrolytic capacitor, cooling fan) with genuine parts. Recalibrate the output voltage to meet the original factory standards and the elevator inverter’s actual operating needs.
Recommended Replacement Cycle for Elevator Inverter Power Box TDE30-27 & TDE50-28
As core power supply components bearing long-term electrical loads, frequent power conversion, and environmental erosion (humidity, dust, electromagnetic interference), the TDE30-27 and TDE50-28 inverter power boxes have a specified service life. Timely replacement is critical to avoiding faults such as unstable output voltage, reduced filtering effect, frequent protection alarms, or complete power failure—issues that may lead to elevator inverter malfunctions, traction system instability, or even elevator shutdown.
1. Standard Replacement Cycle
Under normal operating conditions (elevator daily operation time 12–24 hours, input voltage fluctuation ±10%, environment temperature -10–60℃, humidity 10%–95%), the recommended replacement cycle for both TDE30-27 and TDE50-28 power boxes is 4–5 years. This cycle is determined based on Nanjing Zhuye Elevatorparts’ long-term field data, power box component aging tests, and global user feedback.
2. Adjustments for Special Scenarios
-
Harsh Environments: For elevators in high-humidity coastal areas (salt spray corrosion), high-dust construction sites, or locations with frequent grid voltage fluctuations (e.g., industrial zones), the replacement cycle should be shortened to 2–3 years. Harsh conditions accelerate internal component aging, terminal corrosion, and insulation performance degradation, significantly reducing the power box’s reliability.
-
Low-Frequency Use Scenarios: For elevators with low usage frequency (e.g., villa elevators, small office buildings with daily operation time < 8 hours) and stable grid voltage environment, the replacement cycle can be extended to 5–6 years—only if Nanjing Zhuye’s professional inspection confirms the power box’s output stability, filtering effect, and protection functions are intact (consistent with original factory standards).
3. Immediate Replacement Conditions
Replace the TDE30-27/TDE50-28 inverter power box immediately if any of the following issues occur, regardless of service life:
-
The output voltage fluctuation exceeds ±3% (tested under normal load), leading to abnormal operation of the elevator inverter (e.g., frequent fault alarms, unstable traction speed).
-
The power box triggers protection alarms (overvoltage, overcurrent, etc.) frequently, even after maintenance and debugging, affecting the normal operation of the elevator.
-
The power box has obvious faults such as terminal burning, housing deformation due to overheating, or internal component damage (accompanied by burning odor), and cannot work normally even after repair.
-
The filtering effect is severely reduced, leading to strong interference in the elevator inverter system, causing abnormal noise or vibration during elevator operation.
In conclusion, the Elevator Inverter Power Box TDE30-27 and TDE50-28 supplied by Nanjing Zhuye Elevatorparts are high-quality, reliable power supply components tailored for elevator frequency converter systems. By following the correct usage methods, maintenance schedules, and replacement cycles, elevator maintenance teams can effectively ensure the stable and safe operation of elevator frequency converter systems, enhance the overall reliability and energy efficiency of the elevator, and minimize failure risks. Choosing Nanjing Zhuye Elevatorparts means you get not only authentic TDE30-27 and TDE50-28 power boxes but also professional technical support, including model matching guidance, on-site installation advice, and prompt after-sales service.
