Description

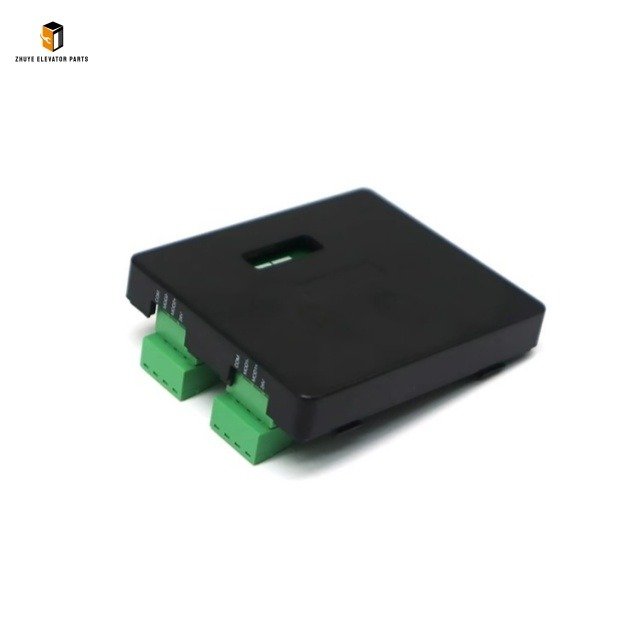

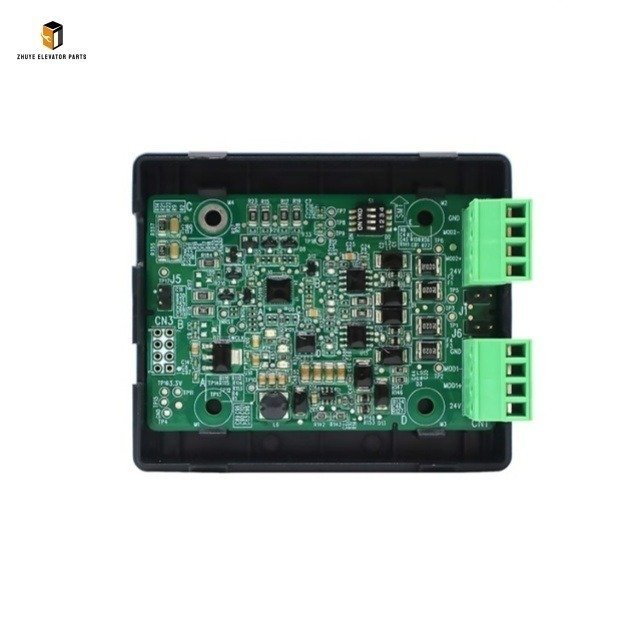

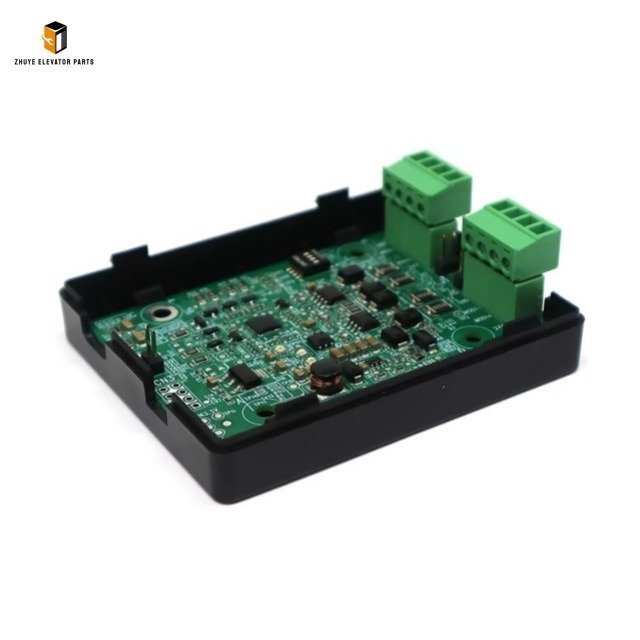

Elevator encryption adapter board MCTC-KZ-AOS/BOS Brief Introduction

Product Name	Elevator encryption adapter board
Model Number	MCTC-KZ-AOS/BOS
Quality	Original.Brand New
Payment	T/T. Paypal. Western Union
Delivery	3-5 Working Days
Packaging	Packed by carton

Elevator Encryption Adapter Board MCTC-KZ-AOS/BOS: Core Communication Component from Nanjing Zhuye Elevatorparts

The elevator encryption adapter board serves as the “secure communication bridge” of the elevator control system, responsible for protocol conversion, data encryption transmission, and unified interface provision for remote access to the elevator controller. Its security and compatibility directly affect the intelligent management and operational safety of elevators. The Elevator Encryption Adapter Board MCTC-KZ-AOS/BOS, exclusively supplied by Nanjing Zhuye Elevatorparts, is tailored for modern elevator control integrated machines. Compliant with international standards such as IEC 62443 (cybersecurity) and GB 7588, this adapter board supports multiple protocols including MNK IoT module protocol and open protocols, enabling simultaneous connection of IoT monitoring, community surveillance, and other devices. It is widely compatible with mainstream elevator brands like Schindler, OTIS, KONE, and domestic well-known brands, applied in residential buildings, commercial complexes, and industrial parks to ensure secure and stable data interaction for elevator systems.

Nanjing Zhuye Elevatorparts adheres to stringent quality control standards, and the MCTC-KZ-AOS/BOS encryption adapter board is a testament to this commitment. Each board undergoes rigorous pre-delivery testing, including encryption performance verification, protocol compatibility testing, high-temperature (up to 85℃) and low-temperature (down to -25℃) resistance tests, and anti-electromagnetic interference tests. The board adopts advanced encryption algorithms to prevent data leakage and malicious access, ensuring the cybersecurity of elevator remote control. It features a high-quality PCB substrate with an anti-corrosion coating, effectively resisting dust and moisture erosion in the control cabinet. The board is equipped with clear indicator lights (power and communication status) for easy fault diagnosis, and key components are sourced from international renowned brands to ensure a service life of over 100,000 hours.

Usage Guide for Elevator Encryption Adapter Board MCTC-KZ-AOS/BOS

Proper installation, debugging, and daily maintenance are vital to maximizing the service life and security performance of the MCTC-KZ-AOS/BOS encryption adapter board. Nanjing Zhuye Elevatorparts strongly recommends that only certified elevator maintenance technicians perform these operations to avoid communication failures or cybersecurity risks. Before installation, verify that the board’s protocol type, voltage (DC 24V), and interface specifications are completely consistent with the elevator control system. For detailed steps and parameter settings, refer to the product manual provided by Nanjing Zhuye Elevatorparts or contact our technical support team for professional guidance. Note: Ensure the elevator is in maintenance mode and the main power is cut off during operation to guarantee safety.

1. Pre-Installation Preparation

First, cut off the elevator’s main power supply and lock the switch, placing a “Maintenance in Progress” warning sign at the machine room and elevator entrance. Wear anti-static gloves to avoid damaging internal electronic components. Prepare professional tools: screwdrivers, multimeters, wire strippers, and cleaning cloths. Clean the installation position inside the control cabinet to remove dust and oil stains that may affect electrical contact. Carefully inspect the MCTC-KZ-AOS/BOS board for external damage (e.g., cracked housing, damaged terminals) and use a multimeter to test the power terminal for short circuits or open circuits. Confirm that matching devices (such as IoT modules) are fault-free to ensure smooth communication.

2. Installation & Wiring

Fix the MCTC-KZ-AOS/BOS board on the mounting bracket inside the control cabinet with screws, ensuring a tight fit (recommended torque: 20-30 N·m) to avoid loosening. According to the wiring diagram provided by Nanjing Zhuye Elevatorparts, connect the power wires (brown to positive, blue to negative) and communication wires to the corresponding terminals of the elevator controller. The wire stripping length should be 6-8mm, and terminals must be tightened firmly to prevent poor contact. Separate power wires and communication wires to reduce electromagnetic interference, and wrap unused wire ends with insulating tape. After wiring, install the protective cover and double-check for wrong or missing connections—incorrect wiring may cause protocol mismatch or communication failure.

MaintenancMaintenancMaintenancMaintenancMaintenanc3. Daily Maintenance & Use

Replacement Cycle of Elevator Encryption Adapter Board MCTC-KZ-AOS/BOS

The replacement cycle of the MCTC-KZ-AOS/BOS encryption adapter board depends on usage frequency, operating environment, and maintenance quality. Under normal conditions—12-24 hours of daily operation, stable voltage, clean control cabinet environment, and regular maintenance—Nanjing Zhuye Elevatorparts recommends a replacement cycle of 6-8 years. This cycle is based on extensive field test data and GB/T31821—2015 standards, fully considering key factors such as aging of electronic components, attenuation of encryption performance, and incompatibility with upgraded control systems.

For elevators in high-traffic areas (e.g., airports, subway stations with daily operation over 20 hours) or harsh environments (high humidity, heavy dust, frequent voltage fluctuations), the replacement cycle should be shortened to 4-6 years. High-frequency data transmission accelerates component wear, and harsh environments easily cause circuit corrosion. For low-usage elevators (e.g., villas, small offices with daily operation <8 hours), proper maintenance can extend the cycle to 8-10 years. However, Nanjing Zhuye Elevatorparts’ technicians should conduct semi-annual comprehensive inspections on boards over 7 years old, including encryption performance and protocol compatibility tests.

Regardless of service life, replace the MCTC-KZ-AOS/BOS board immediately if: Communication failures occur frequently and cannot be repaired; encryption functions fail, posing cybersecurity risks; indicator lights are dim, flickering, or non-functional; the board is severely corroded or cracked; it fails to pass annual safety inspections; it is incompatible with the upgraded elevator control system. Use genuine boards from Nanjing Zhuye Elevatorparts to ensure protocol matching and system security.

The MCTC-KZ-AOS/BOS Elevator Encryption Adapter Board from Nanjing Zhuye Elevatorparts combines high security, strong compatibility, and long durability, making it an ideal choice for elevator intelligent upgrading and maintenance. Backed by strict quality control, advanced encryption technology, and comprehensive after-sales service, it has gained trust from maintenance firms and property managers worldwide. Adhering to proper usage and maintenance guidelines ensures secure and stable elevator communication. Nanjing Zhuye Elevatorparts provides 100% genuine MCTC-KZ-AOS/BOS boards, plus professional support including model matching, on-site debugging guidance, and fault diagnosis. Choose Nanjing Zhuye Elevatorparts for reliable core components and tailored solutions for elevator cybersecurity needs.
