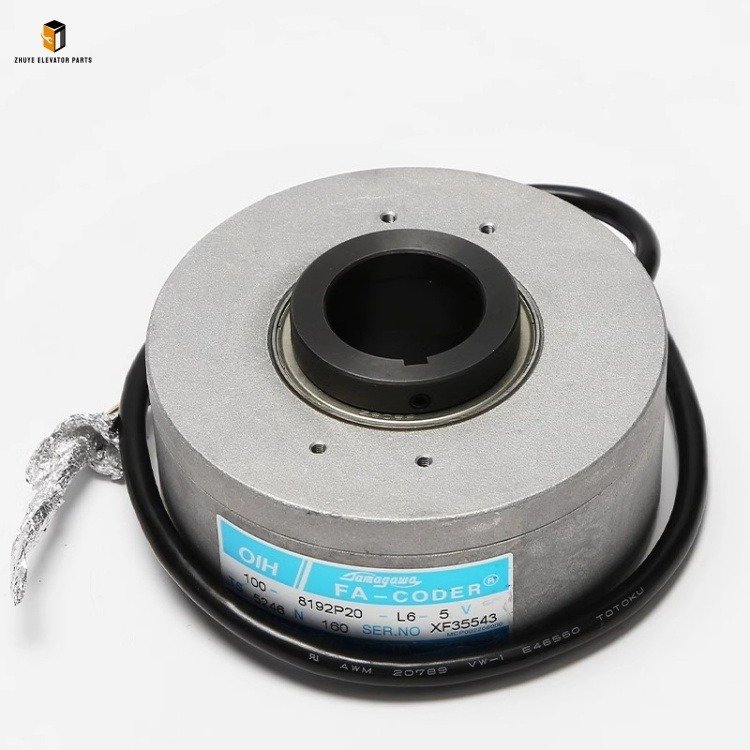

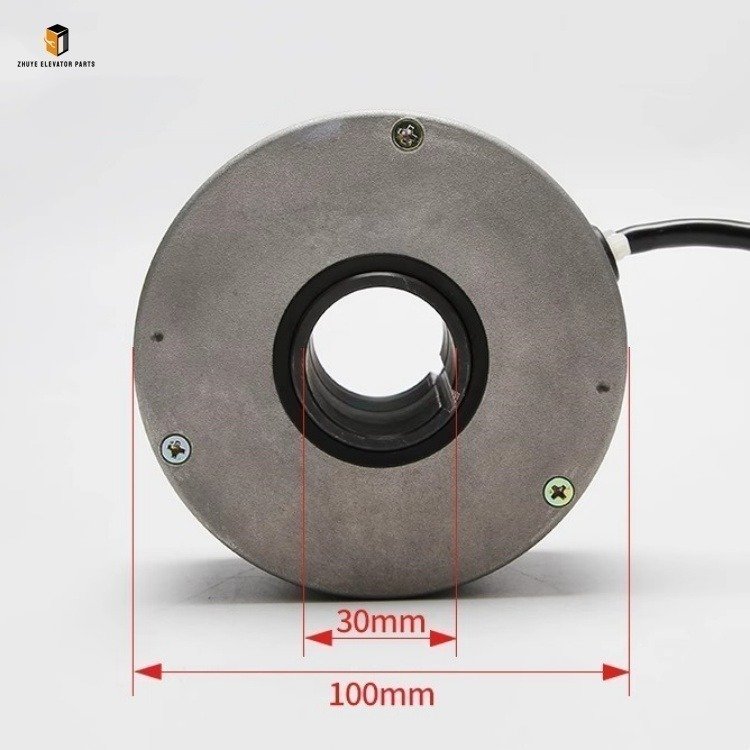

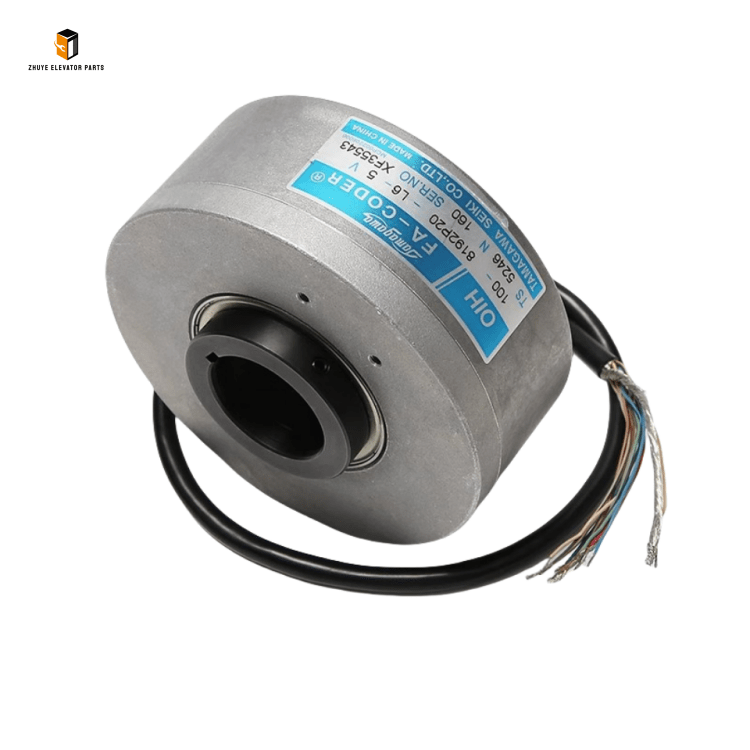

Elevator encoder TS5246N160 Brief Introduction

Product Name	Elevator encoder
Model Number	TS5246N160
Quality	Original.Brand New
Payment	T/T. Paypal. Western Union
Delivery	3-5 Working Days
Packaging	Packed by carton

Elevator Encoder TS5246N160 – Nanjing Zhuye Elevatorparts

The elevator encoder is a core feedback component of the elevator traction system, acting as the “precision sensor” that collects real-time speed and position signals of the traction motor. These signals are transmitted to the main controller to ensure the elevator operates stably, levels accurately, and stops safely. The Elevator Encoder TS5246N160 launched by Nanjing Zhuye Elevatorparts is a high-performance rotary encoder designed for mainstream elevator systems, featuring excellent signal stability and strong environmental adaptability. It is widely compatible with well-known elevator brands such as Schindler, OTIS, and KONE, suitable for both passenger and freight elevators. Adopting advanced incremental encoding technology, a sealed metal casing, and anti-interference signal processing circuits, this encoder strictly complies with international elevator safety standards (EN 81-20, GB 7588) and has become a reliable choice for global elevator maintenance teams and manufacturers.

Nanjing Zhuye Elevatorparts adheres to the “quality first, safety-oriented” principle, implementing strict quality control throughout the production process of the TS5246N160 elevator encoder. Each unit undergoes rigorous testing, including signal accuracy verification, anti-interference performance assessment, high-temperature durability testing, and mechanical wear resistance inspection. The encoder is equipped with a high-precision code disc and sensitive photoelectric sensing components, ensuring stable output of incremental signals even under long-term high-speed operation. The shell adopts a fully sealed metal structure with an IP rating of IP54, effectively preventing dust, moisture, and oil stains from entering the internal components—ideal for harsh working environments such as elevator machine rooms and shafts. The operating temperature range is -10℃ to 60℃, and the signal line uses double-shielded wires to avoid electromagnetic interference from the elevator’s electrical system, ensuring reliable signal transmission.

Usage Guide for Elevator Encoder TS5246N160

Correct installation, wiring, and debugging of the TS5246N160 elevator encoder are crucial to ensuring the normal operation of the elevator system. Nanjing Zhuye Elevatorparts strongly recommends that only certified elevator maintenance technicians perform related operations, as improper installation (such as shaft misalignment) or wiring may lead to signal loss, resulting in elevator jitter, inaccurate leveling, or even emergency stops. Before operation, please carefully read the product manual provided by Nanjing Zhuye Elevatorparts and confirm the model matches the elevator motor and controller.

1. Pre-Installation Preparation

First, confirm that the TS5246N160 encoder matches the elevator motor’s parameters (such as shaft diameter, rated speed) and the controller’s interface type. Consult Nanjing Zhuye Elevatorparts’ technical team immediately if there is any uncertainty about compatibility. Then, cut off the elevator’s main power supply and traction system power supply, lock the switch, and place a “Maintenance in Progress” warning sign at the elevator entrance and machine room door. Fix the elevator car at a flat floor position and disconnect the motor from the traction mechanism if necessary. Prepare professional tools including a screwdriver, torque wrench, multimeter, level ruler, and anti-static gloves. Clean the encoder installation area (motor shaft end) to remove dust, debris, and oil stains, and check if the motor shaft is intact without wear or deformation.

2. Installation, Wiring & Debugging

Install the TS5246N160 encoder on the motor shaft, ensuring that the coaxiality error between the encoder shaft and the motor shaft is less than 0.2mm and the deflection angle is within 1.5° to avoid mechanical wear. Fix it firmly with screws according to Nanjing Zhuye’s torque specifications—never strike the encoder to prevent damage to the internal code disc. Perform wiring strictly according to the wiring diagram: Connect the power cord and signal lines (A, B, Z phases) to the corresponding terminals of the elevator controller, and ensure the shielding layer of the signal line is reliably grounded at the controller end to enhance anti-interference performance. Note that the distance between the signal line and the power line should be more than 30mm to avoid electromagnetic interference. After wiring, restore the terminal cover before powering on. For debugging, follow the “first static then dynamic” principle: First, set the elevator controller to encoder control mode as per the manual, then perform no-load power-on inspection to confirm stable signal output (use a multimeter or oscilloscope to detect). Rotate the motor manually to check if the signal changes synchronously. Then, enter the elevator’s self-learning mode to complete position calibration, ensuring the leveling error is within ±3mm. Finally, conduct a load test: run the elevator through multiple floors to check for jitter or inaccurate leveling, and adjust controller parameters if necessary.

3. Daily Use & Maintenance

According to the “Elevator Maintenance Rules” (TSG T5002-2017) and Nanjing Zhuye’s recommendations, the TS5246N160 encoder should be inspected every 15 days and undergo professional comprehensive testing annually. For daily maintenance: Power off before inspection, clean the encoder shell and wiring terminals with a dry cloth to remove dust (avoid using water or chemical cleaners) as cleanliness and firm installation are key to its normal operation. Check the fixing screws quarterly and re-tighten them if loose to prevent displacement. Inspect the signal line for wear, aging, or loose connections—replace damaged lines immediately and ensure the shielding layer is intact. Regularly test the signal output with professional equipment; if the elevator experiences abnormal phenomena such as inaccurate leveling or vibration, prioritize checking the encoder for faults. If the encoder fails to work normally, contact Nanjing Zhuye’s after-sales team for troubleshooting in a timely manner.

Replacement Cycle of Elevator Encoder TS5246N160

The replacement cycle of the TS5246N160 elevator encoder is determined by operating frequency, working environment, and component aging. Under normal conditions (elevator daily operation 12-24 hours, stable voltage, dry and clean machine room environment), Nanjing Zhuye Elevatorparts recommends a replacement cycle of 5-7 years. This cycle is based on long-term field operation data and component reliability tests, fully considering the wear of internal code discs, aging of photoelectric components, and attenuation of signal transmission performance.

For elevators in high-traffic areas (e.g., large shopping malls, airports with frequent start-stop and high-speed operation) or harsh environments (high humidity, heavy dust, frequent vibration, or strong electromagnetic interference), the replacement cycle should be shortened to 3-5 years. High-frequency operation accelerates the wear of the shaft system and code disc, while harsh environments easily cause corrosion of components and signal interference. For low-usage elevators (e.g., villa elevators, small office buildings with daily operation time <8 hours) in stable environments, the cycle can be extended to 7-8 years, but annual professional testing by Nanjing Zhuye’s technicians is required to confirm that the encoder’s signal accuracy and anti-interference ability meet safety standards.

Replace the TS5246N160 encoder immediately if any of the following issues occur, regardless of its service life: Frequent signal loss or instability leading to elevator jitter, inaccurate leveling, or sudden stops (a common fault that may cause elevator outage); severe wear, scratch, or contamination of the internal code disc (detected by professional inspection); damage to the encoder shell, water ingress, or shaft deformation; frequent encoder-related fault alarms that cannot be resolved by maintenance; the encoder fails to pass the annual professional safety test; signal output distortion causes the controller to misjudge the elevator’s position. Timely replacement is critical to avoid elevator operation failures and potential safety hazards.

The Elevator Encoder TS5246N160 from Nanjing Zhuye Elevatorparts integrates high reliability, high precision, and strong compatibility, providing a critical technical guarantee for the stable and safe operation of elevator systems. By following the correct usage, maintenance, and replacement guidelines, you can effectively reduce encoder-related faults and improve the overall operation quality of the elevator. Choosing Nanjing Zhuye Elevatorparts means you get 100% authentic TS5246N160 encoders, as well as professional services including model matching, on-site installation guidance, and timely after-sales support. Trust Nanjing Zhuye Elevatorparts for the safe and stable operation of your elevator.
