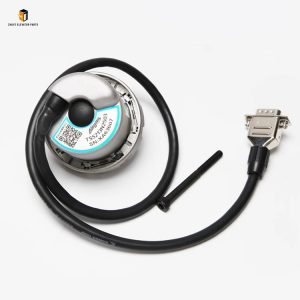

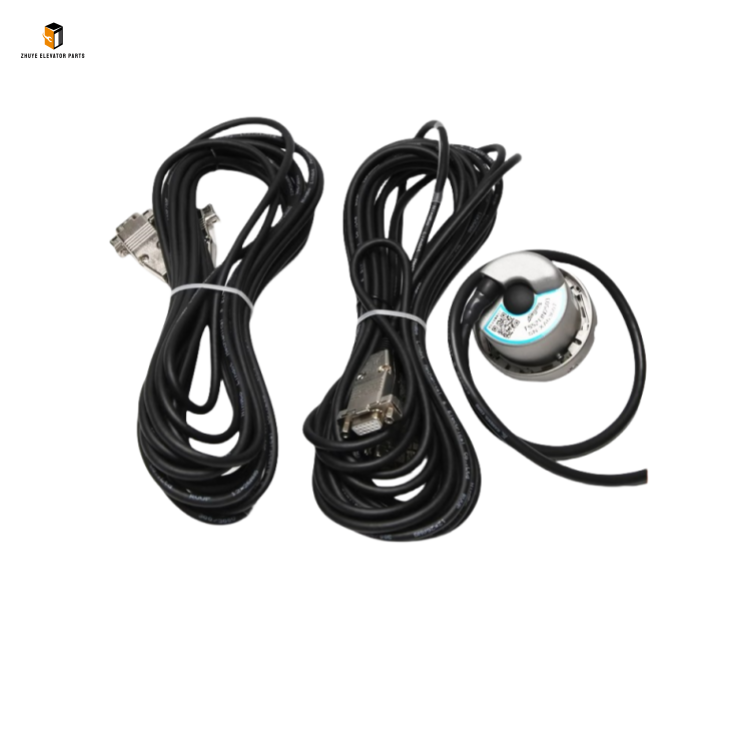

Elevator Encoder TS5213N2503: High-Precision Sensing Core from Nanjing Zhuye Elevatorparts

Step-by-Step Usage Guide for Elevator Encoder TS5213N2503

1. Professional Installation & Wiring

• Safety Preparation: Cut off the elevator’s main power supply and lock the power switch to prevent accidental power-on. Use a mechanical brake to fix the traction machine’s rotating shaft to avoid rotation during installation. Clean the encoder mounting position (usually the end of the traction machine motor shaft) to remove dust, oil stains, and debris that may affect installation accuracy.
• Encoder Installation: Fix the TS5213N2503 to the traction machine’s shaft end using the dedicated flange and bolts provided by Nanjing Zhuye Elevatorparts. Ensure the encoder’s input shaft is coaxial with the traction machine’s rotating shaft (coaxiality deviation ≤ 0.1mm) to avoid abnormal wear of internal bearings and signal distortion. Tighten the fixing bolts evenly according to the specified torque to prevent loosening due to long-term vibration.

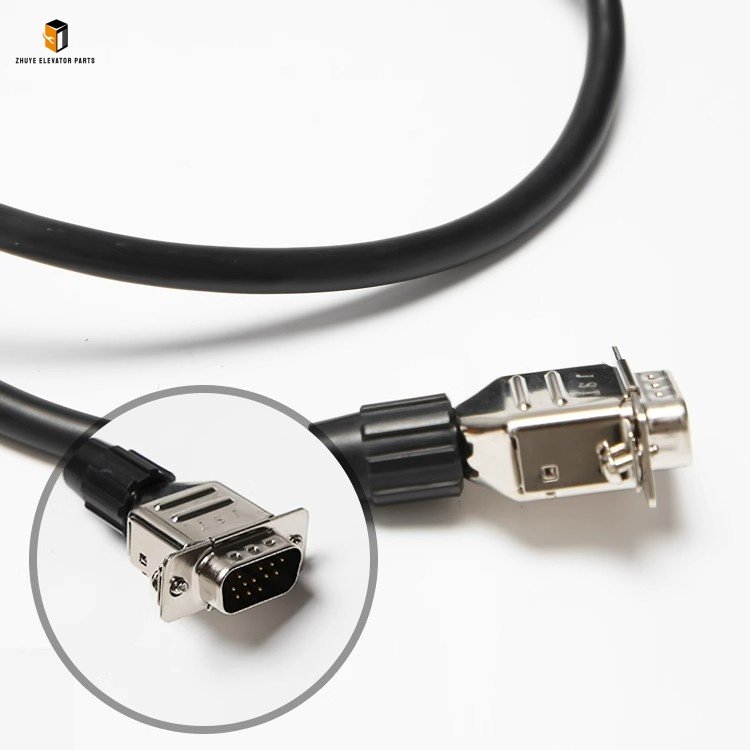

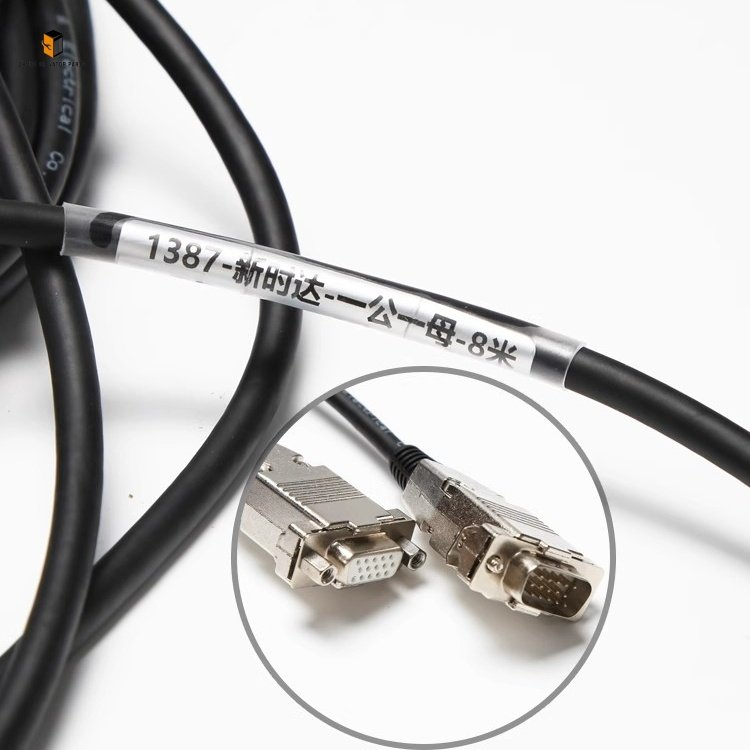

• Wiring Operation: In accordance with the elevator control system wiring diagram and the TS5213N2503 user manual, connect the encoder’s power cables (DC 5V/12V, subject to model specifications) and signal cables (A-phase, B-phase, Z-phase) to the corresponding interfaces of the main controller. Ensure correct wiring sequence and polarity—reverse wiring may lead to signal loss or incorrect direction detection. Use shielded cables and connect the shield layer to the ground terminal to enhance anti-interference performance. Tighten all terminals to ensure reliable contact and good insulation.
• Post-Installation Debugging: Restore the power supply and switch the elevator to inspection mode. Operate the traction machine to rotate slowly and use an oscilloscope to check the encoder’s output signal—ensure the A/B phase square waves have clear edges and no jitter, and the Z-phase zero-position signal is accurately triggered. Adjust the elevator’s leveling parameters through the controller based on the encoder’s position data to ensure the car stops at the floor with an error ≤ 2mm. Conduct a 1-hour continuous operation test to verify the encoder’s signal stability and temperature rise (normal surface temperature ≤ 60℃).

2. Daily Operation & Routine Maintenance

• Daily Visual Inspection: During machine room patrols, check the external condition of the TS5213N2503. Ensure the metal housing is free of deformation, cracks, or corrosion; the signal and power cables are intact without aging, wear, or loose connections; the mounting bolts are tight. Observe the elevator’s operation status—abnormal phenomena such as poor leveling accuracy, running jitter, or incorrect floor display may indicate encoder faults.
• Weekly Signal & Voltage Check: Use a multimeter to detect the encoder’s input voltage, ensuring it is within the rated range. Connect to the controller’s self-test interface to verify the consistency between the encoder’s speed/position data and the elevator’s actual operation status. Record the test data for trend analysis—abnormal deviations may indicate early signs of encoder failure.
• Monthly Cleaning & Inspection: Cut off the power supply and clean the encoder’s housing and mounting surface with a soft, dry cloth to remove dust and oil stains. Check the tightness of the mounting bolts and the connection between the encoder and the traction machine’s shaft—re-tighten if necessary. Do not disassemble the encoder’s internal structure to avoid damaging the optical code disc and other precision components.

Recommended Replacement Cycle for Elevator Encoder TS5213N2503

1. Standard Replacement Cycle

2. Adjustments for Special Scenarios

• Harsh Environments & High-Duty Scenarios: For elevators in high-humidity coastal areas (salt spray corrosion), machine rooms with poor ventilation (high temperature), or high-speed elevators (running speed ≥ 3m/s) with long-term high-load operation, the replacement cycle should be shortened to 3–4 years. Harsh conditions and high-intensity operation accelerate the wear of internal bearings and the aging of optical components, significantly reducing the encoder’s reliability.
• Low-Frequency Use Scenarios: For elevators with low usage frequency (e.g., villa elevators, small office buildings with daily operation time < 8 hours) and stable machine room environments (constant temperature and humidity), the replacement cycle can be extended to 6–7 years—only if Nanjing Zhuye Elevatorparts’ professional technicians conduct an inspection and confirm that the encoder’s positioning accuracy, signal stability, and anti-interference performance meet the original factory standards.

3. Immediate Replacement Conditions

• The encoder’s positioning accuracy is severely reduced (elevator leveling deviation > 5mm), and the fault persists after parameter adjustment and wiring inspection, seriously affecting ride comfort and safety.
• The encoder’s output signal is distorted, intermittent, or lost, leading to elevator running jitter, speed fluctuation, or failure to display the correct floor—confirmed by oscilloscope testing.
• The encoder’s housing is severely damaged, the input shaft is worn or deformed, or the internal optical code disc is scratched (unrepairable) due to external impact or long-term wear.
• The encoder fails the performance test (e.g., resolution deviation > 1%, signal response delay > 2ms), failing to meet the elevator control system’s precision requirements.
