Description

Elevator encoder ECN1313 2048 Brief Introduction

Product Name	Elevator encoder
Model Number	ECN1313 2048
Quality	Original.Brand New
Payment	T/T. Paypal. Western Union
Delivery	3-5 Working Days
Packaging	Packed by carton

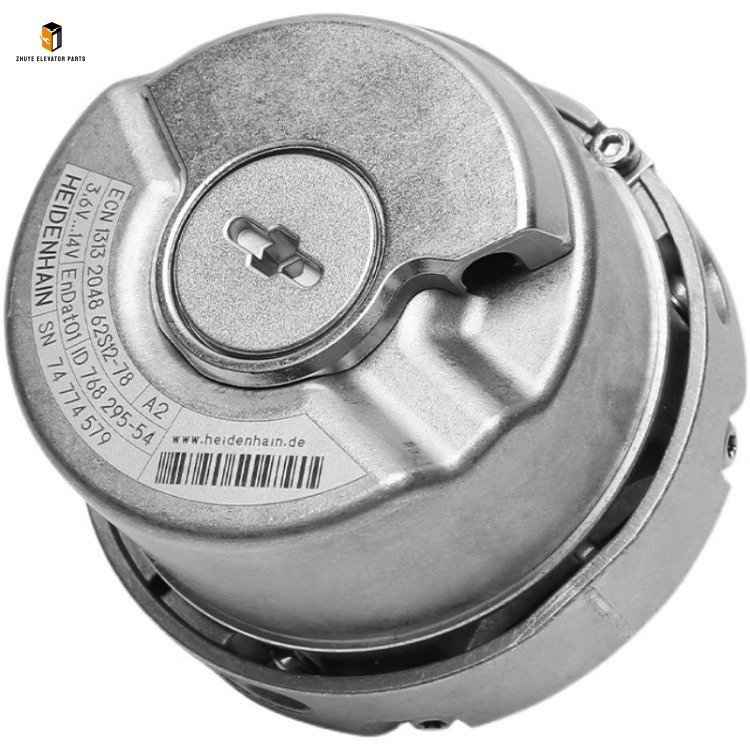

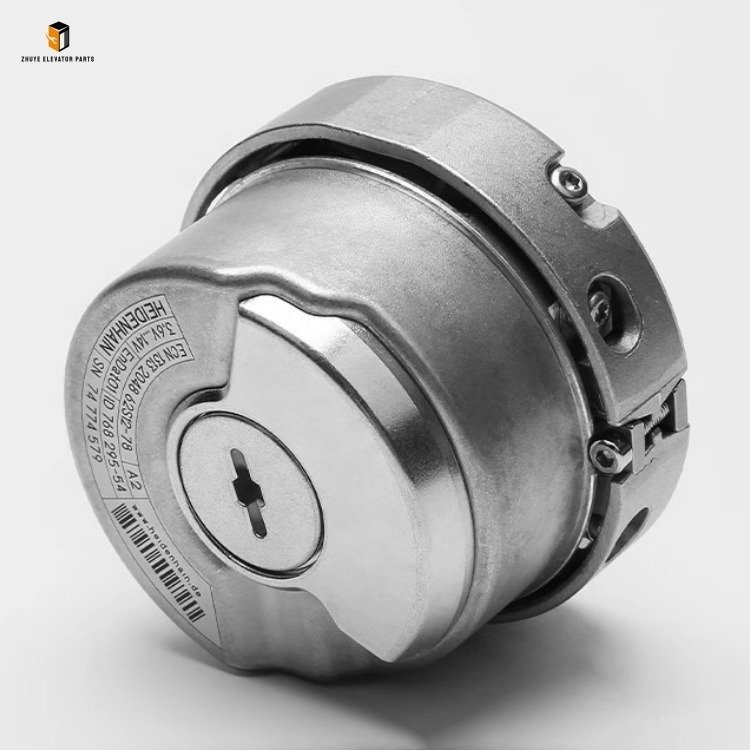

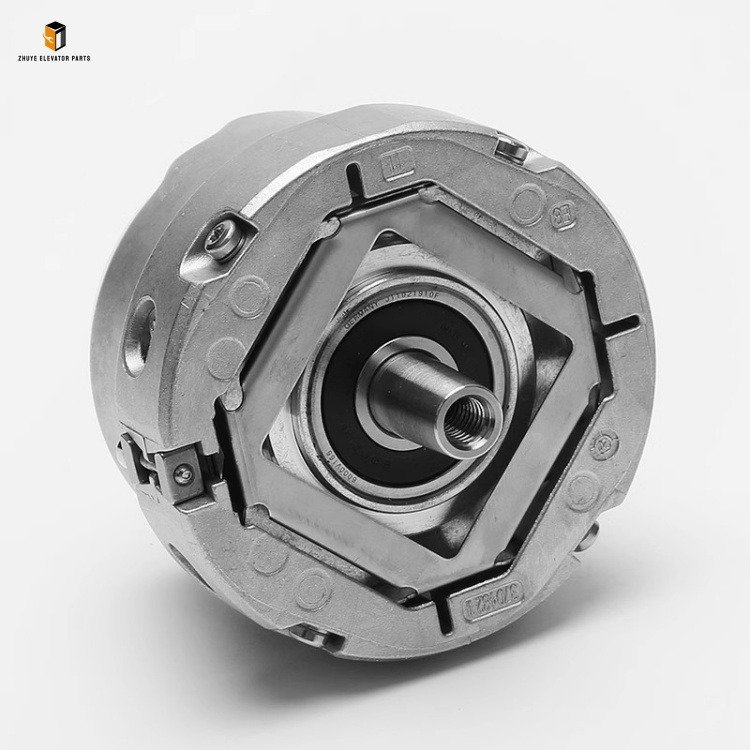

Elevator Encoder ECN1313 2048 – Nanjing Zhuye Elevatorparts

The elevator encoder is a core feedback component of the elevator traction system, acting as the “nerve endings” to accurately collect the motor’s speed and position signals, which are transmitted to the controller to ensure the elevator operates stably, levels accurately, and runs safely. The Elevator Encoder ECN1313 2048 launched by Nanjing Zhuye Elevatorparts is a high-precision rotary encoder tailored for mainstream elevator systems, featuring a resolution of 2048 pulses per revolution to meet the high-precision control needs of modern elevators. It is widely compatible with well-known elevator brands such as Schindler, OTIS, and KONE, suitable for both passenger and freight elevators. Equipped with advanced optical encoding technology, anti-interference shielding design, and high-precision shafting structure, this encoder strictly complies with international elevator safety standards (EN 81-20, GB 7588) and has become a reliable choice for global elevator maintenance teams and manufacturers.

Nanjing Zhuye Elevatorparts adheres to the “quality first, safety-oriented” principle, implementing strict quality control throughout the production process of the ECN1313 2048 elevator encoder. Each unit undergoes rigorous testing, including resolution accuracy verification, signal stability testing, anti-interference performance assessment, and durability inspection. The encoder adopts a sealed metal shell with an IP rating of IP54, effectively preventing dust and moisture intrusion in harsh elevator machine room environments. The internal precision code disc and high-sensitivity photoelectric sensing components ensure stable signal output even under long-term high-speed operation. The signal line adopts double-shielded wire to avoid electromagnetic interference from the elevator’s electrical system, and the output interface supports multiple signal types to match different elevator controllers. The operating temperature range is -10℃ to 60℃, ensuring reliable performance in various climate conditions.

Usage Guide for Elevator Encoder ECN1313 2048

Correct installation, wiring, and debugging of the ECN1313 2048 elevator encoder are crucial to ensuring the normal operation of the elevator traction system. Nanjing Zhuye Elevatorparts strongly recommends that only certified elevator maintenance technicians perform related operations, as improper installation (such as misalignment of the encoder shaft) or wiring may lead to signal loss, resulting in elevator jitter, inaccurate leveling, or even sudden stops. Before operation, please carefully read the product manual provided by Nanjing Zhuye Elevatorparts.

1. Pre-Installation Preparation

First, confirm that the ECN1313 2048 encoder matches the elevator motor model and controller interface (check parameters such as resolution, signal type, and installation dimensions). Consult Nanjing Zhuye Elevatorparts’ technical team immediately if there is any uncertainty about compatibility. Then, cut off the elevator’s main power supply and traction system power supply, lock the switch, and place a “Maintenance in Progress” warning sign at the elevator entrance and machine room door. Fix the elevator car at a flat floor position and disconnect the motor from the traction system if necessary. Prepare professional tools including a screwdriver, torque wrench, multimeter, level ruler, and anti-static gloves. Clean the encoder installation area (motor shaft end) to remove dust, debris, and oil stains, and check if the motor shaft is intact without wear or deformation.

2. Installation, Wiring & Debugging

Install the ECN1313 2048 encoder on the motor shaft, ensuring that the coaxiality error between the encoder shaft and the motor shaft is less than 0.20mm and the deflection angle is less than 1.5° to avoid damage to the shaft system during operation. Fix it firmly with screws according to Nanjing Zhuye’s torque specifications—never strike or collide with the encoder to prevent damage to the internal code disc. Perform wiring strictly according to the wiring diagram: Connect the power cord and signal line (A, B, Z phases) to the corresponding terminals of the elevator controller, and ensure the shielding layer of the signal line is reliably grounded at the inverter end to enhance anti-interference performance. After wiring, restore the terminal cover before powering on. For debugging: First, perform no-load power-on inspection to confirm that the encoder outputs stable signals (use a multimeter or oscilloscope to detect). Rotate the motor manually to check if the encoder’s signal changes synchronously with the rotation. Then, enter the elevator’s self-learning mode to complete the encoder’s position calibration, ensuring the elevator’s leveling error is within the allowable range. Finally, perform load test: run the elevator through multiple floors to check if there is jitter or inaccurate leveling, and adjust the controller parameters if necessary. Note that if the A/B signal phase is reversed, the elevator may “run away”, so correct the signal definition immediately if any abnormality is found.

3. Daily Use & Maintenance

According to the “Elevator Maintenance Rules” (TSG T5002-2017) and Nanjing Zhuye’s recommendations, the ECN1313 2048 encoder should be inspected every 15 days and undergo professional comprehensive testing annually. For daily maintenance: Power off before inspection, clean the encoder shell and wiring terminals with a dry cloth to remove dust (avoid using water or chemical cleaners). Check the fixing screws for looseness quarterly and re-tighten them if necessary to prevent displacement. Inspect the signal line for wear, aging, or loose connections—replace damaged lines immediately and ensure the shielding layer is intact. Regularly test the encoder’s signal output with professional equipment: rotate the motor and observe if the signal pulses are stable and accurate. If the elevator experiences abnormal phenomena such as inaccurate leveling, vibration, or frequent stops, check the encoder first for faults such as loose wiring, code disc wear, or shaft misalignment. Contact Nanjing Zhuye’s after-sales team for troubleshooting if the fault cannot be resolved.

Replacement Cycle of Elevator Encoder ECN1313 2048

The replacement cycle of the ECN1313 2048 elevator encoder is determined by operating frequency, working environment, and component aging. Under normal conditions (elevator daily operation 12-24 hours, stable voltage, dry and clean machine room environment), Nanjing Zhuye Elevatorparts recommends a replacement cycle of 5-7 years. This cycle is based on long-term field operation data and component reliability tests, fully considering the wear of internal code discs, aging of photoelectric components, and attenuation of signal transmission performance.

For elevators in high-traffic areas (e.g., large shopping malls, airports with frequent start-stop and high-speed operation) or harsh environments (high humidity, heavy dust, frequent vibration, or strong electromagnetic interference), the replacement cycle should be shortened to 3-5 years. High-frequency operation accelerates the wear of the shaft system and code disc, while harsh environments easily cause corrosion of components and signal interference. For low-usage elevators (e.g., villa elevators, small office buildings with daily operation time <8 hours) in stable environments, the cycle can be extended to 7-8 years, but annual professional testing by Nanjing Zhuye’s technicians is required to confirm that the encoder’s resolution, signal stability, and anti-interference ability meet safety standards.

Replace the ECN1313 2048 encoder immediately if any of the following issues occur, regardless of its service life: Frequent signal loss or instability leading to elevator jitter, inaccurate leveling, or sudden stops; severe wear, scratch, or contamination of the internal code disc (detected by professional disassembly inspection); damage to the encoder shell, water ingress, or shaft deformation; frequent false alarms related to the encoder that cannot be resolved by maintenance; the encoder fails to pass the annual professional safety test; the signal output is distorted, and the controller cannot receive accurate speed or position signals. Timely replacement is critical to avoid elevator operation failures, which may cause serious safety hazards such as passenger trapping or elevator overspeed.

The Elevator Encoder ECN1313 2048 from Nanjing Zhuye Elevatorparts integrates high reliability, high precision, and strong compatibility, providing a critical technical guarantee for the stable and safe operation of elevator systems. By following the correct usage, maintenance, and replacement guidelines, you can effectively reduce encoder-related faults and improve the overall operation quality of the elevator. Choosing Nanjing Zhuye Elevatorparts means you get 100% authentic ECN1313 2048 encoders, as well as professional services including model matching, on-site installation guidance, and timely after-sales support. Trust Nanjing Zhuye Elevatorparts for the safe and stable operation of your elevator.
