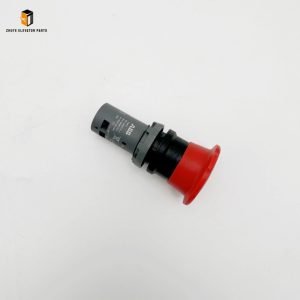

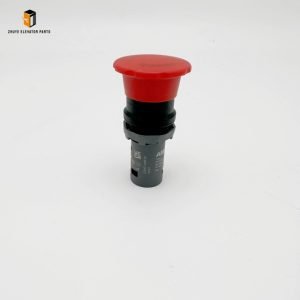

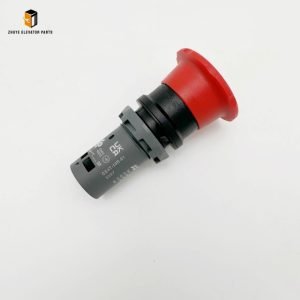

Elevator Emergency Stop Switch: Usage, Replacement Cycle & Maintenance Guide
By Nanjing Zhuye Elevatorparts

—

Introduction
The elevator emergency stop switch is the last line of defense for passenger and technician safety. Manufactured by Nanjing Zhuye Elevatorparts, our IP65-rated, positive-break switch meets EN 81-20/50, ASME A17.1 and UL standards. This 800-word guide explains correct installation, daily operation, and the recommended replacement cycle to keep every elevator safe and code-compliant.

—

1. Product Highlights
• Contacts: 1NO+1NC, 15 A @ 250 V AC
• Housing: IP65 ABS, -20 °C ~ +70 °C
• Action: Red mushroom head, positive-break, twist-to-reset
• Cable: 3 m PUR, M12 connector, tool-free hook-up
• Cycles: 1+ million mechanical operations

—

2. Installation Method
Step 1 – Preparation
De-energise lift; lock-out/tag-out main breaker. Record serial number.

Step 2 – Mounting
Position 1.2 m above floor, within 0.5 m of ladder access. Drill Ø30 mm hole; torque M6 screws to 8 N·m.

Step 3 – Wiring
Route 3-core cable through PG9 gland. Connect NC contact in series with safety chain; torque screws 0.6 N·m.

Step 4 – Commissioning
Power-up; press mushroom 3× – car must halt immediately. LED changes state; log trip distance and date.

—

3. Daily & Preventive Maintenance
Daily
Visual check – LED green, mushroom head fully reset. Clean with IPA.

Monthly
Test switch 20×; measure contact resistance <0.1 Ω. Check gland tightness.

Quarterly
Cycle 50× under load; insulation >10 MΩ. Replace desiccant pack.

Annually
Full safety-chain test; torque screws, inspect housing for cracks.

—

4. Replacement Cycle
| Duty | Years | Cycles | Warning Signs |
| Standard | 5–7 | 250k | LED fault, >1 Ω resistance |
| High-traffic | 3–4 | 150k | Cracks, seized mushroom, IP65 failure |

Replace immediately if:
• Contact welding or torque slip
• Housing cracked or gland loose
• Repeated “estop fault” logs

Keep 1 spare per 25 elevators for <4 h response.

—

5. Why Nanjing Zhuye Elevatorparts?
• Laser-etched QR for full traceability
• Same-day global dispatch
• 24/7 multilingual support
• Tiered OEM pricing

—

6. Conclusion
By installing, testing, and replacing the emergency stop switch as outlined—and sourcing only from Nanjing Zhuye Elevatorparts—you guarantee code compliance, reduce downtime, and protect every passenger.
