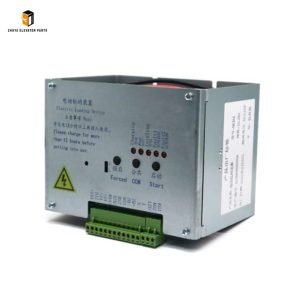

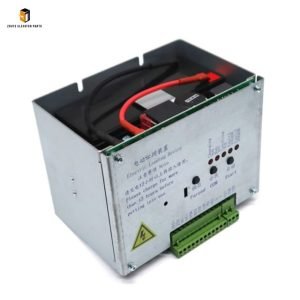

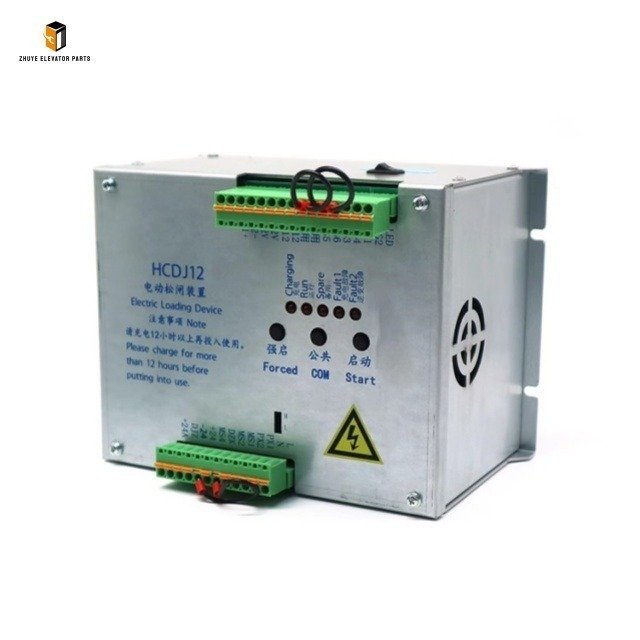

Elevator electric brake release device HCDJ12-5D1-F1 Brief Introduction
|
Product Name |
Elevator electric brake release device |
| Model Number | HCDJ12-5D1-F1
HCDJ12-5D1 ADL500-12-110V |
|
Quality
|
Original.Brand New
|
|
Payment
|
T/T. Paypal. Western Union
|
|
Delivery
|
3-5 Working Days
|
|
Packaging
|
Packed by carton
|
HCDJ12-5D1-F1 Elevator Electric Brake Release Device: Usage Guide & Replacement Cycle
The elevator electric brake release device is a critical safety component that enables controlled release of the elevator brake during maintenance, inspection, or emergency rescue scenarios, preventing unintended movement and ensuring operator safety. The HCDJ12-5D1-F1 Elevator Electric Brake Release Device, a premium offering from Nanjing Zhuye Elevator Parts, is engineered with a robust electromagnetic structure, featuring reliable activation, precise control, and strong compatibility with mainstream elevator brake systems. Compliant with strict safety standards including GB/T 7025.1-2023 for elevator dimensions and safety requirements, this device ensures stable performance even in harsh operating environments. Nanjing Zhuye Elevator Parts, a trusted manufacturer and supplier of elevator components, subjects each HCDJ12-5D1-F1 device to rigorous quality testing, guaranteeing consistent reliability for global elevator maintenance teams. This article details the correct installation, usage methods, and scientific replacement cycle to help professionals optimize elevator safety management.
Prior to installation, strict adherence to elevator safety protocols is mandatory: Cut off the elevator’s main power supply, activate the emergency stop switch, and place a prominent “No Operation” warning sign to prevent accidental activation. Confirm the installation environment—mount the HCDJ12-5D1-F1 device on the elevator traction machine or brake assembly, ensuring a dry, vibration-free location away from direct sunlight and high-temperature heat sources. Verify compatibility using technical specifications from Nanjing Zhuye Elevator Parts, confirming the device’s voltage (typically AC220V/DC110V) and mounting dimensions match the elevator’s brake system. Inspect the new device for transportation damage (e.g., cracked casing, loose terminals) and ensure all accessories (mounting brackets, fasteners, wiring harnesses) are complete before proceeding.
Installation requires precise mechanical fixation and electrical wiring in line with industry standards. First, secure the device to the designated position using corrosion-resistant bolts, ensuring alignment with the brake release mechanism—misalignment may cause incomplete brake release or abnormal wear. For wiring, strictly follow the diagram provided by Nanjing Zhuye Elevator Parts: Connect the power cables to the L/N terminals (matching the device’s rated voltage) and the control signal wires to the elevator’s main controller or emergency rescue panel. Ensure the protective grounding wire (cross-sectional area not less than 2.5mm²) is reliably connected to the elevator’s grounding system to prevent electric shock hazards. All connections should be tight and insulated, with wire labels matching terminal markings to avoid signal confusion. After wiring, organize cables with ties to prevent friction damage from elevator vibration.
Correct usage is critical to ensure safety and device longevity. For routine maintenance: After activating the emergency stop and cutting off the main power, press the release button on the HCDJ12-5D1-F1 device—confirm the brake is fully released via the mechanical indicator before performing maintenance. For emergency rescue: Follow the elevator’s rescue procedure, activate the device through the emergency panel, and slowly move the car to the nearest landing. Post-installation debugging is essential: Restore power, test the device’s activation and deactivation functions repeatedly to ensure responsive operation. Verify that the brake engages immediately when the device is deactivated and that the elevator’s safety circuit triggers an alarm if the device malfunctions. During daily use, prohibit unauthorized activation of the device and ensure only trained professionals operate it.
The replacement cycle of the HCDJ12-5D1-F1 device is determined by usage frequency, environmental conditions, and component aging. Based on industry practices and technical recommendations from Nanjing Zhuye Elevator Parts, the general replacement cycle is 4-5 years under normal operating conditions (residential or office buildings with 8-12 hours of daily operation). For elevators in high-traffic public areas (malls, stations, hospitals) where maintenance and rescue operations are more frequent, the cycle should be shortened to 3-4 years. In harsh environments with high humidity (above 70%), large temperature fluctuations, or corrosive gases (coastal areas, industrial zones), the replacement cycle should be further reduced to 2.5-3 years to prevent electromagnetic coil degradation or mechanical failure.
Immediate replacement is necessary if any of the following abnormalities occur: 1) Failure to release the brake or incomplete release despite normal power supply; 2) Abnormal noise (e.g., buzzing, sparking) during activation, indicating internal coil damage; 3) Visible damage to the device casing, loose terminals, or corrosion on electrical components; 4) Delayed brake engagement after deactivation, posing safety risks; 5) Frequent false alarms or malfunctions in the safety circuit linked to the device. Always use genuine HCDJ12-5D1-F1 devices from Nanjing Zhuye Elevator Parts to ensure perfect compatibility with the elevator’s brake system and avoid safety hazards from inferior counterfeit products that may not meet safety standards.
Scientific maintenance significantly extends the device’s service life. Follow a structured maintenance schedule: Every 3 months, check wiring connections for tightness and oxidation, and clean the device’s surface and ventilation holes with a dry brush to remove dust buildup. Every 6 months, test the device’s activation force and response time using professional tools, and apply a small amount of anti-corrosion lubricant to mechanical moving parts as recommended by Nanjing Zhuye Elevator Parts. Annually, conduct a comprehensive inspection including insulation resistance testing (ensure the value exceeds 1MΩ) and coil resistance measurement to confirm performance consistency. Maintain detailed maintenance records, including inspection dates and fault handling, to comply with regulatory requirements and facilitate proactive maintenance.
The HCDJ12-5D1-F1 Elevator Electric Brake Release Device is an indispensable safety component for elevator maintenance and emergency rescue, whose reliable performance directly relates to the safety of operators and passengers. By following correct installation and usage guidelines, adhering to the scientific replacement cycle, and choosing genuine Nanjing Zhuye Elevator Parts products, maintenance professionals can effectively prevent brake-related accidents and enhance the overall safety and reliability of elevator systems. For more technical details—including 2D/3D drawings, wiring diagrams, and compatibility lists—or to purchase genuine HCDJ12-5D1-F1 devices and access professional technical support, contact the expert team at Nanjing Zhuye Elevator Parts.
