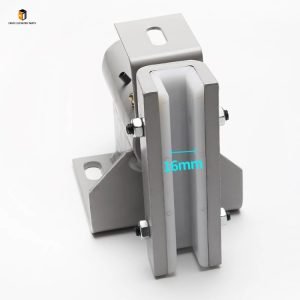

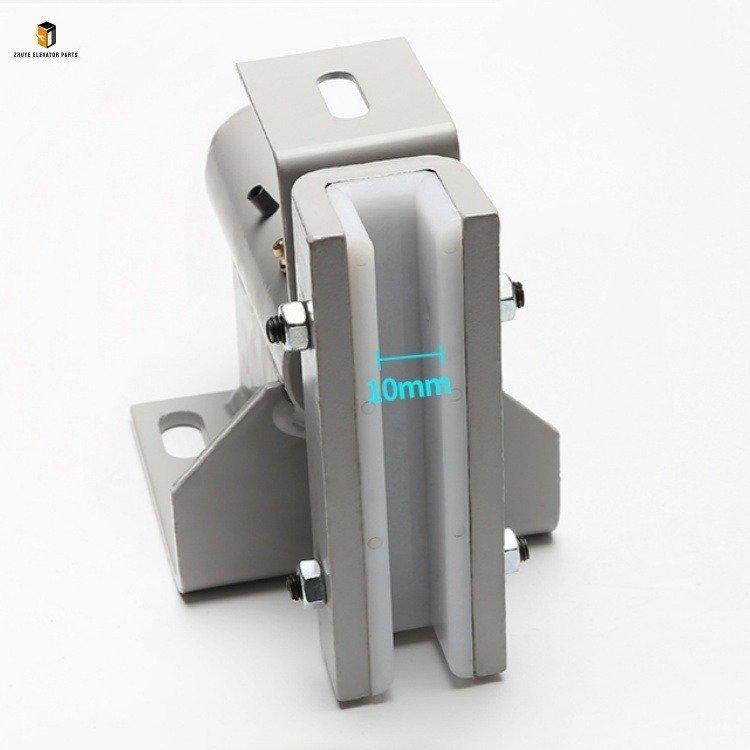

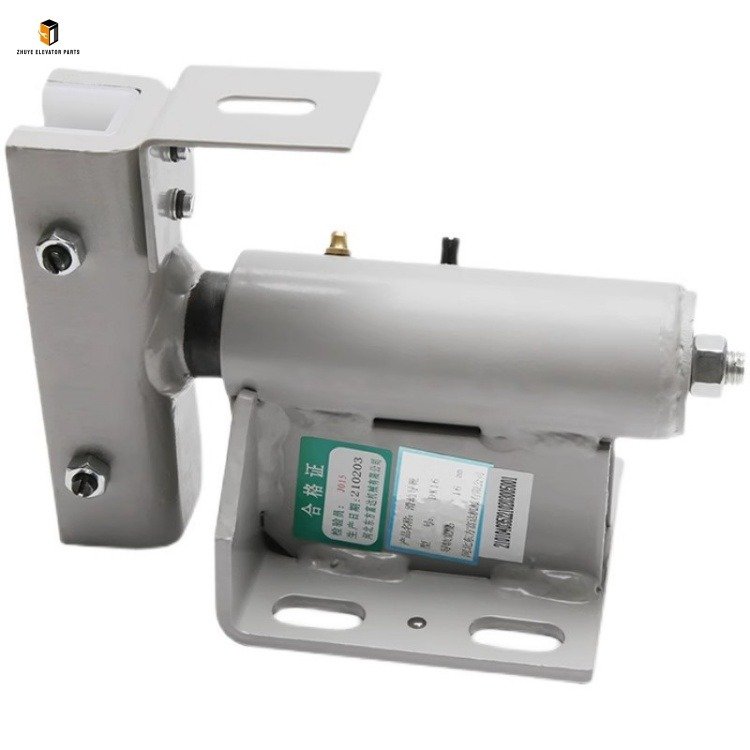

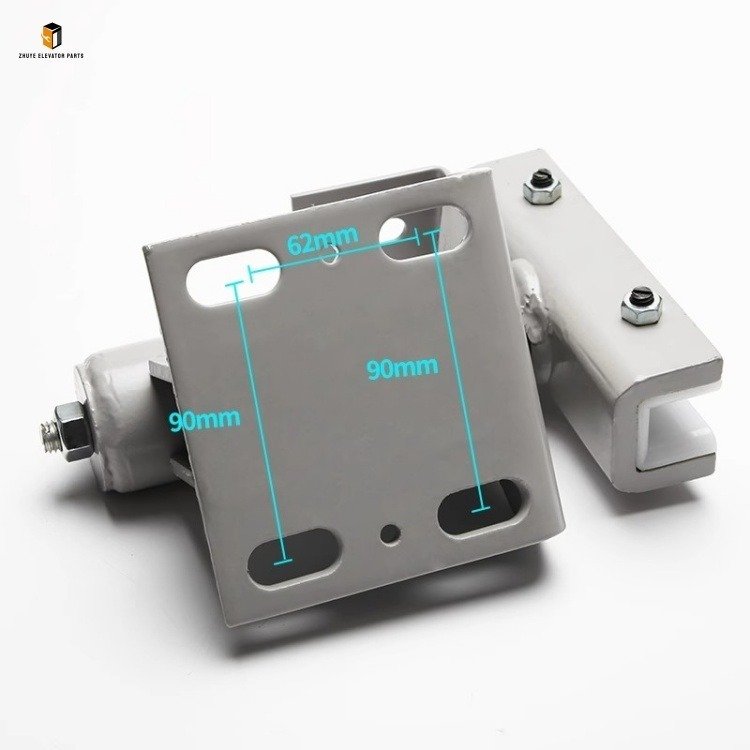

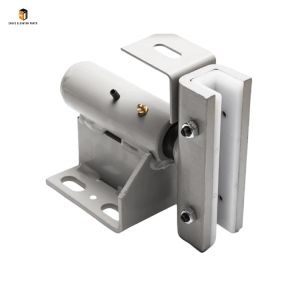

Elevator DX16 guide shoe KM92510G16A Brief Introduction
|
Product Name |
Elevator DX16 guide shoe |
| Model Number | KM92510G16A |
|
Quality
|
Original.Brand New
|
|
Payment
|
T/T. Paypal. Western Union
|
|
Delivery
|
3-5 Working Days
|
|
Packaging
|
Packed by carton
|
Elevator DX16 Guide Shoe KM92510G16A – Nanjing Zhuye Elevatorparts
The elevator guide shoe is a core component that ensures the car and counterweight run stably along the guide rails, directly affecting the smoothness and safety of the elevator ride. The Elevator DX16 Guide Shoe KM92510G16A provided by Nanjing Zhuye Elevatorparts is a high-precision guiding component tailored for specific elevator models (compatible with KONE and other mainstream brands matching the KM92510G16A specification). It integrates guiding, shock absorption, and wear resistance, providing reliable support for the elevator’s high-frequency up and down operation. Crafted with a high-strength aluminum alloy base, wear-resistant nylon liners, and a precision-adjustable structure, this guide shoe fully meets international elevator safety standards (EN 81-20, GB 7588) and has become a trusted choice for global elevator maintenance teams and manufacturers.
Nanjing Zhuye Elevatorparts adheres to the core philosophy of “Precision Guidance, Stable Operation” and implements strict quality control throughout the production process of the DX16 Guide Shoe KM92510G16A. Each unit undergoes rigorous testing, including load-bearing capacity verification, wear resistance testing, shock absorption performance detection, and dimensional accuracy calibration. The guide shoe’s aluminum alloy base has excellent structural stability and corrosion resistance, supporting a maximum load of 800kg per pair to withstand the long-term weight of the elevator car. The nylon liner is made of high-performance wear-resistant material with a friction coefficient ≤ 0.12, effectively reducing friction between the guide shoe and the guide rail and lowering operation noise (≤ 40dB). The integrated adjustable bolt structure allows technicians to fine-tune the gap between the liner and the guide rail, ensuring the elevator runs smoothly without shaking. The built-in oil injection channel facilitates regular lubrication, further extending the service life of the guide shoe and guide rail.
Usage Guide for Elevator DX16 Guide Shoe KM92510G16A
Correct installation, adjustment, and maintenance are crucial to maximizing the performance and service life of the DX16 Guide Shoe KM92510G16A. Nanjing Zhuye Elevatorparts recommends that only certified elevator maintenance technicians perform related operations to avoid elevator jamming, shaking, or other safety hazards caused by misoperation.
1. Pre-Installation Preparation
1. Pre-Installation Preparation
First, confirm that the elevator’s MAC car lighting controller model matches the POWCV24181MH power supply (check parameters such as input voltage, output voltage, output current, and installation dimensions). Consult Nanjing Zhuye Elevatorparts’ technical team if there is any uncertainty about compatibility. Then, cut off the elevator’s main power supply and the secondary power supply for the car lighting system, lock the switch, and place a “Maintenance in Progress” warning sign at the elevator landing doors and machine room entrance. Locate the power supply installation position (usually on the car top or in the car control cabinet) and clean the area to remove dust, debris, and oil stains. Finally, prepare professional tools such as a screwdriver, wire stripper, multimeter, and insulation tester, and check that the new POWCV24181MH power supply from Nanjing Zhuye Elevatorparts is intact (no damage to the shell, no loose pins).
First, confirm that the elevator model and guide rail specification match the DX16 Guide Shoe KM92510G16A (check the guide rail width, installation hole position, and compatibility with the KM92510G16A part number). Consult Nanjing Zhuye Elevatorparts’ technical team if there is any uncertainty about compatibility. Then, cut off the elevator’s main power supply, lock the switch, and place a “Maintenance in Progress” warning sign at the landing doors and machine room entrance. Use a hoist to stabilize the elevator car to prevent accidental movement during installation. Finally, prepare professional tools such as a socket wrench, screwdriver, feeler gauge, and special elevator lubricating oil, and clean the car’s guide shoe installation base and guide rail surface to remove dust, debris, and old lubricant.
2. Installation & Adjustment
2. Installation & Wiring
If replacing the old guide shoe, first remove the fixing bolts of the old guide shoe and take it down from the car base. Inspect the installation base for wear, deformation, or corrosion (repair or replace the base if necessary). Take the new DX16 Guide Shoe KM92510G16A from Nanjing Zhuye Elevatorparts, install it on the car base, and temporarily fix it with bolts. Use a feeler gauge to adjust the gap between the nylon liner and the guide rail (recommended gap: 0.3-0.8mm) by turning the adjustable bolts on both sides of the guide shoe. Ensure the gaps on both sides are uniform to avoid one-sided wear. After adjustment, tighten the fixing bolts to the torque recommended by Nanjing Zhuye (12-15 N·m) to ensure the guide shoe is firmly fixed. Apply an appropriate amount of special lubricating oil to the contact surface between the liner and the guide rail to reduce friction.
Debugg3. Operation & Daily Maintenance
Remove the car hoist, restore the power supply, and switch the elevator to inspection mode. Operate the elevator to run up and down slowly, and observe the car’s operation: there should be no abnormal noise, shaking, or deviation. After 2 hours of stable operation, stop the elevator and check the guide shoe’s temperature (slightly warm is normal; abnormal heat indicates excessive friction). For daily maintenance, inspect the guide shoe during monthly shaft patrols: Check if the nylon liner has obvious wear (wear depth exceeding 2.5mm indicates the need for attention); confirm the fixing bolts are tight and the adjustable structure is intact; clean the guide rail surface and reapply lubricating oil every 2 months. For elevators in high-traffic areas (e.g., shopping malls, airports) or harsh environments (e.g., high dust, high humidity), increase the inspection frequency to biweekly.
Replacement Cycle of Elevator DX16 Guide Shoe KM92510G16A
The replacement cycle of the DX16 Guide Shoe KM92510G16A is closely related to operating frequency and environment. Under normal circumstances (elevator daily operation 12-24 hours, daily operation times ≥ 1200, shaft environment dry and low-dust, regular lubrication), Nanjing Zhuye Elevatorparts recommends a replacement cycle of 2-3 years. This cycle is determined based on long-term field operation data, liner wear tests, and base fatigue tests, fully considering the wear of the nylon liner and the structural stability of the aluminum alloy base.
For elevators in high-traffic areas (e.g., large shopping malls, transportation hubs with daily operation ≥ 20 hours) or harsh environments (e.g., industrial sites with heavy dust, coastal areas with high salt spray, high-humidity regions), the replacement cycle should be shortened to 1-1.5 years. High-frequency operation accelerates liner wear, while harsh environments cause corrosion of the aluminum alloy base and reduce lubrication effectiveness. For low-usage elevators (e.g., villa elevators, small office buildings with daily operation time < 8 hours) in stable environments, the cycle can be extended to 3-4 years, but only after inspection and confirmation by Nanjing Zhuye’s technicians that the liner wear and base condition meet safe operation standards.
Replace the guide shoe immediately if any of the following issues occur, regardless of its service life: The nylon liner is severely worn, cracked, or falls off; the aluminum alloy base is deformed, cracked, or has obvious corrosion; the elevator runs with abnormal vibration, noise, or deviation, and the fault is confirmed to be caused by the guide shoe; the adjustable bolts fail, making it impossible to adjust the gap between the liner and the guide rail; the guide shoe causes excessive wear on the guide rail (wear depth exceeding 0.5mm).
The Elevator DX16 Guide Shoe KM92510G16A from Nanjing Zhuye Elevatorparts integrates precision, durability, and compatibility, providing reliable guiding support for elevator systems matching the KM92510G16A specification. By following the correct usage, maintenance, and replacement guidelines, you can effectively ensure the smooth and safe operation of the elevator, reduce wear on guide rails and other components, and improve passenger riding comfort. Choosing Nanjing Zhuye Elevatorparts means you get 100% authentic DX16 Guide Shoe KM92510G16A, as well as professional services including model matching, on-site installation guidance, and timely after-sales support. Trust Nanjing Zhuye Elevatorparts for the stable operation of your elevator guiding system.
