Elevator Driver Board -KEA26800ABS8

Description

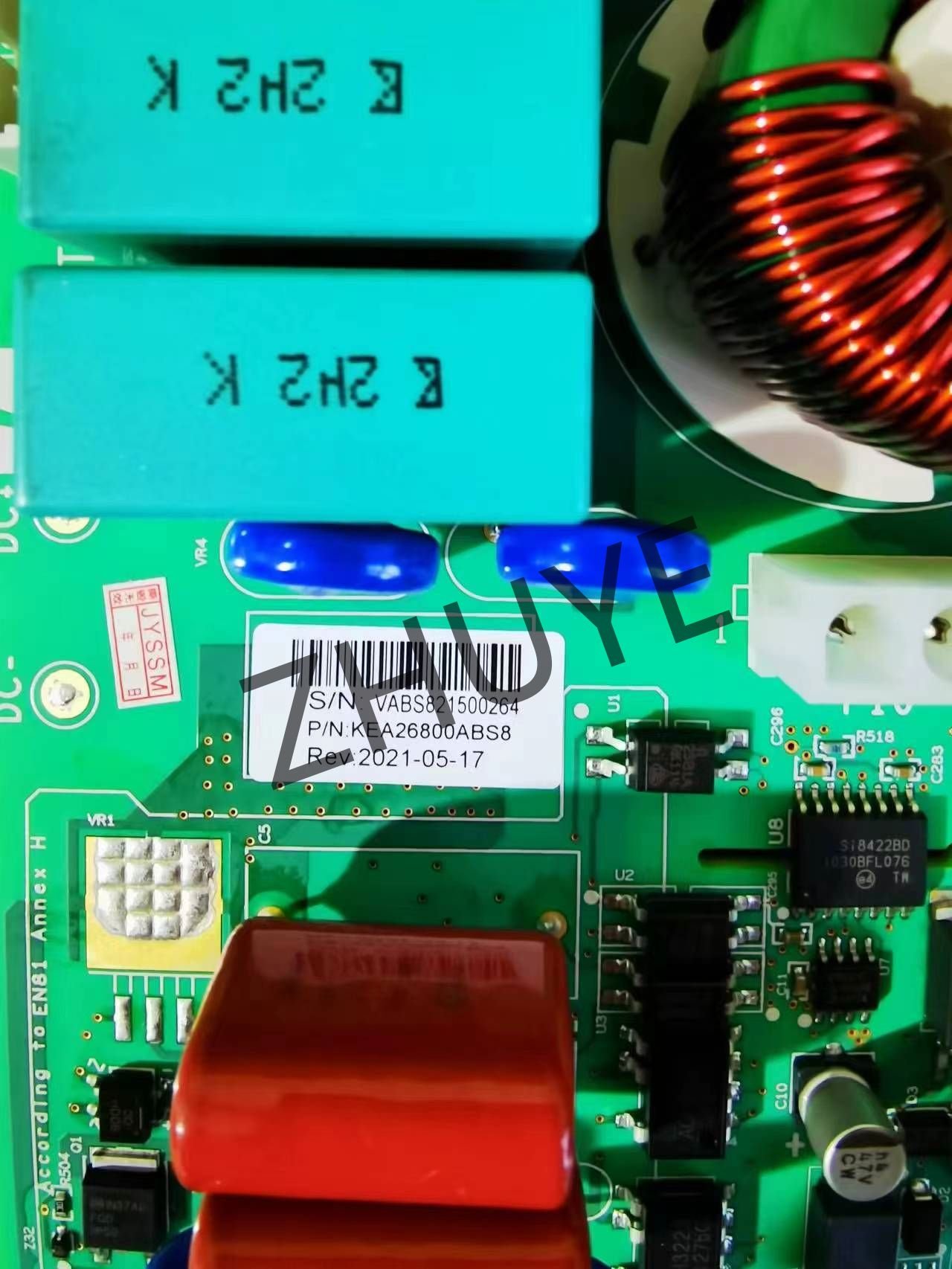

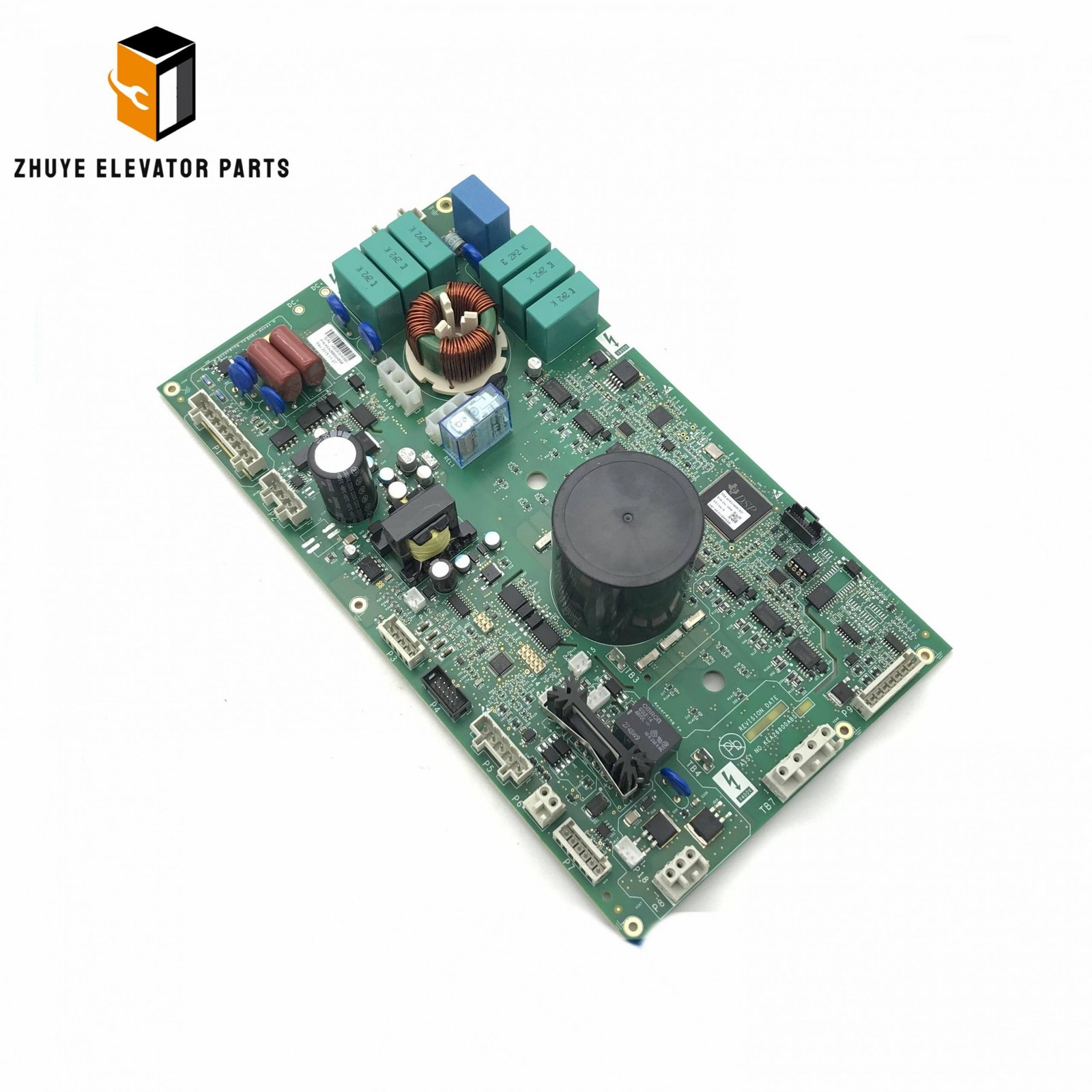

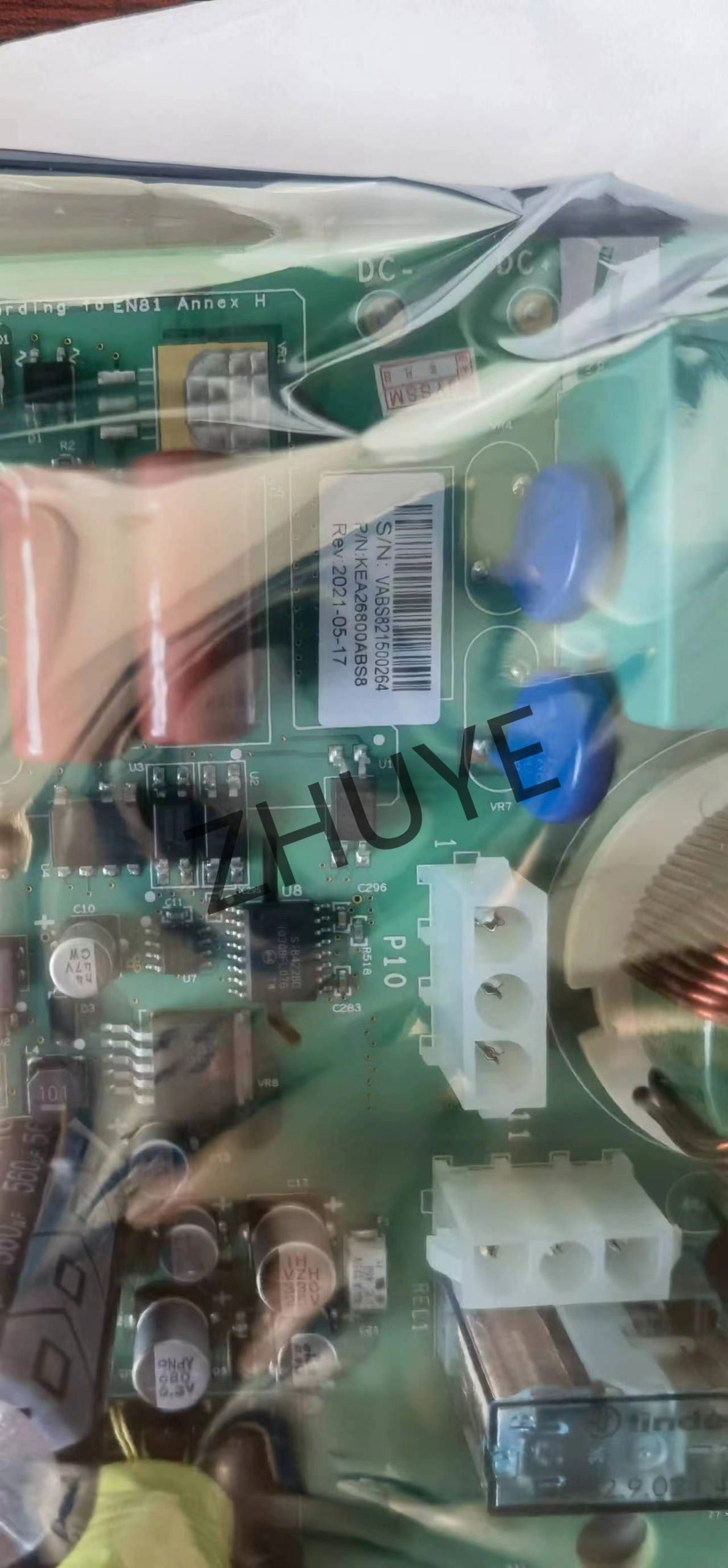

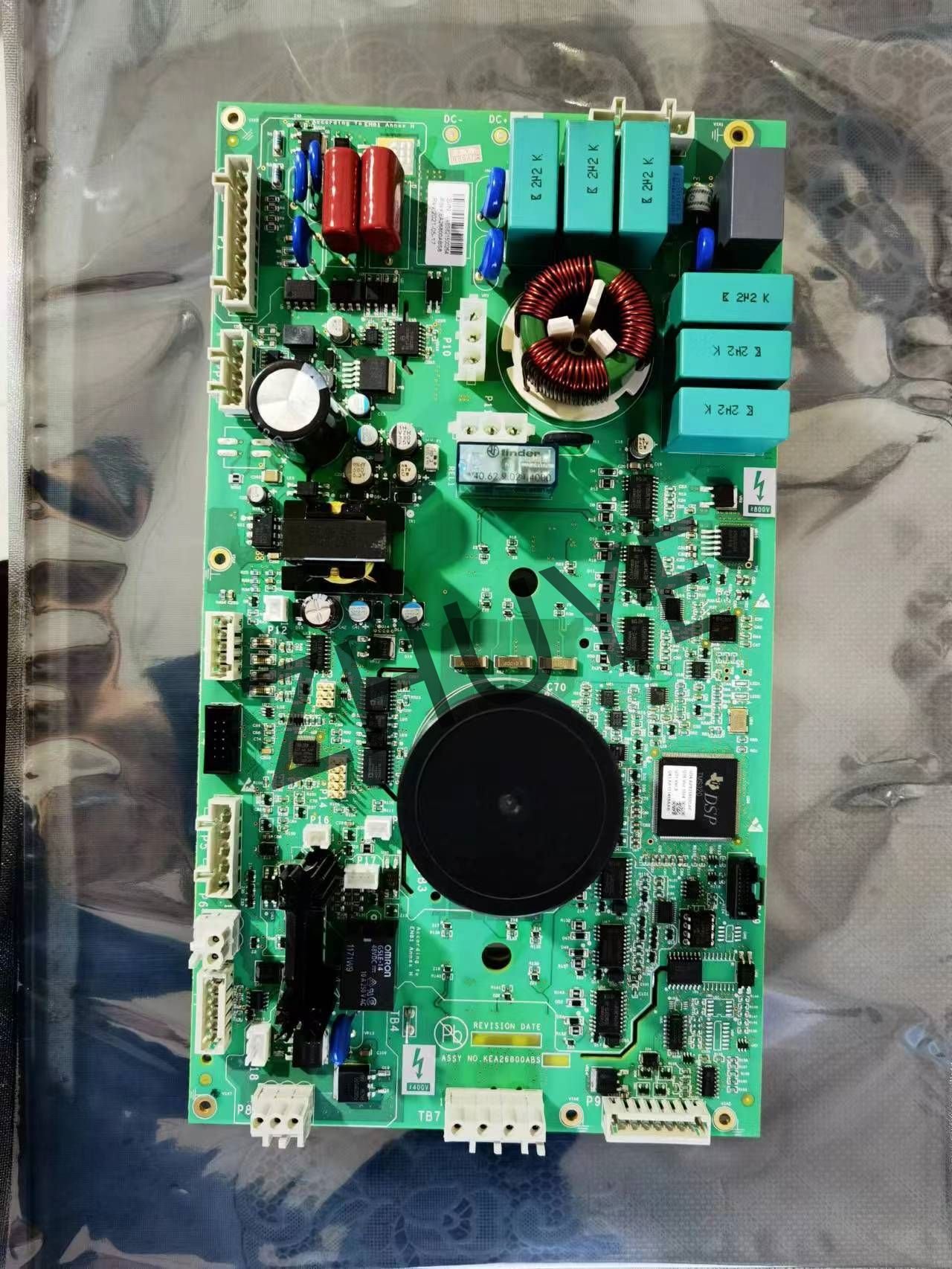

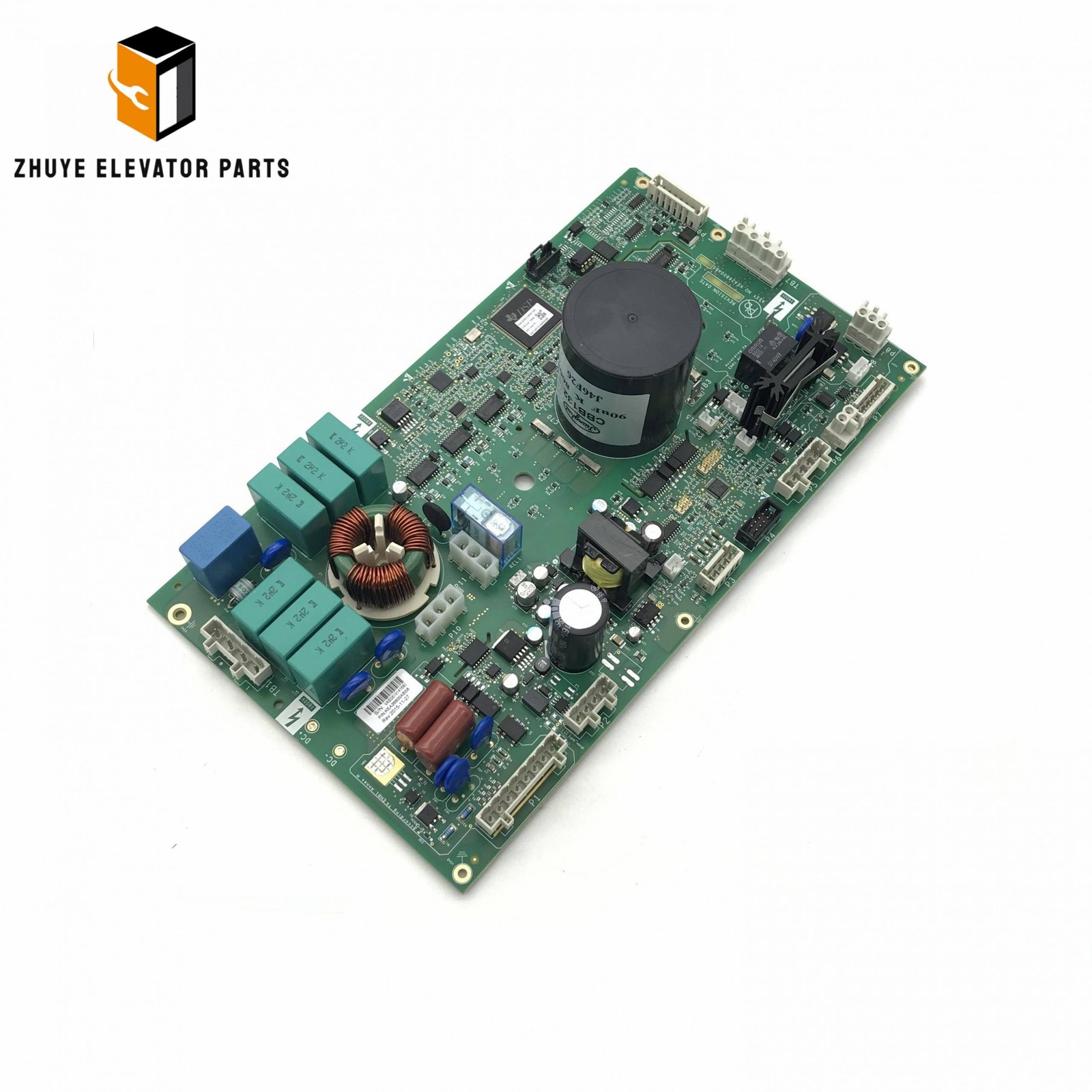

Otis Elevator OVFR03B-402 Inverter Driver Board KEA26800ABS8 Brief Introduction

Product Name	OVFR03B-402 Inverter Driver Board
Model	KEA26800ABS8
Quality	Original.Brand New
Payment	T/T. Paypal. Western Union
Delivery	3-5 Working Days
Packaging	Packed by carton

Elevator Driver Board KEA26800ABS8 – The 63 A Work-Horse That Turns Commands into Motion
Courtesy of Nanjing Zhuye Elevator Parts Co., Ltd.

Every time the controller sends a speed curve, the real muscle that opens contactors, fires the brake and modulates motor torque is a green A5-sized PCB—the KEA26800ABS8 driver board. Originally engineered for Otis Gen2®-R2 and SkyRise® installations, this 63 A, multi-relay driver is now the universal “power-bridge” for more than thirty global elevator brands. Nanjing Zhuye Elevator Parts keeps factory-sealed ABS8 boards in anti-static stock for same-day despatch. Below we explain what the board does, how to install it in under ten minutes, and the replacement cycle that prevents expensive “driver fault” call-backs.

What KEA26800ABS8 Really Does Mounted on DIN-rail inside the LMCB or GECB cabinet, the board:

Converts 24 VDC logic signals from the main CPU into 240 VAC / 63 A contactor outputs
Drives motor contactor, brake contactor, door-motor contactor and auxiliary relay through opto-isolated TRIACs
Supplies 24 VDC / 5 VDC rails for safety chain, COP and hall lanterns
Monitors contactor feedback via 4-way 0–10 V analogue input; opens safety chain within 40 ms if a contact drops
Stores on-time cycles and overload events in 512 K EEPROM—useful for forensic fault analysis

If ABS8 fails, the lift coasts, the brake drops, and the controller logs “EF4 Driver Chain Lost”.

Compatible Systems

Otis Gen2®-R2, Gen2®-Life, SkyRise® 1.0–2.5 m s⁻¹
Thyssen MC2 → MC3 retrofit
KONE EcoDisc™ modernisation kits
Chinese OEM controllers with 24 VDC logic and 240 VAC contactors

Installation – 10-Minute Hot Swap Safety: place controller on INSTALL, lock main breaker, wait 60 s for DC bus to discharge.

Step 1 – Photograph existing wiring; note DIP-switch position (S1-5 = ON for 2 m/s). Step 2 – Undo six M3 screws; slide board out of DIN rail guides. Step 3 – Disconnect (in order) 40-way ribbon, 6-way 24 VDC input, 4-way contactor output, 2-way feedback. Step 4 – Inspect ribbon for bent pins; if any pin is pushed, replace cable (Nanjing Zhuye part CB-40-300). Step 5 – Insert new ABS8 until latches click; reconnect all keyed plugs. Step 6 – Power up; green D1 LED blinks 2 Hz for 3 s, then steady—board has passed self-test. Step 7 – Run one full inspection trip; verify motor, brake and door contactors pull-in within 200 ms. No laptop or download is required; hardware revision ABS8 is pre-flashed to match Otis checksum 0x9B6E.

Daily Operation – What the Board Actually Does

Updates contactor command every 1 ms; arc-suppression TRIACs rated 800 V peak
Auto-detects 110 V or 240 V coil via Jumper J3—one board covers both voltages
Built-in varistor absorbs 1,500 J surges—no external suppressor needed
Temperature sensor on PCB derates output current above 70 °C—no summer shutdowns

Replacement Cycle & Preventive Maintenance

High-traffic office (>1,000 starts day⁻¹) – blow dust every 6 months, replace board every 7 years
Residential tower (300–600 starts day⁻¹) – inspect annually, replace every 12 years
Low-rise freight (≤200 starts day⁻¹) – inspect every 18 months, replace every 15 years

Replace immediately if:

D1 LED stays red (internal 5 V rail fault)
CAN “EF4 Driver Chain” logged ≥3 times in 30 days
Contactor feedback voltage drops below 85 % of rated
TRIAC short-circuit detected (code 0xC2)
Ribbon connector burnt (usually arc-tracking)

Extending Life – 3 Pro Tips
Keep 24 VDC supply ±3 %; spikes above 30 V destroy the on-board buck converter
Torque contactor lugs annually; loose connections cause arcing and ozone
Close cabinet door properly; dust on edge connectors is the #1 killer
Why Buy KEA26800ABS8 from Nanjing Zhuye Elevator Parts?

Factory-new, not refurbished; board passes ICT, 4-hour burn-in at 60 °C, and final functional test
Firmware pre-flashed; matches Otis original checksum, no teach-in required

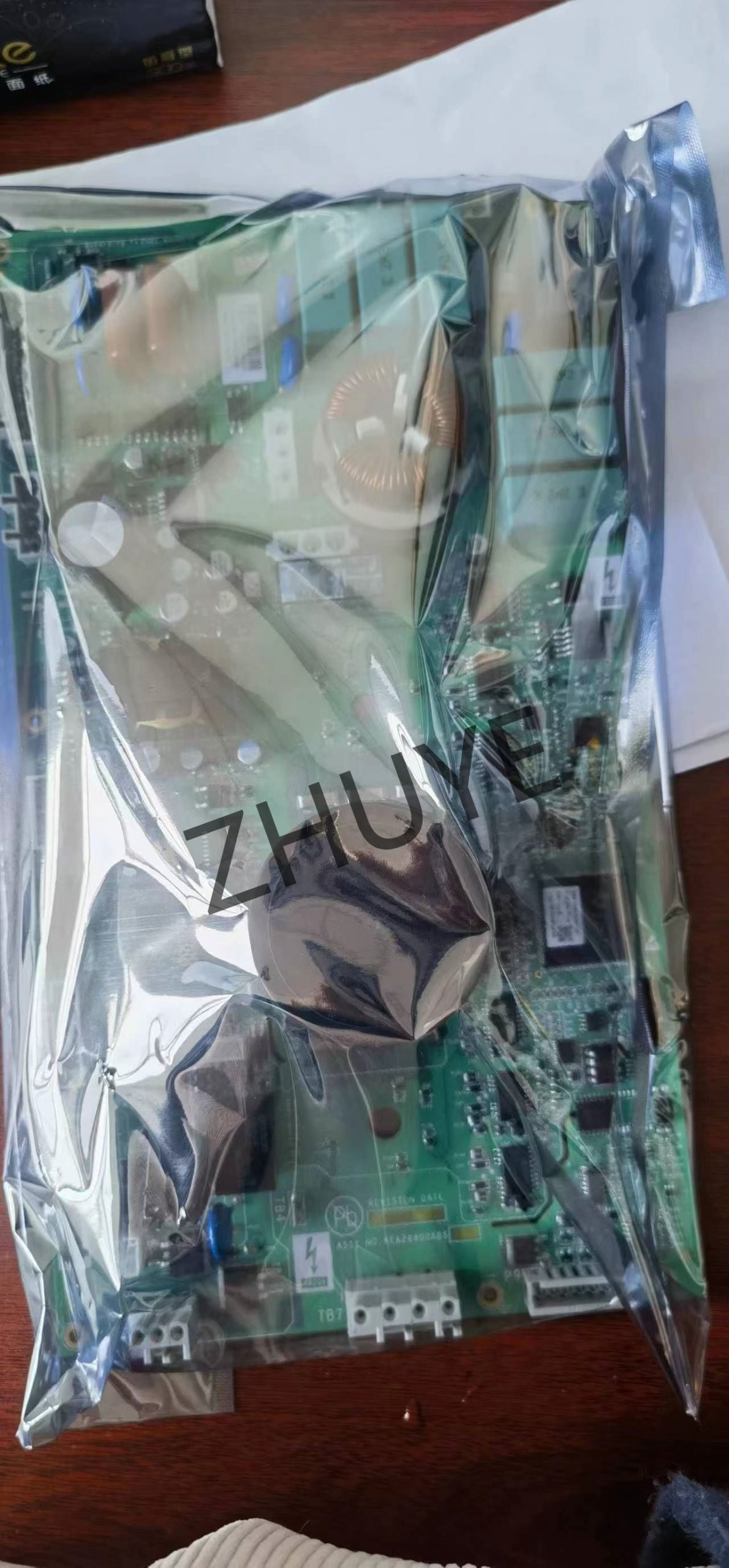

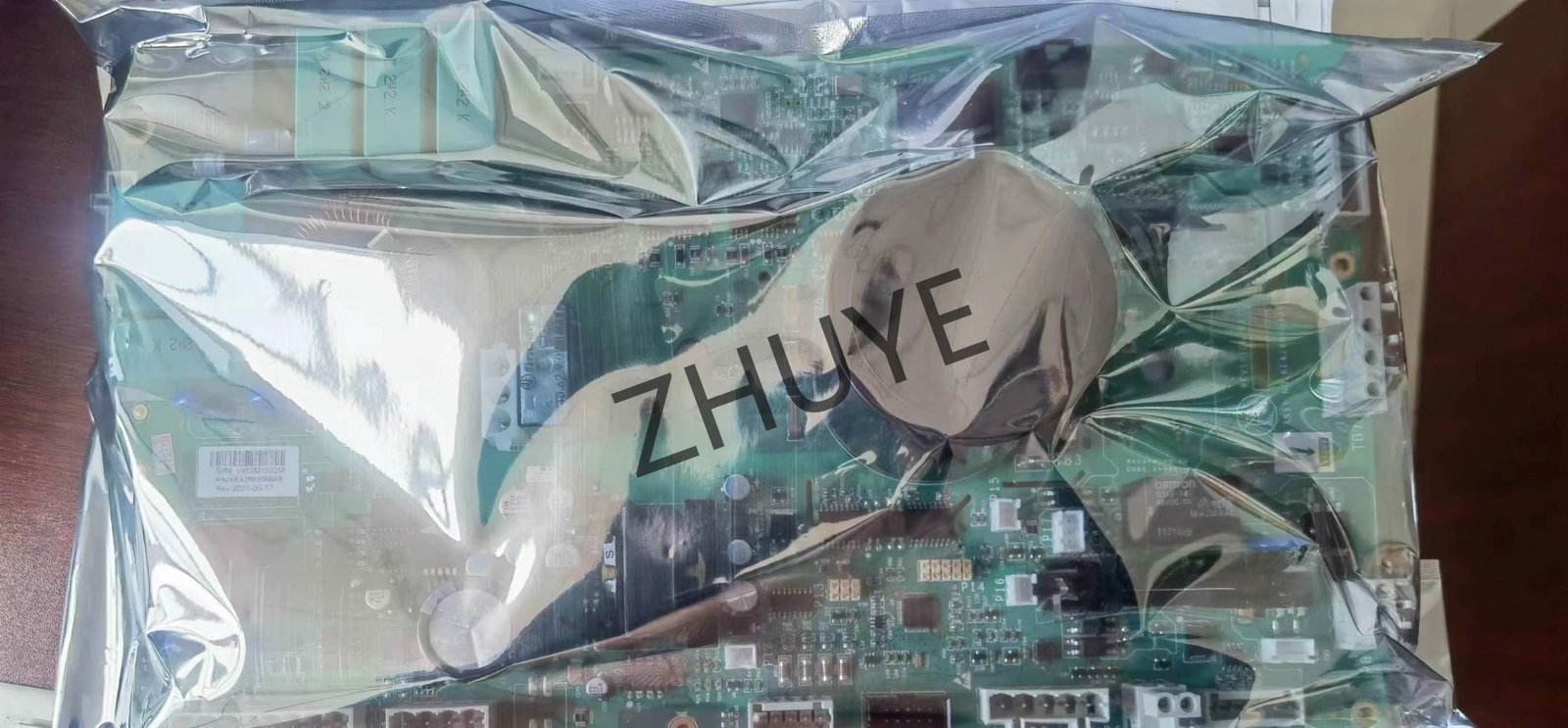

Anti-static aluminum bag + foam box—safe for air freight
Dual stock: 350 pcs Nanjing, 110 pcs Dubai—next-day delivery to 65 countries
Warranty: 24 months replacement, no factory RMA wait
Tech support: 7×24 WhatsApp/WeChat video call if fault codes persist

We reply within 12 h with price, lead time and a free Excel template that reminds you when the next driver board replacement is due.

Conclusion The KEA26800ABS8 driver board is the invisible muscle that turns logic commands into real motion. A single relay fault can park a car for hours. Keep a spare ABS8 from Nanjing Zhuye on every service truck, swap it on schedule, and replace “driver chain lost” panic with a ten-minute planned fix—one safe, powerful ride at a time.
