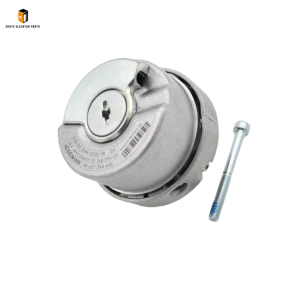

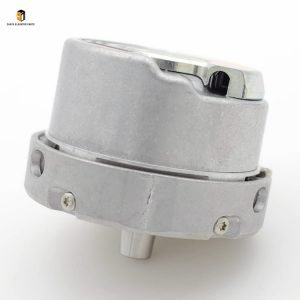

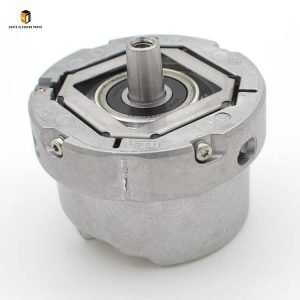

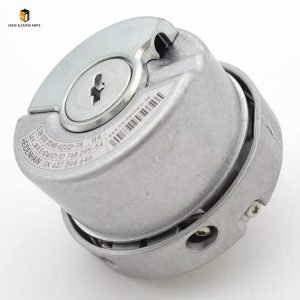

Elevator Door Rotary Encoder ECN 1313 2048 62S12-78: Precision Control for Smooth Door Operation

Proper Usage Methods of Elevator Door Rotary Encoder ECN 1313 2048 62S12-78

1. Installation & Wiring

• First, thoroughly clean the installation position on the elevator door motor shaft to remove dust, oil stains, and debris, ensuring a smooth and tight fit between the encoder and the motor shaft. Check the motor shaft for wear or deformation; repair or replace it if necessary.
• Install the encoder on the motor shaft using the matching coupling or flange. Ensure the installation is coaxial (coaxiality error ≤0.1mm) to avoid vibration and wear caused by eccentricity. Fasten the encoder firmly with the matching screws, and the tightening torque should comply with technical requirements (typically 3–5 N·m) to prevent loosening during high-speed operation.
• Correctly connect the wiring: According to the wiring diagram provided by Nanjing Zhuye Elevatorparts and the encoder manufacturer, connect the encoder’s signal wires (A, B, Z phases) and power wires to the corresponding terminals of the elevator door controller. Ensure the wiring is tight and reliable, and the wire insulation layer is intact to avoid short circuits or signal interference. Pay special attention to the phase sequence of the signal wires to ensure accurate direction detection and position counting. Use shielded wires for signal transmission to reduce electromagnetic interference from the surrounding environment.
• After installation, conduct a test run: Power on the elevator door system, operate the door opening and closing functions, and check if the encoder’s signal output is normal through the door controller. Verify that the elevator door opens and closes smoothly, the speed adjusts stably, and the buffer distance is accurate. If there is jitter, incorrect positioning, or speed fluctuation, recheck the installation coaxiality and wiring status and adjust in time.

2. Daily Operation & Routine Inspection

• During elevator operation, monitor the elevator door’s opening and closing status. Abnormal phenomena such as door jitter, slow response, incorrect positioning, or frequent door reversal may indicate encoder signal abnormalities or failures.
• Carry out weekly visual inspections: Check the appearance of the ECN 1313 2048 62S12-78 for damage, such as cracks or deformation of the metal shell, looseness of the coupling or fixing screws, and damage or aging of the wiring. Retighten loose screws in a timely manner and replace damaged wiring if necessary. Clean the encoder’s surface with a dry, lint-free cloth to remove dust and debris.
• Regularly check the encoder’s signal stability through the elevator door controller’s diagnostic function. If there are frequent signal loss, error counting, or pulse jitter, trace the cause promptly, which may be due to loose wiring, poor contact, or encoder internal component failure.

3. Regular Maintenance

• Every 3 months, thoroughly inspect the encoder’s installation coaxiality and the wear status of the coupling. If there is eccentricity or coupling wear, adjust or replace the coupling in time to avoid affecting the encoder’s detection accuracy.
• Every 6 months, recheck the wiring connections and the tightness of the terminals. Use a multimeter to detect the encoder’s power supply voltage and signal output waveform (if necessary) to ensure they are within the standard range. For encoders installed in high-humidity or high-dust environments, increase the inspection frequency and clean the shell and wiring regularly.
• Annually, conduct a comprehensive performance test: Use professional instruments to detect the encoder’s resolution, signal-to-noise ratio, and response time. If the performance indicators do not meet the requirements, contact Nanjing Zhuye Elevatorparts for professional maintenance or replacement with original encoders to ensure consistent precision control performance of the elevator door system.

Recommended Replacement Cycle of Elevator Door Rotary Encoder ECN 1313 2048 62S12-78

1. Standard Replacement Cycle

2. Scenario-Based Cycle Adjustment

• Harsh Operating Environments: For elevators operating in high-humidity coastal regions, high-dust construction sites, high-temperature unventilated machine rooms, or areas with strong vibration, the replacement cycle should be shortened to 4–5 years. Harsh conditions accelerate the aging of optical components, corrosion of the shell, and wear of the coupling, reducing the encoder’s precision and reliability.
• Low-Frequency Use Scenarios: For elevators with low usage frequency (e.g., villa elevators, small office buildings with less than 5,000 monthly door cycles) and stable operating environments, the replacement cycle can be appropriately extended to 7–8 years after a professional inspection by Nanjing Zhuye Elevatorparts confirms that the encoder’s signal output, installation status, and internal components are in good working condition.

3. Immediate Replacement Conditions

• The encoder has no signal output or frequent signal loss, leading to elevator door positioning failure, unable to open or close normally, and the fault cannot be eliminated after checking wiring and installation.
• The encoder’s shell is severely cracked, deformed, or corroded, and the internal optical components are exposed or damaged.
• The encoder’s detection precision decreases significantly, with door positioning error exceeding 5mm, and the error cannot be corrected by calibration.
• The encoder fails the annual performance test, and the performance indicators cannot be restored to the standard range after maintenance.
