Description
Elevator door operator wire rope use for S8/S200/K200/K300 Brief Introduction
|
Product Name |
Elevator door operator wire rope |
| Model Number | S8
S200 K200 K300 |
|
Quality
|
Original.Brand New
|
|
Payment
|
T/T. Paypal. Western Union
|
|
Delivery
|
3-5 Working Days
|
|
Packaging
|
Packed by carton
|
Elevator Door Operator Wire Rope for S8/S200/K200/K300: Precise Transmission Core from Nanjing Zhuye Elevatorparts
Elevator Door Operator Wire Rope specifically designed for S8/S200/K200/K300 door operator models is a critical transmission component for elevator door systems, responsible for transmitting the driving force of the door operator to the elevator car door and landing door, ensuring synchronous, smooth, and precise opening and closing of the doors. Tailored to match the structural parameters and load requirements of S8/S200/K200/K300 door operators, this wire rope features customized length, diameter, and tensile strength, making it perfectly compatible with these mainstream door operator models. Widely applied in residential elevators, commercial complexes, office buildings, and industrial elevators equipped with S8/S200/K200/K300 door operators, it is an essential component for maintaining the stable and efficient operation of elevator doors. Exclusively supplied by Nanjing Zhuye Elevatorparts, a professional provider of high-quality elevator mechanical components, theElevator Door Operator Wire Rope for S8/S200/K200/K300 fully complies with international elevator safety standards (EN 81-20, GB 7588) and wire rope technical specifications (GB/T 8918). Manufactured with premium high-carbon steel wires and precision stranding technology, it features excellent tensile strength, wear resistance, and fatigue resistance, ensuring reliable performance in long-term high-frequency operation, and earning recognition from global elevator maintenance teams and door operator manufacturers.

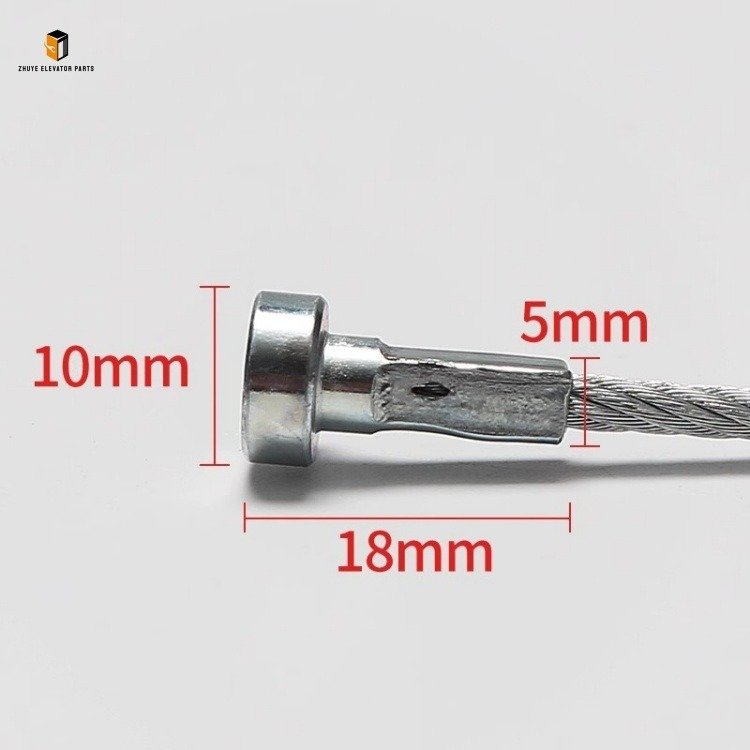

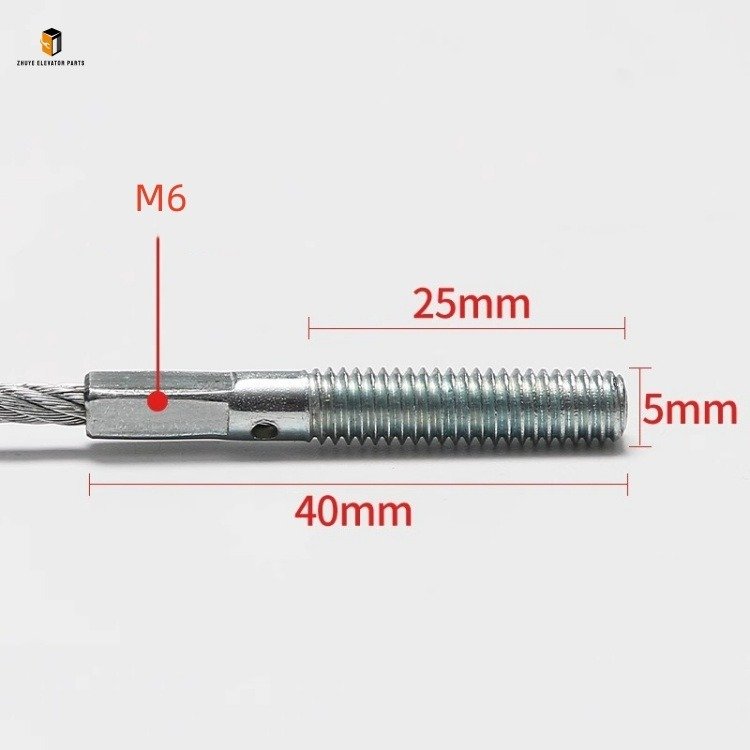

Nanjing Zhuye Elevatorparts adheres to the core philosophy of “Precise Transmission, Durable Operation” and implements rigorous quality control for the elevator door operator wire rope matching S8/S200/K200/K300 models. Each batch of wire rope undergoes multi-stage pre-delivery inspections, including tensile strength testing, wear resistance verification, diameter tolerance detection, and fatigue life evaluation. The wire rope adopts advanced materials and technologies: the core and strands are made of high-carbon steel (SWC) with high tensile strength (≥ 1570MPa), ensuring it can bear the door opening and closing load stably; the surface is treated with galvanizing or plastic coating, achieving excellent anti-rust and anti-corrosion performance to adapt to the humid environment in elevator shafts (-20℃ to 70℃); the stranding structure (6×19S+FC) ensures uniform force distribution and flexibility, avoiding breakage due to repeated bending; the end is equipped with customized connectors (compatible with S8/S200/K200/K300 door operator rope grooves) to ensure seamless connection with the door operator. The standardized customization for each door operator model enables quick installation and replacement without additional modification.
Step-by-Step Usage Guide for Elevator Door Operator Wire Rope (S8/S200/K200/K300)
To maximize the service life, transmission precision, and operational stability of the Elevator Door Operator Wire Rope for S8/S200/K200/K300, strictly follow the professional guidelines provided by Nanjing Zhuye Elevatorparts for selection, installation, and maintenance:
1. Professional Selection & Pre-Installation Preparation
Installation must be performed by certified elevator technicians. Prior to selection, confirm the exact model of the elevator door operator (S8/S200/K200/K300) and consult Nanjing Zhuye Elevatorparts’ technical team to ensure the wire rope’s length, diameter, and connector type match the door operator. Preparation steps: Cut off the elevator’s main power supply and lock the power switch; place a “Maintenance in Progress” warning sign at the elevator entrance; fix the elevator door in the fully open position with a mechanical support; disassemble the door operator cover to expose the wire rope installation position, and clean the rope grooves, pulleys, and connecting components to remove dust, oil stains, and debris.
2. Correct Installation & Tension Adjustment
-
Old Rope Removal: Loosen the tension adjusting bolt of the door operator, disconnect the old wire rope from the door operator’s driving pulley and door panel connecting piece, and slowly remove the old rope. Check the pulleys, rope grooves, and connecting components for wear, deformation, or jamming; if there is damage, repair or replace them before installing the new rope.
-
New Rope Installation: Take the customized wire rope for S8/S200/K200/K300 from Nanjing Zhuye Elevatorparts, thread it into the door operator’s pulleys and rope grooves according to the original routing (refer to the door operator manual or Nanjing Zhuye’s installation diagram). Connect both ends of the wire rope to the door operator’s driving mechanism and the door panel’s connecting piece, ensuring the connectors are firmly locked and do not slip.
-
Tension Calibration: Use the tension adjusting bolt to adjust the wire rope tension. The standard tension for S8/S200 models is 80–100N, and for K200/K300 models (bearing larger door panels) is 120–150N (measured with a tension gauge). Ensure the tension is uniform on both sides of the rope to avoid uneven force leading to asynchronous door opening/closing. After adjustment, manually push the door panel to open and close repeatedly to check if the movement is smooth without jamming.
3. Post-Installation Testing & Daily Maintenance
-
Function Testing: Restore the elevator’s power supply and switch to inspection mode. Operate the elevator door to open and close automatically (≥ 20 times) to verify that the doors open and close synchronously, the speed is uniform, and there is no abnormal noise or jitter. Check the door opening and closing stroke to ensure it meets the design requirements, and the door closes tightly without gaps.
-
Daily Inspection: Maintenance personnel should check the wire rope during daily patrols: Observe the rope surface for wear, broken strands, rust, or deformation; check the connectors for looseness; listen for abnormal noise when the door operates, which may indicate rope friction or tension imbalance; check the rope grooves for wear that may affect the rope’s service life.
-
Regular Maintenance: Every 3 months, clean the wire rope surface and rope grooves with a soft brush to remove dust and debris; apply a thin layer of special lubricating grease (recommended by Nanjing Zhuye Elevatorparts) to the rope surface to reduce friction and prevent rust. Every 6 months, recheck the rope tension and adjust if there is any relaxation; measure the rope diameter—if the diameter is reduced by more than 10% compared to the new rope, prepare for replacement. For elevators in high-traffic or harsh environments, shorten the maintenance interval to 1 month.
Recommended Replacement Cycle for Elevator Door Operator Wire Rope (S8/S200/K200/K300)
As a core transmission component enduring long-term tension, friction with pulleys, mechanical vibration, and environmental erosion (humidity, dust, temperature changes), the elevator door operator wire rope for S8/S200/K200/K300 has a specified service life. Timely replacement is crucial to avoiding faults such as broken strands, excessive wear, or tension loss—issues that may lead to door opening/closing failure, asynchronous operation, or even door jamming, posing safety risks to passengers.
1. Standard Replacement Cycle
Under normal operating conditions (elevator daily operation time 12–24 hours, daily door opening/closing cycles ≥ 2000, shaft environment temperature -20℃ to 70℃, humidity 10%–95%), the recommended replacement cycle for the wire rope matching S8/S200/K200/K300 door operators is 2–3 years. This cycle is determined based on Nanjing Zhuye Elevatorparts’ long-term field operation data, fatigue test results, and global user feedback on elevator door components.
2. Adjustments for Special Scenarios
-
High-Traffic & Harsh Environments: For elevators in high-traffic locations (e.g., large airports, central shopping malls) with daily door cycles ≥ 3500, or in harsh environments (e.g., high-humidity coastal areas, high-dust industrial sites), the replacement cycle is shortened to 1–1.5 years. Frequent operation accelerates rope wear and fatigue, while harsh environments cause rapid rusting and structural damage.
-
Low-Frequency Use & Stable Environments: For elevators with low usage frequency (e.g., villa elevators, small office buildings with daily operation time < 8 hours) and stable shaft environments (constant temperature and humidity), the replacement cycle can be extended to3–4 years—only after Nanjing Zhuye Elevatorparts’ technicians inspect and confirm that the rope’s wear degree, tensile strength, and surface condition meet factory standards.
3. Immediate Replacement Conditions
Replace the door operator wire rope immediately if any of the following issues occur, regardless of its service life:
-
The wire rope has visible broken strands (more than 3 broken strands in any 1m length) or the surface wear causes the diameter to decrease by more than 10%.
-
The rope is severely rusted, with rust penetrating the strands or causing the rope to become stiff and inflexible, affecting transmission.
-
The connectors are loose, deformed, or damaged, posing a risk of rope detachment during operation.
-
The rope has obvious deformation (e.g., kinking, bending) that cannot be corrected, leading to uneven force transmission and abnormal door operation.
In conclusion, the Elevator Door Operator Wire Rope for S8/S200/K200/K300 from Nanjing Zhuye Elevatorparts is a high-quality, model-specific transmission component tailored for these mainstream door operator systems. By following the correct selection, installation, maintenance, and replacement guidelines, elevator maintenance teams can effectively ensure the reliable operation of the elevator door system, reduce door failure rates, and enhance passenger ride safety and experience. Choosing Nanjing Zhuye Elevatorparts means you get 100% authentic wire ropes perfectly matched to S8/S200/K200/K300 door operators, plus professional support—including model confirmation, on-site installation guidance, and prompt after-sales service. Trust Nanjing Zhuye Elevatorparts for the precise transmission of your elevator door operator system.
