Description

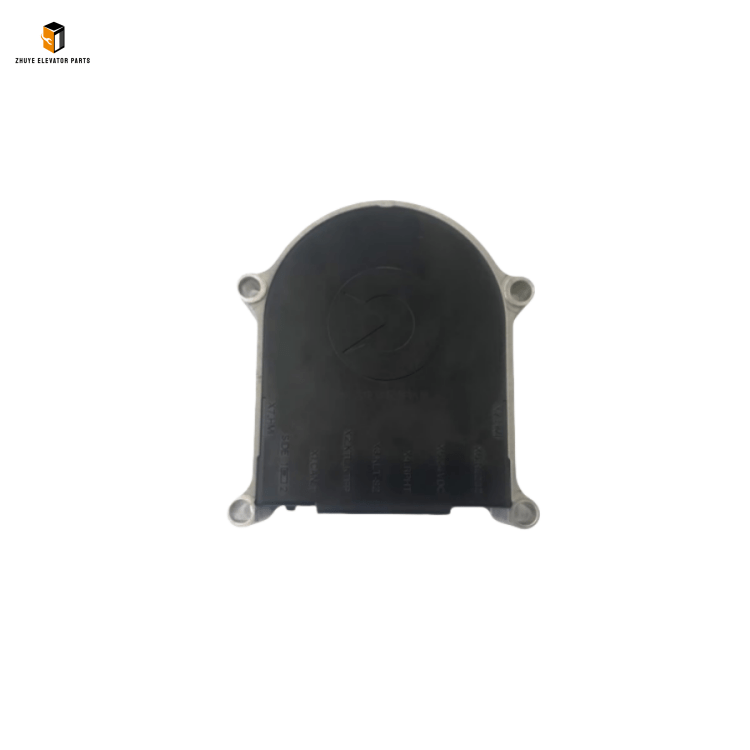

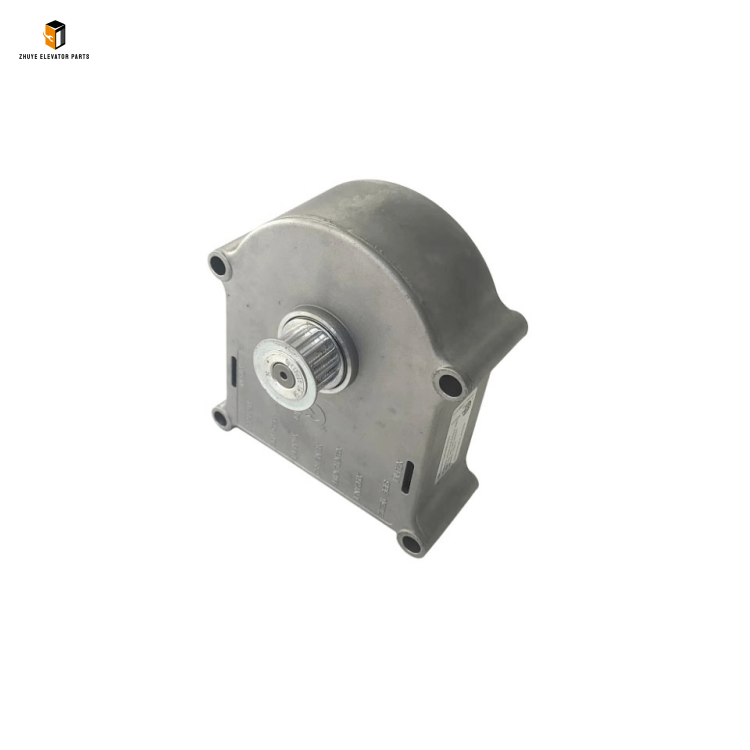

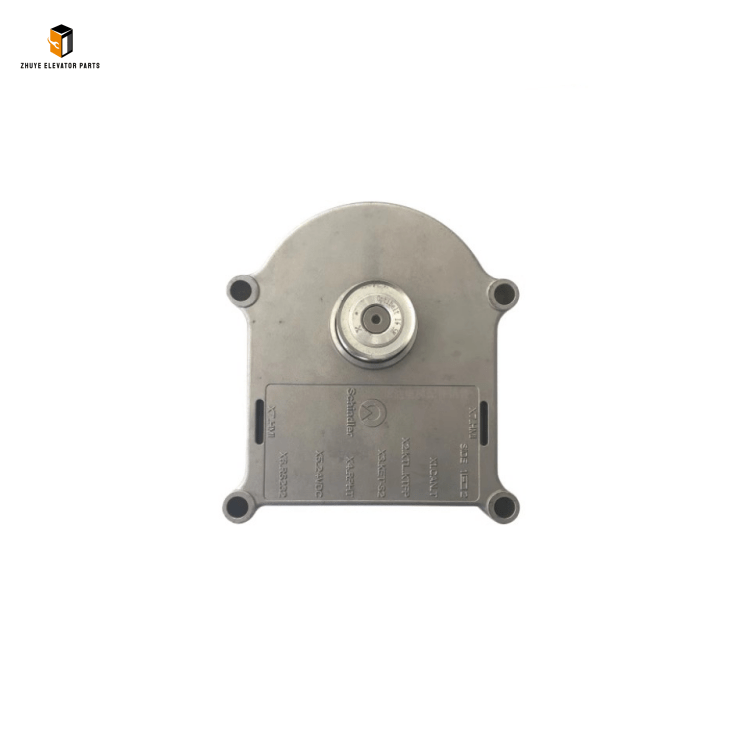

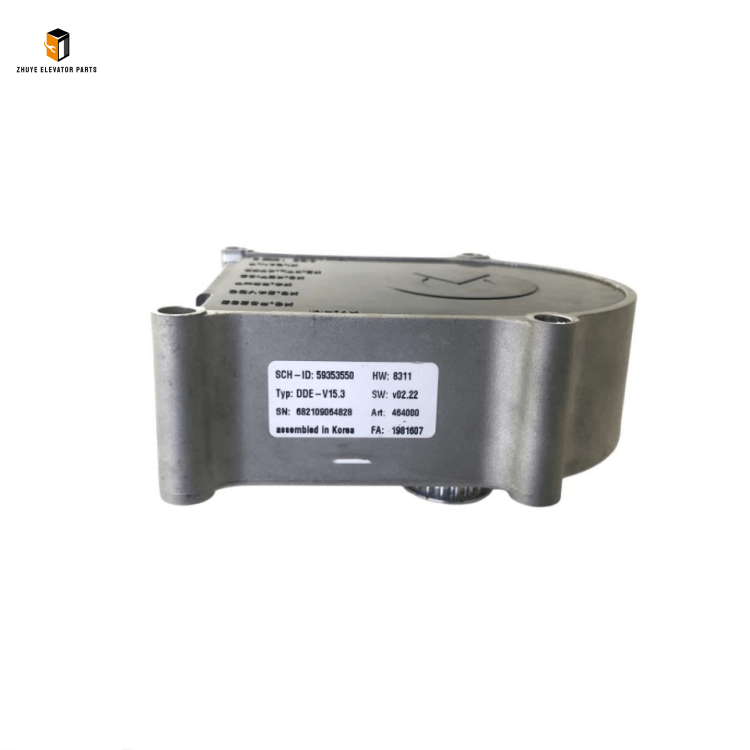

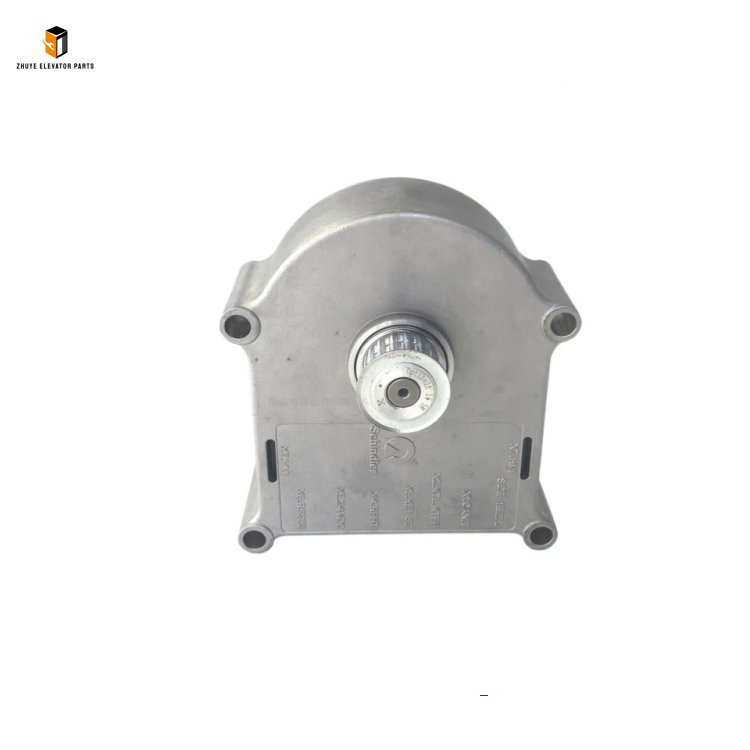

Elevator door operator motor ID:59353550 DDE-V15.3 Brief Introduction
|
Product Name |
Elevator door operator motor |
| Model Number | ID:59353550
DDE-V15.3 |
|
Quality
|
Original.Brand New
|
|
Payment
|
T/T. Paypal. Western Union
|
|
Delivery
|
3-5 Working Days
|
|
Packaging
|
Packed by carton
|
Elevator Door Operator Motor ID:59353550 DDE-V15.3: Core Component from Nanjing Zhuye Elevatorparts
The elevator door operator motor is the “power source” of the elevator door system, responsible for driving the opening and closing of elevator car doors and landing doors. Its stability directly affects the operational safety, passenger comfort, and overall efficiency of the elevator. As a key component in the elevator door system, a high-quality door operator motor ensures smooth, quiet, and responsive door movements. The Elevator Door Operator Motor ID:59353550 DDE-V15.3, exclusively supplied by Nanjing Zhuye Elevatorparts, is meticulously designed for modern passenger and freight elevators. Compliant with international standards such as IEC/EN 60034 and GB 7588, this motor integrates high-efficiency copper windings, precision bearings, and a stable drive module, making it compatible with mainstream elevator brands including Schindler, OTIS, KONE, and domestic well-known brands. It is widely used in residential buildings, commercial complexes, airports, and subway stations, providing reliable power support for elevator door systems.
Nanjing Zhuye Elevatorparts has always adhered to strict quality control standards, and the Elevator Door Operator Motor ID:59353550 DDE-V15.3 is a concentrated embodiment of this philosophy. Each motor undergoes multiple rigorous tests before leaving the factory, including load capacity testing, speed stability detection, high-temperature (up to 80℃) and low-temperature (down to -30℃) resistance tests, and noise level measurement. The motor adopts a high-quality aluminum alloy shell with excellent heat dissipation performance and corrosion resistance. The internal copper windings are made of high-purity materials to ensure low energy consumption and long service life. Equipped with precision sealed bearings, it can operate stably for a long time without additional lubrication, reducing maintenance costs. In addition, the built-in overcurrent and overheating protection module can automatically cut off the power when an abnormality occurs, effectively preventing motor burnout and ensuring elevator safety.
Usage Guide for Elevator Door Operator Motor ID:59353550 DDE-V15.3
maintenancmaintenancmaintenancmaintenancmaintenancnsurnsurnsurnsur:59353550 DDE-V15.3 door operator motorreliable operation of the DR-VSB032 and DR-VSB021 invertersreliable operation of the DR VC B025 25CBR inverterreliable operation of the DR VCB 012 inverterreliable operation of the DR-VAB033 and DR-VAP088 inverterspower ratingpower ratingpower ratingpower ratingpower ratingmotorinverterinverterinverterinverterdoor motor and motor and motor and motor and ,,,,, and wiring diagrams,and wiring diagrams,and wiring diagrams,and wiring diagrams,and wiring diagrams,Correct installation, debugging, and regular maintenance are crucial to ensuring the reliable operation of the C144AAYX door hanging wheel. Nanjing Zhuye Elevatorparts strongly recommends that only professional and certified elevator maintenance technicians perform installation and debugging operations to avoid safety hazards. Before use, confirm that the model, size, and load-bearing capacity of the hanging wheel are completely consistent with the elevator door system. For detailed installation steps, gap adjustment standards, and maintenance requirements, refer to the product manual provided by Nanjing Zhuye Elevatorparts or contact our technical support team for professional guidance.
1. Pre-Installation Preparation
First, cut off the main power supply of the elevator and the power supply of the door operator system, lock the power switch, and place a “Maintenance in Progress” warning sign at the elevator entrance and machine room to prevent accidental startup. Prepare professional tools such as screwdrivers, wrenches, multimeters, torque wrenches, and anti-static gloves. Clean the installation position of the door operator motor (on the top of the elevator car) to remove dust, debris, and oil stains, as these impurities may affect the motor’s heat dissipation and operation. Carefully inspect the ID:59353550 DDE-V15.3 motor for external damage, such as cracks on the shell, damage to the power connector, or abnormal noise when manually rotating the shaft. Use a multimeter to test the motor’s winding resistance to ensure there is no open circuit or short circuit.
2. Installation & Wiring
Align the ID:59353550 DDE-V15.3 motor with the mounting bracket on the top of the elevator car and fix it with screws. Note that the tightening torque should be strictly in accordance with the specifications provided by Nanjing Zhuye Elevatorparts to avoid damaging the motor shell or mounting base. According to the wiring diagram, connect the motor’s power wires and signal wires to the door operator controller. The wire stripping length should be controlled at 6-8mm to prevent short circuits caused by wire exposure, and the connection terminals should be tightened to ensure good contact. After wiring, use cable ties to organize the wires neatly to avoid wire entanglement or extrusion during door movement. Check the wiring again to ensure no wrong connection or missing connection, and confirm that the ground wire is reliably connected to prevent electric shock hazards.
3. Debugging & Daily Use
After installation, restore the power supply and conduct systematic debugging. First, test the motor’s basic operation: activate the elevator door open/close command to check whether the motor runs smoothly, whether the door opening and closing speed meets the requirements, and whether there is abnormal noise or jamming. Use a multimeter to monitor the motor’s operating current to ensure it is within the rated range. Adjust the door opening and closing speed and buffer distance through the door operator controller according to the on-site needs, ensuring that the doors close gently without impacting passengers. During daily use, maintenance personnel should regularly clean the motor surface and heat dissipation vents with a dry cloth to remove dust and ensure heat dissipation. Check the tightness of the mounting screws and wiring terminals monthly, and lubricate the motor shaft (if necessary) in accordance with the maintenance manual. Avoid using water or corrosive cleaning agents to prevent motor damage.
Replacement Cycle of Elevator Door Operator Motor ID:59353550 DDE-V15.3
:59353550 DDE-V15.3 elevator door operator motoroperatingdoor opening and closing timare36-8bearingwindingmotor performancemotor’s service lifeThe replacement cycle of the DR-VSB032 and DR-VSB021 elevator inverters is affected by factors such as usage frequency, working environment, and maintenance quality. Under normal use conditions—elevator operation time is 12-24 hours a day, the machine room is kept dry and well-ventilated, and regular maintenance is performed in accordance with the “Elevator Maintenance Rules”—Nanjing Zhuye Elevatorparts recommends a replacement cycle of 8-10 years. This cycle is formulated based on a large number of field test data and TSG T7001-2023 elevator inspection regulations, fully considering the aging of IGBT modules, the attenuation of capacitor performance, and the degradation of circuit stability.
door opening and closing tim 84-6operationinternal componentmotor shell of windingsainedly8motoroperating current, noise level, and insulation performanceFor elevators in high-traffic areas such as shopping malls, airports, and subway stations, where the daily operation time exceeds 20 hours, or in harsh environments with high humidity, heavy dust, or large temperature fluctuations, the replacement cycle should be shortened to 6-8 years. High-frequency operation and harsh environments accelerate the aging of internal components. For elevators with low usage frequency, such as villa elevators and small office buildings with daily operation time less than 8 hours, if maintained properly, the replacement cycle can be extended to 10-12 years. However, professional technicians from Nanjing Zhuye Elevatorparts should conduct annual inspections on inverters over 10 years old, focusing on testing insulation performance, output stability, and protection function effectiveness.
Regardless of the service life, the ID:59353550 DDE-V15.3 motor should be replaced immediately if any of the following problems occur: the motor makes obvious abnormal noise, jams, or fails to start during operation; the door opening and closing speed is significantly reduced or unstable, affecting passenger use; the motor overheats frequently or triggers overcurrent protection; the motor shell is severely corroded, cracked, or the windings are burned; the motor cannot pass the annual safety inspection. Timely replacement of the door operator motor is essential to prevent elevator door failure, which may lead to safety accidents such as passenger trapping or clamping.
Door Operator Motor ID:59353550 DDE-V15.3high efficiency, makingtAs a core component of the elevator door system, it plays a decisive role in ensuring the safe and smooth operation of elevator doors. ousdoorpassenger safety and comfort:59353550 DDE-V15.3 motors, and offerThe Elevator Inverters DR-VSB032 and DR-VSB021 from Nanjing Zhuye Elevatorparts combine reliable safety performance, efficient energy-saving design, and wide compatibility, making them ideal choices for elevator maintenance and renovation. As core components of the elevator drive system, they play a decisive role in ensuring the smooth, safe, and energy-saving operation of elevators. With strict quality assurance and perfect after-sales service, they have won the trust of numerous elevator maintenance enterprises and property management companies. By following the correct usage methods and replacement cycles, you can effectively reduce the failure rate of the elevator system and lower energy consumption costs. Nanjing Zhuye Elevatorparts provides 100% genuine DR-VSB032 and DR-VSB021 inverters, and offers professional technical support and after-sales service, including model matching, installation guidance, and on-site debugging. Choose Nanjing Zhuye Elevatorparts to get reliable elevator safety components and intimate services.
