Description

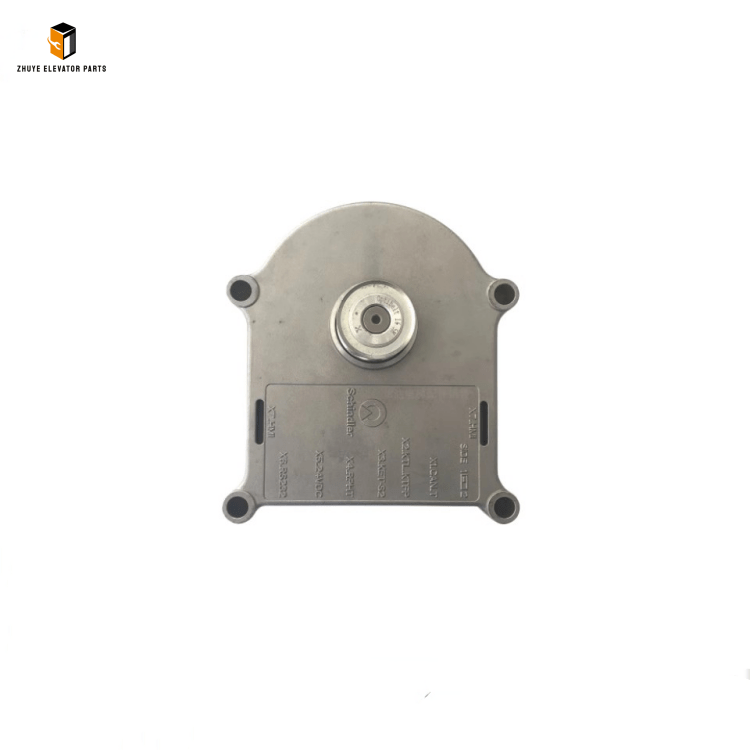

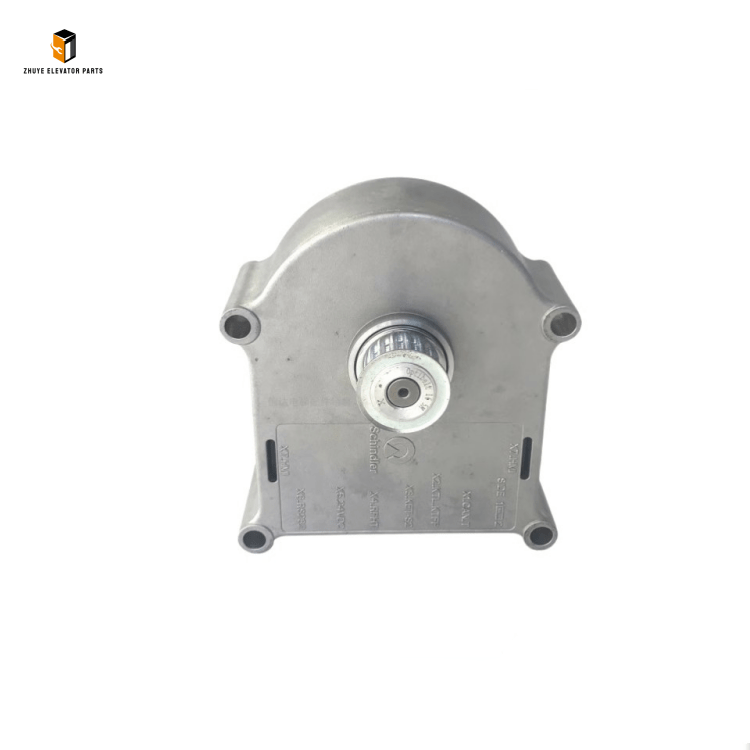

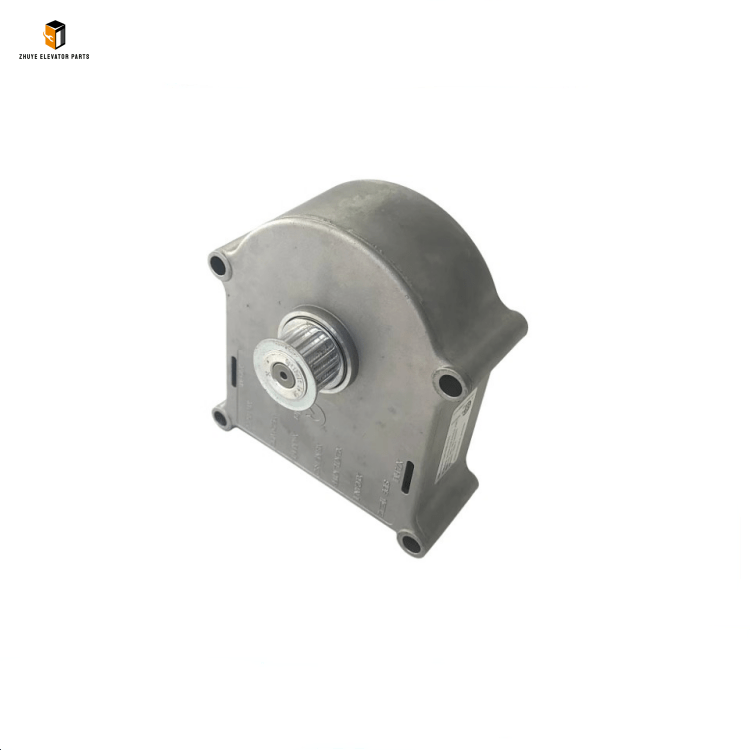

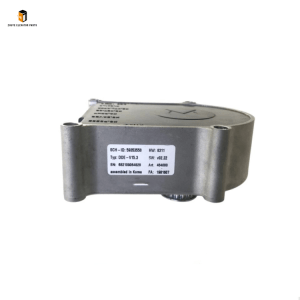

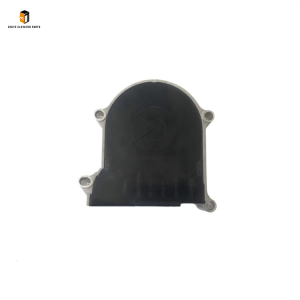

Elevator door operator motor ID:59353550 Brief Introduction
|
Product Name |
Elevator door operator motor |
| Model Number | ID:59353550
DDE-V15.3 |
|
Quality
|
Original.Brand New
|
|
Payment
|
T/T. Paypal. Western Union
|
|
Delivery
|
3-5 Working Days
|
|
Packaging
|
Packed by carton
|
Elevator Door Operator Motor ID:59353550: Core Driving Component from Nanjing Zhuye Elevatorparts
The elevator door system is the direct interface between passengers and the elevator, and its smooth operation is crucial to user experience and safety. The door operator motor serves as the “power source” of the door system, driving the opening and closing of elevator doors with precision and stability. The Elevator Door Operator Motor ID:59353550, exclusively supplied by Nanjing Zhuye Elevatorparts, is engineered for modern elevator door systems. Compliant with international standards such as IEC 60034 and EN 60034, this motor features high torque, low noise, and energy-saving performance, making it compatible with mainstream elevator brands including Schindler, OTIS, KONE, and domestic brands like Mitsubishi. It is an essential component for both new elevator installations and old door system upgrades, ensuring reliable door operation in residential, commercial, and public building elevators.
Nanjing Zhuye Elevatorparts adheres to a stringent quality control system, and the Elevator Door Operator Motor ID:59353550 is a testament to this commitment. Each unit undergoes comprehensive testing, including load capacity verification, noise level measurement, temperature rise tests, and durability trials. The motor adopts a high-quality copper winding and precision bearing design, minimizing energy loss and ensuring a service life of up to 20,000 operating hours. Its fully enclosed structure effectively prevents dust and moisture ingress, adapting to the harsh environment of elevator door compartments. With a rated voltage of AC 220V/380V and a speed of 1500rpm, it provides stable power output for door opening and closing. The motor also features overload protection and thermal protection functions, automatically shutting down in case of abnormal conditions to avoid burnout and ensure system safety.
Usage Guide for Elevator Door Operator Motor ID:59353550
Proper installation, wiring, and maintenance are crucial to maximizing the performance and lifespan of the Elevator Door Operator Motor ID:59353550. Nanjing Zhuye Elevatorparts strongly recommends that only certified elevator maintenance technicians perform these procedures to avoid door system malfunctions or safety hazards. Before installation, verify that the motor’s rated voltage, power, and mounting dimensions match the elevator door operator’s specifications. Refer to the product manual provided by Nanjing Zhuye Elevatorparts or consult our technical team for clarification on compatibility with specific door operator models.
1. Pre-Installation Preparation
Begin by cutting off the elevator’s main power supply and the door system’s dedicated power supply, then lock the power switch and place a “Maintenance in Progress” warning sign at the elevator entrances and machine room to prevent accidental activation. Prepare essential tools: a torque wrench, screwdriver, multimeter, wire stripper, anti-static gloves, and a brush. Clean the installation area (elevator door operator compartment) to remove dust, debris, and oil stains—contaminants are a leading cause of motor bearing failure. Inspect the ID:59353550 motor for any external damage, loose terminals, or abnormal noise when manually rotating the shaft; do not use defective products. Confirm the door operator’s mechanical parts (e.g., guide rails, pulleys) are in good condition to avoid excessive load on the motor.
2. Installation & Wiring
Mount the ID:59353550 motor on the dedicated bracket of the door operator, ensuring secure fixation with no looseness. Align the motor shaft with the door operator’s transmission mechanism (e.g., gear, belt) accurately to avoid eccentric load, which can cause abnormal wear. Follow the wiring diagram from Nanjing Zhuye Elevatorparts strictly: connect the power wires to the motor’s terminal block (ensure correct connection of phase wires for three-phase motors) and the signal wires to the door controller. The recommended tightening torque for terminal screws is 1.5-2.5 Nm, and the wire stripping length should be 8-10mm to avoid short circuits. After wiring, use a multimeter to check the motor’s insulation resistance and winding continuity to confirm no wiring errors exist. Install the motor’s protective cover to prevent foreign objects from entering the rotating parts.
3. Debugging & Daily Operation
After completing installation and wiring, conduct a comprehensive debugging test. Restore the door system’s power supply and test the motor’s operation: check if the elevator doors open and close smoothly without jamming or abnormal noise. Verify the door opening/closing speed and position accuracy, adjusting the door controller parameters if necessary according to the manual. Test the safety protection functions (e.g., infrared light curtain trigger) to ensure the motor stops immediately when an obstacle is detected. During daily operation, incorporate the motor into the elevator’s regular maintenance plan (recommended monthly inspection). Regularly check the motor’s surface temperature (normal operating temperature should not exceed 70℃) and listen for abnormal noise. Lubricate the motor bearings every 6 months with special lubricating oil provided by Nanjing Zhuye Elevatorparts to reduce friction and extend service life. Avoid frequent start-stop operations, which can accelerate motor aging.
Replacement Cycle of Elevator Door Operator Motor ID:59353550
The replacement cycle of the Elevator Door Operator Motor ID:59353550 depends on operating frequency, working environment, and maintenance conditions. Under normal parameters—elevator runs 12-24 hours daily, door opening/closing times ≤2000 times/day, and the door compartment is dry and well-ventilated—Nanjing Zhuye Elevatorparts recommends a replacement cycle of 5-8 years. This timeline is based on long-term field data and the motor’s design lifespan, accounting for winding insulation aging, bearing wear, and performance degradation caused by prolonged operation.
For elevators in high-traffic areas (e.g., shopping malls, airports) where door opening/closing times ≥3000 times/day, or in harsh environments (high humidity, heavy dust, frequent temperature fluctuations), the replacement cycle should be shortened to 3-5 years. High-frequency operation accelerates bearing wear and winding heating, while harsh conditions increase the risk of motor insulation damage and corrosion. For low-usage elevators (e.g., villa elevators, small office buildings with daily operation <8 hours) in stable environments, the cycle can be extended to 8-10 years. However, annual professional inspections by Nanjing Zhuye’s technicians are mandatory to confirm motor torque, noise level, and insulation performance meet safety standards, in line with the requirements of elevator main component maintenance norms.
Immediately replace the Elevator Door Operator Motor ID:59353550 if any of the following issues occur, regardless of service life: significant decrease in door opening/closing speed or inability to reach the specified position; abnormal noise (e.g., squeaking, rattling) during operation indicating bearing failure; motor overheating (surface temperature exceeding 90℃) or frequent tripping of thermal protection; obvious damage to the motor shell, winding burnout, or insulation breakdown detected by a multimeter; or frequent door system malfunctions (e.g., door jamming, failure to open/close) caused by motor defects that cannot be resolved through maintenance. Timely replacement is critical to ensuring passenger safety and avoiding elevator downtime.
The Elevator Door Operator Motor ID:59353550 from Nanjing Zhuye Elevatorparts integrates reliable performance, excellent durability, and wide compatibility, providing a critical driving solution for elevator door systems. Its strict quality control and professional design ensure it can withstand the frequent operation demands of various elevator scenarios. By following the recommended usage guidelines and replacement cycles, you can significantly reduce door system failure rates and enhance passenger experience and safety. Nanjing Zhuye Elevatorparts provides 100% authentic ID:59353550 door operator motors, along with professional support including model matching, on-site installation guidance, and timely after-sales service. Choose Nanjing Zhuye Elevatorparts for comprehensive and reliable elevator component solutions.
