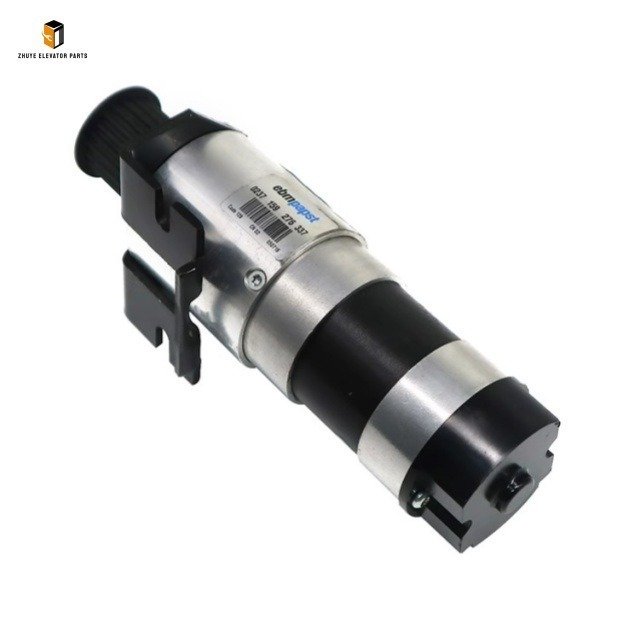

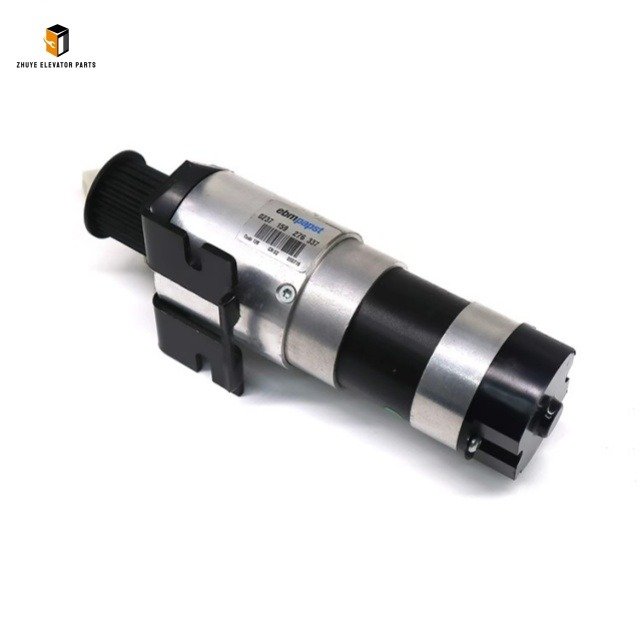

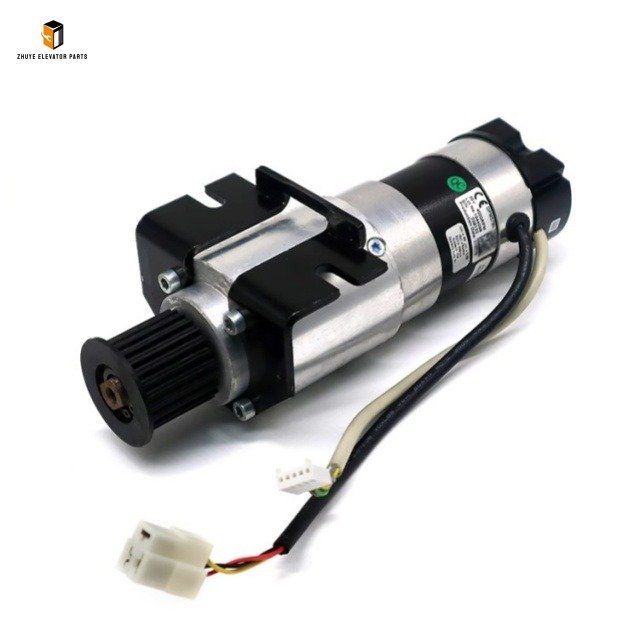

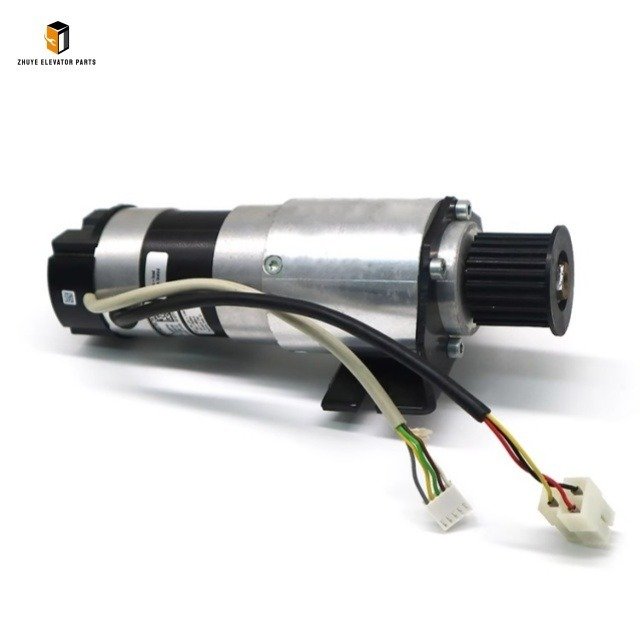

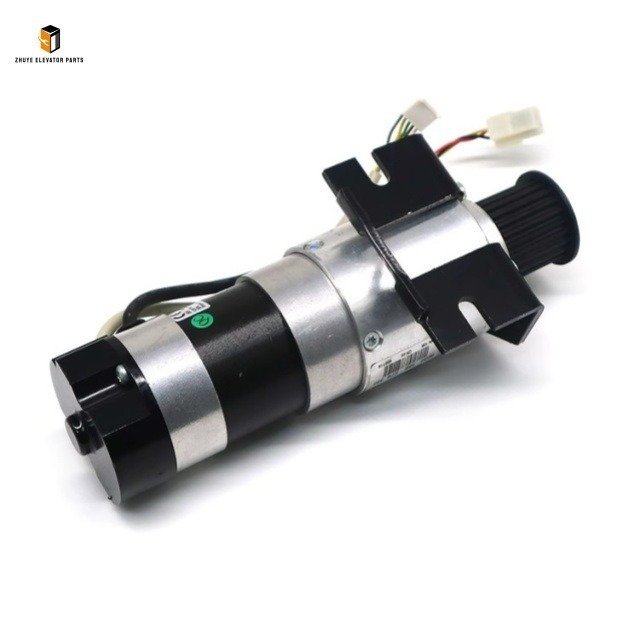

Elevator Door Operator Motor DPM57BL74.D1.5-4 Brief Introduction
|
Product Name |
Elevator Door Operator Motor |
| Model Number | DPM57BL74.D1.5-4 |
|
Quality
|
Original.Brand New
|
|
Payment
|
T/T. Paypal. Western Union
|
|
Delivery
|
3-5 Working Days
|
|
Packaging
|
Packed by carton
|
DPM57BL74.D1.5-4 Elevator Door Operator Motor: Usage Guide & Replacement Cycle
As the core power unit of elevator door systems, the door operator motor directly determines the smoothness, speed stability, and safety of door opening/closing actions—key factors affecting passenger comfort and overall elevator reliability. The DPM57BL74.D1.5-4 Elevator Door Operator Motor, a premium offering from Nanjing Zhuye Elevator Parts, adopts advanced brushless DC (BLDC) technology, delivering exceptional performance with low noise, high efficiency, and long service life. Compliant with international standards including GB/T4942.1—2006 for motor protection and GB/T24807—2021 for EMC performance, this motor features a 57mm frame size, 36VDC rated voltage, and 4000RPM rated speed, ensuring broad compatibility with mainstream elevator door systems globally. Nanjing Zhuye Elevator Parts, a trusted manufacturer and supplier of elevator components, subjects each DPM57BL74.D1.5-4 motor to rigorous quality testing, guaranteeing consistent performance in diverse operating environments. This article details the correct installation, usage methods, and scientific replacement cycle to help maintenance professionals optimize elevator door system performance.
Prior to installation, strict adherence to elevator safety protocols is mandatory: Cut off the elevator’s main power supply, activate the emergency stop switch, and place a prominent “No Operation” warning sign to prevent accidental activation. Confirm the installation environment—ensure the motor is mounted in a dry, well-ventilated area on the elevator car top or door frame, away from direct sunlight, moisture, or dust, and within the operating temperature range of -20℃ to 60℃ with relative humidity between 20% and 90% (non-condensing). Verify compatibility using technical specifications from Nanjing Zhuye Elevator Parts, confirming the motor’s voltage, power, and mounting dimensions match the original equipment. Inspect the new motor for transportation damage (e.g., cracked casing, loose terminals) before proceeding.
Installation requires precise mechanical and electrical operations. First, align the motor’s mounting holes with the door operator bracket and secure it firmly using corrosion-resistant bolts, ensuring the motor shaft connects smoothly to the transmission mechanism (gears or belts) without excessive tightness or play. For wiring, strictly follow the diagram provided by Nanjing Zhuye Elevator Parts: Connect power cables to the designated terminals (matching the 36VDC rated voltage) and motor windings to the U/V/W output terminals of the door controller—never reverse input and output connections to avoid short circuits. Ensure reliable grounding to reduce electromagnetic interference and meet safety standards. After wiring, set core parameters via the door controller: Adjust torque boost (P05) for smooth startup, set opening/closing speed (P08) to 0.3-0.6m/s, and configure overload protection current (P12) to 1.2-1.5 times the rated current to prevent motor damage.
Post-installation debugging is critical to ensure optimal performance. Restore power and conduct a test run: Operate the elevator door through 10-15 opening/closing cycles to verify smooth acceleration/deceleration, no abnormal noise (idle noise ≤45dB), and accurate door alignment. Monitor the motor’s surface temperature during continuous operation—normal temperature should not exceed 60℃; excessive heat indicates wiring errors or mechanical resistance. Test safety interlocks, including light curtain and obstacle detection functions, to confirm the motor immediately stops or reverses when an obstruction is detected. During daily use, prohibit slamming or prying elevator doors, as excessive force strains the motor and transmission components. Regularly check the motor’s status via the controller indicator: A steady green light signals normal operation, while flickering or red lights indicate faults requiring immediate inspection.
The replacement cycle of the DPM57BL74.D1.5-4 motor is determined by usage frequency, environmental conditions, and mechanical wear. Based on industry data and technical recommendations from Nanjing Zhuye Elevator Parts, the general replacement cycle is 5-6 years under normal operating conditions (residential or office buildings with 8-12 hours of daily operation, ~300,000 door cycles annually). For elevators in high-traffic public areas (malls, stations, hospitals) with over 1,000 daily door cycles (~1 million annually), the cycle should be shortened to 4-5 years. In harsh environments—high humidity (above 70%), large temperature fluctuations, or corrosive gases (coastal areas, industrial zones)—the cycle is further reduced to 3-4 years to prevent insulation degradation and bearing failure.
Immediate replacement is necessary if any of the following abnormalities occur: 1) Persistent door movement issues (slow speed, jamming, or unresponsive commands) that cannot be resolved by parameter adjustments; 2) Excessive motor overheating (surface temperature exceeding 80℃) or burnt odors, indicating internal winding damage; 3) Abnormal vibration or loud grinding noises, caused by worn bearings or transmission failures; 4) Frequent overload protection triggers despite normal mechanical resistance; 5) Visible damage to the motor casing, terminals, or shaft. Always use genuine DPM57BL74.D1.5-4 motors from Nanjing Zhuye Elevator Parts to ensure perfect compatibility with door controllers and avoid safety risks from inferior counterfeit products that may not meet EMC or thermal safety standards.
Scientific maintenance significantly extends the motor’s service life. Follow a structured maintenance schedule: Every 3 months, check wiring connections for tightness and oxidation, and clean the motor’s surface and cooling vents with a dry brush to remove dust buildup. Every 6 months, apply high-temperature resistant lubricant to the motor bearings (as recommended by Nanjing Zhuye Elevator Parts) to reduce friction and wear. Annually, test the motor’s insulation resistance using a megohmmeter—ensure the value exceeds 1MΩ to prevent short circuits. Maintain detailed records of inspections, parameter adjustments, and fault handling to facilitate proactive maintenance and regulatory compliance.
The DPM57BL74.D1.5-4 Elevator Door Operator Motor is a critical component ensuring the safe and efficient operation of elevator door systems. Its reliable performance directly impacts passenger experience and overall elevator safety. By following correct installation and usage guidelines, adhering to the scientific replacement cycle, and choosing genuine Nanjing Zhuye Elevator Parts products, maintenance professionals can significantly reduce door system failures, lower maintenance costs, and extend the elevator’s service life. For more technical details—including 2D/3D drawings, wiring diagrams, and compatibility lists—or to purchase genuine DPM57BL74.D1.5-4 motors and access professional technical support, contact the expert team at Nanjing Zhuye Elevator Parts.
