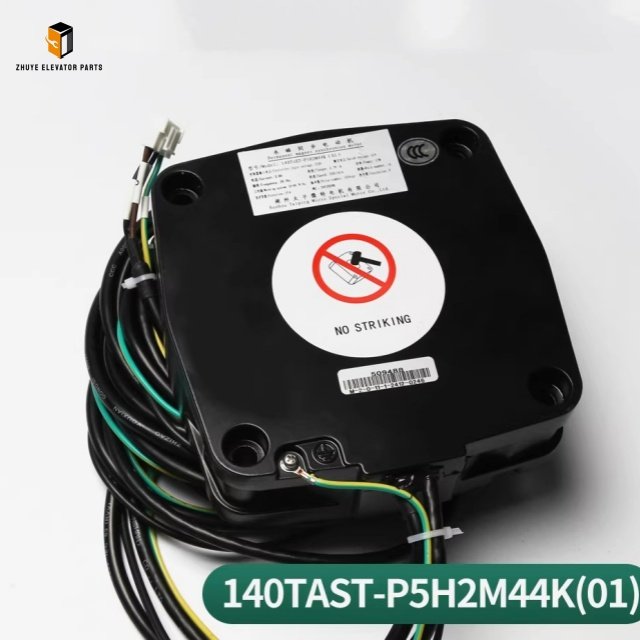

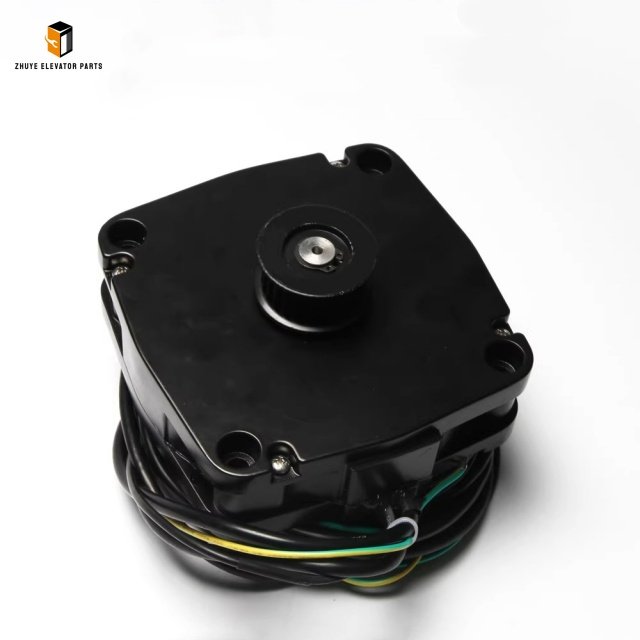

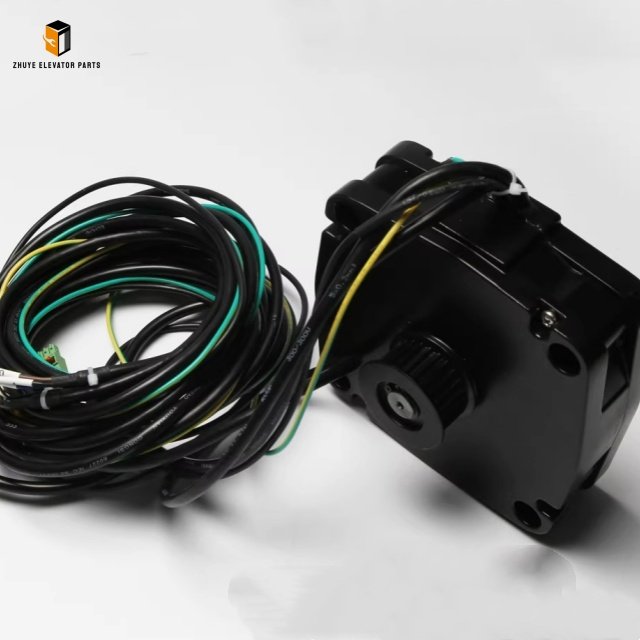

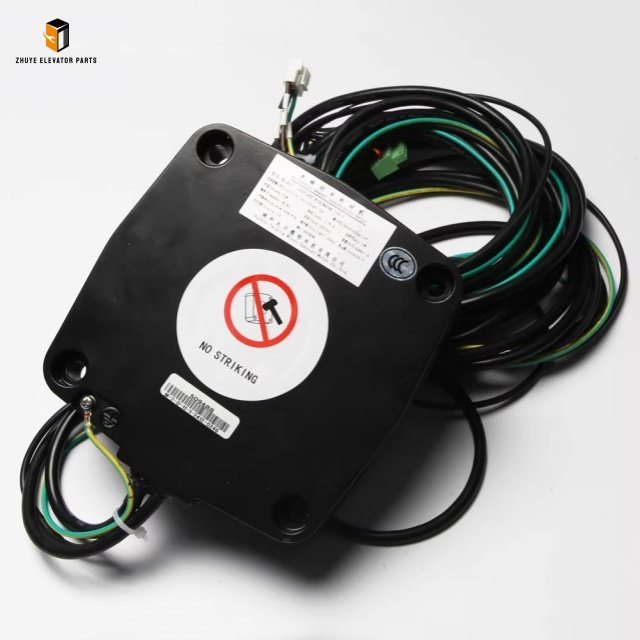

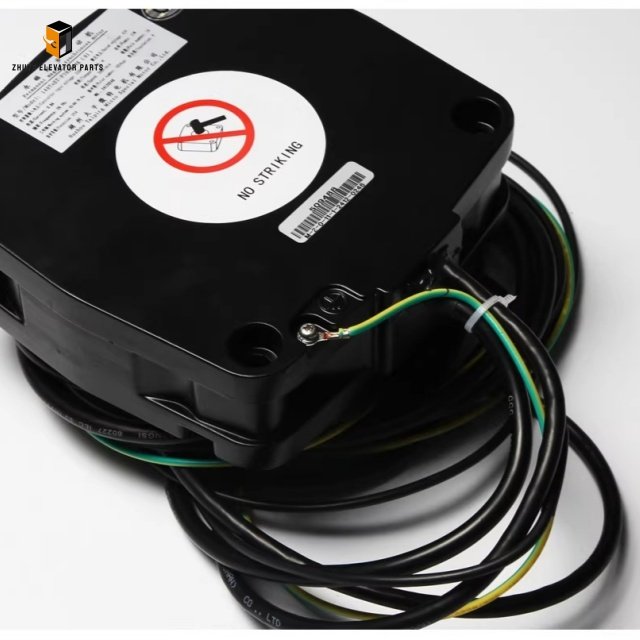

Elevator Door Operator Motor 140TAST-P5H2M44K(01)
|
Product Name |
Elevator Door Operator Motor |
| Model Number |
140TAST-P5H2M44K(01) |
|
Quality
|
Original.Brand New
|
|
Payment
|
T/T. Paypal. Western Union
|
|
Delivery
|
3-5 Working Days
|
|
Packaging
|
Packed by carton
|
Elevator Door Operator Motor 140TAST-P5H2M44K(01): Core Drive Component from Nanjing Zhuye Elevatorparts
The elevator door operator motor is the core drive unit of the elevator door system, responsible for providing stable power to control the smooth opening and closing of car doors and landing doors. Its performance directly affects door operation speed, noise level, and safety. The Elevator Door Operator Motor 140TAST-P5H2M44K(01), exclusively supplied by Nanjing Zhuye Elevatorparts, is a permanent magnet synchronous motor designed for passenger and freight elevators. Compliant with international standards such as EN 81-1 and T_CEA 0061—2025, it features a rated torque of 5.0N·m, low power consumption, and high operation efficiency. Widely compatible with mainstream elevator brands including Thyssen, Hengda, Jiajie, and Best, it is widely applied in residential buildings, commercial complexes, and hotels to ensure reliable door system operation.
Nanjing Zhuye Elevatorparts adheres to stringent quality control standards, and the 140TAST-P5H2M44K(01) door operator motor is a testament to this commitment. Each motor undergoes rigorous pre-delivery testing, including torque performance verification, high-low temperature (-25℃ to 85℃) resistance tests, noise level detection (≤55dB), and insulation resistance testing. The motor adopts a high-quality permanent magnet core to ensure stable power output and long service life. The shell is made of high-strength metal with excellent heat dissipation performance, effectively reducing temperature rise during long-term operation. It is equipped with a precision encoder for real-time speed feedback, enabling stepless speed regulation and ensuring smooth door movement. The motor also has overcurrent and overheating protection functions to avoid damage caused by abnormal working conditions.
Usage Guide for Elevator Door Operator Motor 140TAST-P5H2M44K(01)
Proper installation, wiring, debugging, and daily maintenance are vital to maximizing the performance and service life of the 140TAST-P5H2M44K(01) door operator motor. Nanjing Zhuye Elevatorparts strongly recommends that only certified elevator maintenance technicians perform these operations. Before installation, verify that the motor model matches the elevator door operator and control system. For detailed wiring diagrams and parameter settings, refer to the product manual provided by Nanjing Zhuye Elevatorparts or contact our technical support team. Note: Cut off the main power supply before operation, place a warning sign, and ensure the installation environment is dry, well-ventilated, and free of dust.
1. Pre-Installation Preparation
First, cut off the elevator’s main power supply and lock the switch, then move the car to a middle floor to ensure a safe operation space. Prepare professional tools: torque wrench, screwdrivers, multimeter, level ruler, wire strippers, and insulation tape. Clean the installation position on the door operator bracket to remove dust and oil stains. Carefully inspect the motor for external damage (e.g., cracked shell, damaged encoder) and use a multimeter to test insulation resistance (≥2MΩ) and winding continuity. Check matching components such as belts and pulleys for wear, and replace damaged parts in advance.
2. Installation & Wiring
Fix the 140TAST-P5H2M44K(01) motor on the door operator bracket with high-strength bolts, using a level ruler to ensure horizontal installation (tolerance ±1mm). Tighten bolts according to the torque specification (M8 thread: 8N·m) to avoid vibration-induced loosening. Follow the wiring diagram to connect power wires (three-phase AC) and encoder signal wires to the door operator controller. Use 15-22AWG insulated wires, control wire stripping length to 6-8mm, and ensure firm terminal connections. Separate power wires and signal wires to reduce electromagnetic interference, and use wire ties to organize wires neatly. Install the motor protective cover and check that the belt tension is appropriate (deflection 3-5mm under 5N force).
After installation, restore power and conduct debugging. Use the door operator controller to set parameters such as rated speed, acceleration/deceleration time, and torque limit to match the motor. Test door opening/closing actions: ensure smooth operation without jamming, and the motor stops accurately at full open/close positions. Check encoder feedback signals to confirm speed regulation precision. For daily maintenance, follow TSG T5002—2017 regulations: Inspect the motor monthly for loose bolts, abnormal noise, or overheating; clean the shell and cooling vents with a dry cloth. Check belt tension and encoder wiring quarterly. For elevators in harsh environments, increase inspection frequency to twice a month and apply anti-rust spray to metal parts.
Replacement Cycle of Elevator Door Operator Motor 140TAST-P5H2M44K(01)
The replacement cycle of the 140TAST-P5H2M44K(01) motor depends on usage frequency, operating environment, and maintenance quality. Under normal conditions—12-24 hours of daily operation, regular maintenance, and moderate traffic—Nanjing Zhuye Elevatorparts recommends a replacement cycle of 5-7 years. This cycle is formulated based on field test data and T_CEA 0061—2025 standards, considering permanent magnet aging, bearing wear, and reduced insulation performance from long-term operation.
For elevators in high-traffic areas (e.g., airports, subway stations with daily operation over 20 hours) or harsh environments (high humidity, heavy dust, frequent voltage fluctuations), the replacement cycle should be shortened to 3-5 years. High-frequency door movements accelerate bearing and winding wear, while harsh environments cause shell corrosion and encoder failure. For low-usage elevators (e.g., villas with daily operation <8 hours), proper maintenance can extend the cycle to 7-8 years. Motors over 6 years old require semi-annual professional inspections by Nanjing Zhuye Elevatorparts technicians.
Regardless of service life, replace the motor immediately if: It makes abnormal noise or vibrates violently during operation; overheats frequently (surface temperature >85℃); fails to drive doors normally due to insufficient torque; insulation resistance drops below 2MΩ; the encoder malfunctions, causing speed regulation failure; it leads to frequent door system faults; it fails annual safety inspections. Use genuine 140TAST-P5H2M44K(01) motors from Nanjing Zhuye Elevatorparts to ensure compatibility and safety.
The Elevator Door Operator Motor 140TAST-P5H2M44K(01) from Nanjing Zhuye Elevatorparts combines high efficiency, stable performance, and long durability. Backed by strict quality control, advanced permanent magnet technology, and a 1-year warranty, it is trusted by maintenance firms and property managers globally. Adhering to proper usage guidelines ensures reliable door system operation. Nanjing Zhuye Elevatorparts provides 100% genuine motors, plus professional support including model matching, on-site debugging, and technical consultation. Choose Nanjing Zhuye Elevatorparts for premium door operator components and tailored elevator solutions.
