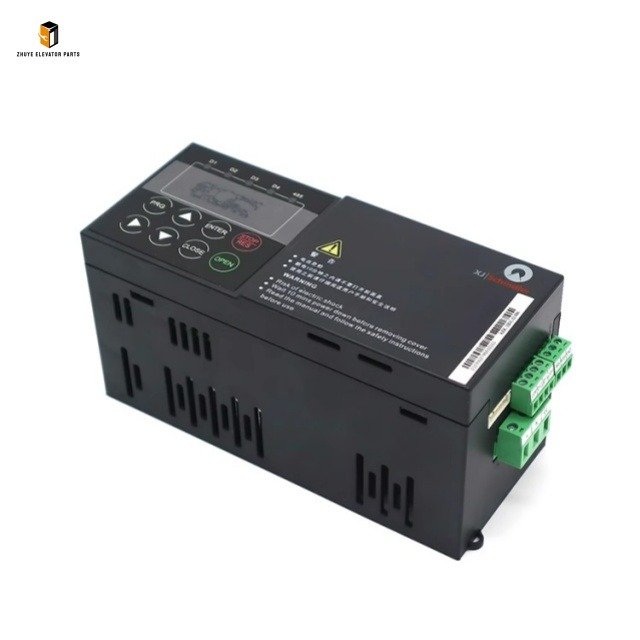

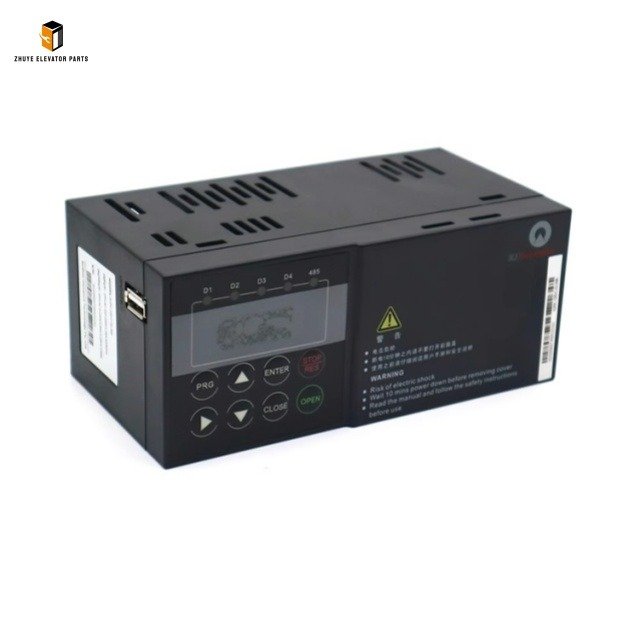

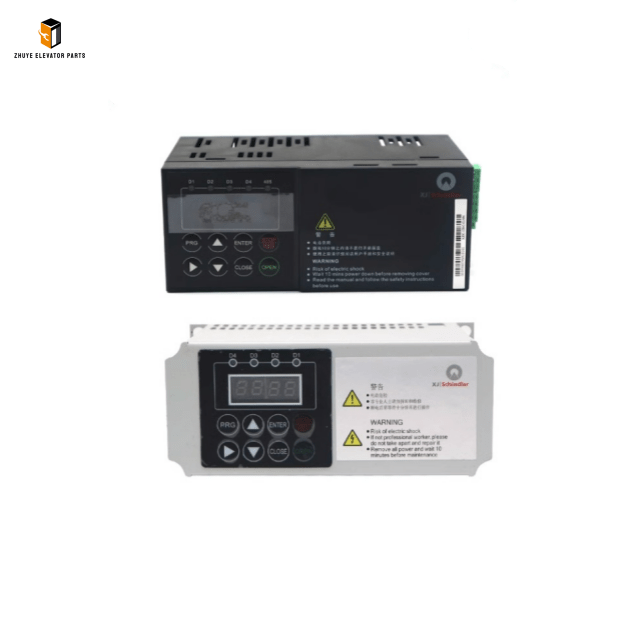

Elevator Door Operator Inverter XJDC-100-C-01-MK/XJ /SD Brief Introduction

Product Name	Elevator Door Operator Inverter
Model Number	XJDC-100-C-01-MK XJDC-100-C-01-XJ XJDC-100-C-01-SD
Quality	Original.Brand New
Payment	T/T. Paypal. Western Union
Delivery	3-5 Working Days
Packaging	Packed by carton

SD: Usage Guide & Replacement Cycle

The elevator door operator inverter is the core control component of the elevator door system, responsible for regulating the door motor’s speed, torque, and operation mode to ensure smooth, quiet, and energy-efficient door opening and closing. The Elevator Door Operator Inverter XJDC-100-C-01-MK/XJ/SD, a high-performance solution from Nanjing Zhuye Elevator Parts, is engineered with advanced vector control technology, supporting AC220V input and multiple motor output configurations. It features comprehensive protection functions including overcurrent, overvoltage, short-circuit, and over-temperature protection, while complying with international standards such as GB/T 14821.1-2014 and IEC 61800-5-1. This inverter is compatible with mainstream elevator door motors (including brushless DC and AC induction motors) and offers flexible parameter setting options for customized door operation. Nanjing Zhuye Elevator Parts, a trusted manufacturer and supplier of elevator components, subjects each XJDC-100-C-01-MK/XJ/SD inverter to rigorous quality and performance testing, ensuring reliable operation even in high-frequency use scenarios. This article details the correct installation, usage methods, and scientific replacement cycle to help maintenance professionals optimize elevator door system performance.

Prior to installation, strict adherence to elevator electrical safety protocols is mandatory: Cut off the elevator’s main power supply, activate the emergency stop switch, and place a prominent “No Operation” warning sign. The XJDC-100-C-01-MK/XJ/SD inverter should be mounted inside the elevator door operator control box or main control cabinet, ensuring a dry, well-ventilated environment away from heat sources (e.g., resistors, motors) and strong electromagnetic interference. Confirm the operating environment meets the inverter’s specifications: temperature range of -10℃ to 50℃ and relative humidity of 20%-90% (non-condensing). Verify compatibility using technical specifications from Nanjing Zhuye Elevator Parts, confirming the inverter’s input voltage, output power, and control signal type match the elevator’s door motor and control system. Inspect the new inverter for transportation damage (e.g., cracked casing, loose terminals) and ensure all accessories (mounting brackets, screws, wiring harnesses) are complete before proceeding.

Installation requires precise electrical wiring and strict adherence to the diagram provided by Nanjing Zhuye Elevator Parts. First, secure the inverter to the control box using corrosion-resistant bolts or mounting rails, ensuring it is stable and accessible for parameter setting. For wiring: Connect the AC220V input power cables (L/N) to the inverter’s input terminals, and the protective grounding wire (cross-sectional area ≥2.5mm²) to the dedicated grounding terminal to ensure electrical safety. Connect the inverter’s U/V/W output terminals to the door motor’s windings, ensuring correct phase sequence to avoid reverse door movement. Connect control signals (e.g., door open/close commands, door position feedback, light curtain signals) to the corresponding input/output terminals of the inverter. Label all cables clearly to facilitate future maintenance. After wiring, double-check all connections for tightness and correctness—loose or reversed connections may cause inverter faults or motor damage. Ensure no metal debris or dust remains inside the inverter to prevent short circuits.

Correct parameter setting and post-installation debugging are critical to ensure optimal performance. Power on the inverter and access the parameter setting interface via the keypad or connected controller. Set core parameters as recommended by Nanjing Zhuye Elevator Parts: Configure the motor type (P01), rated voltage (P02), and rated current (P03) to match the door motor’s specifications; adjust the door opening/closing speed (P08/P09) to 0.3-0.6m/s; set the acceleration/deceleration time (P10/P11) to 0.5-1.5s for smooth operation; enable safety interlock functions (P20) to link with the light curtain and obstacle detection system. Post-installation debugging includes: 1) Conducting 10-15 door opening/closing cycles to verify smooth speed changes and accurate door alignment; 2) Testing the safety interlock—trigger the light curtain to confirm the inverter immediately stops or reverses the motor; 3) Monitoring the inverter’s operating status—ensure no abnormal noise, overheating, or fault codes are displayed. During daily use, prohibit modifying parameters without authorization and regularly check the inverter’s indicator lights: A steady green light indicates normal operation, while red lights or error codes signal faults requiring reference to the troubleshooting guide.

The replacement cycle of the XJDC-100-C-01-MK/XJ/SD inverter is determined by usage frequency, environmental conditions, and internal component aging. Based on industry practices and technical recommendations from Nanjing Zhuye Elevator Parts, the general replacement cycle is 5-7 years under normal operating conditions (residential or office buildings with 8-12 hours of daily operation). For elevators in high-traffic public areas (malls, stations, hospitals) where the door system operates over 1,000 times daily, the cycle should be shortened to 4-5 years. In harsh environments—high humidity (above 70%), large temperature fluctuations, corrosive gases, or heavy dust (coastal areas, industrial zones)—the replacement cycle is further reduced to 3-4 years. Key internal components such as capacitors and cooling fans degrade over time, so proactive replacement is recommended even if no obvious faults occur, as inverter aging is a common cause of door system failures.

Immediate replacement is necessary if any of the following abnormalities occur: 1) Persistent door operation issues (unstable speed, jamming, or unresponsive commands) that cannot be resolved by parameter adjustments; 2) Frequent fault alarms (e.g., overcurrent, overvoltage) despite normal wiring and load; 3) Excessive inverter overheating (surface temperature exceeding 70℃) or burnt odors, indicating internal component damage; 4) No output or abnormal output voltage, causing the door motor to fail to start; 5) Visible damage to the inverter casing, terminals, or internal circuits (e.g., capacitor leakage, circuit board burnout). Always use genuine XJDC-100-C-01-MK/XJ/SD inverters from Nanjing Zhuye Elevator Parts to ensure perfect compatibility with the door motor and control system, and avoid safety risks from inferior counterfeit products that lack reliable protection mechanisms.

Scientific maintenance significantly extends the inverter’s service life. Follow a structured maintenance schedule: Every 3 months, clean the inverter’s surface and cooling vents with a dry brush to remove dust buildup—dust accumulation can cause overheating. Every 6 months, check wiring connections for tightness and oxidation, re-tightening loose screws and replacing corroded terminals if necessary. Inspect the cooling fan for normal operation; replace it immediately if it is noisy or stuck. Annually, use a multimeter to test the input/output voltage stability and insulation resistance (ensure it exceeds 1MΩ). Back up the inverter’s parameters regularly to facilitate quick recovery in case of faults. Avoid frequent power on/off cycles, as this can accelerate internal component aging. Maintain a clean and dry environment inside the control box to prevent moisture and dust from entering the inverter.

The Elevator Door Operator Inverter XJDC-100-C-01-MK/XJ/SD is a critical control component that directly determines the safety, comfort, and efficiency of elevator door systems. Its reliable performance ensures smooth and quiet door operation, while comprehensive protection functions safeguard the door motor and system. By following correct installation and usage guidelines, adhering to the scientific replacement cycle, and choosing genuine Nanjing Zhuye Elevator Parts products, maintenance professionals can effectively reduce door system failures, lower maintenance costs, and extend the elevator’s service life. For more technical details—including detailed wiring diagrams, parameter setting guides, and troubleshooting manuals—or to purchase genuine XJDC-100-C-01-MK/XJ/SD inverters and access professional technical support, contact the expert team at Nanjing Zhuye Elevator Parts.
