Description

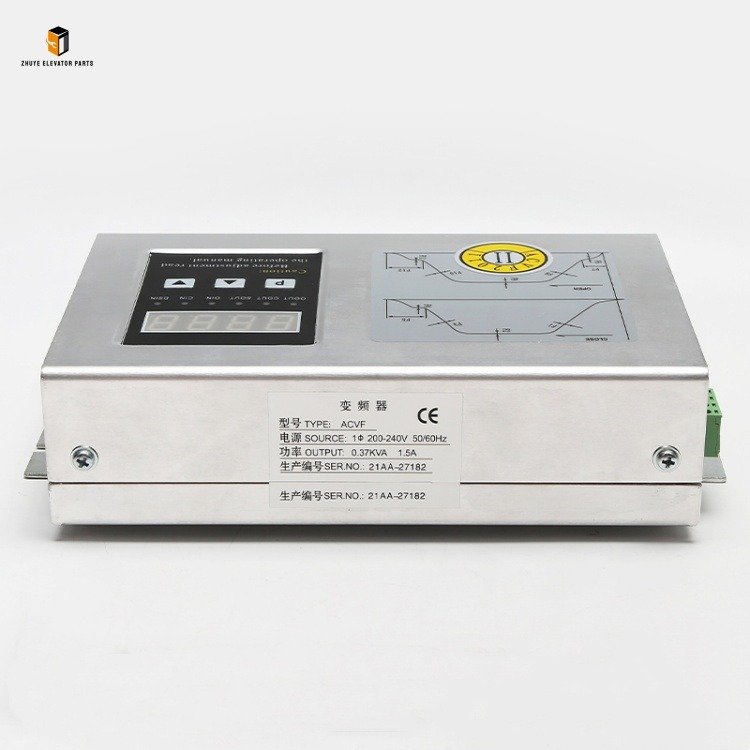

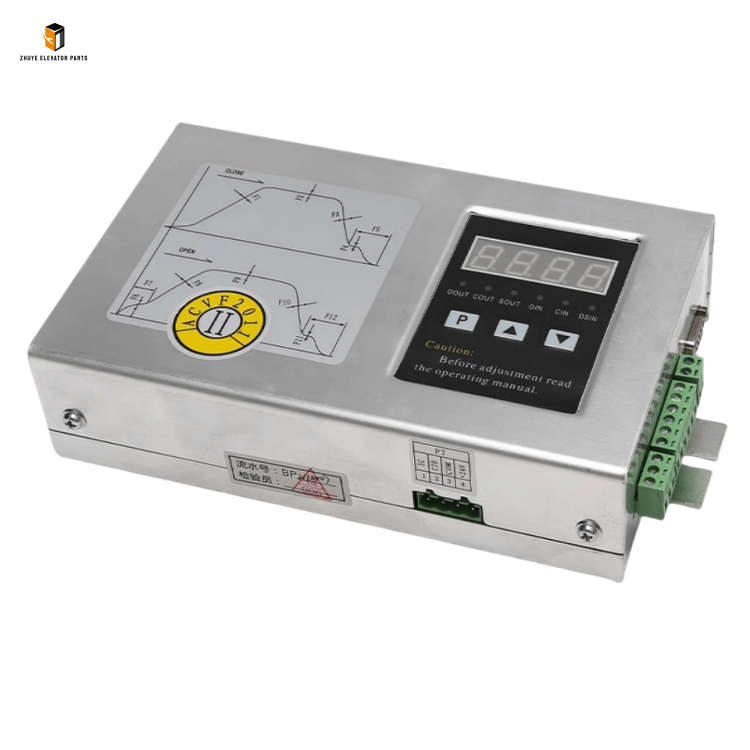

Elevator door operator inverter ACVF0.37KVA ACVF0.5KVA Brief Introduction
|
Product Name |
Elevator door operator inverter |

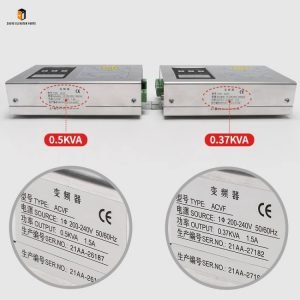

| Model Number | ACVF0.37KVA
ACVF0.5KVA |
|
Quality
|
Original.Brand New
|
|
Payment
|
T/T. Paypal. Western Union
|
|
Delivery
|
3-5 Working Days
|
|
Packaging
|
Packed by carton
|
Elevator Door Operator Inverter ACVF0.37KVA & ACVF0.5KVA: Precision Control from Nanjing Zhuye Elevatorparts
In the sophisticated operation system of elevators, the door operator inverter acts as the “precision brain” of the door system, regulating motor speed to ensure smooth, quiet, and safe opening/closing of elevator doors. Its performance directly impacts passenger comfort, door system durability, and overall elevator safety. The Elevator Door Operator Inverter ACVF0.37KVA & ACVF0.5KVA, exclusively supplied byNanjing Zhuye Elevatorparts, are engineered to meet the rigorous demands of modern elevator applications. Compliant with international standards such as IEC 61800 and EN 61800, these inverters (ACVF0.37KVA for small-power door motors, ACVF0.5KVA for medium-power door motors) boast excellent compatibility with mainstream elevator brands including Schindler, OTIS, KONE, and domestic brands like Mitsubishi Elevator. Whether for new elevator installations or old door system upgrades, they deliver stable speed control and energy-saving performance trusted by elevator professionals worldwide.
Nanjing Zhuye Elevatorparts has always adhered to a stringent quality control system, and the ACVF0.37KVA & ACVF0.5KVA door operator inverters are perfect embodiments of this commitment. Each unit undergoes comprehensive quality inspections before leaving the factory, including output voltage accuracy testing, load capacity verification, noise level measurement, and high-temperature durability trials. Both models feature advanced vector control technology that enables precise speed regulation, reducing door opening/closing impact and noise to below 45dB. The built-in overcurrent, overvoltage, and overheating protection functions prevent inverter damage and door system malfunctions. With an operating temperature range of -10℃ to 50℃ and dust-proof design, they perform reliably in harsh elevator machine room environments. The user-friendly digital display and parameter setting interface simplify debugging and maintenance, enhancing work efficiency for technicians.
Usage Guide for Elevator Door Operator Inverter ACVF0.37KVA & ACVF0.5KVA
Proper installation, wiring, and parameter setting are crucial to maximizing the performance and service life of ACVF0.37KVA & ACVF0.5KVA inverters. Nanjing Zhuye Elevatorparts strongly recommends that only certified elevator maintenance technicians perform these operations to avoid safety hazards or equipment damage. Improper operation may lead to door system jitter, motor burnout, or inverter failure. Before installation, confirm that the inverter model (ACVF0.37KVA for 0.37kW motors, ACVF0.5KVA for 0.5kW motors) matches the elevator door motor’s power rating. For any doubts, refer to the product manual provided by Nanjing Zhuye Elevatorparts or consult our professional technical team.
1. Pre-Installation Preparation
First, cut off the elevator’s main power supply and door system control power, then lock the power switch and place a “Maintenance in Progress” warning sign at the machine room and each elevator entrance to prevent accidental activation. Secure the elevator car at a safe position using safety supports and lock the elevator doors in the open position. Prepare necessary tools: torque wrench, screwdriver, wire stripper, multimeter, and anti-static gloves. Clean the inverter installation area in the door operator control cabinet to remove dust, debris, and oil stains, as these contaminants can affect heat dissipation and electrical performance. Inspect the inverter for external damage, loose terminals, or damaged connectors. Do not use the product if any defects are found. Verify that the input voltage matches the inverter’s rated voltage (usually 220V AC or 380V AC).
2. Installation & Wiring
Install the ACVF0.37KVA/ACVF0.5KVA inverter on the mounting bracket in the control cabinet, ensuring proper ventilation around the unit to facilitate heat dissipation. Avoid installing it near heat sources or direct sunlight. Follow the wiring diagram from Nanjing Zhuye Elevatorparts strictly: connect the input power wires to the L, N (or R, S, T) terminals, the output wires to the U, V, W terminals connected to the door motor, and the control signal wires to the corresponding input/output terminals. The recommended tightening torque for terminal screws is 2.5-3.5 Nm, and the wire stripping length should be 8-10mm to avoid short circuits. Keep power wires and signal wires separated to reduce electromagnetic interference. After wiring, use a multimeter to check the insulation resistance between terminals to confirm no short circuits exist. Ensure all connections are tight to prevent poor contact.
3. Parameter Setting & Debugging
Before power-on, set the basic parameters according to the elevator door motor’s specifications and Nanjing Zhuye’s recommendations: motor rated power (0.37kW for ACVF0.37KVA, 0.5kW for ACVF0.5KVA), rated voltage, rated frequency, and acceleration/deceleration time (usually 0.8-1.5s). Power on the inverter and conduct a no-load test first: activate the door system to check if the motor runs smoothly without abnormal noise. Adjust the speed parameters to ensure the door opening/closing speed meets the design requirements (0.6-1.0 m/s). Perform a load test by simulating normal door operation, including obstacle detection to verify that the inverter responds correctly to stop signals. Check the inverter’s digital display for any error codes; refer to the manual to troubleshoot if any issues occur. Record all parameter settings for future maintenance reference.
Replacement Cycle of Elevator Door Operator Inverter ACVF0.37KVA & ACVF0.5KVA
The replacement cycle of ACVF0.37KVA & ACVF0.5KVA door operator inverters is determined by operating frequency, working environment, and maintenance conditions. Under normal operating circumstances—elevator runs 12-24 hours a day, door opening/closing cycles ≤1500 times/day, and the control cabinet environment is dry, ventilated, and maintained at -10℃ to 50℃—Nanjing Zhuye Elevatorparts recommends a replacement cycle of 5-7 years. This recommendation is based on long-term field test data, taking into account factors such as capacitor aging, circuit board wear, and performance degradation caused by frequent operation.
For elevators in high-traffic areas such as shopping malls, airports, and subway stations, where door opening/closing cycles ≥3000 times/day, or in harsh environments with high humidity, heavy dust, large temperature fluctuations, or frequent voltage instability, the replacement cycle should be shortened to 3-5 years. High-frequency operation accelerates internal component aging, while harsh environments increase the risk of circuit board corrosion and short circuits. For low-usage elevators such as villa elevators and small office building elevators (daily operation time less than 8 hours, door cycles <500 times/day) in stable environments, the replacement cycle can be extended to 7-10 years. However, annual professional inspections by Nanjing Zhuye Elevatorparts’ technicians are mandatory to confirm parameter stability, output accuracy, and protection function effectiveness.
Regardless of the service life, ACVF0.37KVA & ACVF0.5KVA inverters must be replaced immediately if any of the following situations occur: frequent error codes that cannot be resolved by troubleshooting; significant deviation in output speed or failure to regulate speed; obvious damage to the casing, terminals, or circuit board (e.g., burning, bulging capacitors); failure to respond to control signals or frequent tripping; abnormal overheating, noise, or odor during operation; or the inverter fails to pass annual safety inspections. Timely replacement is critical to ensuring elevator door system safety and avoiding unexpected downtime.
The Elevator Door Operator Inverter ACVF0.37KVA & ACVF0.5KVA from Nanjing Zhuye Elevatorparts integrate precise speed control, reliable protection functions, and excellent durability, providing a high-quality solution for elevator door system operation. Their wide compatibility and user-friendly design simplify installation and maintenance, reducing overall costs. By following the recommended usage guidelines and replacement cycles, you can effectively improve elevator door system stability, enhance passenger comfort, and extend the service life of related components. Nanjing Zhuye Elevatorparts provides 100% genuine ACVF0.37KVA & ACVF0.5KVA inverters, along with professional services including model matching, on-site debugging guidance, and timely after-sales support. Choose Nanjing Zhuye Elevatorparts for reliable elevator component solutions.
