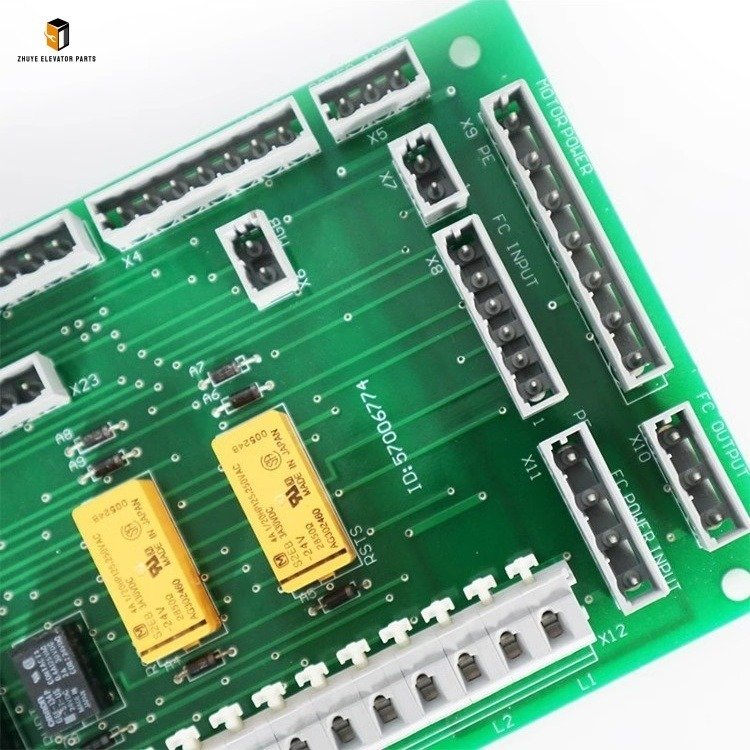

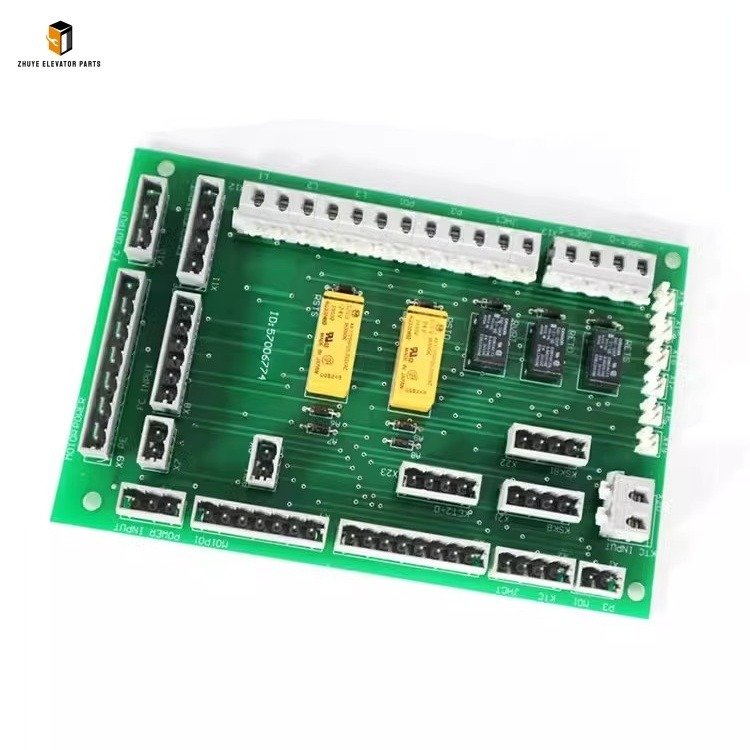

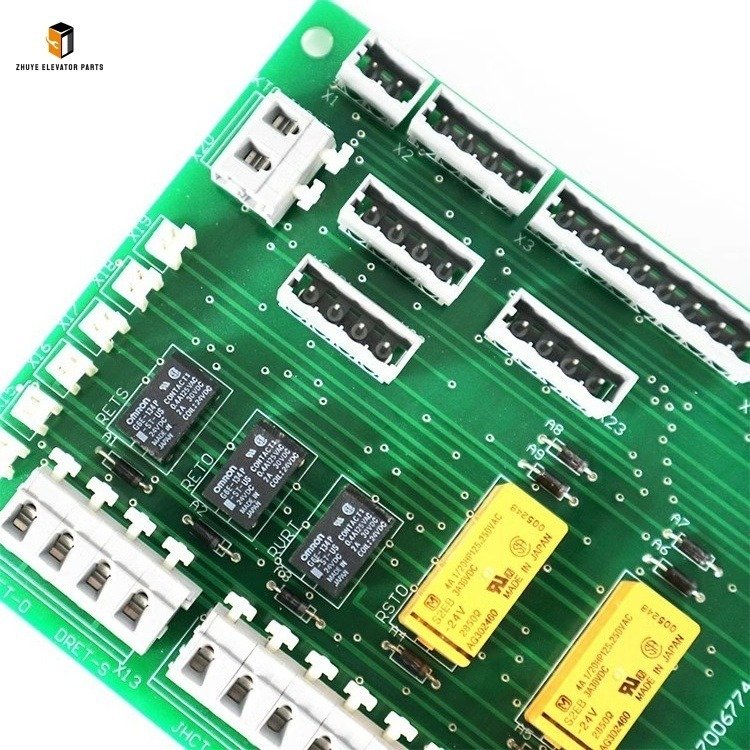

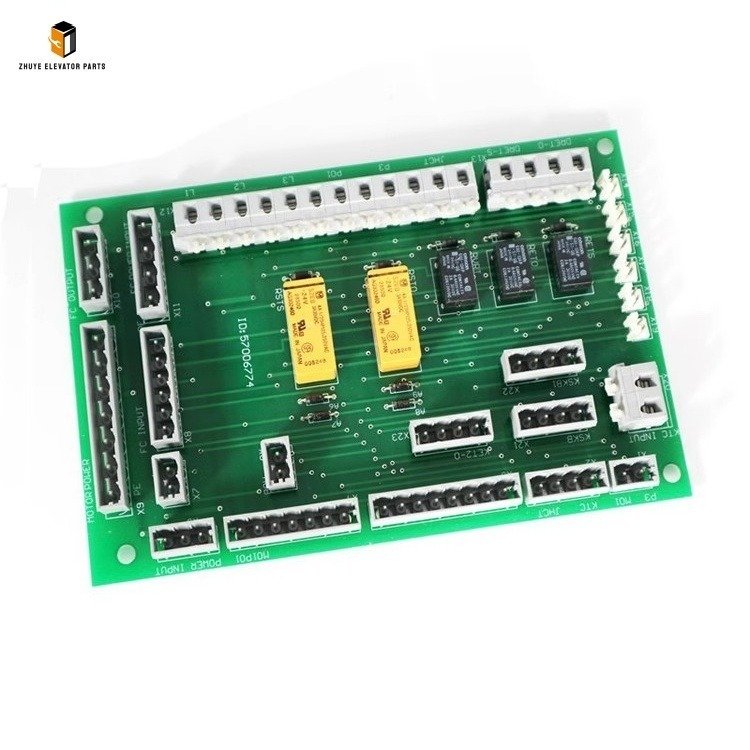

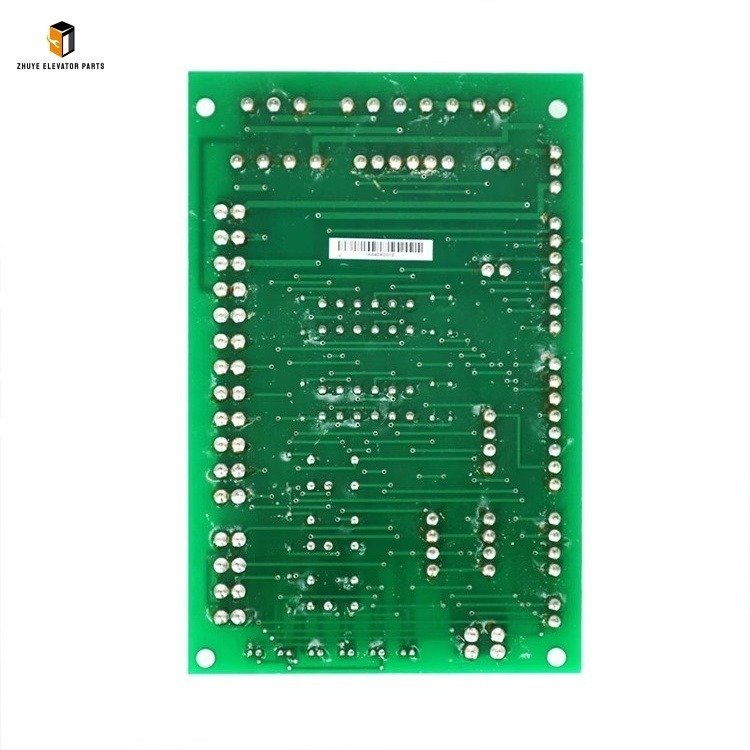

Elevator door operator interface board ID:57006774 Brief Introduction
|
Product Name |
Elevator door operator interface board |
| Model Number | ID:57006774 |
|
Quality
|
Original.Brand New
|
|
Payment
|
T/T. Paypal. Western Union
|
|
Delivery
|
3-5 Working Days
|
|
Packaging
|
Packed by carton
|
Elevator Door Operator Interface Board ID:57006774: Core Communication Component from Nanjing Zhuye Elevatorparts
The elevator door operator system relies on a stable communication bridge to coordinate with the main control unit, and the interface board serves as this critical “communication hub,” enabling seamless data transmission between the door operator, sensors, and elevator main controller. A reliable interface board is essential to ensure the accuracy and timeliness of door operation commands. The Elevator Door Operator Interface Board ID:57006774, exclusively supplied by Nanjing Zhuye Elevatorparts, is engineered for modern elevator door systems. Compliant with international standards including IEC/EN 60947 and GB 7588, this interface board integrates high-speed communication modules and stable signal conversion circuits, making it compatible with mainstream elevator brands such as Schindler, OTIS, KONE, and domestic brands like Mitsubishi. It supports multiple communication protocols (RS485, CANopen), adapting to diverse door operator system architectures for new installations and maintenance upgrades.
Nanjing Zhuye Elevatorparts adheres to a stringent quality control system, and the ID:57006774 elevator door operator interface board is a testament to this commitment. Each unit undergoes comprehensive testing, including communication delay verification, signal conversion accuracy tests, high-temperature durability trials, and anti-electromagnetic interference assessments. The board features a high-quality double-layer PCB substrate with gold-plated pins, minimizing contact resistance and ensuring stable signal transmission even in harsh environments. Its operating temperature range of -20℃ to 65℃ and IP54 protection rating (for the board surface) enable reliable performance in elevator shafts and control cabinets with dust and humidity. The integrated surge protection circuit guards against voltage spikes, while the fault self-diagnosis function provides real-time error feedback via indicator lights, simplifying maintenance and troubleshooting.
Usage Guide for Elevator Door Operator Interface Board ID:57006774
Proper installation, wiring, and protocol configuration are crucial to maximizing the performance of the ID:57006774 interface board. Nanjing Zhuye Elevatorparts strongly recommends that only certified elevator maintenance technicians perform these procedures to avoid communication failures or system malfunctions. Before installation, verify that the board’s communication protocol, interface type, and electrical parameters match the elevator door operator and main controller specifications. Refer to the product manual provided by Nanjing Zhuye Elevatorparts for detailed wiring diagrams and protocol configuration guidelines, or consult our technical team for model-specific support.
1. Pre-Installation Preparation
Begin by cutting off the elevator’s main power supply and the door operator’s dedicated power supply, then lock the power switch and place a “Maintenance in Progress” warning sign at the machine room and elevator entrances to prevent accidental activation. Prepare essential tools: a screwdriver, torque wrench, multimeter, wire stripper, anti-static gloves, and a brush. Clean the installation area (inside the door operator control cabinet) to remove dust, debris, and oil stains—contaminants are a leading cause of poor contact and communication failures. Inspect the ID:57006774 interface board for any external damage, cracked PCB, loose pins, or damaged terminals; do not use defective products. Take a photo of the original wiring layout and note the communication protocol settings of the old board to ensure consistency.
2. Installation & Wiring
Mount the ID:57006774 interface board on the dedicated bracket inside the control cabinet, ensuring secure fixation with no looseness. Avoid installing it near high-voltage components or heat sources to prevent electromagnetic interference and overheating. Follow the wiring diagram from Nanjing Zhuye Elevatorparts strictly: connect the power wires (typically DC 24V) to the positive and negative terminals, the communication wires (RS485/CANopen) to the corresponding interface, the sensor signal wires (light curtain, door position sensor) to the input terminals, and the door operator control wires to the output terminals. Use shielded wires for communication lines to reduce interference, with a wire stripping length of 6-8mm. The recommended tightening torque for terminal screws is 1.0-1.5 Nm. After wiring, use a multimeter to check circuit continuity and confirm no reverse connection of power wires, which would damage the board.
3. Debugging & Daily Operation
After installation, conduct comprehensive debugging. Restore power and configure the communication protocol (RS485/CANopen) via the board’s DIP switches or the elevator main controller, ensuring consistency with the door operator and main controller settings. Refer to Nanjing Zhuye’s manual for protocol parameter reference values. Test the communication link: send door opening/closing commands via the main controller and verify that the interface board transmits signals accurately, with the door operator responding promptly. Check the fault self-diagnosis function by simulating a sensor fault—ensure the board feeds back error signals correctly. During daily operation, incorporate the ID:57006774 board into monthly maintenance per TSG T7001-2023 standards. Clean the board surface and terminals with a dry cloth regularly; check for loose wiring, abnormal indicator lights, and communication interruptions. Avoid using high-pressure air or water for cleaning to protect internal circuits.
Replacement Cycle of Elevator Door Operator Interface Board ID:57006774
The replacement cycle of the ID:57006774 elevator door operator interface board depends on operating frequency, working environment, and maintenance conditions. Under normal parameters—elevator runs 12-24 hours daily, door opening/closing ≤2000 times/day, and the control cabinet is dry and well-ventilated—Nanjing Zhuye Elevatorparts recommends a replacement cycle of 5-7 years. This timeline is based on long-term field data, accounting for PCB circuit aging, communication module degradation, and pin wear, which are key factors affecting signal transmission stability.
For elevators in high-traffic areas (e.g., shopping malls, airports) with frequent door operation or harsh environments (high humidity, heavy dust, frequent temperature fluctuations, or strong electromagnetic interference), shorten the cycle to 3-5 years. High-frequency data transmission accelerates module aging, while harsh conditions increase the risk of PCB corrosion and pin oxidation. For low-usage elevators (e.g., villa elevators, daily operation <8 hours) in stable environments, extend the cycle to 7-10 years. However, annual professional inspections by Nanjing Zhuye’s technicians are mandatory to confirm communication delay, signal accuracy, and protocol compatibility, in line with elevator regular inspection standards.
Immediately replace the ID:57006774 interface board if any of the following issues occur, regardless of service life: frequent communication failures between the door operator and main controller; unresponsive door operation commands or delayed responses; abnormal indicator lights and persistent fault codes that cannot be cleared; obvious physical damage (cracked PCB, burned components, damaged pins); signal transmission errors leading to door malfunctions (e.g., misalignment, failure to open/close); or failure to pass annual safety inspections. Timely replacement is critical, as a faulty interface board can disrupt the entire door operator system and pose serious safety hazards.
The Elevator Door Operator Interface Board ID:57006774 from Nanjing Zhuye Elevatorparts integrates stable communication, durable design, and wide compatibility, providing a core communication solution for elevator door operator systems. Its strict quality control and compliance with international standards make it a trusted choice for elevator maintenance professionals worldwide. By following the recommended usage guidelines and replacement cycles, you can significantly reduce door system failure rates and enhance passenger safety. Nanjing Zhuye Elevatorparts provides 100% authentic ID:57006774 interface boards, along with professional support including model matching, protocol configuration guidance, and timely after-sales service. Choose Nanjing Zhuye Elevatorparts for reliable and compatible elevator component solutions.
