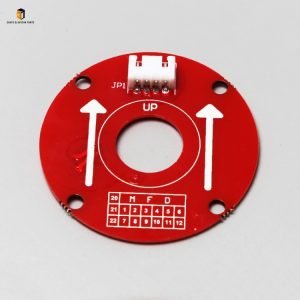

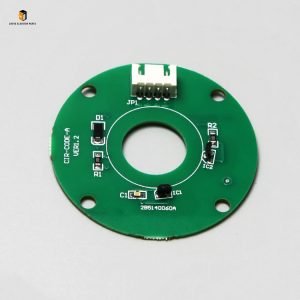

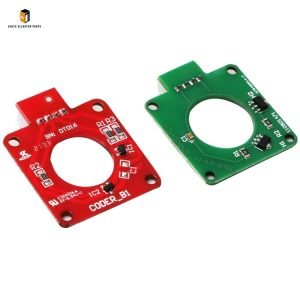

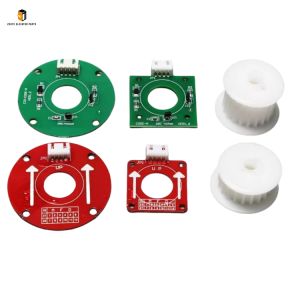

Elevator door operator encoder CIR-CODER-A Brief Introduction

Product Name	Elevator door operator encoder
Model Number	CIR-CODER-A
Quality	Original.Brand New
Payment	T/T. Paypal. Western Union
Delivery	3-5 Working Days
Packaging	Packed by carton

Elevator Door Operator Encoder CIR-CODER-A: Precision Control Core from Nanjing Zhuye Elevatorparts

Elevator Door Operator Encoder CIR-CODER-A is a critical precision sensing component designed for elevator door operator systems, responsible for real-time detecting the speed, position, and direction of the door operator motor. As the “eye” of the elevator door control system, it converts the mechanical rotation of the motor into electrical signals and transmits them to the main controller—enabling the controller to accurately regulate door opening/closing speed, control the door opening width, and implement safety interlock functions (e.g., anti-pinch, obstacle avoidance). Exclusively supplied by Nanjing Zhuye Elevatorparts (a professional and trusted distributor of high-quality elevator electrical components), the Elevator Door Operator Encoder CIR-CODER-A fully complies with international elevator safety standards (EN 81-20, GB 7588) and encoder technical regulations (IEC 60928). With high detection accuracy, strong anti-interference capability, and perfect compatibility with mainstream elevator door operator models, this encoder is widely applied in residential, commercial, high-speed, and industrial elevators worldwide.

Nanjing Zhuye Elevatorparts adheres to the core philosophy of “precision sensing, stable control” and implements strict quality control over the Elevator Door Operator Encoder CIR-CODER-A. Each unit undergoes multi-stage pre-delivery inspections, including resolution accuracy testing, signal stability verification, anti-interference performance trials, and environmental adaptability detection. The product adopts advanced photoelectric sensing technology and rugged structural design: it features a high-resolution photoelectric sensor (resolution ≥ 1024 pulses/rev) to ensure precise detection of motor rotation; the fully shielded signal cable effectively resists electromagnetic interference from elevator frequency converters; the IP54 dustproof and waterproof rating adapts to the humid, dusty environment in elevator door operator cabins; the high-strength plastic housing with shock-absorbing structure reduces the impact of door operator vibration on detection accuracy. Its standardized shaft diameter and mounting interfaces (flange, clamping type) enable quick and seamless installation without complex modifications to the door operator system.

Step-by-Step Usage Guide for Elevator Door Operator Encoder CIR-CODER-A

To ensure the reliable operation of the elevator door system and give full play to the precision control role of the CIR-CODER-A encoder, follow the professional guidelines provided by Nanjing Zhuye Elevatorparts for installation, debugging, and maintenance:

1. Professional Installation & Wiring

Installation must be performed by certified elevator technicians familiar with elevator door operator systems. Prior to installation, confirm the compatibility of the CIR-CODER-A with the target elevator’s door operator model and motor parameters using the detailed compatibility manual provided by Nanjing Zhuye Elevatorparts. The steps are as follows:

Safety Preparation: Cut off the elevator’s main power supply and the dedicated power supply of the door operator system. Lock the power switch to prevent accidental power-on. Clean the encoder mounting position on the door operator motor shaft (ensure the shaft surface is smooth, free of burrs or rust) to avoid affecting the fit between the encoder and the motor shaft.
Encoder Installation: Install the CIR-CODER-A encoder on the motor shaft using the dedicated mounting kit (provided by Nanjing Zhuye Elevatorparts). Ensure the encoder is coaxial with the motor shaft (coaxiality deviation ≤ 0.1mm) to prevent abnormal wear or signal deviation. Fix the encoder firmly with screws—for flange-mounted models, ensure the flange is closely attached to the motor end cover; for clamping-type models, adjust the clamping force to avoid damaging the motor shaft.
Wiring Operation: According to the elevator door operator system wiring diagram, connect the encoder’s signal cable (A, B, Z phases) to the corresponding interface of the door operator controller. Ensure correct phase sequence (wrong phase sequence will lead to reverse speed detection), tight connections, and reliable insulation. Use cable ties to fix the signal cable neatly, avoiding contact with moving parts of the door operator or high-voltage cables to reduce interference. Connect the encoder’s power supply (DC 5V/12V/24V, consistent with the controller’s requirements) and confirm the power supply is stable.
Post-Installation Debugging: Restore the power supply and switch the elevator to inspection mode. Operate the door opening/closing function and use a professional oscilloscope (or door operator controller self-test function) to check the encoder’s signal output—ensure the A/B phase signals are stable, with no missing pulses or signal distortion. Test the door opening/closing speed and position accuracy: confirm the door opens/closes at the set speed, stops accurately at the fully open/closed position, and the anti-pinch function operates normally. Adjust the encoder’s mounting position if there is signal deviation or control inaccuracy.

2. Daily Operation & Routine Inspection

Regular inspections are crucial to early detection of encoder faults and ensuring door system stability. Maintenance personnel should incorporate the following checks into their daily patrols:

Daily Visual Inspection: During door operator patrols, check the external condition of the CIR-CODER-A encoder. Ensure the housing is free of deformation, cracks, or damage; the signal cable is intact without aging, wear, or loose connections; the mounting screws are tight without looseness. Observe the door opening/closing process to check for abnormal phenomena (e.g., uneven speed, inaccurate stopping position) that may indicate encoder faults.
Weekly Signal Check: Use a multimeter to detect the encoder’s power supply voltage (ensure it is within the standard range) and signal output voltage. Connect to the door operator controller’s self-test interface to check the encoder’s pulse count and speed detection data—confirm consistency with the actual door operation status. Record the data for trend analysis and troubleshoot any abnormal deviations.
Monthly Cleaning & Inspection: Clean the encoder’s surface and signal cable connector with a soft, dry cloth to remove dust and debris. Check the connector for oxidation or corrosion—clean with a contact cleaner if necessary. Recheck the coaxiality of the encoder and motor shaft (deviation may occur due to long-term vibration) and adjust if there is any deviation.

Recommended Replacement Cycle for Elevator Door Operator Encoder CIR-CODER-A

As a core precision component bearing long-term mechanical rotation, signal transmission, and environmental erosion (humidity, dust, vibration of the door operator), the CIR-CODER-A elevator door operator encoder has a specified service life. Timely replacement is critical to avoiding faults such as reduced detection accuracy, signal loss, pulse missing, or direction detection error—issues that may lead to door opening/closing jitter, inaccurate stopping, anti-pinch function failure, or even door operator system crashes.

1. Standard Replacement Cycle

Under normal operating conditions (elevator daily operation time 12–24 hours, daily door opening/closing cycles ≥ 1500, environment temperature -10–60℃, humidity 10%–95%), the recommended replacement cycle for the Elevator Door Operator Encoder CIR-CODER-A is 4–5 years. This cycle is determined based on Nanjing Zhuye Elevatorparts’ long-term field data, encoder component aging tests, and global user feedback on elevator door operator systems.

2. Adjustments for Special Scenarios

Harsh Environments & High-Traffic Scenarios: For elevators in high-humidity coastal areas (salt spray corrosion), high-dust construction sites, or high-traffic areas (e.g., shopping malls, airports) with frequent door opening/closing (daily cycles ≥ 3000), the replacement cycle should be shortened to 2–3 years. Harsh conditions and frequent use accelerate encoder internal component aging, signal cable wear, and housing corrosion.
Low-Frequency Use Scenarios: For elevators with low usage frequency (e.g., villa elevators, small office buildings with daily operation time < 8 hours) and stable door operator environments, the replacement cycle can be extended to 5–6 years—only if Nanjing Zhuye’s professional inspection confirms the encoder’s resolution, signal stability, and detection accuracy are intact (consistent with original factory standards).

3. Immediate Replacement Conditions

Replace the Elevator Door Operator Encoder CIR-CODER-A immediately if any of the following issues occur, regardless of service life:

The encoder has no signal output or frequent signal loss, leading to door operator operation failure (e.g., door cannot open/close, speed is out of control) and the fault persists after wiring inspection and maintenance.
The detection accuracy is severely reduced (pulse missing rate > 1%), resulting in obvious door opening/closing jitter, inaccurate stopping position (deviation > 5mm), or anti-pinch function failure.
The encoder’s housing is severely damaged, the internal photoelectric sensor is contaminated or damaged, or the signal cable is broken and cannot be repaired.
The encoder fails the performance test (e.g., resolution deviation exceeds ±5%, signal response time > 1ms), failing to meet the elevator door operator system’s control requirements.

In conclusion, the Elevator Door Operator Encoder CIR-CODER-A supplied by Nanjing Zhuye Elevatorparts is a high-quality, reliable precision control component tailored for elevator door operator systems. By following the correct usage methods, maintenance schedules, and replacement cycles, elevator maintenance teams can effectively ensure the stable and precise operation of the elevator door system, enhance passenger ride experience, and minimize failure risks. Choosing Nanjing Zhuye Elevatorparts means you get not only authentic CIR-CODER-A encoders but also professional technical support, including model matching guidance, on-site installation and debugging advice, and prompt after-sales service.
