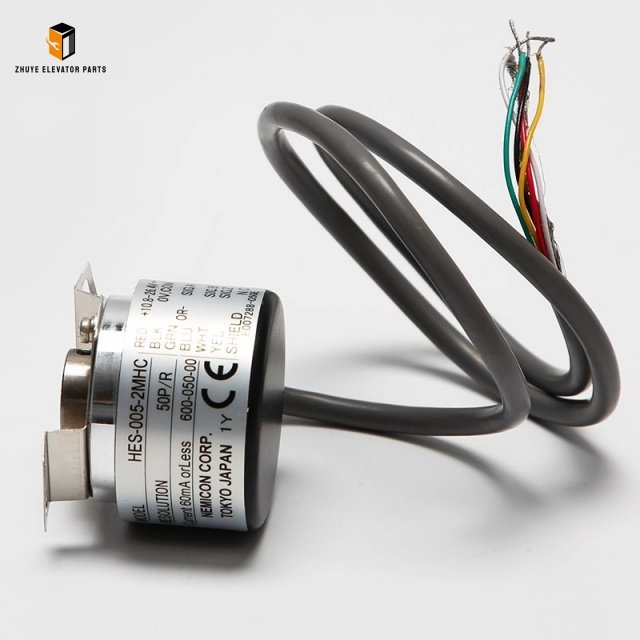

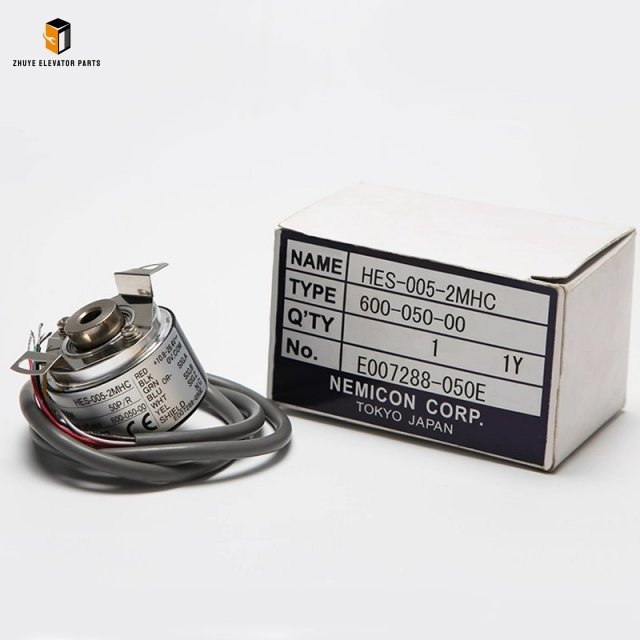

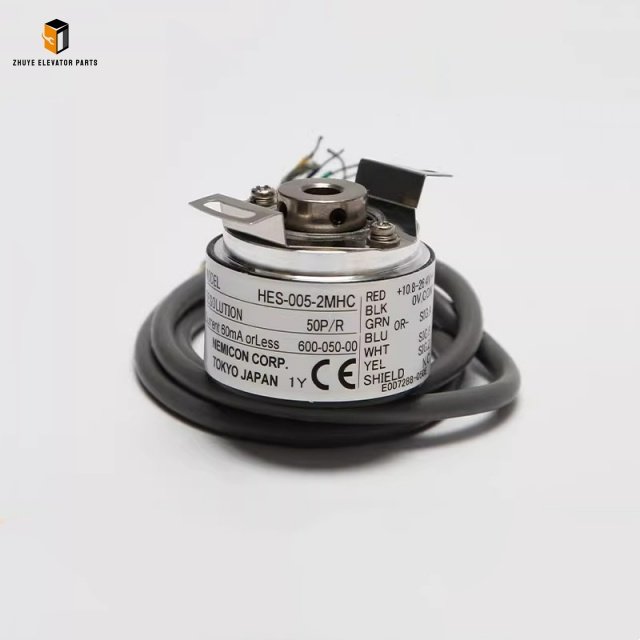

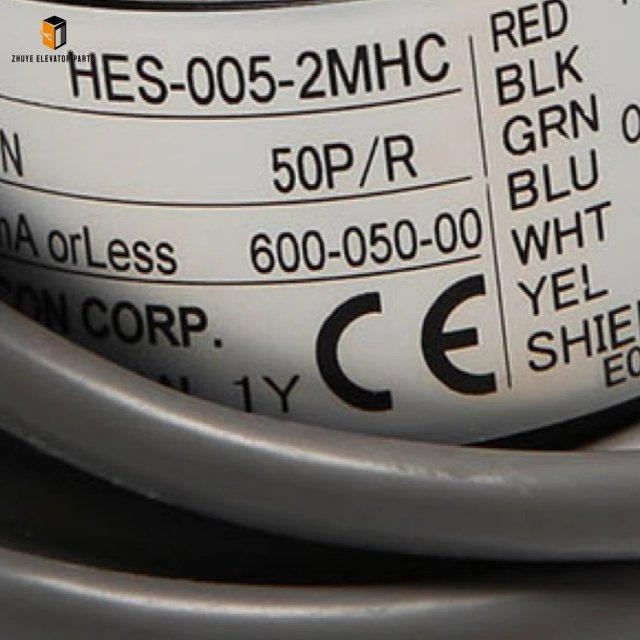

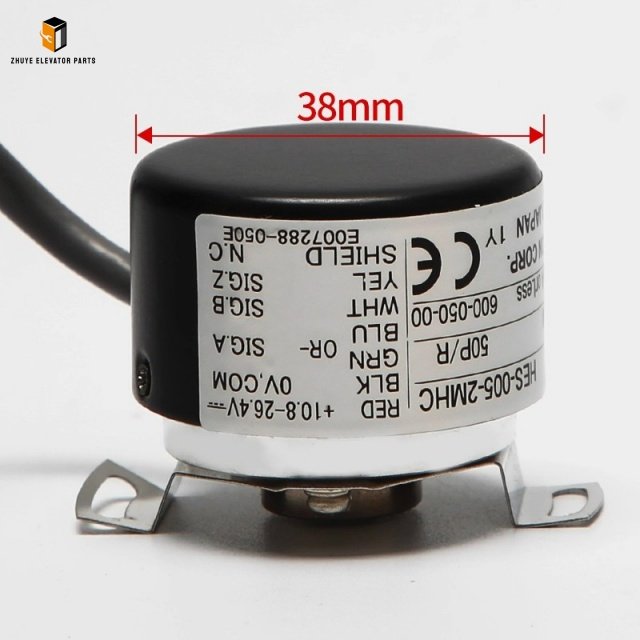

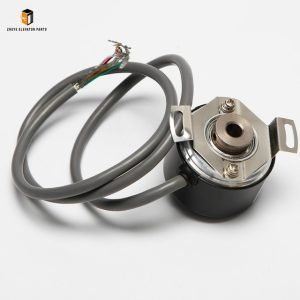

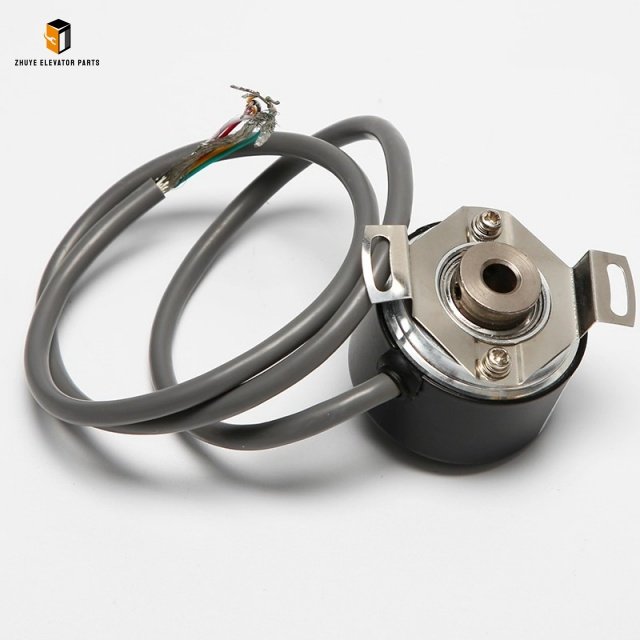

Elevator Door Operator Encoder HES-005-2MHC
Usage, Replacement Cycle & Maintenance Guide
by Nanjing Zhuye Elevatorparts

Introduction
The HES-005-2MHC is a hollow-shaft, high-resolution encoder that provides real-time position and speed feedback to elevator door operators. Manufactured and distributed worldwide by Nanjing Zhuye Elevatorparts, this compact sensor meets EN 81-20/50 and ASME A17.1 accuracy requirements, ensuring smooth door motion, precise stopping, and reliable safety-chain feedback. This 800-word guide covers correct installation, daily operation, and the recommended replacement cycle to keep every elevator door running safely and efficiently.

—

1. Product Highlights
– Resolution: 2,048 PPR (A/B/Z differential)
– Shaft: Ø5 mm hollow, self-centering, stainless steel
– Supply: 5 V ±5 %, <120 mA, short-circuit protected
– Output: RS-422 line driver, 100 m cable length
– Environmental: IP54 ABS housing, –20 °C to +70 °C
– Life: 10^8 revolutions, vibration 20 g, shock 100 g

—

2. Installation Method
Step 1 – Preparation
De-energise the door operator; lock-out/tag-out and verify zero energy. Record serial number and PPR value from the label.

Step 2 – Mounting
Slide encoder onto door operator stub shaft until flush. Tighten clamping screws diagonally to 0.8 N·m; ensure <0.05 mm run-out. Position anti-rotation tab in 3 × 3 mm slot.

Step 3 – Wiring
Route shielded CAT5e cable through PG9 gland. Connect A, A̅, B, B̅, Z, Z̅, 0 V, +5 V. Earth shield at controller only; maintain 30 mm untwisted inside enclosure.

Step 4 – Commissioning
Power-up controller; verify 2,048 PPR at rated door speed (±0.1 %). Test door open/close 10×; encoder must not exceed 45 °C. Log settings and date.

—

3. Daily & Preventive Maintenance
Daily (Technician)
Visual check—LED green, no abnormal clicking. Ensure cable gland tight.

Monthly
Clean housing and lens with dry cloth. Check gland tightness and cable insulation.

Quarterly
Measure supply voltage (5 V ±0.25 V) and differential signal (>2 V). Scope test: rise/fall <100 ns, noise <200 mV.

Annually
Replace encoder if cumulative operating hours exceed 50,000 h. Perform full door speed and stopping accuracy test.

—

4. Replacement Cycle & Indicators
| Duty Cycle | Replace Every | Revolutions | Warning Signs |
| Standard residential | 8–10 years | 80 M | Pulse dropout, speed drift >1 % |
| Commercial / hospital | 5–7 years | 50 M | Over-temp >70 °C, vibration >2 g |
| High-speed / freight | 3–5 years | 30 M | Shaft run-out >0.1 mm, LED fault |

Replace immediately if:
– Resolution drops or missing pulses >5 %
– Cable fatigue, shield breakage, or connector corrosion
– Repeated “encoder fault” alarms without mechanical cause
– Physical impact or water ingress (IP54 compromised)

Maintain one spare HES-005-2MHC per 20 elevators for <4-hour response.

—

5. Why Choose Nanjing Zhuye Elevatorparts?
• Full traceability—laser-etched serial and QR code on every encoder
• Same-day global dispatch via DHL/FedEx Express
• 24/7 multilingual hotline and on-site training
• Competitive tiered pricing and custom resolutions for OEM projects

—

6. Conclusion
The HES-005-2MHC encoder is the “pulse of precision” for elevator door operators. By following the installation, testing, and replacement guidelines—and sourcing only from Nanjing Zhuye Elevatorparts—you guarantee code compliance, reduce downtime, and ensure every door opens and closes with millimetre accuracy.
