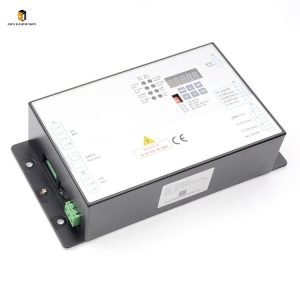

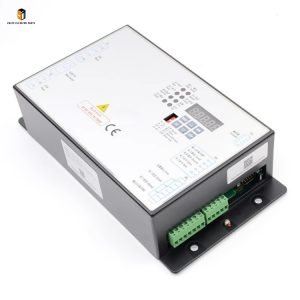

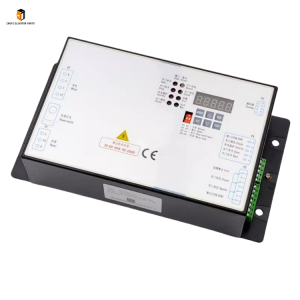

Elevator Door Operator Controller PM-DCU004-01/02: Door Control Core from Nanjing Zhuye Elevatorparts

Step-by-Step Usage Guide for Elevator Door Operator Controller PM-DCU004-01/02

1. Professional Installation & Wiring

• Safety Preparation: Cut off the elevator’s main power supply and the door operator’s dedicated power supply. Fix the elevator car to a safe position aligned with the floor using a safety clamp. Open the door operator cover and clean the controller mounting area to remove dust, oil stains, and debris that may affect insulation and heat dissipation.
• Controller Installation: Fix the PM-DCU004-01/02 controller to the dedicated mounting bracket in the door operator using high-strength screws provided by Nanjing Zhuye Elevatorparts. Ensure the controller is installed vertically (tilt angle ≤ 3°) and there is a 10–15mm heat dissipation gap between adjacent components. For PM-DCU004-02, confirm that the safety signal terminal is reliably connected to the elevator main control system.
• Wiring Operation: According to the door operator wiring diagram, connect the controller’s power terminal (rated voltage: 24VDC/110VDC), motor terminal (connected to the door operator motor), sensor terminal (connected to door edge safety sensors and position sensors), and signal terminal (connected to the main control system). Ensure the wiring is tight (use a torque wrench to confirm the tightening torque) and the positive/negative poles are correctly connected (reverse connection will damage the controller or motor). Mark the wire ends clearly for future maintenance.
• Post-Installation Testing: Restore the power supply and switch the elevator to inspection mode. Check if the controller’s indicator lights (power, normal operation, fault) work normally. Operate the door system manually to verify that the doors open and close smoothly without jamming; for PM-DCU004-02, test the emergency stop function by blocking the door with an obstacle to ensure the door reverses immediately. If there is abnormal door movement, error codes, or no response, recheck the installation and wiring immediately.

2. Parameter Setting & Routine Inspection

• Parameter Setting: Use the dedicated debugging tool or keypad (provided by Nanjing Zhuye Elevatorparts) to set core parameters: door opening/closing speed (adjust based on elevator usage scenario, e.g., 0.6m/s for commercial buildings, 0.4m/s for hospitals), opening/closing delay time (3–5 seconds for standard use), and overload protection force (≤ 150N). For PM-DCU004-02, additional set the anti-pinch sensitivity and emergency door opening parameters to meet safety requirements.
• Daily Visual Inspection: During shaft patrols, check the external state of the PM-DCU004-01/02 controller. Ensure the shell is free of cracks, deformation, or discoloration (indicating overheating); the wiring terminals are tight with no looseness, oxidation, or burning marks; the sensors connected to the controller are intact.
• Weekly Functional Check: Operate the elevator door system multiple times to verify the stability of door opening/closing speed and delay time. Use a multimeter to detect the controller’s input voltage and output motor voltage to ensure they are within the rated range. Check the fault code record on the controller (if equipped) to identify potential hidden faults.

3. Regular Maintenance Schedule

• Quarterly Maintenance: Disconnect the power supply and remove the controller from the mounting bracket. Thoroughly clean the shell, terminals, and vents with a professional electrical cleaner. Inspect the wiring for aging or cracking (replace if necessary) and recheck the tightness of all connections. Reinstall the controller and verify the parameter settings remain unchanged.
• Semi-Annual Performance Test: Conduct a comprehensive performance test, including control precision, safety function reliability, and anti-interference ability. Use a professional tester to simulate different working conditions (e.g., voltage fluctuation, electromagnetic interference) to verify the controller’s stable operation. For elevators in high-traffic areas (e.g., shopping malls, airports), increase the test frequency.
• Annual Professional Overhaul: Arrange a professional inspection with Nanjing Zhuye Elevatorparts’ certified technical team. Update the controller’s firmware (if applicable) to optimize performance. Replace aging components (such as capacitors, resistors) with genuine parts. Recalibrate the door system parameters to meet the original factory standards and the elevator’s actual operating requirements.

Recommended Replacement Cycle for Elevator Door Operator Controller PM-DCU004-01/02

1. Standard Replacement Cycle

2. Adjustments for Special Scenarios

• Harsh Environments: For elevators in high-humidity coastal areas (salt spray corrosion), high-dust construction sites, or elevators with frequent door operation (e.g., subway stations, airports), the replacement cycle should be shortened to 2–3 years (PM-DCU004-01) and 3–4 years (PM-DCU004-02). Harsh conditions accelerate the aging of internal circuits, corrosion of terminals, and reduction of control precision.
• Low-Frequency Use Scenarios: For elevators with low usage frequency (e.g., villa elevators, small office buildings with daily operation time < 8 hours) and stable environments, the replacement cycle can be extended to 4–5 years (PM-DCU004-01) and 5–6 years (PM-DCU004-02)—only if Nanjing Zhuye’s professional inspection confirms that the controller’s control performance, safety functions, and component integrity are all intact.

3. Immediate Replacement Conditions

• The controller displays persistent error codes that cannot be eliminated through debugging, leading to abnormal door operation (e.g., slow movement, random stop).
• The safety functions (anti-pinch, emergency stop) fail—doors do not reverse when blocked, or cannot be opened in emergency situations, posing serious safety hazards.
• The controller has no response to control signals (doors cannot be opened/closed), and the fault cannot be eliminated by checking the power supply and wiring, affecting the normal operation of the elevator.
• The controller’s shell is severely cracked, deformed, or corroded; internal components are burned (with obvious burning marks or odor), making maintenance ineffective.
