Description

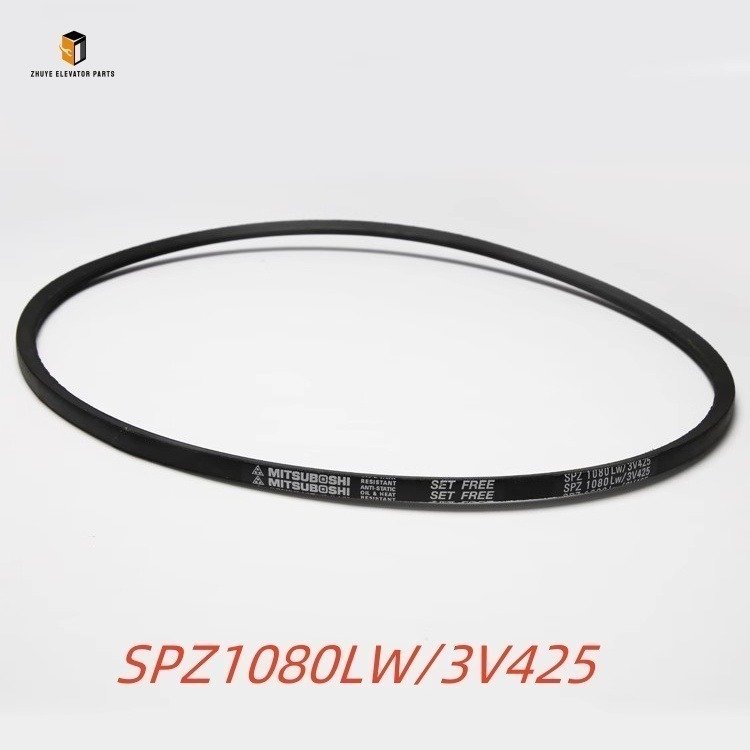

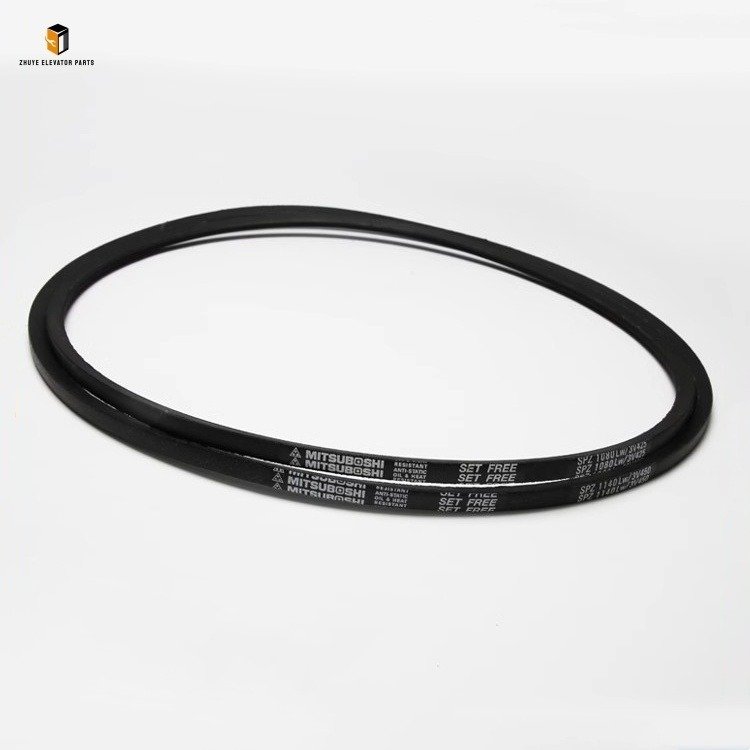

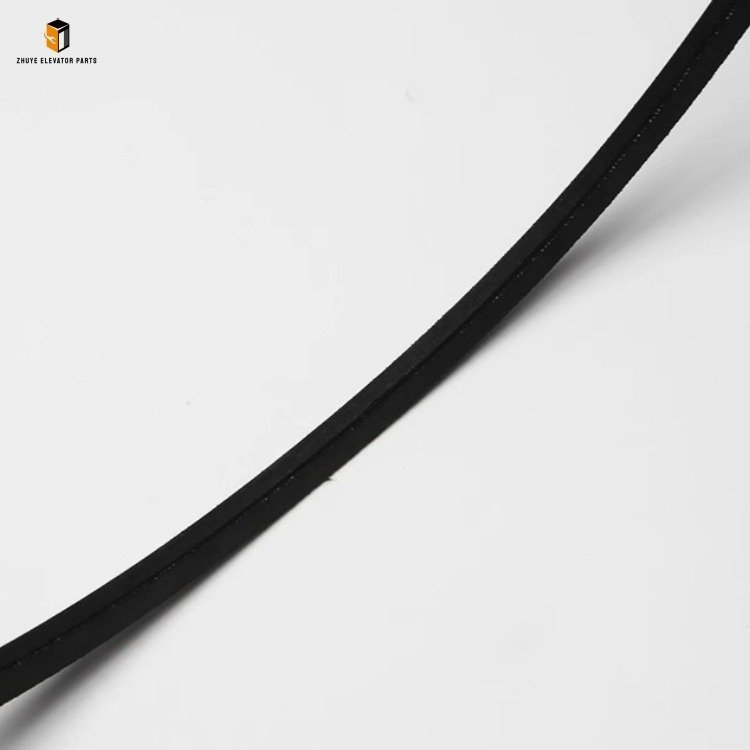

Elevator door operator belt SPZ1080LW/3V425 Brief Introduction
|
Product Name |
Elevator door operator belt |
| Model Number | SPZ1080LW/3V425

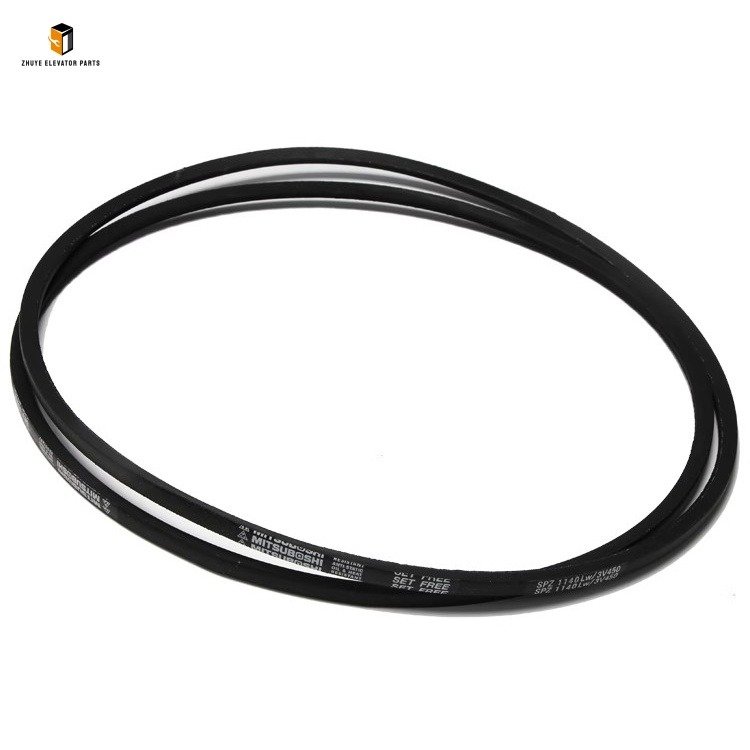

SPZ1140LW/3V450 |
|
Quality
|
Original.Brand New
|
|
Payment
|
T/T. Paypal. Western Union
|
|
Delivery
|
3-5 Working Days
|
|
Packaging
|
Packed by carton
|
Elevator Door Operator Belt SPZ1080LW/3V425 – Nanjing Zhuye Elevatorparts
The elevator car top emergency power supply is a critical safety component that ensures the elevator’s emergency systems (such as lighting, communication, and door opening) operate normally when the main power supply fails. The Elevator Car Top Emergency Power Supply DJW12-4.5/7.0 provided byNanjing Zhuye Elevatorparts is a high-reliability power supply device tailored for mainstream elevator systems. It supports two capacity specifications (4.5Ah and 7.0Ah) to meet the needs of different elevator models, widely compatible with brands such as Schindler, OTIS, and KONE. Crafted with high-performance lithium-ion batteries, intelligent charging management modules, and flame-retardant casings, this emergency power supply meets international elevator safety standards (EN 81-20, GB 7588) and has become a trusted choice for global elevator maintenance teams and manufacturers.
The elevator leveling system is a key component that ensures the elevator car aligns accurately with the floor, providing safe and comfortable access for passengers. The elevator leveling sensor serves as the “eye” of this system, detecting the car’s position in real time. The Elevator Leveling Sensor TNC-121 provided by Nanjing Zhuye Elevatorparts is a high-precision position-sensing component tailored for mainstream elevator systems. It is widely compatible with elevator brands such as Schindler, OTIS, and KONE, suitable for both passenger and freight elevators. This sensor adopts advanced photoelectric sensing technology, featuring high detection accuracy, fast response speed, and strong anti-interference ability, ensuring the elevator stops stably and accurately at each floor. Crafted with high-quality optical components, sealed metal shells, and precision electronic circuits, it meets international elevator safety standards (EN 81-20, GB 7588) and has become a trusted choice for global elevator maintenance teams and manufacturers.
The elevator lock is a core safety component that ensures the elevator car door and landing door remain locked during operation, preventing accidental opening and ensuring passenger safety. The Elevator Lock CV50 180 JK406-001 provided by Nanjing Zhuye Elevatorparts is a high-reliability safety lock tailored for mainstream elevator systems. It is widely compatible with elevator brands such as Schindler, OTIS, and KONE, suitable for both passenger and freight elevators. This elevator lock integrates precise mechanical structure and stable electrical control, achieving reliable locking when the elevator is running and smooth unlocking when it reaches the floor. Crafted with high-strength alloy steel, flame-retardant plastic, and precision electronic components, it meets international elevator safety standards (EN 81-20, GB 7588) and has become a trusted choice for global elevator maintenance teams and manufacturers.
The elevator’s electrical control system is prone to arc generation during switch-on and switch-off of contacts, which may cause damage to electrical components or even fire hazards. The elevator arc extinguisher serves as a “safety barrier” to suppress and eliminate arcs. The Elevator Arc Extinguisher HD1.211 provided by Nanjing Zhuye Elevatorparts is a high-performance arc suppression component tailored for elevator electrical systems. It is widely compatible with mainstream elevator brands such as Schindler, OTIS, and KONE, suitable for arc suppression of elevator contactors, relays, and other electrical contacts. Crafted with high-quality arc-extinguishing materials, flame-retardant shells, and precision structural design, this arc extinguisher meets international electrical safety standards (IEC 60947, GB/T 14048) and has become a trusted choice for global elevator maintenance teams and manufacturers.
The elevator door operator is the “power core” of elevator door opening and closing, and the door operator belt serves as a critical transmission component that connects the motor and door pulley system. The Elevator Door Operator Belt L075 provided by Nanjing Zhuye Elevatorparts is a high-performance transmission belt tailored for mainstream elevator door operator systems. It is widely compatible with elevator brands such as Schindler, OTIS, and KONE, playing a vital role in ensuring smooth, quiet, and stable operation of elevator doors. Crafted with high-strength polyurethane (PU) material and embedded with high-tensile polyester cords, this belt features excellent wear resistance, tensile strength, and flexibility, meeting international elevator safety standards (EN 81-20, GB 7588) and becoming a trusted choice for global elevator maintenance teams and manufacturers.
The elevator door operator belt is a key transmission component that drives the elevator door to open and close smoothly, directly affecting the stability of the door system and passenger riding experience. The Elevator Door Operator Belt SPZ1080LW/3V425 launched by Nanjing Zhuye Elevatorparts is a high-performance transmission belt tailored for mainstream elevator door operator systems, with excellent compatibility with renowned brands such as Schindler, OTIS, and KONE. With specifications of SPZ1080LW (wedge belt type, 1080mm effective length) and 3V425 (3V section, 42.5-inch length), it provides reliable power transmission for elevator door operations. Crafted with high-strength rubber, high-tensile polyester cords, and anti-wear fabric, this belt meets international elevator safety standards (EN 81-20, GB/T 7588.1-2020) and has become a trusted choice for global elevator maintenance teams and manufacturers.
Nanjing Zhuye Elevatorparts adheres to the “quality first, safety-oriented” principle, implementing strict quality control throughout the production process of the SPZ1080LW/3V425 elevator door operator belt. Each unit undergoes rigorous testing, including tensile strength verification, wear resistance testing, temperature resistance assessment, and elongation rate detection. The belt’s high-tensile polyester cords ensure excellent load-bearing capacity and low elongation (≤1% after 100 hours of operation), maintaining stable transmission accuracy. The surface anti-wear fabric reduces friction between the belt and pulleys, extending the service life to over 200,000 door opening and closing cycles. It can withstand a wide temperature range of -20℃ to 80℃ and has good oil resistance and water resistance, adapting to the harsh operating environment of elevator machine rooms and door operator boxes.
Usage Guide for Elevator Door Operator Belt SPZ1080LW/3V425
Correct installation, tension adjustment, and maintenance of the SPZ1080LW/3V425 elevator door operator belt are crucial to ensuring the smooth operation of the elevator door system. Nanjing Zhuye Elevatorparts strongly recommends that only certified elevator maintenance technicians perform installation and maintenance to avoid safety hazards such as door jamming or abnormal stopping.
1. Pre-Installation Preparation
First, confirm that the elevator’s MAC car lighting controller model matches the POWCV24181MH power supply (check parameters such as input voltage, output voltage, output current, and installation dimensions). Consult Nanjing Zhuye Elevatorparts’ technical team if there is any uncertainty about compatibility. Then, cut off the elevator’s main power supply and the secondary power supply for the car lighting system, lock the switch, and place a “Maintenance in Progress” warning sign at the elevator landing doors and machine room entrance. Locate the power supply installation position (usually on the car top or in the car control cabinet) and clean the area to remove dust, debris, and oil stains. Finally, prepare professional tools such as a screwdriver, wire stripper, multimeter, and insulation tester, and check that the new POWCV24181MH power supply from Nanjing Zhuye Elevatorparts is intact (no damage to the shell, no loose pins).
First, confirm that the SPZ1080LW/3V425 door operator belt matches the elevator door operator model (check specifications such as belt type, length, and section). Consult Nanjing Zhuye Elevatorparts’ technical team immediately if there is any uncertainty about compatibility. Then, cut off the elevator’s main power supply, lock the switch, and place a “Maintenance in Progress” warning sign at the elevator entrance. Open the door operator cover and fix the elevator door in an open position with a support rod to prevent accidental closing. Finally, prepare professional tools including a screwdriver, wrench, tension gauge, and belt puller, and clean the door operator pulleys, tensioners, and installation area to remove dust, debris, and oil stains.
2. Installation & Tension Adjustment
Loosen the door operator tensioner to remove the old belt. Take photos to record the old belt’s winding direction on the pulleys for future reference. Take the new SPZ1080LW/3V425 door operator belt from Nanjing Zhuye Elevatorparts and wind it around the driving pulley and driven pulley strictly according to the recorded direction. Adjust the tensioner to apply appropriate tension to the belt—use a tension gauge to measure, with the recommended tension range being 15-20N (refer to Nanjing Zhuye’s technical manual). Ensure the belt is properly aligned with the pulleys (no deviation) and that both sides of the belt are in close contact with the pulley grooves. After adjustment, manually rotate the pulleys to check if the belt runs smoothly without jamming or slipping. Tighten the tensioner fixing screws firmly to prevent loosening during operation.
3. Daily Maintenance & Post-Operation Testing
Close the door operator cover, restore the power supply, and test the elevator door’s automatic opening and closing function: the door should open and close smoothly without delay, slipping, or abnormal noise. After 1 hour of stable operation, check the belt’s working status—no obvious heating or loosening is allowed. For daily maintenance, inspect the belt during monthly patrols: check for cracks, peeling, or wear on the belt surface; confirm the belt tension is normal (the belt should deflect 5-8mm when pressed with a force of 10N); clean the belt and pulleys with a dry cloth to remove dust and debris. Avoid using oil or grease on the belt (it will cause slipping). Every 3 months, recheck the tension; every 6 months, inspect the pulleys for wear and replace them if necessary to prevent abnormal wear of the belt.
Replacement Cycle of Elevator Door Operator Belt SPZ1080LW/3V425
The replacement cycle of the SPZ1080LW/3V425 elevator door operator belt is closely related to operating frequency and working environment. Under normal conditions (elevator daily operation 12-24 hours, door opening and closing ≥500 times/day, clean and dry environment), Nanjing Zhuye Elevatorparts recommends a replacement cycle of 1-2 years. This cycle is determined based on long-term field operation data and material aging tests, fully considering the wear of the belt surface, fatigue of internal cords, and performance attenuation.
For elevators in high-traffic areas (e.g., large shopping malls, airports with door opening and closing ≥1000 times/day) or harsh environments (high humidity, heavy dust, high temperature, or oil pollution), the replacement cycle should be shortened to 6-12 months. High-frequency operation accelerates belt wear, while harsh environments cause rubber aging and internal cord corrosion. For low-usage elevators (e.g., villa elevators, small office buildings with door opening and closing <200 times/day) in stable environments, the cycle can be extended to 2-3 years, but only after inspection and confirmation by Nanjing Zhuye’s technicians that the belt’s tension and wear degree meet safety standards.
Replace the SPZ1080LW/3V425 door operator belt immediately if any of the following issues occur, regardless of its service life: The belt has obvious cracks, peeling, or wear (the fabric layer is exposed); the belt is stretched excessively (tension cannot be adjusted to the standard range); the belt slips frequently during operation, causing the door to open and close slowly or abnormally; the belt is contaminated by oil or chemicals and cannot be cleaned; the belt makes obvious abnormal noise (such as squeaking) during operation.
The Elevator Door Operator Belt SPZ1080LW/3V425 from Nanjing Zhuye Elevatorparts integrates high reliability, durability, and strong compatibility, providing a critical transmission guarantee for the smooth operation of elevator door systems. By following the correct usage, maintenance, and replacement guidelines, you can effectively reduce elevator door faults, improve passenger riding comfort, and ensure the safe operation of the door system. Choosing Nanjing Zhuye Elevatorparts means you get 100% authentic SPZ1080LW/3V425 door operator belts, as well as professional services including model matching, on-site installation guidance, and timely after-sales support. Trust Nanjing Zhuye Elevatorparts for the stable and safe operation of your elevator.
