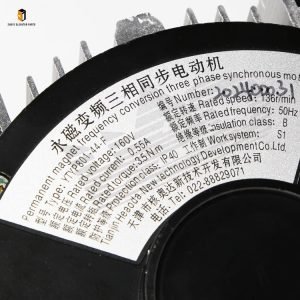

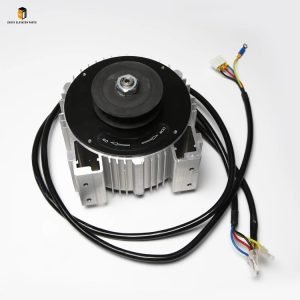

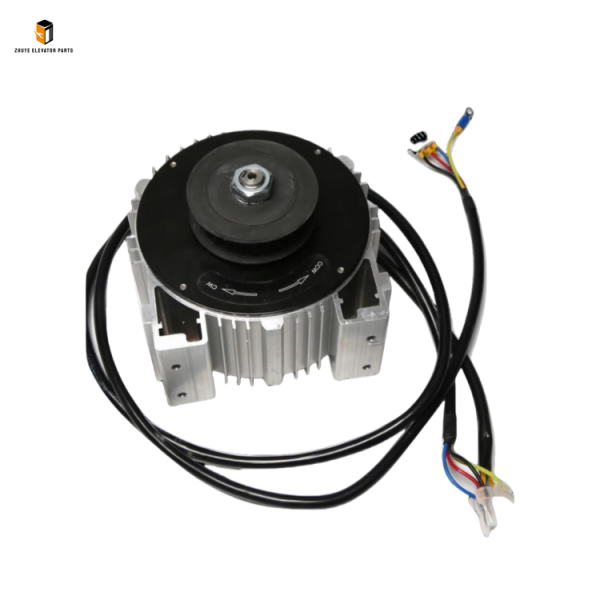

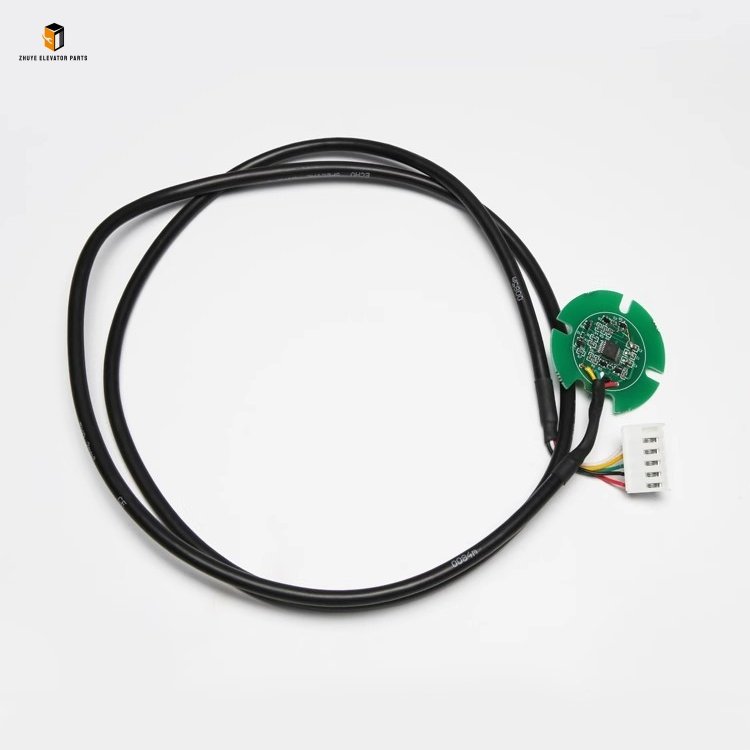

Elevator Door Motor YTYP801-44-F: Power Core of Door System from Nanjing Zhuye Elevatorparts

Step-by-Step Usage Guide for Elevator Door Motor YTYP801-44-F

1. Professional Installation & Wiring

• Safety Preparation: Cut off the elevator’s main power supply and the dedicated power supply of the door operator system. Lock the power switch to prevent accidental power-on. Clean the motor mounting position on the door operator bracket to remove dust, oil stains, and debris that may affect installation accuracy and heat dissipation.
• Motor Installation: Fix the YTYP801-44-F motor to the dedicated mounting bracket using high-strength bolts provided by Nanjing Zhuye Elevatorparts. Ensure the motor is installed horizontally (horizontal deviation ≤ 1mm) and the output shaft is coaxial with the door operator transmission mechanism (coaxiality deviation ≤ 0.1mm) to avoid abnormal wear and noise. Connect the motor output shaft to the door operator reducer or belt pulley, ensuring a tight fit without slipping.
• Wiring Operation: According to the elevator door operator system wiring diagram, connect the motor’s power cable and control cable to the corresponding interface of the door operator controller. Ensure correct wiring polarity, tight terminal connections, and reliable insulation. Use cable ties to fix the cables neatly, avoiding contact with moving parts of the door system or high-voltage components to reduce interference. Check that the motor’s thermal protection device is correctly connected to the controller to ensure it functions normally.
• Post-Installation Debugging: Restore the power supply and switch the elevator to inspection mode. Activate the door opening/closing function and adjust the motor’s operating parameters (speed, acceleration/deceleration time) through the controller to match the elevator’s door system requirements. Observe the door operation process to confirm smooth opening and closing, no jitter or stuck phenomena, and the noise level meets the standard. Use a tachometer to verify the motor’s actual operating speed is consistent with the set value, and check the motor surface temperature after 30 minutes of continuous operation (normal temperature ≤ 100℃).

2. Daily Operation & Routine Inspection

• Daily Visual Inspection: During door operator patrols, check the external condition of the YTYP801-44-F motor. Ensure the aluminum alloy housing is free of deformation, cracks, or corrosion; the power cable and control cable are intact without aging, wear, or loose connections; the mounting bolts are tight without looseness. Observe the door operation to check for abnormal phenomena (e.g., slow door opening/closing, obvious jitter, unusual noise) that may indicate motor faults.
• Weekly Performance Check: Use a multimeter to detect the motor’s input voltage and current, ensuring they are within the rated range. Measure the motor surface temperature after peak operation hours to confirm no abnormal overheating. Check the tightness of the motor output shaft connection and re-tighten if there is any looseness. Record the operating parameters for trend analysis.
• Monthly Cleaning & Lubrication: Clean the motor housing and cooling vents with a soft, dry cloth to remove dust and debris, ensuring good heat dissipation. For motors with lubrication points (as specified in the manual), apply a small amount of special lubricating grease (recommended by Nanjing Zhuye Elevatorparts) to the bearings to reduce friction and noise. Avoid lubricant contamination on the motor windings or electrical connections.

Recommended Replacement Cycle for Elevator Door Motor YTYP801-44-F

1. Standard Replacement Cycle

2. Adjustments for Special Scenarios

• Harsh Environments & High-Traffic Scenarios: For elevators in high-humidity coastal areas (salt spray corrosion), high-dust construction sites, or high-traffic areas (e.g., shopping malls, airports) with frequent door opening/closing (daily cycles ≥ 3000), the replacement cycle should be shortened to 3–4 years. Harsh conditions and frequent use accelerate motor winding aging, bearing wear, and housing corrosion, significantly reducing the motor’s reliability.
• Low-Frequency Use Scenarios: For elevators with low usage frequency (e.g., villa elevators, small office buildings with daily operation time < 8 hours) and stable door operator environments, the replacement cycle can be extended to 6–7 years—only if Nanjing Zhuye’s professional inspection confirms the motor’s torque performance, speed stability, and temperature rise are intact (consistent with original factory standards).

3. Immediate Replacement Conditions

• The motor has insufficient torque, leading to slow door opening/closing, difficulty in opening heavy doors, or frequent stalling during operation, and the fault persists after controller parameter adjustment.
• The motor operates with abnormal noise (e.g., sharp friction sound, heavy vibration noise) or overheats rapidly (surface temperature exceeds 120℃ within 10 minutes of operation), indicating internal bearing damage or winding faults.
• The motor fails to start or has intermittent operation, and the fault is confirmed to be caused by internal winding burnout or rotor damage after professional testing.
• The motor fails the performance test (e.g., rated torque deviation exceeds ±10%, speed fluctuation exceeds ±5%), failing to meet the elevator door operator system’s power requirements.
