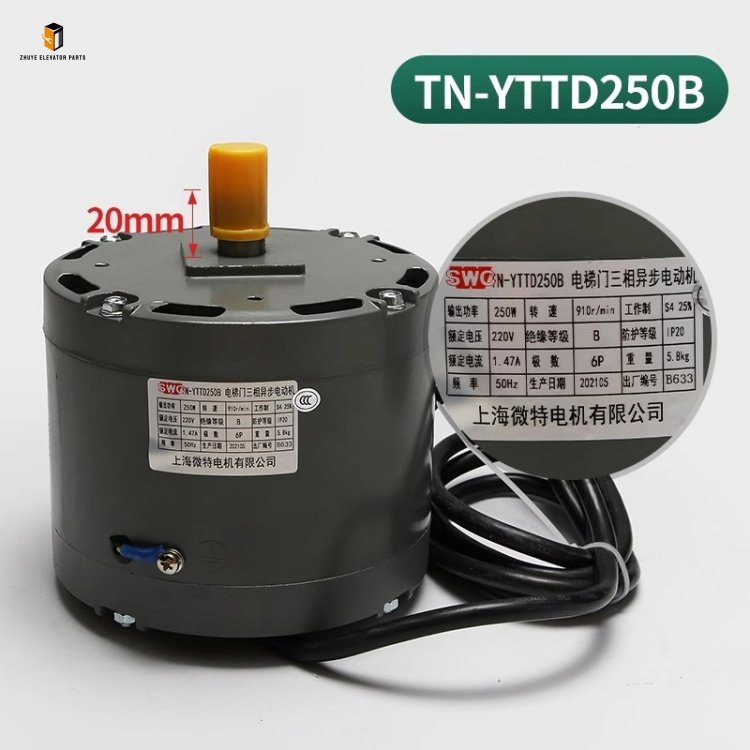

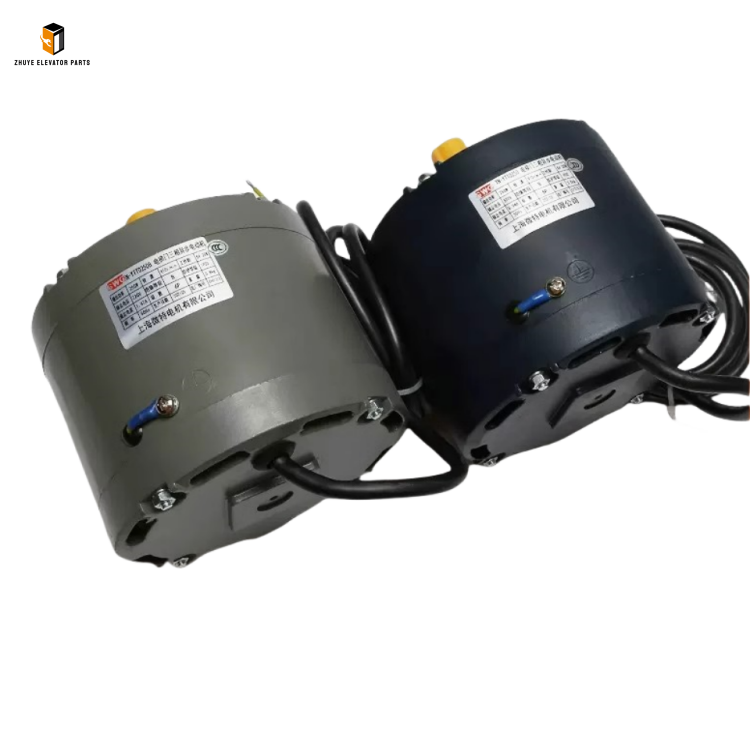

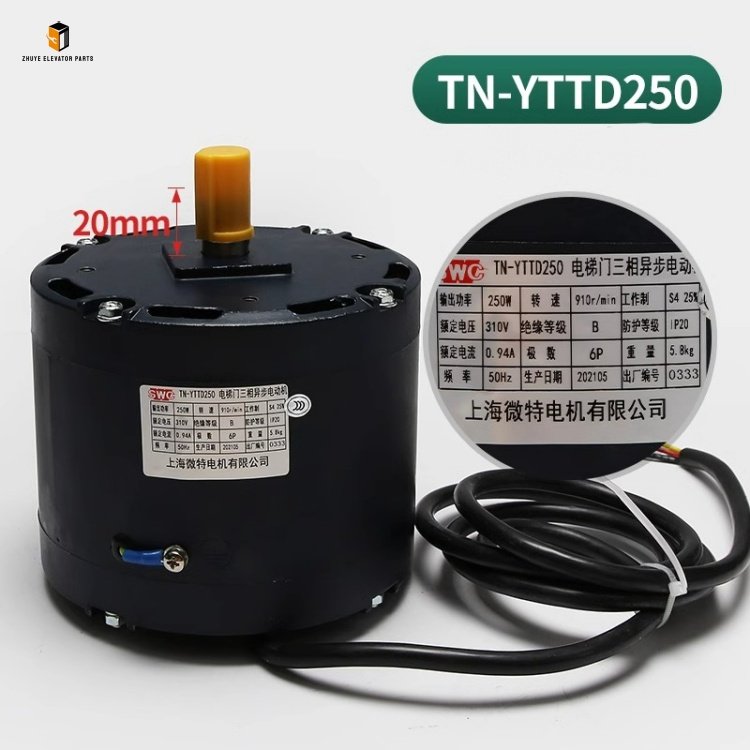

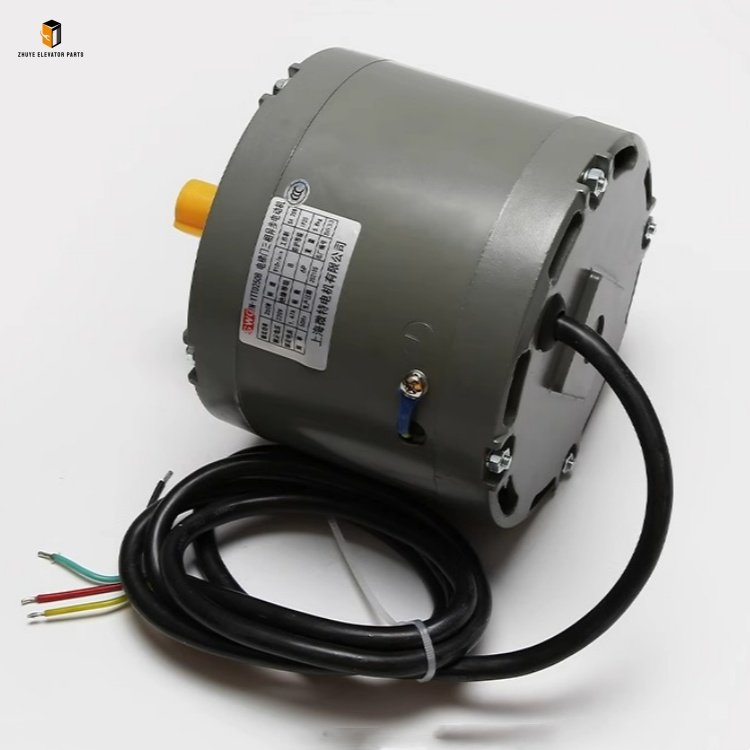

Elevator Door Motor Three-Phase Asynchronous TN-YTTD250/250B: Powerful & Stable Core from Nanjing Zhuye Elevatorparts

Step-by-Step Usage Guide for Three-Phase Asynchronous Elevator Door Motor TN-YTTD250/250B

1. Professional Installation & Wiring

• Safety Preparation: Cut off the elevator’s main power supply and the dedicated power supply of the door operator system. Lock the power switch to prevent accidental power-on. Clean the motor mounting position on the door operator bracket to remove dust, oil stains, and debris that may affect installation accuracy and heat dissipation. Check the mounting bracket’s load-bearing capacity to ensure it matches the motor’s weight.
• Motor Installation: Fix the TN-YTTD250/250B motor to the dedicated mounting bracket using high-strength flange bolts provided by Nanjing Zhuye Elevatorparts. Ensure the motor is installed horizontally (horizontal deviation ≤ 1mm) and the output shaft is coaxial with the door operator reducer (coaxiality deviation ≤ 0.1mm) to avoid abnormal wear and vibration. Connect the motor output shaft to the reducer through a coupling, ensuring a tight fit without slipping or loosening. Tighten all bolts evenly according to the specified torque.
• Wiring Operation: In accordance with the elevator door operator system wiring diagram, connect the motor’s three-phase power cables (L1, L2, L3) and control cables to the corresponding interfaces of the door operator controller. Ensure correct wiring phase sequence (to avoid reverse motor rotation), tight terminal connections, and reliable insulation. Use high-temperature resistant cable ties to neatly fix the cables, avoiding contact with moving parts of the door system or high-voltage components to reduce electromagnetic interference. Confirm that the motor’s rated voltage (380V/400V) and frequency (50Hz/60Hz) match the controller’s output parameters.
• Post-Installation Debugging: Restore the power supply and switch the elevator to inspection mode. Test the motor’s rotation direction—adjust the phase sequence of the power cables if the door opening/closing direction is reversed. Adjust the motor’s operating parameters (speed, acceleration/deceleration time) through the controller to match the elevator’s door system requirements. Observe the door operation process to confirm smooth opening and closing, no jitter or stuck phenomena, and the noise level meets the standard. Conduct a 1-hour continuous operation test under full load to check the motor surface temperature (normal temperature ≤ 100℃) and ensure stable performance.

2. Daily Operation & Routine Inspection

• Daily Visual Inspection: During door operator patrols, check the external condition of the TN-YTTD250/250B motor. Ensure the aluminum alloy housing is free of deformation, cracks, or corrosion; the power cable and control cable are intact without aging, wear, or loose connections; the mounting bolts and coupling are tight without looseness. Observe the door operation to check for abnormal phenomena (e.g., slow door opening/closing, obvious vibration, unusual friction noise) that may indicate motor faults.
• Weekly Performance Check: Use a clamp meter to detect the motor’s three-phase input current, ensuring the three phases are balanced (current difference ≤ 10%). Measure the motor surface temperature after peak operation hours to confirm no abnormal overheating. Check the tightness of the coupling and the reducer’s lubrication status—supplement lubricant if necessary. Record the operating parameters for trend analysis and troubleshooting.
• Monthly Cleaning & Maintenance: Clean the motor housing and heat dissipation fins with a soft, dry cloth to remove dust and debris, ensuring good heat dissipation. Inspect the motor’s terminal block for oxidation or loose connections—clean with a contact cleaner if necessary. Check the thermal overload protection device’s functionality to ensure it can trigger protection in case of overheating.

Recommended Replacement Cycle for Three-Phase Asynchronous Elevator Door Motor TN-YTTD250/250B

1. Standard Replacement Cycle

2. Adjustments for Special Scenarios

• Harsh Environments & High-Traffic Scenarios: For elevators in high-humidity coastal areas (salt spray corrosion), high-dust construction sites, or ultra-high-traffic areas (e.g., large airports, central shopping malls) with daily door opening/closing cycles ≥ 4000, the replacement cycle should be shortened to 3–4 years. Harsh conditions and frequent high-load use accelerate motor winding aging, bearing wear, and housing corrosion, significantly reducing the motor’s reliability and service life.
• Low-Frequency Use Scenarios: For heavy-duty elevators with low usage frequency (e.g., large office buildings with off-peak operation, exhibition centers) and stable door operator environments, the replacement cycle can be extended to 6–7 years—only if Nanjing Zhuye Elevatorparts’ professional technicians conduct an inspection and confirm that the motor’s torque performance, speed stability, three-phase current balance, and temperature rise are intact and consistent with original factory standards.

3. Immediate Replacement Conditions

• The motor has insufficient torque, leading to slow door opening/closing, difficulty in opening heavy doors, or frequent stalling during operation, and the fault persists after controller parameter adjustment and reducer maintenance.
• The motor operates with abnormal noise (e.g., sharp friction sound, heavy vibration noise) or overheats rapidly (surface temperature exceeds 120℃ within 10 minutes of operation), and the three-phase current is unbalanced (difference > 10%), indicating internal bearing damage or winding insulation failure.
• The motor fails to start or has intermittent operation, and the fault is confirmed to be caused by internal winding burnout, rotor damage, or phase-failure protection failure after professional testing.
• The motor fails the performance test (e.g., rated torque deviation exceeds ±10%, speed fluctuation exceeds ±5%), failing to meet the heavy-duty elevator door operator system’s power requirements.
