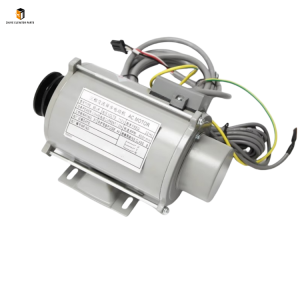

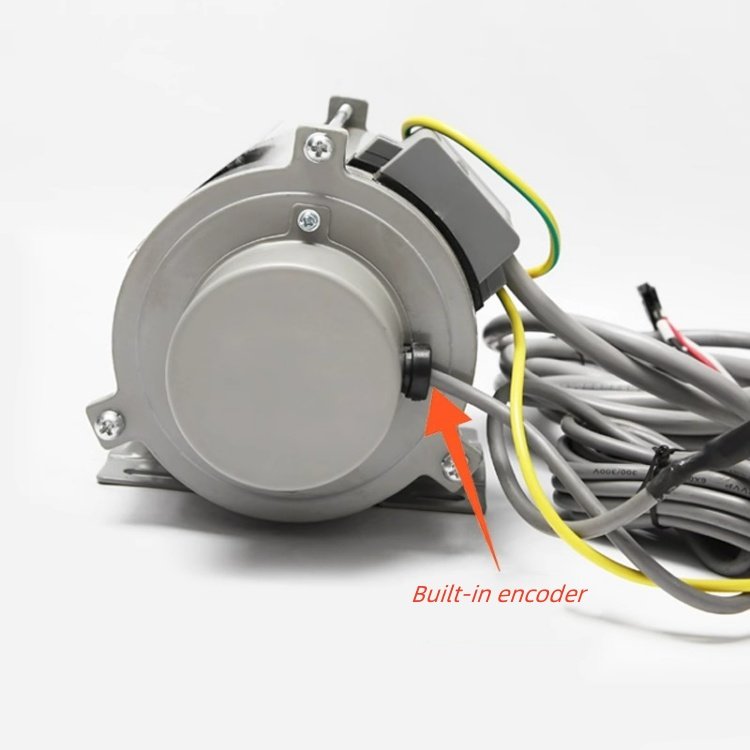

Elevator Door Motor SE-JR/EMB-80-4: High-Precision Drive Core from Nanjing Zhuye Elevatorparts

Step-by-Step Usage Guide for Elevator Door Motor SE-JR/EMB-80-4

1. Professional Installation & Wiring

• Safety Preparation: Cut off the elevator’s main power supply and the dedicated power supply for the door operator system. Lock the power switch and place a “Maintenance in Progress” warning sign to prevent accidental power-on. Clean the motor mounting position on the door operator bracket to remove dust, oil stains, and debris that may affect installation accuracy or heat dissipation.

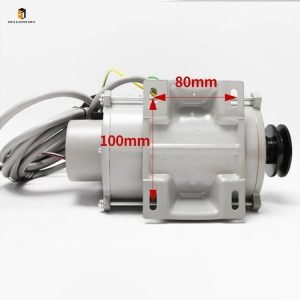

• Motor Installation: Fix the SE-JR/EMB-80-4 motor to the dedicated mounting bracket using high-strength bolts provided by Nanjing Zhuye Elevatorparts. Ensure the motor is installed horizontally (horizontal deviation ≤ 1mm) and that its output shaft is coaxial with the door operator’s reducer (coaxiality deviation ≤ 0.1mm) to avoid abnormal wear and vibration. Connect the motor output shaft to the reducer via a flexible coupling, ensuring a tight fit without slipping.
• Wiring Operation: In accordance with the elevator door operator wiring diagram and the SE-JR/EMB-80-4 user manual, connect the motor’s power cables and the electromagnetic brake’s control cables to the corresponding interfaces of the door operator controller. Confirm the correct phase sequence to avoid reverse motor rotation; ensure terminal connections are tight and insulation is reliable. Use shielded cables for control signals and connect the shield layer to the ground terminal to enhance anti-interference performance. Verify that the motor’s rated voltage, frequency, and power match the controller’s output parameters.
• Post-Installation Debugging: Restore the power supply and switch the elevator to inspection mode. Adjust the motor’s speed and acceleration/deceleration parameters via the controller to match the elevator’s door opening/closing requirements (standard opening speed: 0.8–1.2m/s, closing speed: 0.6–0.9m/s). Test the door operation to ensure smooth movement without jitter, sticking, or excessive noise. Confirm the electromagnetic brake functions normally—doors should stop immediately when blocked and remain locked when the motor is powered off. Conduct a 1-hour continuous operation test to check the motor’s surface temperature (normal temperature ≤ 90℃) and speed stability.

2. Daily Operation & Routine Maintenance

• Daily Visual Inspection: During door operator patrols, check the motor’s external condition. Ensure the aluminum alloy housing is free of deformation, cracks, or corrosion; the power and control cables are intact without aging, wear, or loose connections; the mounting bolts and coupling are tight. Observe the door operation for abnormalities (e.g., slow movement, uneven speed, unusual noise) that may indicate motor faults.
• Weekly Performance Check: Use a clamp meter to measure the motor’s input current, ensuring it is within the rated range. Measure the motor’s surface temperature after peak operation hours to confirm no abnormal overheating. Check the coupling’s tightness and the reducer’s lubrication status, adding the recommended lubricant (provided by Nanjing Zhuye Elevatorparts) if necessary.
• Monthly Cleaning & Maintenance: Clean the motor housing and heat dissipation fins with a soft, dry cloth to remove dust and debris, ensuring effective heat dissipation. Inspect the terminal block for oxidation or loose connections, cleaning or tightening as needed. Verify the functionality of the electromagnetic brake by testing the door’s holding force when powered off.

Recommended Replacement Cycle for Elevator Door Motor SE-JR/EMB-80-4

1. Standard Replacement Cycle

2. Adjustments for Special Scenarios

• Harsh Environments & High-Traffic Scenarios: For elevators in high-humidity coastal areas (salt spray corrosion), high-dust industrial sites, or high-traffic locations (e.g., shopping malls, airports) with daily door cycles ≥ 3000, the replacement cycle should be shortened to 3–4 years. Harsh conditions and frequent use accelerate winding aging, bearing wear, and electromagnetic brake degradation, significantly reducing the motor’s reliability.
• Low-Frequency Use Scenarios: For elevators with low usage frequency (e.g., villa elevators, small offices with daily operation time < 8 hours) and stable environments, the replacement cycle can be extended to6–7 years—only if Nanjing Zhuye Elevatorparts’ professional technicians conduct an inspection and confirm that the motor’s speed control performance, torque output, and brake function meet the original factory standards.

3. Immediate Replacement Conditions

• Insufficient torque causes slow door operation, difficulty opening heavy doors, or frequent stalling—fault persists after controller adjustment and reducer maintenance.
• Speed control fails or is inaccurate, leading to uneven door movement, excessive opening/closing speed, or failure to decelerate at the end of the stroke.
• Abnormal noise (e.g., sharp friction, heavy vibration) or rapid overheating (surface temperature > 120℃ within 10 minutes) indicates internal bearing damage or winding failure.
• The electromagnetic brake fails, causing the door to slide freely when the motor is powered off, or the motor fails to start/operate intermittently due to brake jamming.
