Description

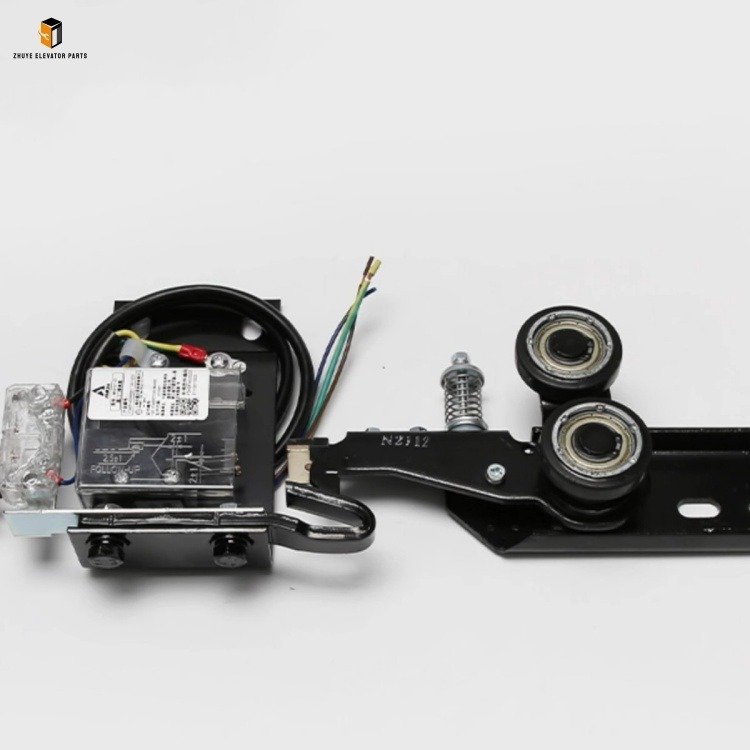

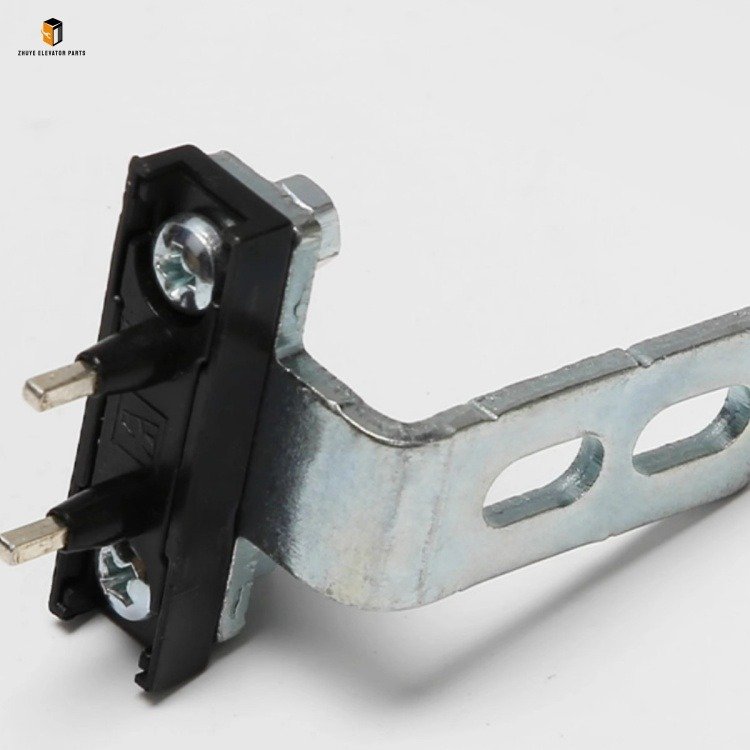

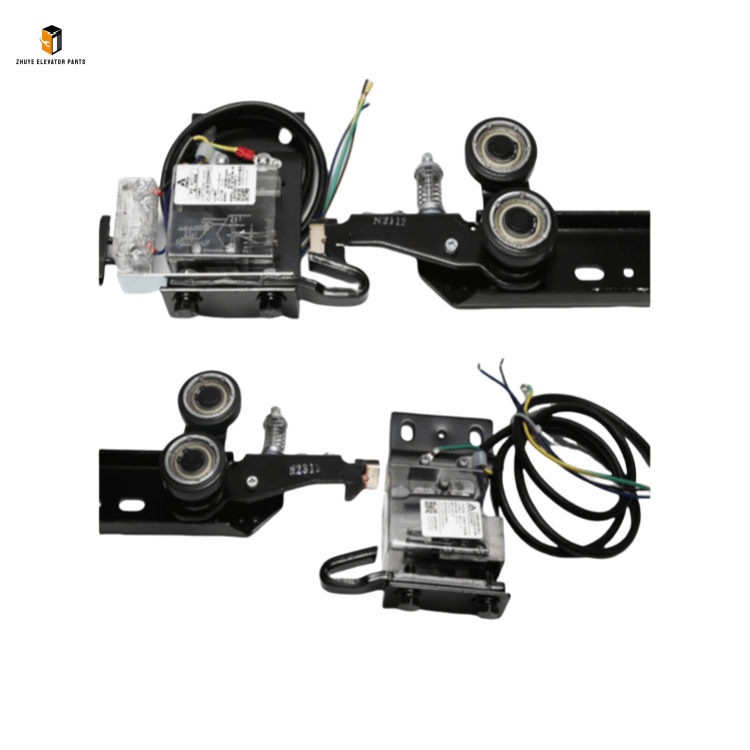

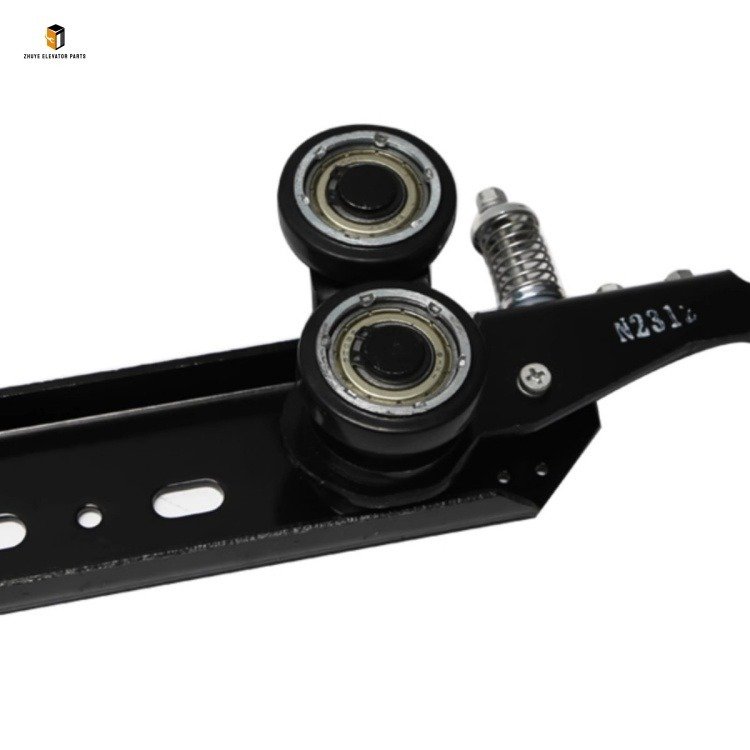

Elevator door lock device MKG161-01 Brief Introduction

Product Name	Elevator door lock device
Model Number	MKG161-01
Quality	Original.Brand New
Payment	T/T. Paypal. Western Union
Delivery	3-5 Working Days
Packaging	Packed by carton

Elevator Door Lock Device MKG161-01: Safety Control Core from Nanjing Zhuye Elevatorparts

Elevator Door Lock Device MKG161-01 is a critical safety control component for elevator door systems, specifically designed for elevator car doors and landing doors. It serves as the core guarantee for elevator door safety, integrating door locking, safety interlocking, and signal feedback functions—ensuring the elevator can only operate when the doors are fully locked, and preventing the doors from opening unexpectedly during operation. The MKG161-01 device automatically locks the door leaves when the elevator car departs from the floor, and unlocks them only when the car arrives at the target floor and is leveled accurately. Compatible with mainstream elevator door machine systems (including Siemens, KONE, and Mitsubishi), it is widely applicable to residential, commercial, and industrial elevators. Exclusively supplied by Nanjing Zhuye Elevatorparts, a professional provider of high-quality elevator safety components, the Elevator Door Lock Device MKG161-01 fully complies with international elevator safety standards (EN 81-20, GB 7588) and door system control specifications. Manufactured with premium metal materials and precision electronic components, it features excellent stability, high locking reliability, and sensitive signal feedback, winning trust from global elevator maintenance teams and manufacturers.

Nanjing Zhuye Elevatorparts adheres to the core philosophy of “Safe Locking, Precise Control” and implements strict quality control for the Elevator Door Lock Device MKG161-01. Each unit undergoes multi-stage pre-delivery inspections, including locking force verification, interlocking signal testing, durability evaluation, and environmental adaptability detection. The MKG161-01 device adopts advanced materials and technologies: the lock body is made of high-strength aluminum alloy or carbon steel, with a locking force of ≥ 1500N to resist external impact; the locking mechanism uses a precision mechanical structure with self-locking function, ensuring stable locking even during power failure; the electronic interlocking switch uses gold-plated contacts, ensuring sensitive and reliable signal transmission (response time ≤ 0.1s); the shell is designed with IP54 protection rating, effectively resisting dust and moisture in the shaft (-20℃ to 70℃). The standardized interface and mounting dimensions enable seamless matching with most elevator door machine systems, simplifying installation and replacement.

Step-by-Step Usage Guide for Elevator Door Lock Device MKG161-01

To maximize the ecuricontrol accuracylubrication effectervice life, guidance accuracy, and operational stability of Elevator Door Lock Device MKG161-01Control Box Lock E-431AC Contactor (LC1D09M7C/12F7C/18/50/40/32/25)Car Emergency Lighting (COP Control Box Emergency Round Light)Guide Shoe Lining (230*10MM/230*16MM)Oil Cup & Oil Box, strictly follow the professional guidelines provided by Nanjing Zhuye Elevatorparts for selection, installation, and maintenance:

1. Professional Selection & Pre-Installation Preparation

Installation must be performed by certified elevator technicians. Prior to selection, confirm the elevator’s door machine model and door leaf thickness to ensure compatibility with the MKG161-01 door lock device. Consult Nanjing Zhuye Elevatorparts’ technical team if unsure about matching. Preparation steps: Cut off the elevator’s main power supply and secondary power supply, and lock the power switch; place a “Maintenance in Progress” warning sign at the elevator entrance and shaft access door; fix the elevator car at a flat floor with mechanical supports; open the car door and landing door panels, and disconnect the wiring of the old door lock device (take photos to record the wiring position); clean the door lock mounting position to remove dust, oil stains, and debris; prepare professional tools such as a screwdriver, multimeter, and torque wrench.

FunctionFunctionFunctionFunction2. Correct Installation & Precision Adjustment

Device Fixing: Take the Elevator Door Lock Device MKG161-01 from Nanjing Zhuye Elevatorparts, align it with the preset mounting holes on the door leaf or door frame, and fix it with stainless steel screws (torque: 4–6N·m). Ensure the device is installed horizontally without tilting, and the locking tongue can extend and retract smoothly without obstruction by door components.
Wiring Connection: According to the recorded wiring position and Nanjing Zhuye Elevatorparts’ wiring manual, connect the power cord, signal wire, and interlocking wire of the MKG161-01 device to the corresponding interfaces of the door machine controller. Distinguish between positive and negative poles and signal lines to avoid short circuits or signal failure. Tighten the wiring terminals firmly and use cable ties to organize the wire harness.
Function Calibration: Restore the secondary power supply first, and use a multimeter to test the input voltage of the device (ensure it matches the rated voltage: AC220V or DC24V). Manually open and close the door leaves to test the locking and unlocking functions—confirm the locking tongue extends and locks the door when the door is closed, and retracts smoothly when the door is opened. Test the interlocking signal: ensure the elevator controller receives the “door locked” signal only when the doors are fully closed, and the “door unlocked” signal when the doors are opened. Adjust the position of the device if there is a signal delay or failure.

3. Post-Installation Testing & Daily Maintenance

Comprehensive Function Testing: Restore the elevator’s main power supply and switch to inspection mode. Operate the elevator to run up and down, testing the door lock function at each floor: Confirm the doors lock automatically after the car departs, and unlock only when the car is leveled. Test the emergency unlocking function (using the emergency key) to ensure the doors can be opened manually in case of emergency. Use a signal tester to verify the stability of the interlocking signal.
Daily Inspection: Maintenance personnel should check the MKG161-01 device during daily shaft patrols: Observe the device’s shell for damage, deformation, or loose mounting screws; check the locking tongue for wear or jamming; listen for abnormal noise during locking/unlocking; clean the device surface and locking tongue with a dry cloth to remove dust and oil stains. Check the wiring terminals for looseness or oxidation regularly.
Regular Maintenance: Every 3 months, apply a small amount of special lubricant (recommended by Nanjing Zhuye Elevatorparts) to the locking mechanism and moving parts of the device to ensure flexible operation. Every 6 months, use a multimeter to test the resistance of the interlocking switch contacts (should be ≤ 1Ω) and check the insulation performance of the wiring. For elevators in high-humidity or dusty environments, shorten the maintenance interval to 1 month and recheck the device’s protection performance.

Recommended Replacement Cycle for Elevator Door Lock Device MKG161-01

As a core safety component enduring long-term mechanical movement, door opening/closing impact, environmental erosion (humidity, dust, temperature changes), and electronic component aging, the Elevator Door Lock Device MKG161-01 has a specified service life. Timely replacement is crucial to avoiding faults such as locking failure, interlocking signal delay, or unlocking jamming—issues that may lead to elevator operation accidents (e.g., the elevator running with doors open) or difficulty in opening doors during emergencies, endangering passenger safety.

1. Standard Replacement Cycle

Under normal operating conditions (elevator daily operation time 12–24 hours, daily door opening/closing times ≥ 1000, operating environment temperature -20℃ to 70℃, humidity 10%–95%), the recommended replacement cycle for the Elevator Door Lock Device MKG161-01 is 3–5 years. This cycle is determined based on Nanjing Zhuye Elevatorparts’ long-term field operation data, mechanical durability tests, and electronic component aging evaluations. The cycle fully considers the high-frequency use of elevator door systems and the impact of the shaft environment on component performance.

2. Adjustments for Special Scenarios

High-Traffic & Harsh Environments: For elevators in high-traffic areas (e.g., large shopping malls, airports with daily door opening/closing times ≥ 2000) or harsh environments (e.g., coastal areas with high salt spray, industrial sites with strong dust), the replacement cycle is shortened to 1.5–2.5 years. High-frequency door opening/closing accelerates the wear of the locking mechanism, while harsh environments cause rapid aging of electronic components and corrosion of the lock body.
Low-Frequency Use & Stable Environments: For elevators with low usage frequency (e.g., villa elevators, small office buildings with daily operation time < 8 hours) and stable shaft environments (constant temperature and humidity, little dust), the replacement cycle can be extended to 5–7 years—only after Nanjing Zhuye Elevatorparts’ technicians inspect and confirm that the locking force, interlocking signal, and electronic component performance meet factory standards.

3. Immediate Replacement Conditions

Replace the Elevator Door Lock Device MKG161-01 immediately if any of the following issues occur, regardless of its service life:

The locking tongue is severely worn or deformed, leading to insufficient locking force (＜1000N) or failure to lock the door leaves firmly.
The interlocking signal is delayed or lost, causing the elevator to fail to receive the “door locked” signal (elevator cannot start) or to run with doors open.
The electronic components (e.g., interlocking switch, wiring) are aging or damaged, leading to frequent device malfunctions that cannot be repaired by maintenance.
The lock body is severely corroded, cracked, or damaged due to impact, and the locking mechanism is stuck—making it impossible to open or close the doors normally.

Door Lock Device MKG161-01liable safety controloderndoorsafdoorthe lives of passengersMKG161-01 door lock devicemodelafety controldoorIn conclusion, the Elevator Control Box Lock E-431 from Nanjing Zhuye Elevatorparts is a high-quality, reliable security component tailored for modern elevator control systems. By following the correct selection, installation, maintenance, and replacement guidelines, elevator maintenance teams can effectively ensure the security of the elevator control box, prevent unauthorized access and potential hazards, and enhance the overall safety of the elevator system. Choosing Nanjing Zhuye Elevatorparts means you get 100% authentic E-431 control box locks, plus professional support—including model matching, key duplication services, and on-site installation guidance. Trust Nanjing Zhuye Elevatorparts for the secure protection of your elevator control box.
