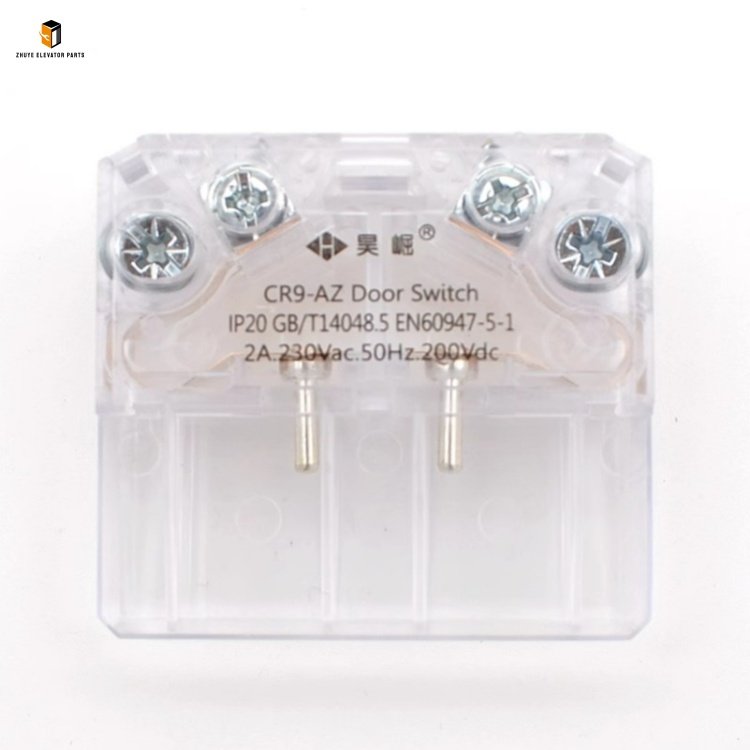

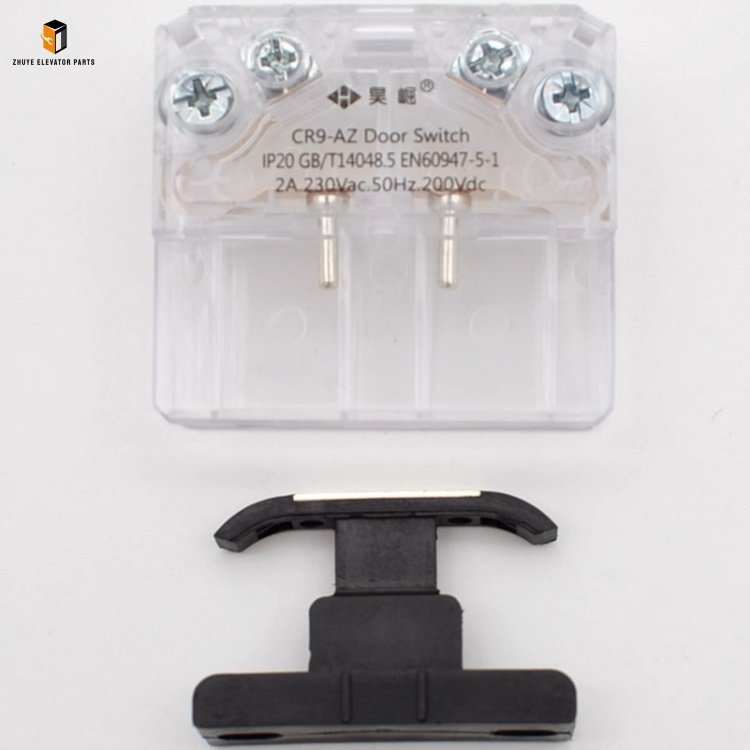

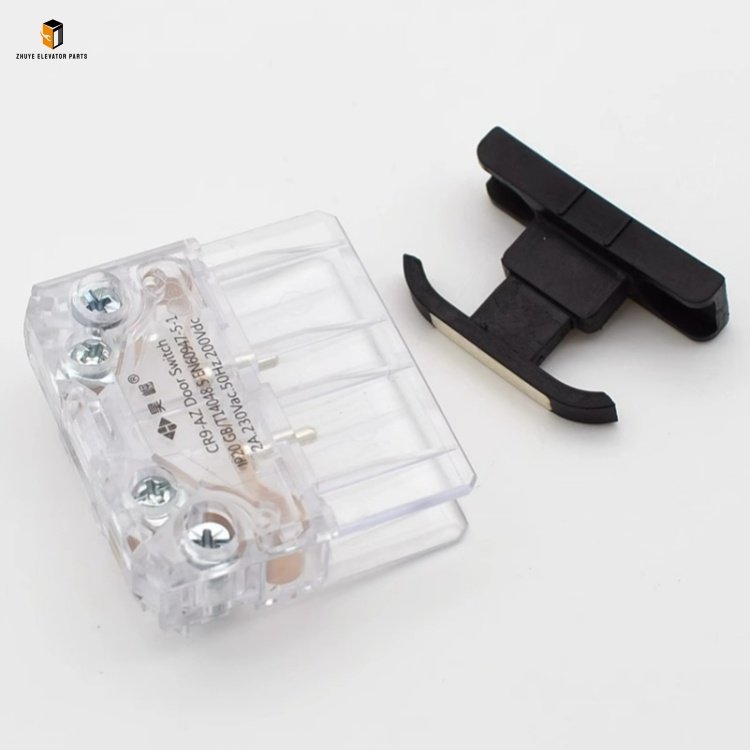

Elevator Door Lock Contact Switch CR9-AZ: The Safety Guardian for Elevator Door Systems

In the complex safety system of elevators, the door lock contact switch is a core component that directly determines whether the elevator can operate safely. The Elevator Door Lock Contact Switch CR9-AZ, a meticulously crafted product from Nanjing Zhuye Elevatorparts—a trusted manufacturer specializing in high-performance elevator components—has become the preferred choice for global elevator maintenance teams and manufacturers, thanks to its stable performance, high sensitivity, and durable structure.

Designed to monitor the locking status of elevator car doors and landing doors, the CR9-AZ switch plays a non-negotiable role in elevator safety. It establishes a secure electrical connection only when the elevator doors are fully closed and locked; if the doors are not latched properly, the switch will immediately cut off the elevator’s operation circuit, preventing the car from starting or moving unexpectedly. This critical function effectively eliminates potential hazards such as door slippage, passenger entrapment, and falls, complying with the strictest international elevator safety standards. Nanjing Zhuye Elevatorparts has optimized the switch’s internal contact structure, using high-quality silver alloy contacts to enhance conductivity and anti-corrosion performance, ensuring stable signal transmission even in the dusty, humid environment of elevator shafts.

Using the Elevator Door Lock Contact Switch CR9-AZ from Nanjing Zhuye Elevatorparts requires strict compliance with professional installation procedures to guarantee optimal safety and functionality. First and foremost, ensure the elevator is completely powered off and locked out, following industry safety protocols to prevent accidental startup during installation. Next, locate the designated mounting position on the elevator door lock mechanism—usually a pre-designed slot on the lock tongue assembly. Clean the mounting surface thoroughly to remove dust, rust, or grease residues that may affect the switch’s contact stability. Then, align the CR9-AZ switch with the mounting holes and secure it firmly using the stainless-steel fasteners provided by Nanjing Zhuye Elevatorparts. After physical installation, connect the switch’s wiring terminals to the elevator control circuit according to the attached wiring diagram, ensuring correct polarity to avoid signal failure or short circuits. Finally, conduct a comprehensive functionality test: manually close the elevator doors to check if the switch triggers the lock confirmation signal promptly, and verify that the elevator can only start running when the doors are fully locked. Adjust the switch’s position slightly if there is any delay in signal response.

While the CR9-AZ switch is built with wear-resistant materials to extend service life, timely replacement is essential to maintain elevator safety. Nanjing Zhuye Elevatorparts recommends a standard replacement cycle of 20–26 months under normal operating conditions. This timeline is based on the gradual wear of internal mechanical components and the oxidation of contact points caused by long-term use. For elevators in high-traffic locations such as shopping malls, hospitals, and transportation hubs—where doors open and close hundreds of times daily—the replacement cycle should be shortened to 14–18 months, as frequent mechanical stress accelerates component aging. For low-traffic scenarios like private villas or small office buildings, the cycle can be extended moderately but should never exceed 32 months, as prolonged use increases the risk of switch failure and safety hazards.

In addition to following the recommended replacement cycle, maintenance teams must conduct routine inspections during regular elevator servicing. Key checkpoints include examining the switch for physical damage, checking wiring connections for looseness, and testing signal responsiveness. If any abnormalities are detected—such as intermittent signal loss, delayed lock confirmation, or visible corrosion on contacts—the switch must be replaced immediately, regardless of its current service life. Delaying replacement can lead to catastrophic safety issues, including elevator movement with partially open doors, which not only endangers passenger safety but also incurs costly regulatory penalties and equipment maintenance fees.

Nanjing Zhuye Elevatorparts has long been dedicated to producing elevator components that prioritize safety and durability, and the CR9-AZ door lock contact switch is a testament to this commitment. By choosing this product and adhering to proper installation and replacement guidelines, elevator maintenance teams can ensure long-term operational stability, reduce downtime, and deliver a safe, worry-free riding experience for passengers.

In conclusion, the Elevator Door Lock Contact Switch CR9-AZ is a small but indispensable component that underpins the entire safety framework of elevator systems. With Nanjing Zhuye Elevatorparts’ quality assurance and professional support, building managers can safeguard their elevator infrastructure, ensuring compliance with safety standards and maximizing passenger satisfaction.
