Description

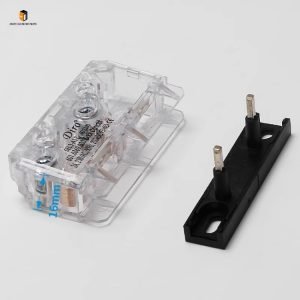

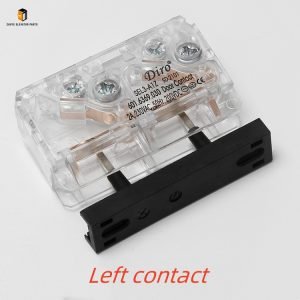

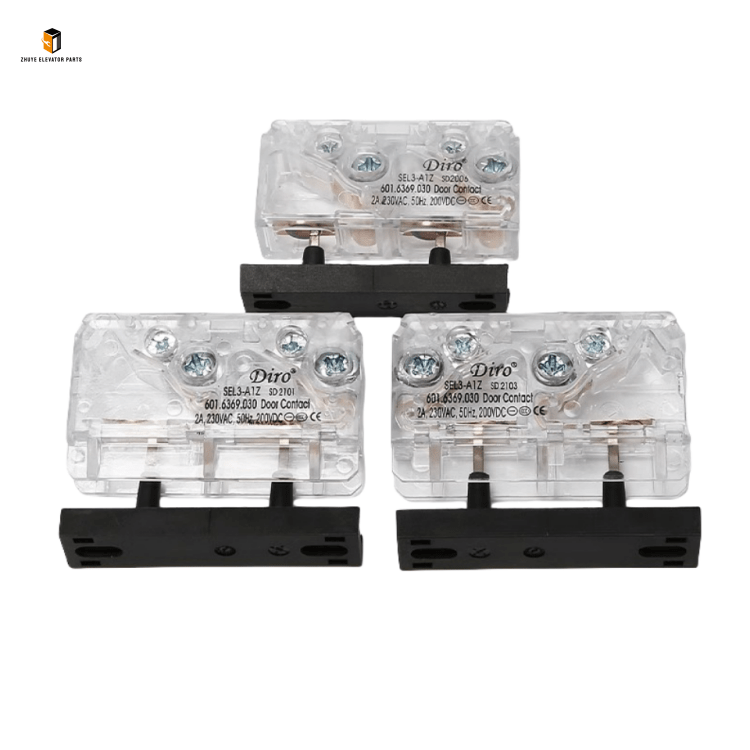

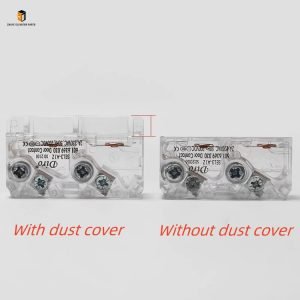

Elevator door lock contact Diro SEL3-A1Z Brief Introduction

Product Name	Elevator door lock contact Diro
Model Number	SEL3-A1Z
Quality	Original.Brand New
Payment	T/T. Paypal. Western Union
Delivery	3-5 Working Days
Packaging	Packed by carton

Elevator Door Lock Contact Diro SEL3-A1Z: Safe Interlock Core from Nanjing Zhuye Elevatorparts

Elevator Door Lock Contact Diro SEL3-A1Z is a critical electrical interlock component for elevator door systems, responsible for transmitting accurate “locked/unlocked” signals to the elevator controller. It serves as a safety barrier to ensure the elevator can only start or operate normally when the landing door and car door are fully locked, and immediately triggers an emergency stop if the door is abnormally opened during operation. Specifically designed to match the Diro SEL3 series door lock systems, this contact is widely compatible with mainstream elevator brands and is extensively applied in residential buildings, commercial complexes, office towers, airports, and industrial elevators. Exclusively supplied by Nanjing Zhuye Elevatorparts, a professional and trusted provider of high-quality elevator electrical components, thisElevator Door Lock Contact Diro SEL3-A1Z fully complies with international elevator safety standards (EN 81-20, GB 7588) and electrical contact technical specifications (IEC 60947). Crafted with premium conductive materials and precision manufacturing technology, it features excellent contact reliability, strong arc ablation resistance, and long service life, winning recognition from global elevator maintenance teams and manufacturers.

Nanjing Zhuye Elevatorparts adheres to the core philosophy of “Safe Interlock, Stable Transmission” and implements strict quality control throughout the production and inspection process of the Diro SEL3-A1Z door lock contact. Each unit undergoes multi-stage pre-delivery inspections, including contact resistance testing, arc ablation resistance verification, insulation performance detection, and high-temperature and humidity resistance trials. The contact adopts advanced materials and technology: the contact point is made of silver-nickel alloy (AgNi 10), ensuring a contact resistance of ≤ 50mΩ and excellent electrical conductivity; the base is made of flame-retardant engineering plastic (UL94 V0 grade) with IP54 protection rating, effectively resisting humidity, dust, and mechanical impact in elevator shafts (-20℃ to 80℃); the standardized pin and mounting structure enables seamless matching with Diro SEL3 series door locks, simplifying installation and replacement processes. The contact is equipped with a snap-in fixing design, ensuring firm connection without loosening during long-term vibration.

Step-by-Step Usage Guide for Elevator Door Lock Contact Diro SEL3-A1Z

To maximize the safety performance, service life, and operational stability of the Elevator Door Lock Contact Diro SEL3-A1Z, strictly follow the professional guidelines provided by Nanjing Zhuye Elevatorparts for selection, installation, and maintenance:

1. Professional Selection & Installation

Installation must be conducted by certified elevator technicians proficient in door lock systems. Prior to installation, refer to the compatibility manual provided by Nanjing Zhuye Elevatorparts to confirm that the Diro SEL3-A1Z contact matches the elevator’s door lock model (Diro SEL3 series) and control system voltage (DC 24V/AC 220V). The installation steps are as follows:

Safety Preparation: Cut off the elevator’s main power supply and lock the power switch to prevent accidental power-on. Place a “Maintenance in Progress” warning sign at the elevator entrance. Fix the landing door and car door in the fully closed position with mechanical supports to avoid interference with installation.
Old Contact Removal: Locate the door lock assembly on the elevator door frame, find the Diro SEL3 series door lock contact (mark the wiring positions to avoid wrong connection). Press the snap-in clip to remove the old contact from the door lock base, then disconnect the signal wires. Clean the contact mounting base to remove dust, oil stains, and oxide layers.
New Contact Installation: Take the new Diro SEL3-A1Z door lock contact from Nanjing Zhuye Elevatorparts, align it with the mounting base, and press firmly until it snaps into place. Connect the signal wires according to the marked positions (distinguish between normally open and normally closed contacts) to ensure tight connections and correct polarity. Fasten the wire harness with cable ties to prevent it from being squeezed or worn by the door linkage mechanism.

2. Debugging & Function Test

Debugging and function testing are crucial to ensuring the reliable operation of the Diro SEL3-A1Z door lock contact. Follow these steps with reference to Nanjing Zhuye Elevatorparts’ technical guidelines:

Power-On Inspection: Restore the elevator’s power supply and check if the contact works normally. Use a multimeter to detect the contact resistance—ensure it is ≤ 50mΩ when closed and ≥ 100MΩ when open, which meets the standard requirements.
Interlock Signal Test: Switch the elevator to inspection mode. Close the landing door and car door fully, and confirm that the elevator controller receives the “locked” signal (no interlock alarm). Open the door slightly, and check that the controller immediately receives the “unlocked” signal and triggers the safety shutdown mechanism. Repeat the test 10 times to ensure stable signal transmission.
Arc Resistance Test: Simulate the frequent door opening and closing scenario (20 times continuously) to check the contact’s arc ablation resistance. After the test, inspect the contact surface for no obvious ablation or oxidation; use a multimeter to recheck the contact resistance, ensuring no significant increase.

3. Daily Operation & Routine Maintenance

Regular inspection and maintenance are essential to early fault detection and ensuring the long-term stable operation of the Diro SEL3-A1Z door lock contact. Maintenance personnel should integrate the following checks into their daily patrol routines:

Daily Visual Inspection: During elevator patrols, check the external condition of the contact. Ensure the shell is free of deformation, cracks, or corrosion; the wiring is intact without aging, wear, or loose connections; the snap-in clip is firm without loosening.
Weekly Contact Performance Check: Use a multimeter to test the contact resistance (closed and open states) to ensure it meets the standard range. If the resistance increases significantly or the signal is unstable, clean the contact surface with a professional contact cleaner immediately.
Monthly Comprehensive Inspection: Cut off the power supply and remove the contact to check for ablation, oxidation, or wear on the contact point. Check the insulation performance of the base with a megohmmeter (insulation resistance ≥ 100MΩ). Reinstall the contact and recheck the interlock signal function.

Recommended Replacement Cycle for Elevator Door Lock Contact Diro SEL3-A1Z

As a core electrical component enduring long-term electrical arcing, environmental erosion (humidity, dust, temperature changes), and frequent switching operations, the Diro SEL3-A1Z door lock contact has a specified service life. Timely replacement is critical to avoiding faults such as increased contact resistance, poor contact, or signal interruption—issues that may lead to elevator operation errors, abnormal door opening during operation, or even serious safety accidents endangering passenger lives.

1. Standard Replacement Cycle

Under normal operating conditions (elevator daily operation time 12–24 hours, daily door opening/closing cycles ≥ 2000, environment temperature -20–80℃, humidity 10%–95%), the recommended replacement cycle for the Diro SEL3-A1Z elevator door lock contact is 3–5 years. This cycle is determined based on Nanjing Zhuye Elevatorparts’ long-term field operation data, component aging tests, and global user feedback on Diro SEL3 series door lock systems.

2. Adjustments for Special Scenarios

Harsh Environments & High-Traffic Scenarios: For elevators in high-humidity coastal areas (salt spray corrosion), high-dust industrial sites, or ultra-high-traffic locations (e.g., large airports, central shopping malls) with daily door cycles ≥ 3500, the replacement cycle is shortened to 1.5–2.5 years. Harsh conditions accelerate the oxidation and ablation of the contact point, reducing the contact’s reliability.
Low-Frequency Use & Stable Environments: For elevators with low usage frequency (e.g., villa elevators, small office buildings with daily operation time < 8 hours) and stable environments (constant temperature and humidity), the replacement cycle can be extended to 5–6 years—only if Nanjing Zhuye Elevatorparts’ professional technicians conduct an inspection and confirm that the contact resistance, insulation performance, and signal stability meet the original factory standards.

3. Immediate Replacement Conditions

Replace the Diro SEL3-A1Z elevator door lock contact immediately if any of the following issues occur, regardless of its service life:

The contact resistance exceeds 200mΩ when closed, leading to frequent elevator interlock alarms or unstable operation.
The contact is severely ablated, oxidized, or worn, resulting in poor contact, signal interruption, or failure to transmit signals normally.
The contact shell is cracked or corroded, exposing internal components, which may cause short circuits or electrical safety hazards.
Professional testing confirms that the contact’s insulation performance is unqualified (insulation resistance < 100MΩ), posing a risk of electrical leakage.

In conclusion, the Elevator Door Lock Contact Diro SEL3-A1Z supplied by Nanjing Zhuye Elevatorparts is a high-quality, reliably compatible interlock component tailored for Diro SEL3 series elevator door lock systems. By adhering to the correct usage methods, maintenance schedules, and replacement cycles outlined above, elevator maintenance teams can effectively ensure the safe and stable operation of the elevator door system, safeguard the safety of passengers and maintenance personnel, and minimize downtime. Choosing Nanjing Zhuye Elevatorparts means you not only get 100% authentic Diro SEL3-A1Z door lock contacts but also access to professional technical support—including model matching guidance, on-site installation and debugging advice, and prompt after-sales service. Trust Nanjing Zhuye Elevatorparts for your elevator’s door lock interlock safety needs.
