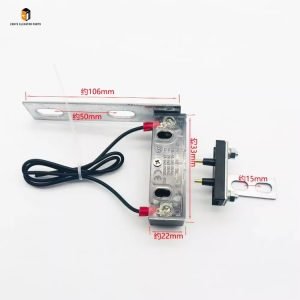

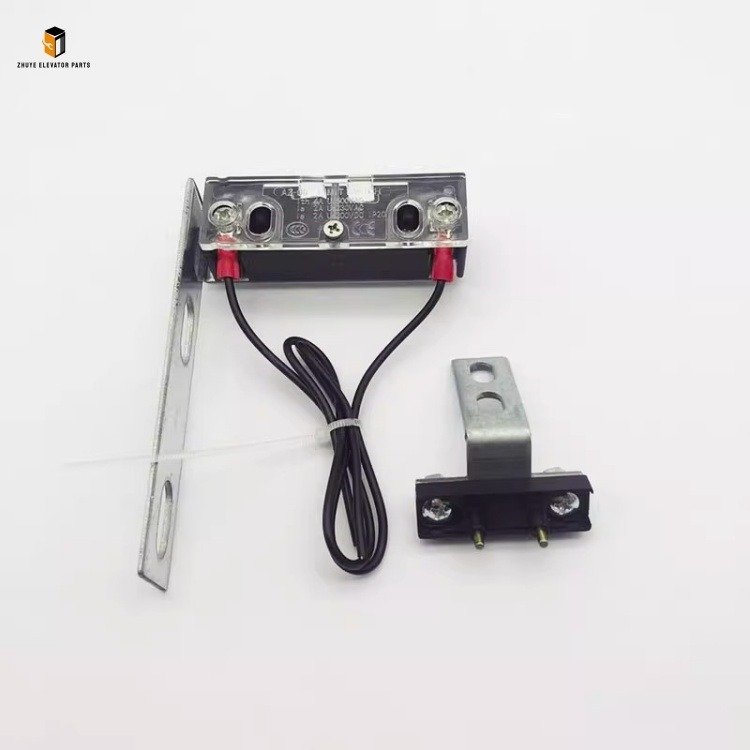

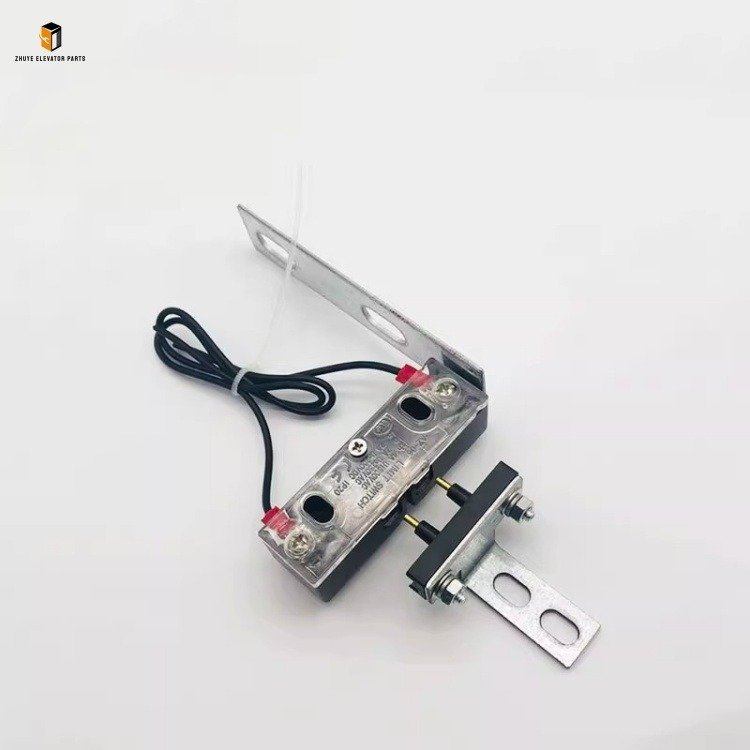

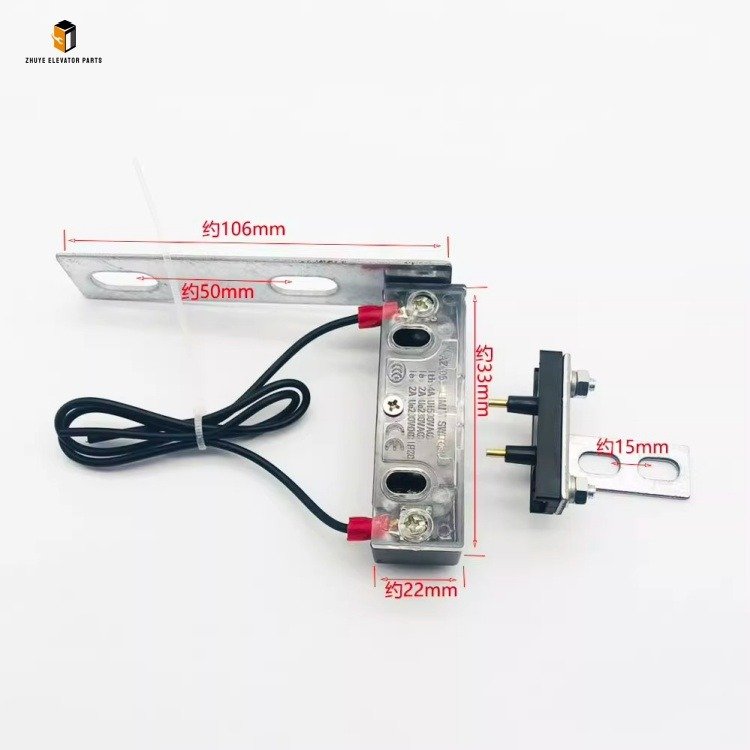

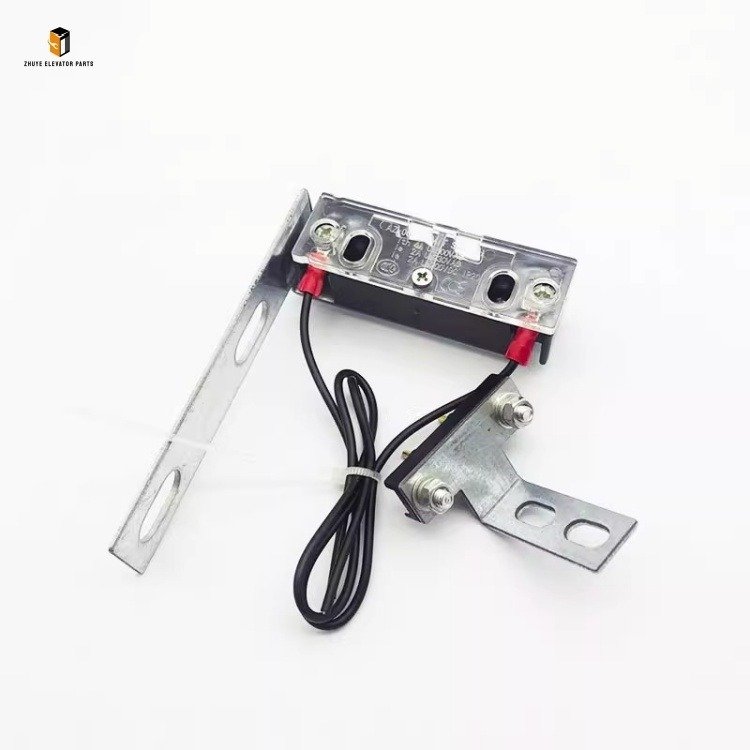

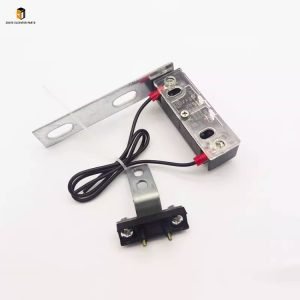

Elevator door lock bracket AZ-06 Introduction
|
Product Name |
Elevator door lock bracket |
| Model Number | AZ-06 |
|
Quality
|
Original.Brand New
|
|
Payment
|
T/T. Paypal. Western Union
|
|
Delivery
|
3-5 Working Days
|
|
Packaging
|
Packed by carton
|
Elevator Door Lock Bracket AZ-06 – Nanjing Zhuye Elevatorparts
The elevator car top emergency power supply is a critical safety component that ensures the elevator’s emergency systems (such as lighting, communication, and door opening) operate normally when the main power supply fails. The Elevator Car Top Emergency Power Supply DJW12-4.5/7.0 provided byNanjing Zhuye Elevatorparts is a high-reliability power supply device tailored for mainstream elevator systems. It supports two capacity specifications (4.5Ah and 7.0Ah) to meet the needs of different elevator models, widely compatible with brands such as Schindler, OTIS, and KONE. Crafted with high-performance lithium-ion batteries, intelligent charging management modules, and flame-retardant casings, this emergency power supply meets international elevator safety standards (EN 81-20, GB 7588) and has become a trusted choice for global elevator maintenance teams and manufacturers.
The elevator leveling system is a key component that ensures the elevator car aligns accurately with the floor, providing safe and comfortable access for passengers. The elevator leveling sensor serves as the “eye” of this system, detecting the car’s position in real time. The Elevator Leveling Sensor TNC-121 provided by Nanjing Zhuye Elevatorparts is a high-precision position-sensing component tailored for mainstream elevator systems. It is widely compatible with elevator brands such as Schindler, OTIS, and KONE, suitable for both passenger and freight elevators. This sensor adopts advanced photoelectric sensing technology, featuring high detection accuracy, fast response speed, and strong anti-interference ability, ensuring the elevator stops stably and accurately at each floor. Crafted with high-quality optical components, sealed metal shells, and precision electronic circuits, it meets international elevator safety standards (EN 81-20, GB 7588) and has become a trusted choice for global elevator maintenance teams and manufacturers.
The elevator lock is a core safety component that ensures the elevator car door and landing door remain locked during operation, preventing accidental opening and ensuring passenger safety. The Elevator Lock CV50 180 JK406-001 provided by Nanjing Zhuye Elevatorparts is a high-reliability safety lock tailored for mainstream elevator systems. It is widely compatible with elevator brands such as Schindler, OTIS, and KONE, suitable for both passenger and freight elevators. This elevator lock integrates precise mechanical structure and stable electrical control, achieving reliable locking when the elevator is running and smooth unlocking when it reaches the floor. Crafted with high-strength alloy steel, flame-retardant plastic, and precision electronic components, it meets international elevator safety standards (EN 81-20, GB 7588) and has become a trusted choice for global elevator maintenance teams and manufacturers.
The elevator’s electrical control system is prone to arc generation during switch-on and switch-off of contacts, which may cause damage to electrical components or even fire hazards. The elevator arc extinguisher serves as a “safety barrier” to suppress and eliminate arcs. The Elevator Arc Extinguisher HD1.211 provided by Nanjing Zhuye Elevatorparts is a high-performance arc suppression component tailored for elevator electrical systems. It is widely compatible with mainstream elevator brands such as Schindler, OTIS, and KONE, suitable for arc suppression of elevator contactors, relays, and other electrical contacts. Crafted with high-quality arc-extinguishing materials, flame-retardant shells, and precision structural design, this arc extinguisher meets international electrical safety standards (IEC 60947, GB/T 14048) and has become a trusted choice for global elevator maintenance teams and manufacturers.
The elevator door operator is the “power core” of elevator door opening and closing, and the door operator belt serves as a critical transmission component that connects the motor and door pulley system. The Elevator Door Operator Belt L075 provided by Nanjing Zhuye Elevatorparts is a high-performance transmission belt tailored for mainstream elevator door operator systems. It is widely compatible with elevator brands such as Schindler, OTIS, and KONE, playing a vital role in ensuring smooth, quiet, and stable operation of elevator doors. Crafted with high-strength polyurethane (PU) material and embedded with high-tensile polyester cords, this belt features excellent wear resistance, tensile strength, and flexibility, meeting international elevator safety standards (EN 81-20, GB 7588) and becoming a trusted choice for global elevator maintenance teams and manufacturers.
The elevator door lock system is a core safety component, and its stable installation and operation rely on high-quality brackets. The Elevator Door Lock Bracket AZ-06 launched by Nanjing Zhuye Elevatorparts is a precision structural component tailored for mainstream elevator door lock systems, closely cooperating with the door machine pulley system (composed of drive and driven pulleys). It is widely compatible with renowned elevator brands such as Schindler, OTIS, and KONE, providing a solid installation base for door lock components and ensuring the coordinated operation between the door lock and the door machine pulley system. Crafted with high-strength carbon steel, precision stamping technology, and anti-corrosion coating, this bracket meets international elevator safety standards (EN 81-20, GB/T 7025) and has become a trusted choice for global elevator maintenance teams and manufacturers.
Nanjing Zhuye Elevatorparts has always adhered to the concept of “quality first, safety-oriented,” implementing strict quality control throughout the production process of the AZ-06 elevator door lock bracket. Each unit undergoes rigorous testing, including load-bearing capacity verification, tensile strength testing, dimensional accuracy calibration, and anti-corrosion performance assessment. The high-strength carbon steel material ensures the bracket can withstand the frequent impact force during door opening and closing driven by the door machine pulleys, with a load-bearing capacity of up to 500N. The precision stamping process guarantees dimensional accuracy (tolerance ±0.1mm), ensuring a perfect fit with door lock components and elevator door panels. The electrophoretic anti-corrosion coating effectively resists rust and corrosion in the harsh elevator shaft environment, extending the bracket’s service life. The bracket’s integrated design also simplifies installation and enhances structural stability.
Usage Guide for Elevator Door Lock Bracket AZ-06
Correct installation and debugging of the AZ-06 door lock bracket are crucial to ensuring the stable operation of the door lock system and the coordinated work with the door machine pulley system. Nanjing Zhuye Elevatorparts emphasizes that only certified elevator maintenance technicians are allowed to perform installation and replacement operations.
1. Pre-Installation Preparation
1. Pre-Installation Preparation
First, confirm that the elevator’s MAC car lighting controller model matches the POWCV24181MH power supply (check parameters such as input voltage, output voltage, output current, and installation dimensions). Consult Nanjing Zhuye Elevatorparts’ technical team if there is any uncertainty about compatibility. Then, cut off the elevator’s main power supply and the secondary power supply for the car lighting system, lock the switch, and place a “Maintenance in Progress” warning sign at the elevator landing doors and machine room entrance. Locate the power supply installation position (usually on the car top or in the car control cabinet) and clean the area to remove dust, debris, and oil stains. Finally, prepare professional tools such as a screwdriver, wire stripper, multimeter, and insulation tester, and check that the new POWCV24181MH power supply from Nanjing Zhuye Elevatorparts is intact (no damage to the shell, no loose pins).
First, confirm that the elevator door lock model and door panel structure match the AZ-06 bracket (check parameters such as installation dimensions, hole position spacing, and load-bearing capacity). Consult Nanjing Zhuye Elevatorparts’ technical team if there is any uncertainty about compatibility. Then, cut off the elevator’s main power supply and door system power supply, lock the switch, and place a “Maintenance in Progress” warning sign at the landing. Fix the elevator door in a half-open state with wooden wedges to expose the door lock installation area. Finally, prepare professional tools such as a screwdriver, wrench, torque wrench, and measuring tape; clean the installation position on the door panel and check the door machine’s drive and driven pulleys for normal operation (abnormal pulley operation may affect door closing and bracket stress).
FixDebuggDebugg2. Installation & Tension Adjustment
If replacing the old bracket, first take photos to record its installation position, hole position alignment, and door lock fixing method for later reference. Remove the fixing bolts of the old bracket and the door lock, then take down the old bracket. Take the new AZ-06 bracket from Nanjing Zhuye Elevatorparts, align it with the preset hole positions on the door panel (use a measuring tape to confirm horizontal and vertical alignment), and fasten it temporarily with positioning pins. Use a torque wrench to tighten the fixing bolts (torque value recommended by Nanjing Zhuye: 8-10 N·m) to ensure the bracket is firmly fixed without loosening. Install the door lock onto the AZ-06 bracket, aligning the lock’s mounting holes with the bracket’s holes, and fasten with bolts. Check that the door lock’s trigger mechanism aligns with the door closing lever and that there is no interference with the door machine pulley system.
Debugg3. Operation & Daily Maintenance
Remove the wooden wedges fixing the door, restore the power supply, and switch the elevator to inspection mode. Operate the elevator door to open and close repeatedly, observing whether the door runs smoothly without abnormal noise or jitter. Check if the AZ-06 bracket is loose or deformed during door operation, and confirm that the door lock works normally (locks when closed, unlocks when opened). After 1 hour of stable operation, check the bracket’s fixing bolts and door lock connection status. For daily maintenance, inspect the bracket during weekly door system patrols: check for loose bolts, corrosion on the bracket surface, and deformation; clean the bracket and door lock surface with a dry cloth. At the same time, check the door machine pulley system’s operation—abnormal pulley wear may cause uneven door stress and damage the bracket. Every 3 months, recheck the bolt torque; every 6 months, inspect the bracket for cracks and the anti-corrosion coating for peeling.
Replacement Cycle of Elevator Door Lock Bracket AZ-06
The replacement cycle of the AZ-06 door lock bracket is closely related to operating conditions and the frequency of door machine pulley operation. Under normal circumstances (elevator daily operation 12-24 hours, door opening and closing times ≤ 1500 per day, dry and low-dust shaft environment), Nanjing Zhuye Elevatorparts recommends a replacement cycle of 5-8 years. This cycle is determined based on long-term field operation data and material fatigue tests, fully considering the wear of the bracket, bolt loosening, and anti-corrosion coating aging.
For elevators in high-traffic areas (e.g., large shopping malls, airports with daily door opening and closing times ≥ 2000) or harsh environments (high humidity, heavy dust, frequent vibration), the replacement cycle should be shortened to 3-5 years. High-frequency door operation increases the stress on the bracket, while harsh environments accelerate corrosion and material fatigue. For low-usage elevators (e.g., villa elevators, small office buildings with daily operation time < 8 hours) in stable environments, the cycle can be extended to 8-10 years, but only after inspection and confirmation by Nanjing Zhuye’s technicians that the bracket’s structural integrity and coordination with the door machine pulley system meet standards.
Replace the bracket immediately if any of the following issues occur, regardless of its service life: The bracket is severely deformed, cracked, or broken (affecting door lock installation stability); the anti-corrosion coating peels off and the bracket is severely rusted; the fixing bolt holes are worn or stripped, causing bolts to loosen; the bracket cannot firmly fix the door lock, leading to abnormal door operation or lock failure; the bracket interferes with the door machine pulley system due to deformation, causing abnormal noise or jitter.
The Elevator Door Lock Bracket AZ-06 from Nanjing Zhuye Elevatorparts integrates structural stability, durability, and strong compatibility, providing a solid structural guarantee for the elevator door lock system and ensuring coordinated operation with the door machine pulley system. By following the correct usage, maintenance, and replacement guidelines, you can effectively ensure the safe and stable operation of the elevator door system, reduce faults caused by bracket abnormalities, and extend the service life of door lock components and door machine pulleys. Choosing Nanjing Zhuye Elevatorparts means you get 100% authentic AZ-06 door lock brackets, as well as professional services including model matching, on-site installation guidance, and timely after-sales support. Trust Nanjing Zhuye Elevatorparts for the stable and safe operation of your elevator.
