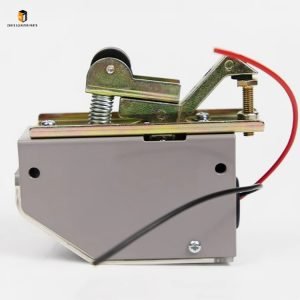

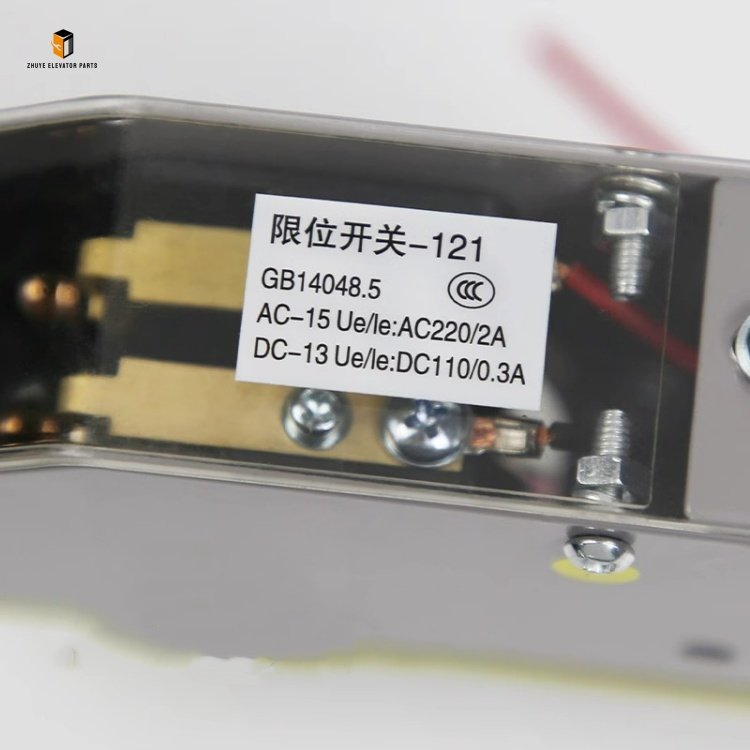

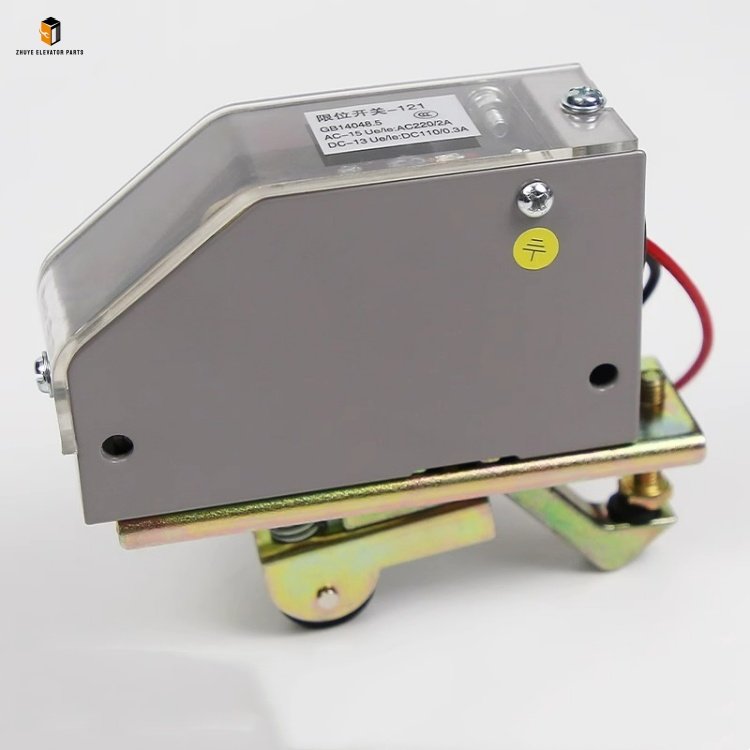

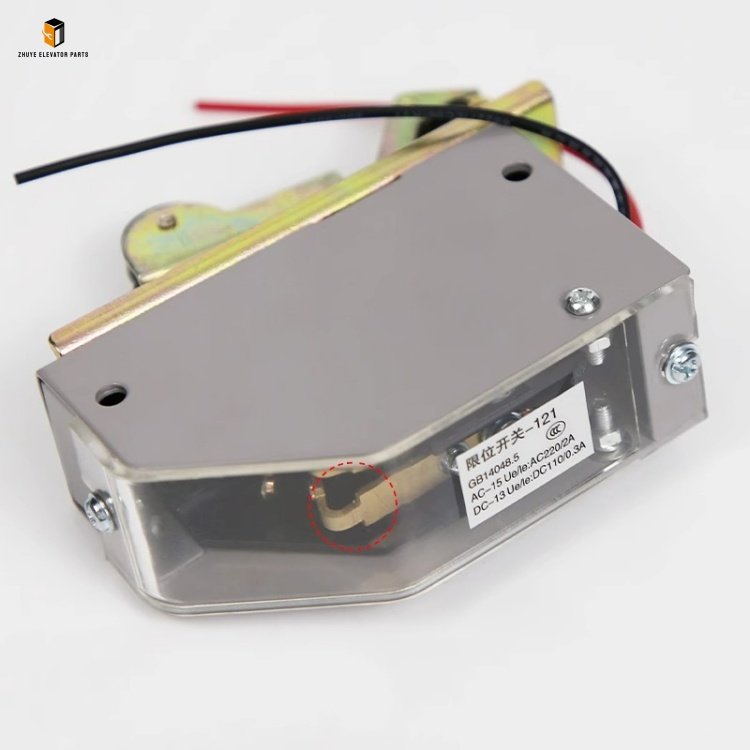

Elevator Door Limit Switch YF-121/DS121: Safety Limit Core from Nanjing Zhuye Elevatorparts

Step-by-Step Usage Guide for Elevator Door Limit Switch YF-121/DS121

1. Professional Selection & Installation

• Safety Preparation: Cut off the elevator’s main power supply and the dedicated power supply for the door system. Lock the power switch and place a “Maintenance in Progress” warning sign to prevent accidental power-on. Fix the elevator door leaf in the middle position with a door holder to avoid interference with switch installation.
• Switch Positioning & Installation: Install the YF-121/DS121 limit switches at the fully open and fully closed positions of the door leaf (usually on the door frame or door operator beam). Adjust the switch’s mounting height and angle to ensure the door leaf’s striker plate can accurately trigger the switch’s lever when reaching the extreme positions (trigger stroke 2–5mm). Fix the switch to the mounting bracket using the bolts provided by Nanjing Zhuye Elevatorparts, ensuring firm installation without looseness.
• Wiring Operation: In accordance with the elevator door system wiring diagram and the YF-121/DS121 user manual, connect the switch’s normally open/normally closed contacts to the corresponding terminals of the door controller. Confirm the correct wiring polarity and tight terminal connections to avoid poor contact or short circuits. Use shielded cables for signal transmission to enhance anti-interference performance, and organize the wires neatly with cable ties.

2. Debugging & Function Test

• Trigger Accuracy Test: Restore the elevator’s power supply and switch to inspection mode. Manually operate the door leaf to the fully open and fully closed positions, checking if the limit switch is triggered accurately (audible “click” sound). Use a multimeter to detect the switch’s contact on-off status, confirming the controller receives clear “limit reached” signals.
• Door Operation Test: Test the automatic opening and closing of the elevator door. Ensure the door motor stops immediately when the door reaches the fully open or fully closed position, without overtravel or incomplete stroke. Repeat the test 10 times to verify the switch’s stable triggering performance.
• Emergency Protection Test: Simulate abnormal door operation (e.g., obstacle blocking the door’s limit position) to check if the limit switch can cut off the door motor power in time, preventing mechanical damage. Confirm the elevator controller displays no error codes related to limit switch failure.

3. Daily Operation & Routine Maintenance

• Daily Visual Inspection: During elevator patrols, check the external condition of the switch. Ensure the shell is free of deformation, cracks, or damage; the lever mechanism is intact without bending or jamming; the wiring is intact without aging, wear, or loose connections. Observe the door’s opening and closing status—abnormal phenomena such as overtravel, incomplete closing, or motor jamming may indicate switch faults.
• Weekly Trigger Test: Manually trigger the limit switch’s lever to check if the contact switches smoothly. Use a multimeter to detect the contact resistance, confirming it is within the standard range (≤ 50mΩ). Adjust the switch’s position if triggering is insensitive or delayed.
• Monthly Cleaning & Maintenance: Cut off the power supply and clean the switch’s shell, lever, and terminals with a soft, dry cloth to remove dust and debris. Inspect the terminals for oxidation, and clean them with a contact cleaner if necessary. Lubricate the lever’s rotating shaft with the special lubricant recommended by Nanjing Zhuye Elevatorparts to ensure flexible movement.

Recommended Replacement Cycle for Elevator Door Limit Switch YF-121/DS121

1. Standard Replacement Cycle

2. Adjustments for Special Scenarios

• Harsh Environments & High-Traffic Scenarios: For elevators in high-humidity coastal areas (salt spray corrosion), high-dust industrial sites, or ultra-high-traffic locations (e.g., large airports, central shopping malls) with daily door cycles ≥ 4000, the replacement cycle should be shortened to 2–3 years. Harsh conditions and frequent use accelerate contact wear, shell corrosion, and internal component aging, significantly reducing the switch’s reliability.
• Low-Frequency Use Scenarios: For elevators with low usage frequency (e.g., villa elevators, small office buildings with daily operation time < 8 hours) and stable environments (constant temperature and humidity), the replacement cycle can be extended to 5–6 years—only if Nanjing Zhuye Elevatorparts’ professional technicians conduct an inspection and confirm that the switch’s triggering accuracy, contact performance, and mechanical flexibility meet the original factory standards.

3. Immediate Replacement Conditions

• The switch fails to trigger or triggers delayed, leading to door overtravel, mechanical collision, or incomplete door closing.
• Contact resistance exceeds 200mΩ, causing unstable signal transmission and frequent door operation errors or controller alarms.
• The lever mechanism is severely worn, bent, or stuck, unable to return to the original position after triggering, affecting normal door operation.
• The switch shell is severely corroded or damaged, and internal components are exposed, threatening electrical safety and operational reliability.
