Description

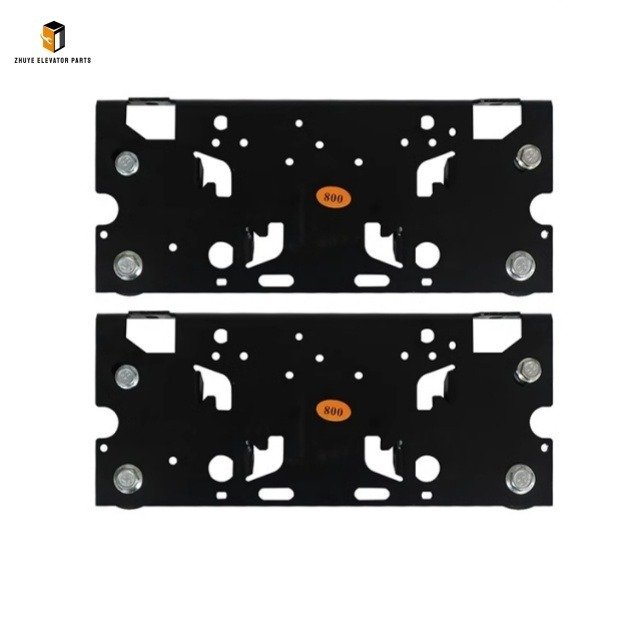

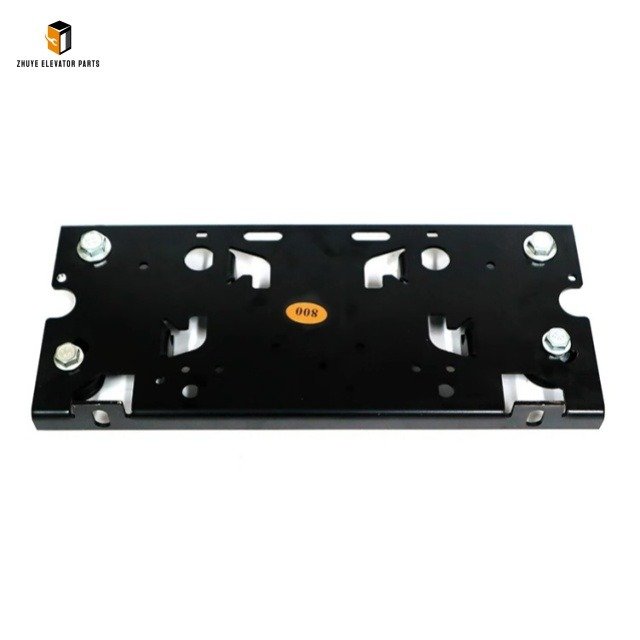

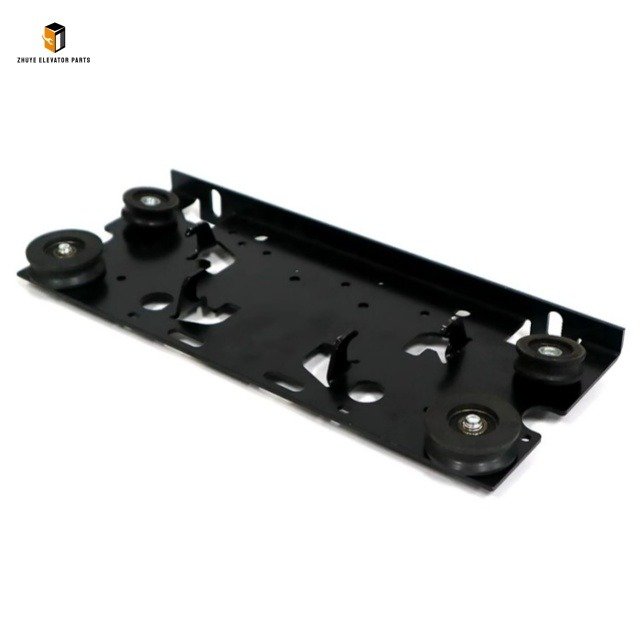

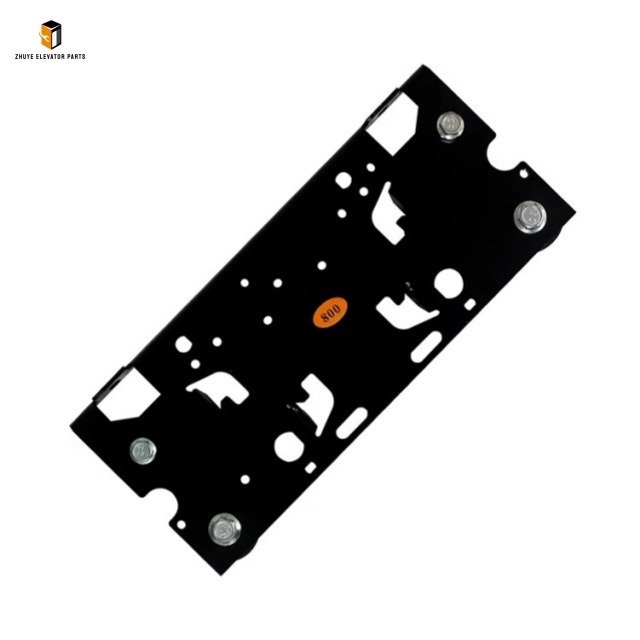

Elevator door hanging plate CORE-MD-K Brief Introduction
|
Product Name |
Elevator door hanging plate |
| Model Number | CORE-MD-K |
|
Quality
|
Original.Brand New
|
|
Payment
|
T/T. Paypal. Western Union
|
|
Delivery
|
3-5 Working Days
|
|
Packaging
|
Packed by carton
|
Elevator Door Hanging Plate CORE-MD-K: Usage Guide & Replacement Cycle
The elevator door hanging plate is a foundational load-bearing component of the elevator door system, responsible for supporting the door panel weight and ensuring smooth, stable movement of the door during opening and closing. The Elevator Door Hanging Plate CORE-MD-K, a premium offering from Nanjing Zhuye Elevator Parts, is engineered with high-strength aluminum alloy and precision machining technology, featuring exceptional load-bearing capacity, corrosion resistance, and dimensional accuracy. Compliant with international standards including GB/T 7025.1-2023 and EN 81-50, this hanging plate is equipped with high-wear-resistance sliding shoes and anti-loosening fasteners, ensuring reliable performance even in high-frequency operation scenarios. Nanjing Zhuye Elevator Parts, a trusted manufacturer and supplier of elevator components, subjects each CORE-MD-K hanging plate to rigorous load and durability testing, guaranteeing consistent performance in diverse elevator operating environments. This article details the correct installation, usage methods, and scientific replacement cycle to help maintenance professionals optimize elevator door system safety and longevity.
Prior to installation, strict adherence to elevator safety protocols is mandatory: Cut off the elevator’s main power supply, activate the emergency stop switch, and place a prominent “No Operation” warning sign to prevent accidental activation. Confirm the installation environment—ensure the door track is clean, free of debris, and properly aligned to avoid abnormal friction with the hanging plate. Verify compatibility using technical specifications from Nanjing Zhuye Elevator Parts, confirming the CORE-MD-K hanging plate matches the elevator’s door panel weight, thickness, and track model. Inspect the new hanging plate for transportation damage (e.g., bent frames, cracked sliding shoes) and ensure all accessories (fasteners, gaskets, sliding shoes) are complete and intact before proceeding. Prepare necessary tools including torque wrenches, level gauges, and cleaning brushes to ensure precise installation.
Installation requires precise mechanical operation and strict alignment to ensure door system performance. First, clean the door track thoroughly with a dry brush to remove dust and debris that may affect sliding smoothness. Align the CORE-MD-K hanging plate with the pre-drilled holes on the top of the door panel, then secure it firmly using the provided high-strength bolts—tighten to the torque specification (45-55 N·m) recommended by Nanjing Zhuye Elevator Parts to avoid loose connections. Install the sliding shoes onto the hanging plate, ensuring they fit snugly into the door track without excessive play or tightness. Hang the door panel onto the track via the hanging plate, then use a level gauge to adjust the plate’s position—ensure the door panel is vertical and parallel to the track, with a uniform gap (2-4mm) between the door and the door frame. Finally, test the door’s movement manually to confirm smooth sliding without jamming, and check that all fasteners are securely tightened to prevent vibration-induced loosening during operation.
Correct usage and regular inspections are critical to extend the hanging plate’s service life. During daily operation, prohibit slamming the elevator door or using excessive force to pry the door open, as this will impose excessive stress on the hanging plate and cause premature wear. Post-installation checks include: 1) Operating the door through 20-30 opening/closing cycles to verify smooth movement and no abnormal noise; 2) Checking the hanging plate’s fasteners for tightness after the first week of operation, and re-tightening if necessary; 3) Monitoring the sliding shoes’ wear status regularly—replace them immediately if significant wear (thickness reduction exceeding 3mm) is detected. During routine elevator maintenance, clean the door track and hanging plate surface with alcohol (avoid corrosive cleaners) to remove accumulated dust and grease, which can affect sliding performance and accelerate component wear.
CORE-MD-K elevator door hanging platepractices6-86replacement cycle should be5. The sliding shoes, as the most wearable part of the hanging plate assembly, should be replaced every 1-2 years regardless of the hanging plate’s overall condition to ensure stable door operationThe replacement cycle of the KUS0709 phase sequence relay is determined by power supply stability, operating environment, and internal component aging. Based on industry practices and technical recommendations from Nanjing Zhuye Elevator Parts, the general replacement cycle is 4-5 years under normal operating conditions (residential or office buildings with stable power supply and 8-12 hours of daily operation). For elevators in areas with frequent power fluctuations or unstable grid quality (e.g., industrial zones, remote areas), the cycle should be shortened to 3-4 years. In harsh environments with high humidity (above 70%), large temperature fluctuations, or heavy dust, the replacement cycle should be further reduced to 2.5-3 years. The relay’s internal electronic components and contacts are prone to aging over time, so proactive replacement is recommended even if no obvious faults occur.
Immediate replacement of the CORE-MD-K hanging plate is necessary if any of the following abnormalities occur: 1) Persistent door jamming or uneven sliding, which cannot be resolved by adjusting the track or sliding shoes; 2) Visible deformation, cracks, or bending of the hanging plate frame, which may lead to door panel detachment; 3) Severe wear or damage to the hanging plate’s mounting holes, causing loose connections with the door panel; 4) Abnormal noise (e.g., squeaking, grinding) during door operation that persists after lubrication and cleaning; 5) Uneven door gaps or door panel tilting, indicating structural failure of the hanging plate. Always use genuine CORE-MD-K door hanging plates from Nanjing Zhuye Elevator Parts to ensure perfect compatibility with the elevator door system and avoid safety risks from inferior counterfeit products that may not meet load-bearing safety standards.
Scientific maintenance significantly extends the CORE-MD-K hanging plate’s service life. Follow a structured maintenance schedule: Every 3 months, clean the door track and hanging plate sliding shoes with a dry brush, then apply a small amount of specialized lubricant (recommended by Nanjing Zhuye Elevator Parts) to the sliding shoes to reduce friction. Every 6 months, check all fasteners on the hanging plate for tightness and signs of corrosion, replacing any damaged or rusted bolts immediately. Annually, conduct a comprehensive inspection of the hanging plate’s structural integrity—use a straightedge to check for frame deformation and measure the sliding shoes’ thickness to assess wear. Maintain the elevator door system’s cleanliness, as dust and debris accumulation is the primary cause of accelerated hanging plate wear. Keep detailed maintenance records, including inspection dates, lubrication intervals, and part replacements, to facilitate proactive maintenance and regulatory compliance.
Elevator Door Hanging Plate CORE-MD-Kload-bearing that essmoothsafety and elevator operational efficienceffectiveinstallation, and load-bearing specifications—or to purchase genuine CORE-MD-K door hanging plateThe Elevator Phase Sequence Relay KUS0709 is an indispensable safety component that safeguards the stable operation of the elevator traction system. Its reliable performance directly prevents equipment damage and safety accidents caused by power supply abnormalities. By following correct installation and usage guidelines, adhering to the scientific replacement cycle, and choosing genuine Nanjing Zhuye Elevator Parts products, maintenance professionals can effectively reduce electrical system failures and enhance overall elevator safety. For more technical details—including wiring diagrams, troubleshooting guides, and compatibility lists—or to purchase genuine KUS0709 phase sequence relays and access professional technical support, contact the expert team at Nanjing Zhuye Elevator Parts.
