Description

Elevator Door Hanger Roller 46*16*6001 Brief Introduction

Product Name	Elevator Door Hanger Roller
Model Number	46166001
Quality	Original.Brand New
Payment	T/T. Paypal. Western Union
Delivery	3-5 Working Days
Packaging	Packed by carton

Elevator Door Hanger Roller 46166001: Smooth Door Operation Core from Nanjing Zhuye Elevatorparts

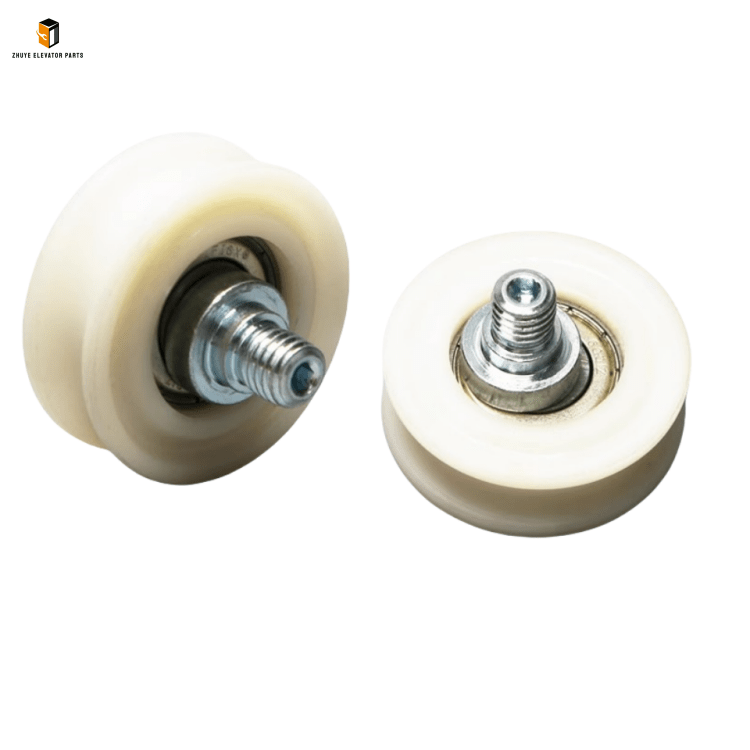

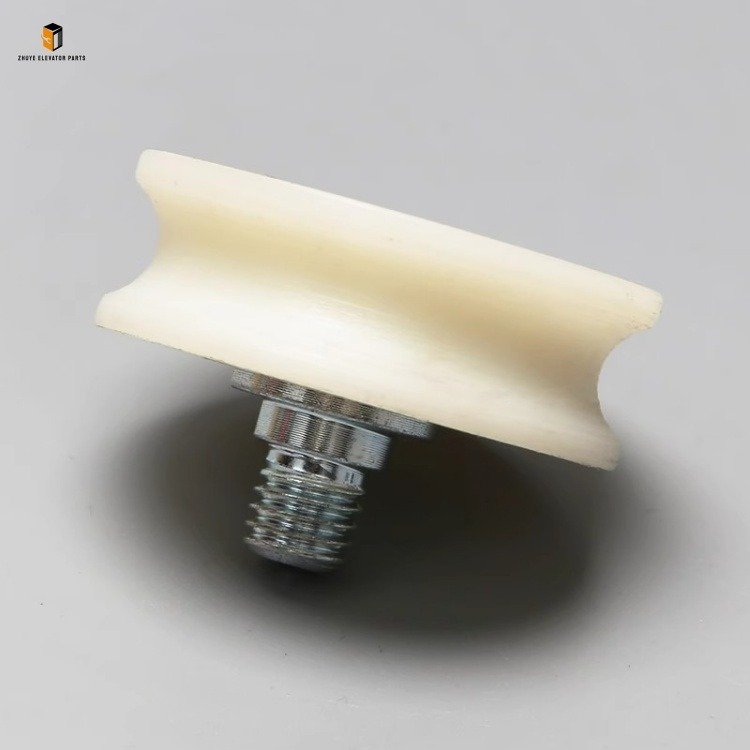

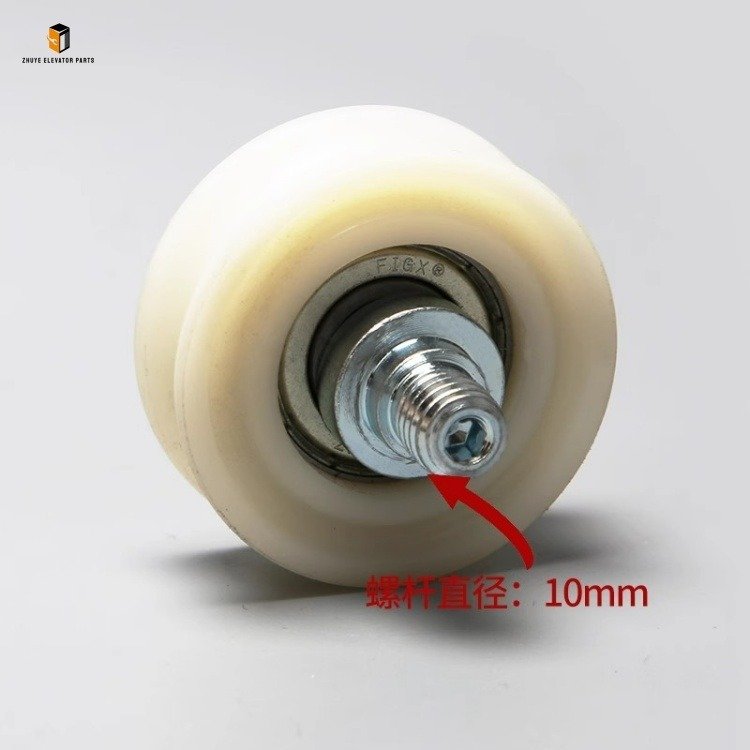

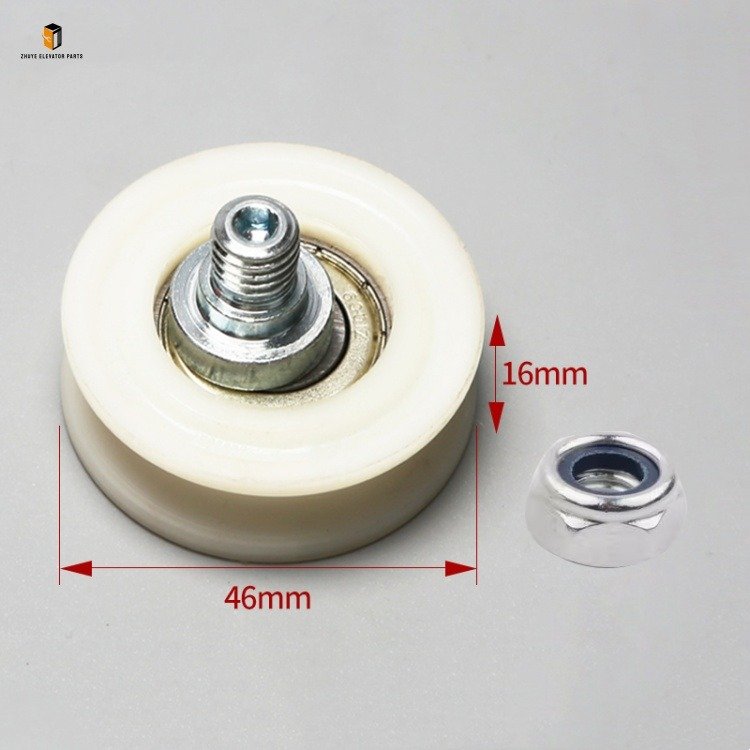

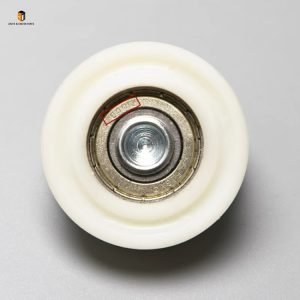

Elevator Door Hanger Roller 46*16*6001 is a critical guiding and load-bearing component for elevator door systems, with specifications of 46mm (outer diameter) × 16mm (width) × 6001 (bearing model). Installed on the elevator car door and landing door hanger assemblies, it slides along the door guide rail to support the door panel weight and ensure smooth, quiet opening and closing of the elevator doors. The precision roller structure prevents door jamming or deviation, while the built-in 6001 deep groove ball bearing reduces friction and ensures long-term stable rotation. Widely compatible with mainstream elevator door machine models (suitable for door panel weight ≤ 150kg) such as residential elevators, commercial elevators, and office building elevators, this door hanger roller is an essential replacement part for maintaining elevator door operation efficiency and passenger safety. Exclusively supplied by Nanjing Zhuye Elevatorparts, a professional provider of high-quality elevator mechanical components, the Elevator Door Hanger Roller 46*16*6001 fully complies with international elevator safety standards (EN 81-20, GB 7588) and mechanical component technical specifications. Manufactured with premium materials and precision machining technology, it features excellent wear resistance, high load-bearing capacity, and low noise operation, earning recognition from global elevator maintenance teams and property management companies.

Nanjing Zhuye Elevatorparts adheres to the core philosophy of “Smooth Sliding, Durable Operation” and implements rigorous quality control for the 46*16*6001 elevator door hanger roller. Each unit undergoes multi-stage pre-delivery inspections, including dimensional accuracy testing, wear resistance verification, load-bearing capacity detection, and rotation noise evaluation. The door hanger roller adopts advanced materials and technologies: the roller body is made of high-strength polyurethane (PU) or nylon (optional based on noise requirements), which has good wear resistance and shock absorption, reducing noise during operation to ≤ 50dB; the built-in 6001 bearing is made of high-carbon chromium steel with double-sealed structure, effectively preventing dust and lubricating oil leakage and adapting to the humid environment in elevator shafts (-20℃ to 70℃); the inner race is made of carbon steel with precision machining, ensuring tight fit with the hanger shaft; the surface of the roller is smooth and burr-free, avoiding scratches on the door guide rail. The standardized 46*16*6001 dimension enables seamless matching with elevator door hanger assemblies, simplifying installation and replacement processes.

Step-by-Step Usage Guide for Elevator Door Hanger Roller 46166001

To maximize the service life, operation smoothness, and safety of the Elevator Door Hanger Roller 46*16*6001, strictly follow the professional guidelines provided by Nanjing Zhuye Elevatorparts for selection, installation, and maintenance:

1. Professional Selection & Pre-Installation Preparation

Installation must be performed by certified elevator technicians. Prior to selection, refer to the elevator’s maintenance manual or consult Nanjing Zhuye Elevatorparts’ technical team to confirm that the 46*16*6001 door hanger roller matches the elevator’s door machine model, door panel weight, and hanger shaft size. Preparation steps: Cut off the elevator’s main power supply and lock the power switch; place a “Maintenance in Progress” warning sign at the elevator entrance; fix the elevator door in the fully open position with a mechanical support to avoid accidental closing; clean the door hanger assembly, guide rail, and surrounding area to remove dust, oil stains, and debris.

2. Correct Installation & Adjustment

Old Roller Removal: Use a wrench to loosen the locknut on the door hanger shaft, then remove the old roller from the shaft. Check the hanger shaft for wear, corrosion, or deformation; if there is damage, polish or replace the shaft before installing the new roller.
New Roller Installation: Take the 46*16*6001 door hanger roller from Nanjing Zhuye Elevatorparts, apply a thin layer of high-temperature lubricating grease to the hanger shaft (recommended by the brand). Align the roller’s inner race with the hanger shaft and slide it into place, ensuring the roller is closely attached to the hanger assembly. Tighten the locknut with a torque wrench (recommended torque: 20–30N·m) to prevent the roller from moving axially during operation.
Gap & Smoothness Adjustment: After installing the roller, check the gap between the roller and the door guide rail (standard gap: 0.5–1mm). Adjust the hanger’s position if the gap is too large or too small to ensure the roller slides along the guide rail without deviation. Manually push the door panel to open and close repeatedly, checking if the operation is smooth without jamming, abnormal noise, or uneven movement.

3. Post-Installation Testing & Daily Maintenance

Function Testing: Restore the elevator’s power supply and switch to inspection mode. Operate the elevator door to open and close automatically (≥ 10 times) to verify that the door opens and closes smoothly, the speed is uniform, and there is no abnormal noise. Check the door’s closing force (should comply with safety standards, ≤ 150N) to ensure it does not cause injury to passengers.
Daily Inspection: Maintenance personnel should check the door hanger roller during daily patrols: Observe the roller’s surface for wear, cracks, or deformation; check if the locknut is loose; listen for abnormal noise when the door opens and closes; check the guide rail for scratches caused by the roller.
Regular Maintenance: Every 3 months, clean the roller surface and guide rail with a soft brush to remove dust and debris; add lubricating grease to the hanger shaft and roller bearing. Every 6 months, measure the roller’s outer diameter wear (limit wear ≤ 2mm); if exceeding the limit, replace the roller in time. For elevators in high-traffic locations or harsh environments, shorten the maintenance interval to 1 month.

Recommended Replacement Cycle for Elevator Door Hanger Roller 46166001

As a core mechanical component enduring long-term friction with the guide rail, load-bearing of the door panel, mechanical vibration, and environmental erosion (humidity, dust, temperature changes), the 46*16*6001 elevator door hanger roller has a specified service life. Timely replacement is crucial to avoiding faults such as excessive roller wear, bearing jamming, or roller deformation—issues that may lead to elevator door jamming, slow operation, or even door failure, affecting passenger travel efficiency and safety.

1. Standard Replacement Cycle

Under normal operating conditions (elevator daily operation time 12–24 hours, daily door opening/closing cycles ≥ 2000, shaft environment temperature -20℃ to 70℃, humidity 10%–95%), the recommended replacement cycle for the 46*16*6001 elevator door hanger roller is 1.5–2.5 years. This cycle is determined based on Nanjing Zhuye Elevatorparts’ long-term field operation data, wear tests, and global user feedback on elevator door components.

2. Adjustments for Special Scenarios

High-Traffic & Harsh Environments: For elevators in high-traffic locations (e.g., large airports, central shopping malls) with daily door cycles ≥ 3500, or in harsh environments (e.g., high-humidity coastal areas, high-dust industrial sites), the replacement cycle is shortened to 8–12 months. Frequent operation accelerates roller surface wear and bearing aging, while harsh environments cause material degradation and corrosion.
Low-Frequency Use & Stable Environments: For elevators with low usage frequency (e.g., villa elevators, small office buildings with daily operation time < 8 hours) and stable shaft environments (constant temperature and humidity), the replacement cycle can be extended to 2.5–3 years—only after Nanjing Zhuye Elevatorparts’ technicians inspect and confirm that the roller’s wear degree, bearing performance, and structural integrity meet factory standards.

3. Immediate Replacement Conditions

Replace the 46*16*6001 elevator door hanger roller immediately if any of the following issues occur, regardless of its service life:

The roller surface wear exceeds 2mm, or there are cracks, chips, or obvious deformation, leading to uneven door operation or increased noise.
The bearing is stuck, noisy, or has poor rotation flexibility, causing the door to open and close unsmoothly or jam.
The roller’s inner race is loose or worn, leading to shaking during operation and affecting the door’s alignment.
Professional testing confirms that the roller’s load-bearing capacity is reduced by more than 30%, failing to support the door panel weight safely.

In conclusion, the Elevator Door Hanger Roller 46*16*6001 from Nanjing Zhuye Elevatorparts is a high-quality, highly compatible component tailored for modern elevator door systems. By following the correct selection, installation, maintenance, and replacement guidelines, elevator maintenance teams can effectively ensure the smooth and reliable operation of elevator doors, reduce door system failures, and enhance passenger ride experience. Choosing Nanjing Zhuye Elevatorparts means you get 100% authentic 46*16*6001 door hanger rollers, plus professional support—including model matching, on-site installation guidance, and prompt after-sales service. Trust Nanjing Zhuye Elevatorparts for the smooth operation of your elevator door system.
